Home / Integrated Circuit / DS9636ACJ

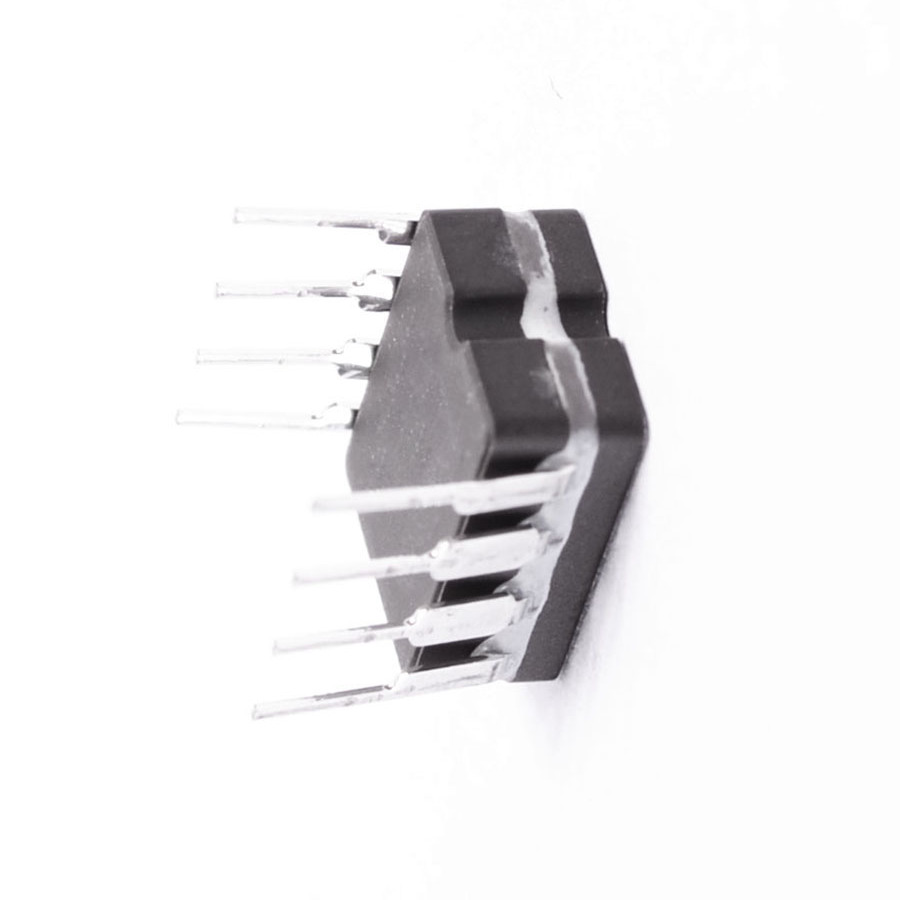

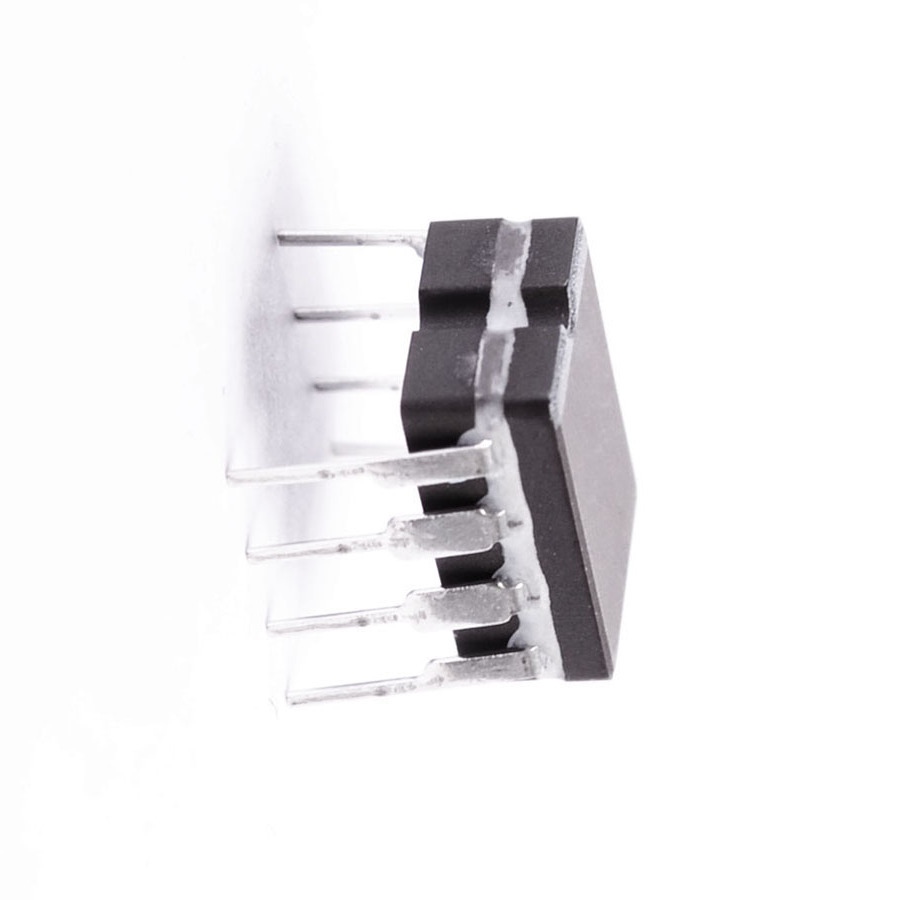

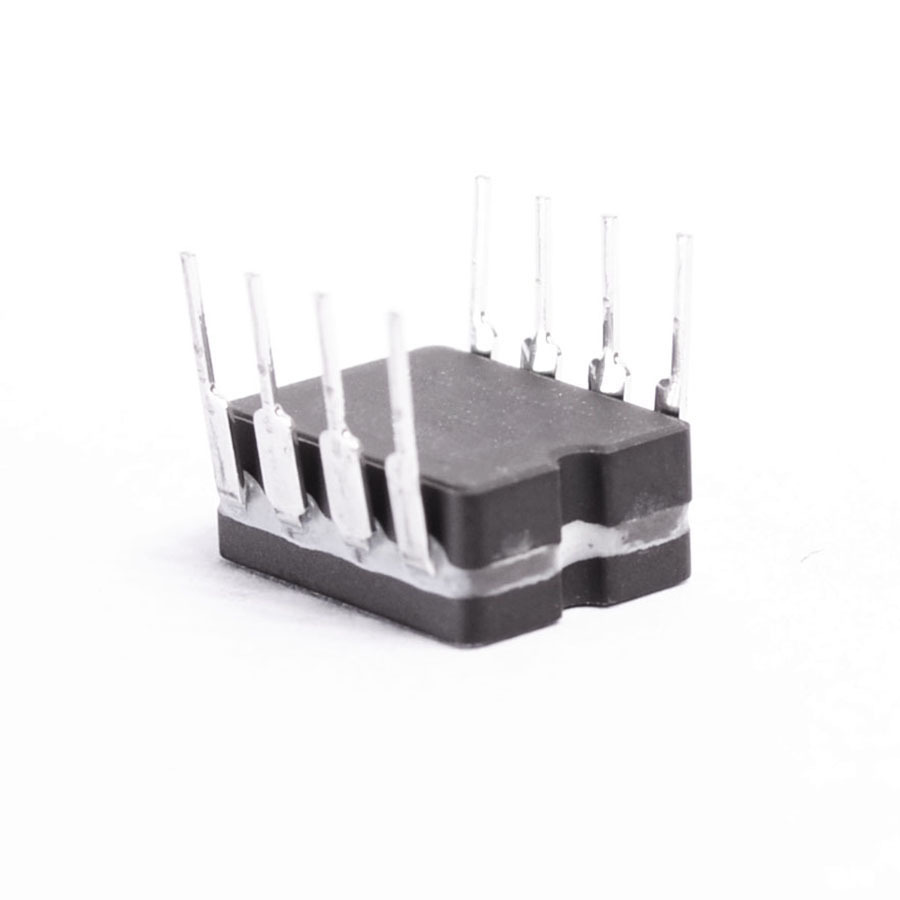

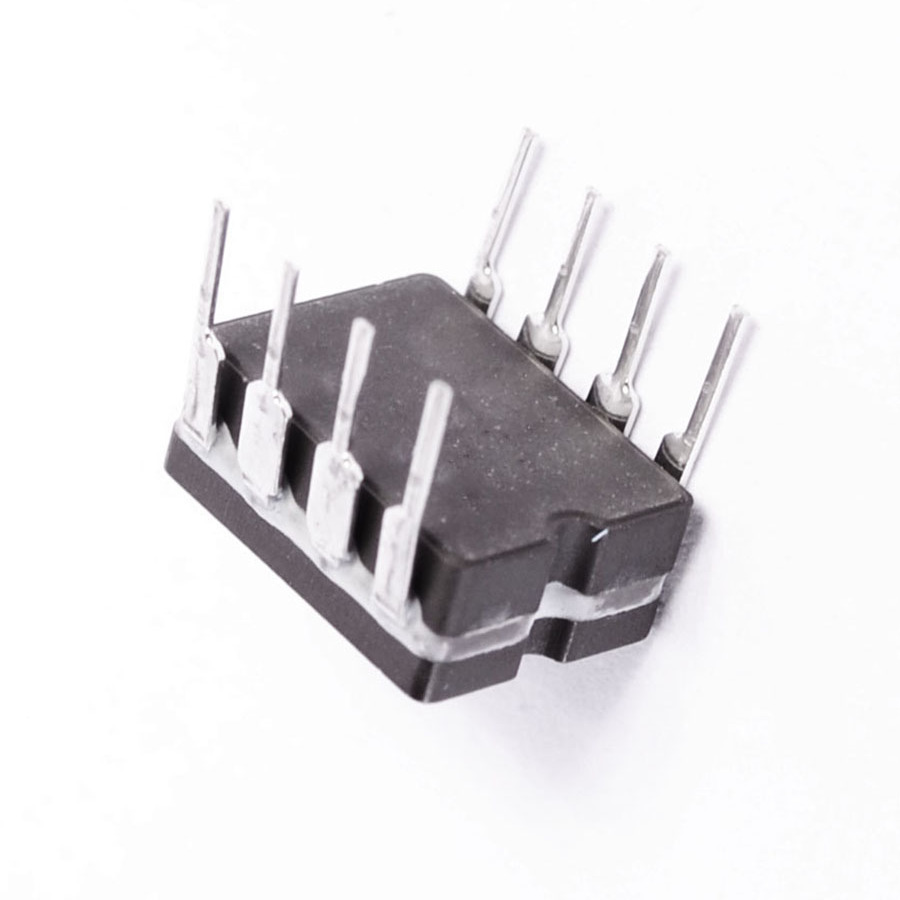

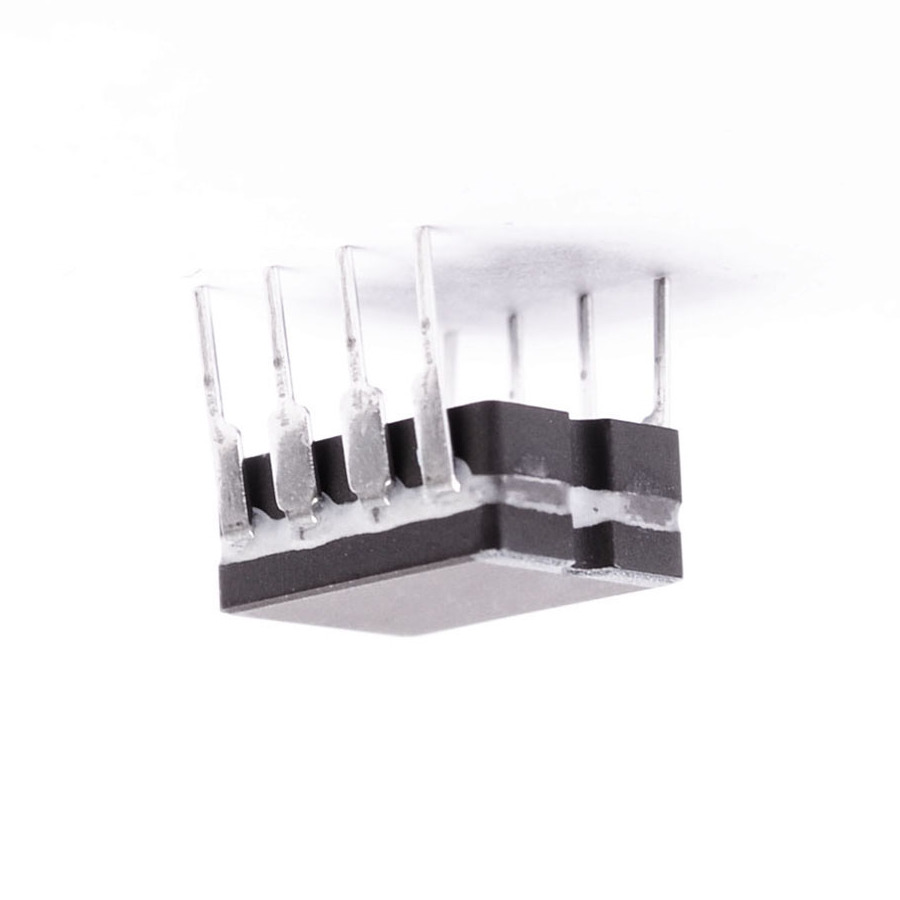

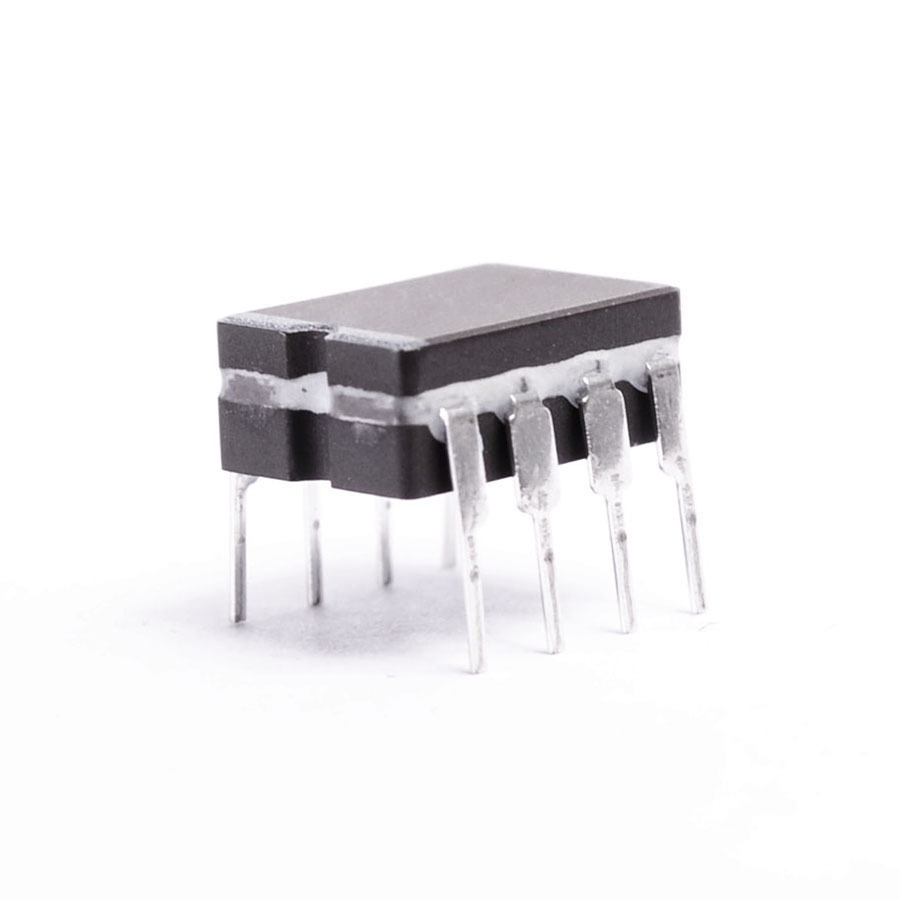

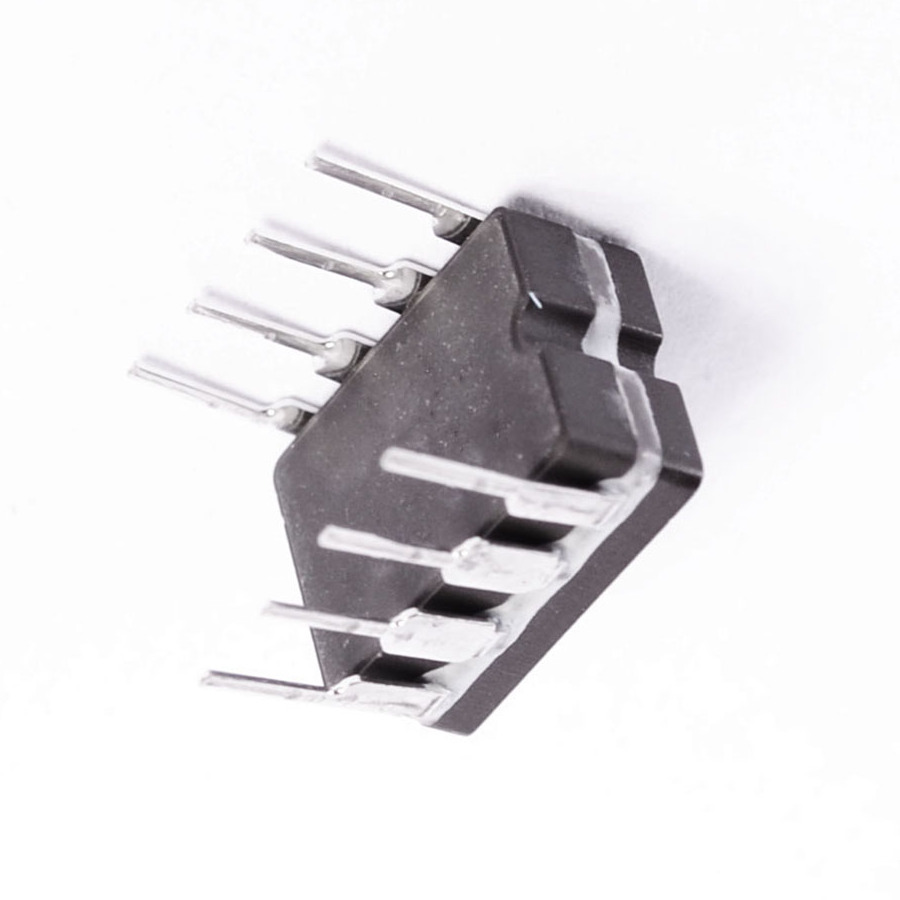

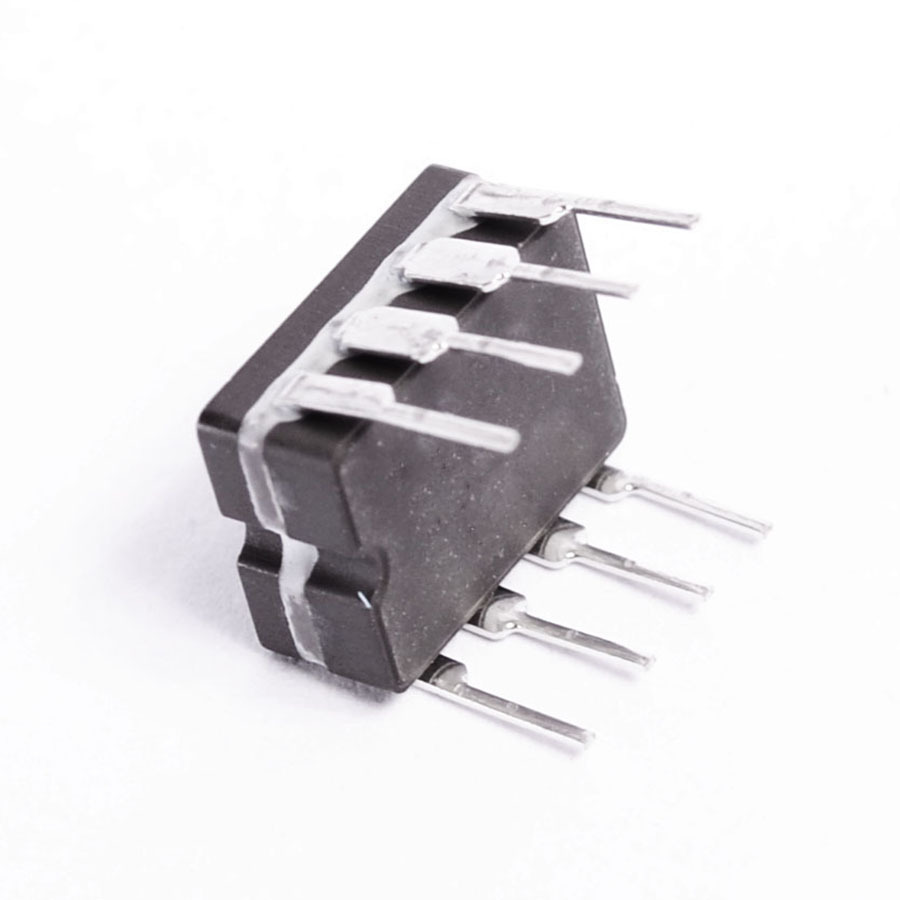

DS9636ACJ

DS9636ACJ

SKU: DS9636ACJ

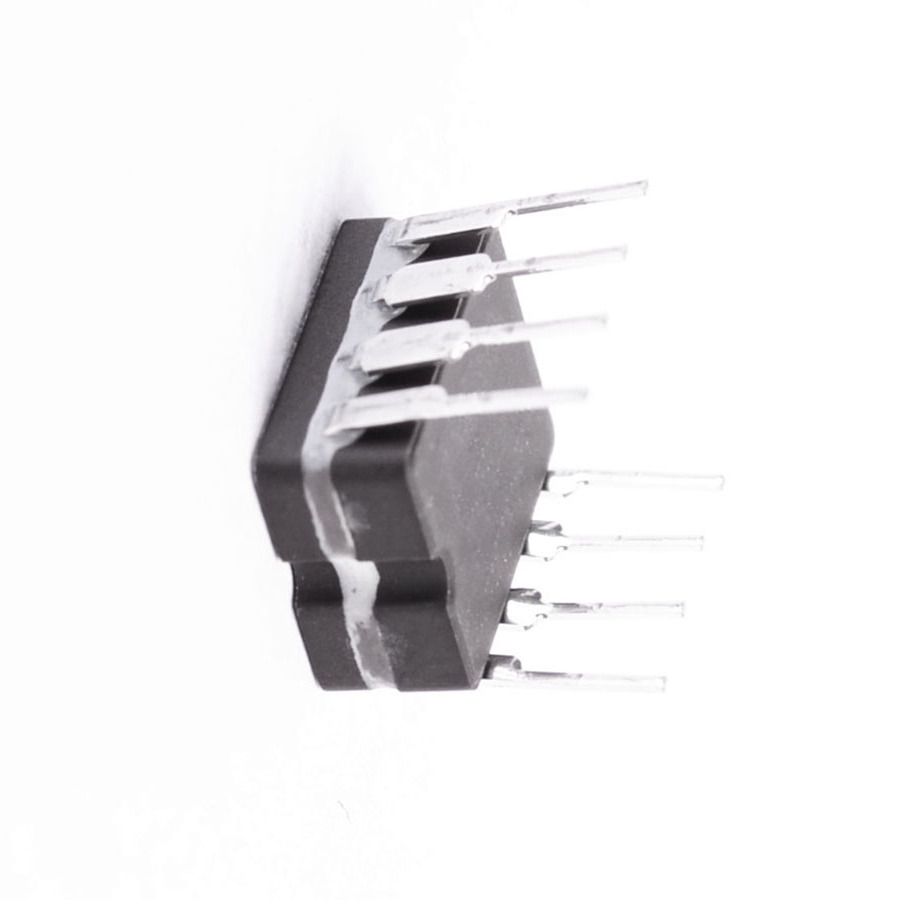

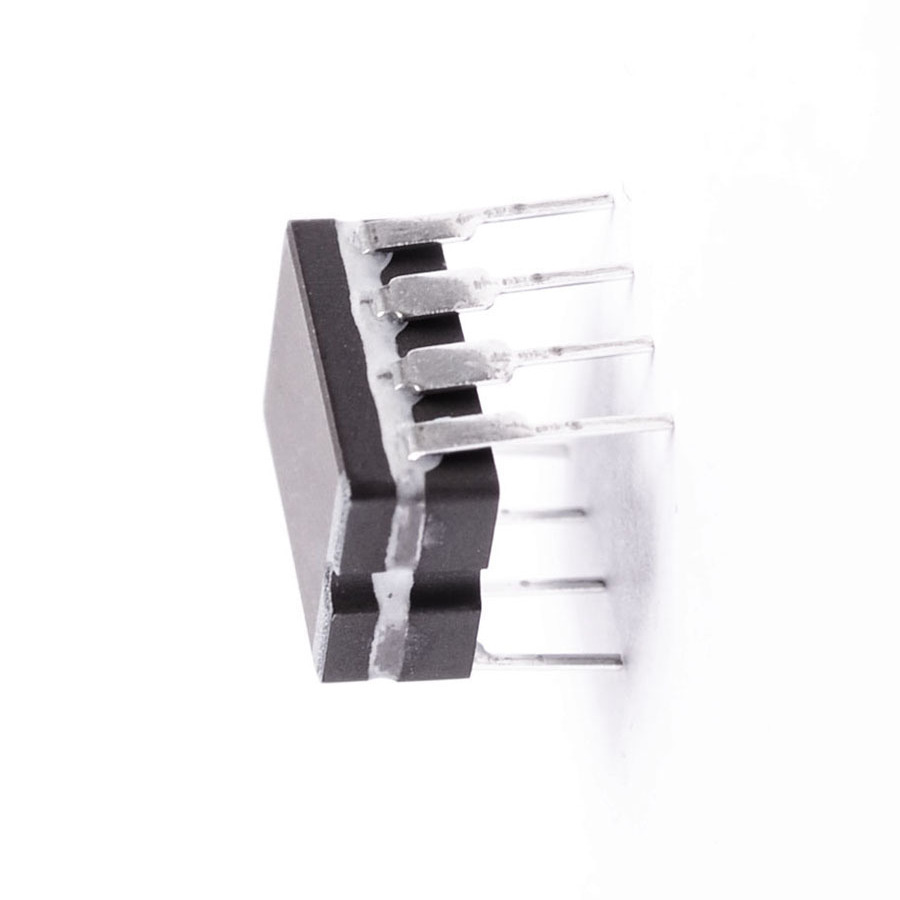

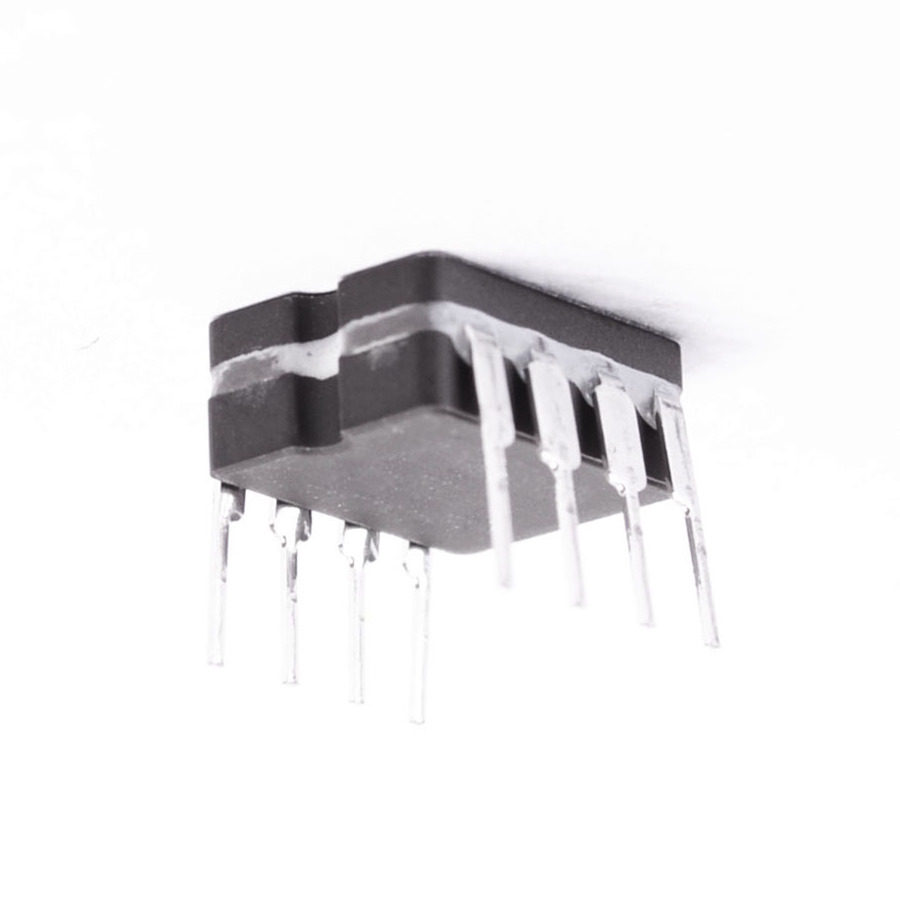

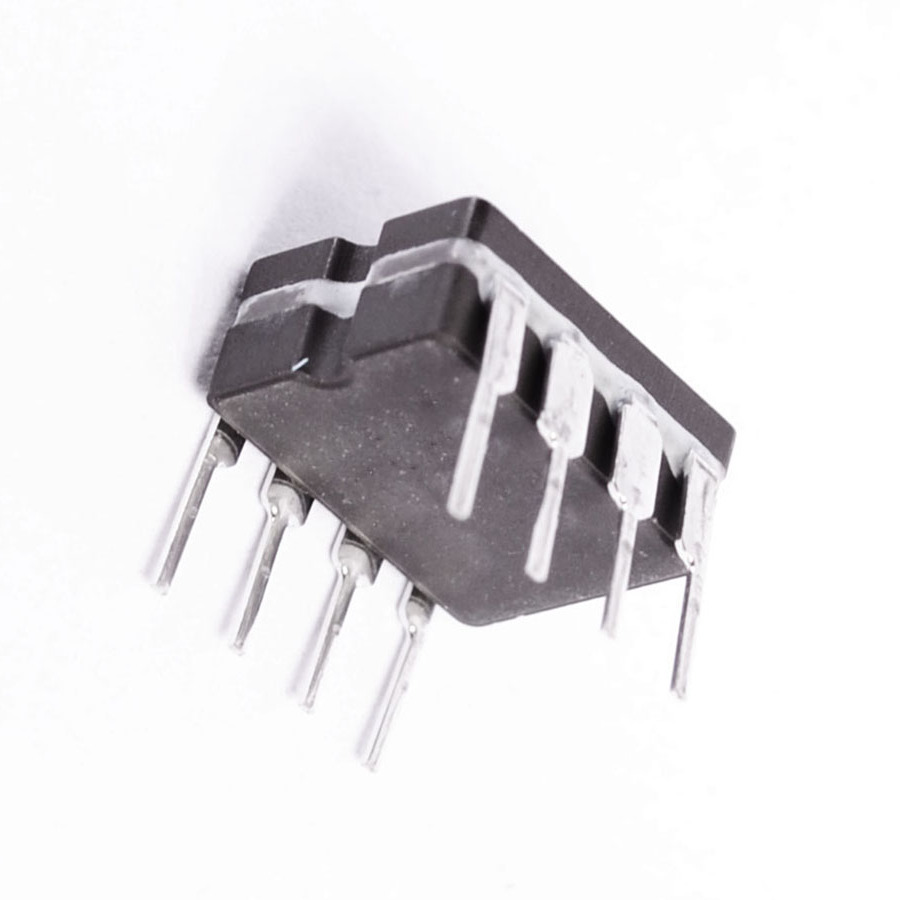

DS9636ACJ Integrated Circuit CASE: DIC8 MAKE: National Semiconductor - NSC
Product specifications
Type Integrated Circuit
Case DIC8
Manufacturer National Semiconductor - NSC
Ckts Per Dev. 2
Outp Volt Hi Typ. 5.5
Outp Volt Lo Typ. -5.4
Nom. Neg Supp 12.0
Nom. Pos. Supp 12.0
Tech. TTL Integrated Circuit
Logic Funct. Inverting
Oper. Temp (°C) Min 0
Oper. Temp (°C) Max. 70
Pinout Equivalence Number 8-363
No. of Pins 8
Surface Mounted Yes/No NO
SKU 994572
