DTA114EET1G

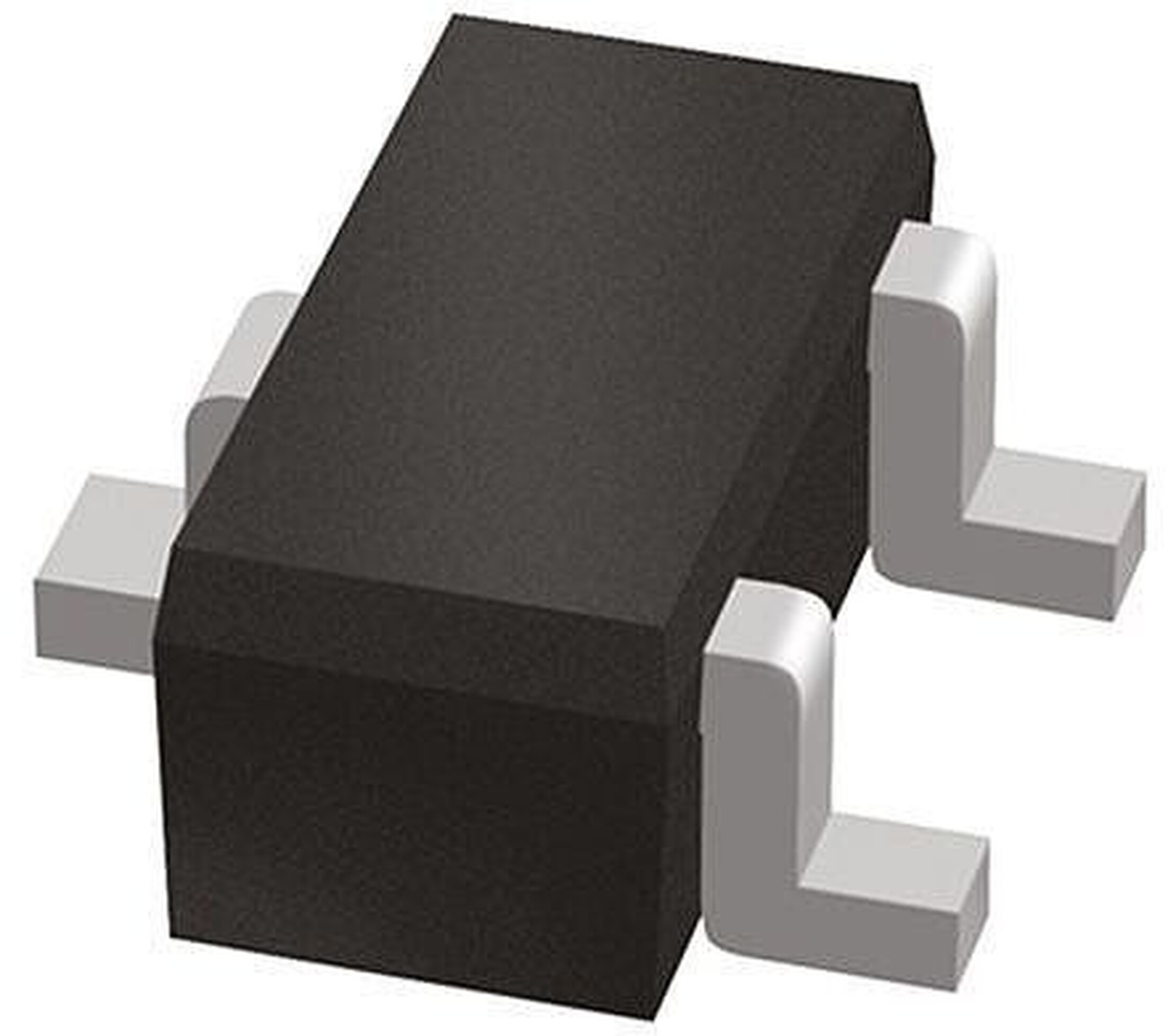

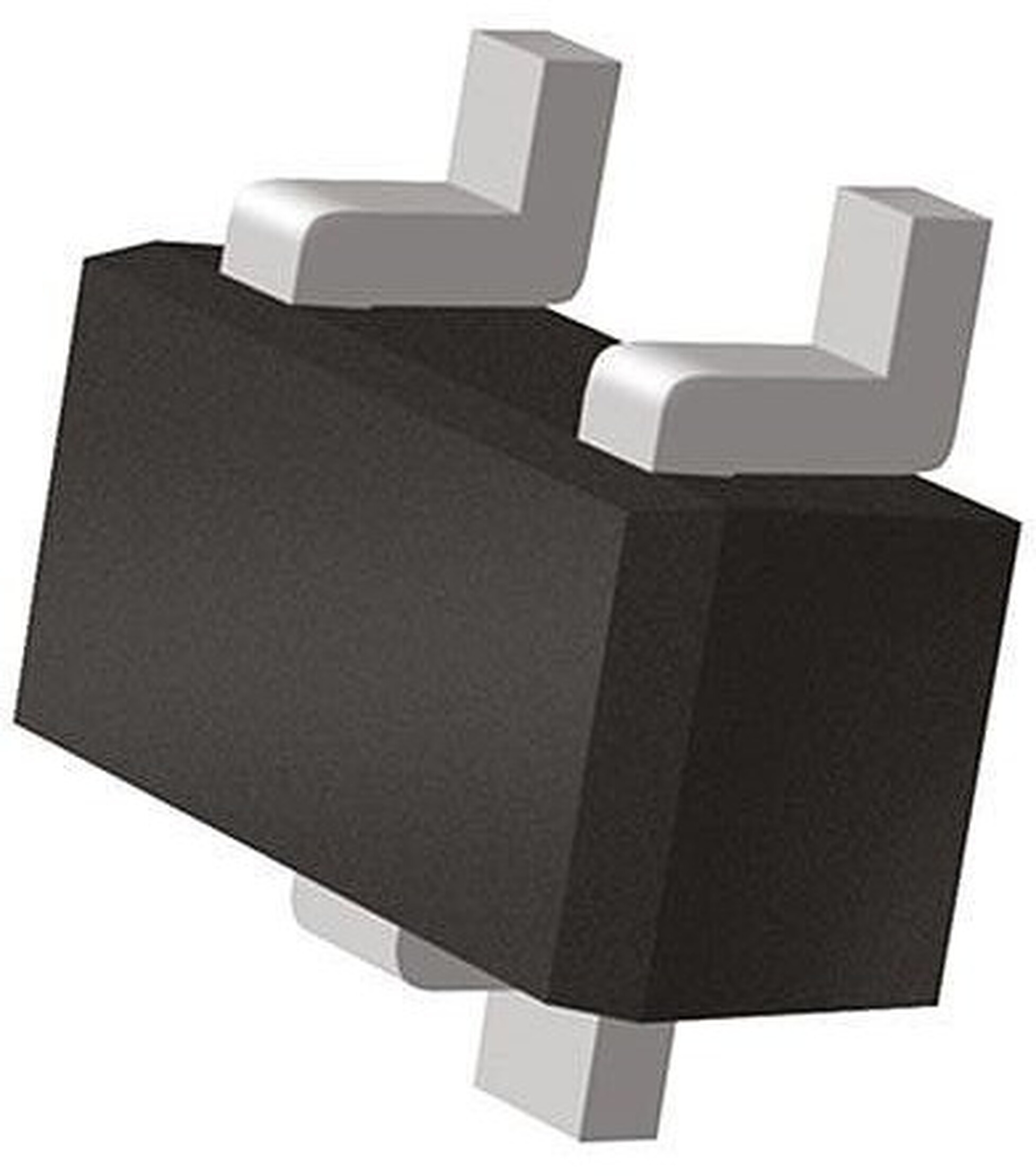

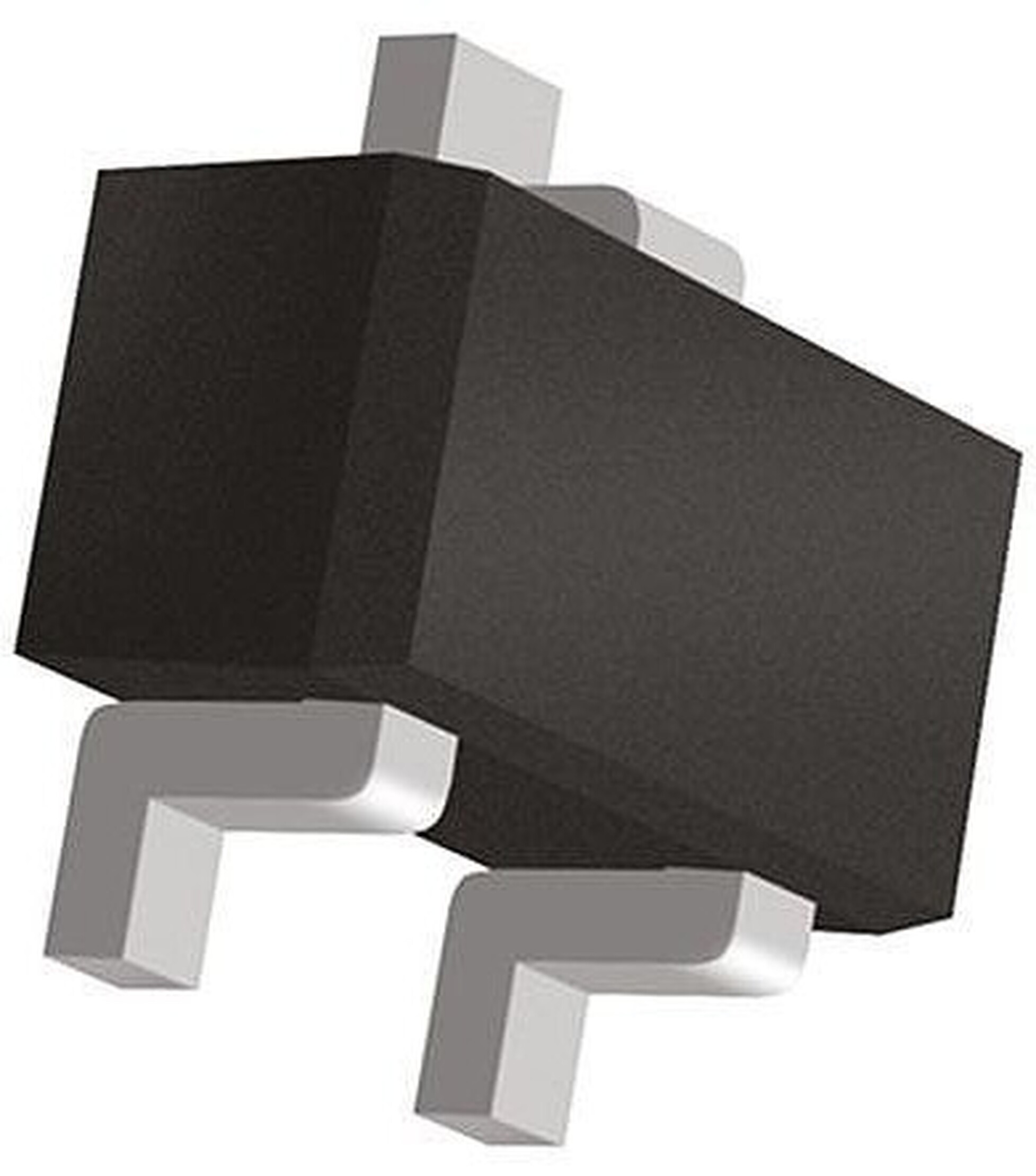

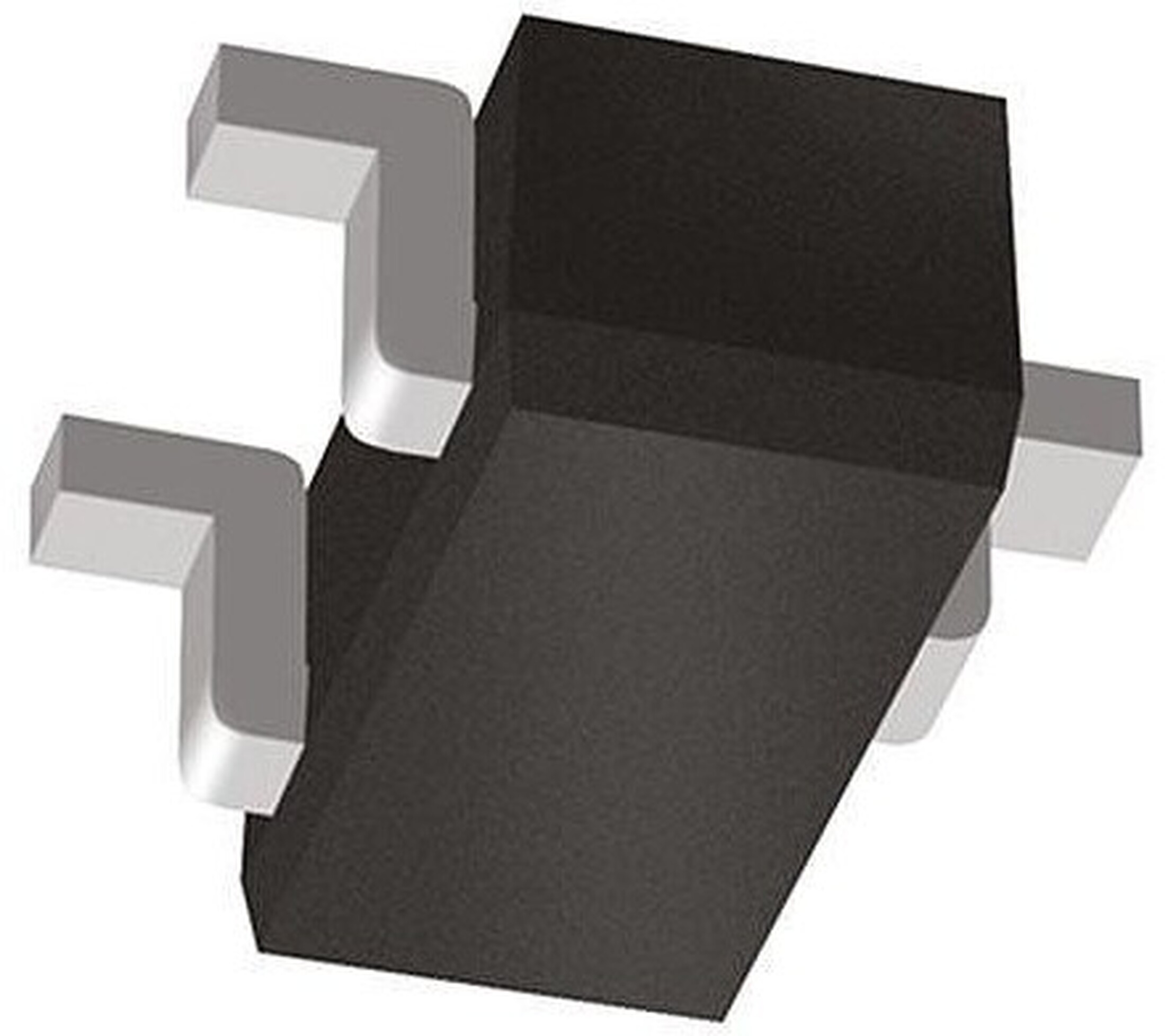

View detailed images (4)

DTA114EET1G

SKU: DTA114EET1G
DTA114EET1G Transistor Silicon PNP CASE: SC75 MAKE: Rohm Semiconductor
Product specifications
Type Transistor Silicon PNP
Case SC75
Manufacturer Rohm Semiconductor
Polarity Pre-Biased-PNP
Maximum Collector Power Dissipation (Pc) 0.2 W
Maximum Collector-Base Voltage |Vcb| 50 V
Maximum Collector-Emitter Voltage |Vce| 50 V
Maximum Collector Current |Ic max| 0.1 A
Max. Operating Junction Temperature (Tj) 150 °C
Forward Current Transfer Ratio (hFE), MIN 35
SMD Transistor Code 6A
Built in Bias Resistor R1 10 kOhm
Built in Bias Resistor R2 10 kOhm
Typical Resistor Ratio R1/R2 1
SKU 1430179
