DTA144TE
View detailed images (8)

DTA144TE

SKU: DTA144TE

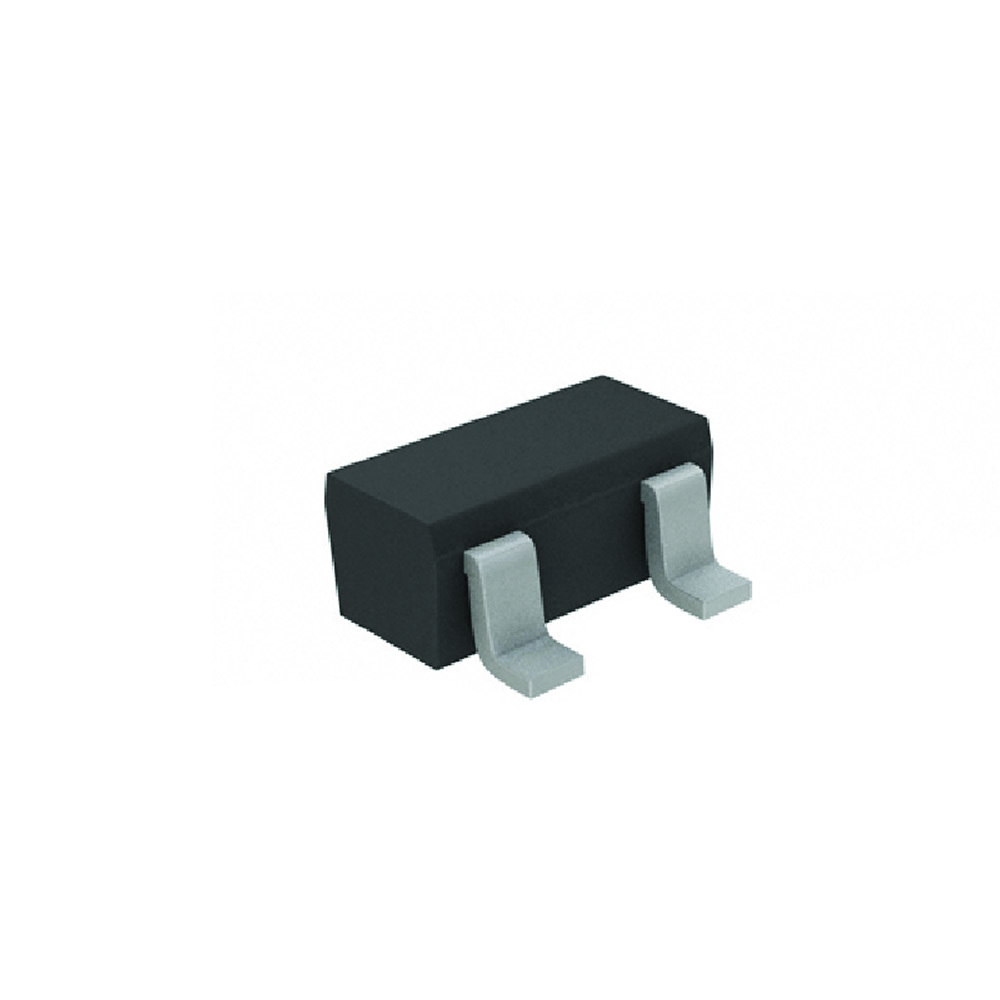

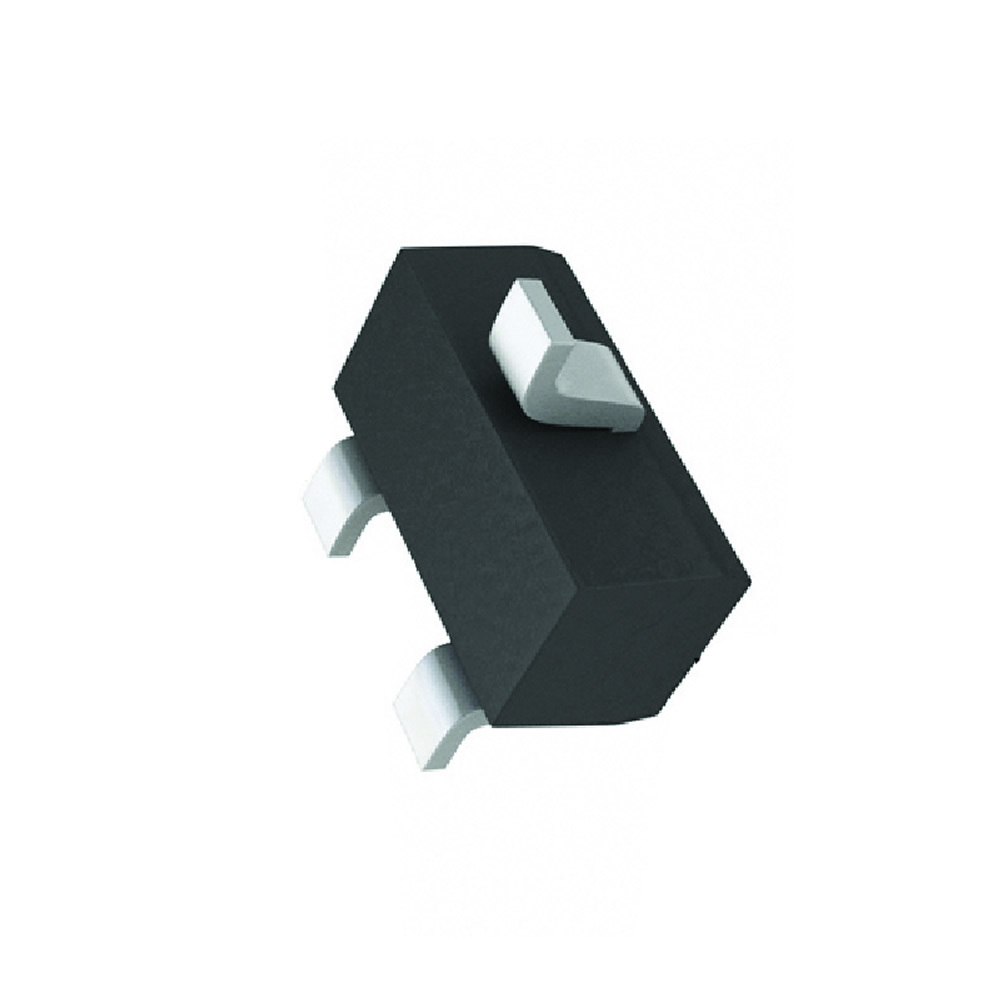

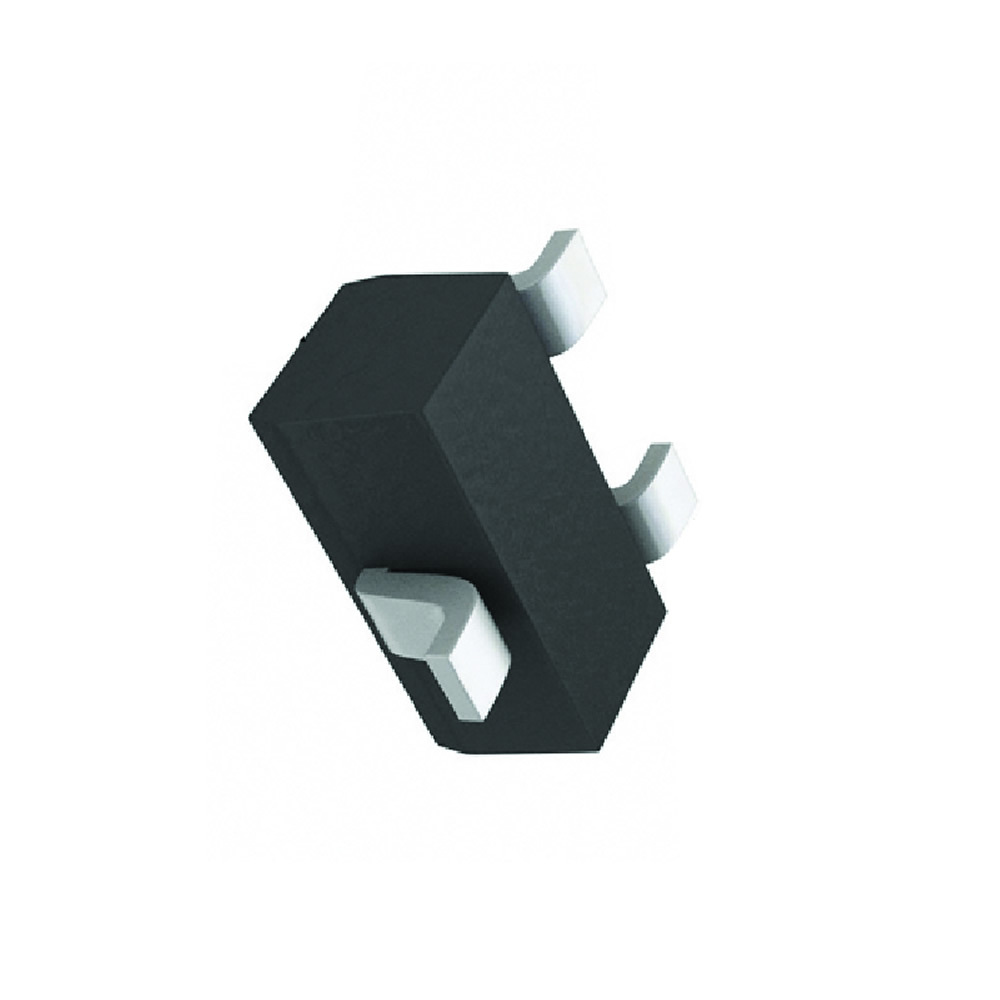

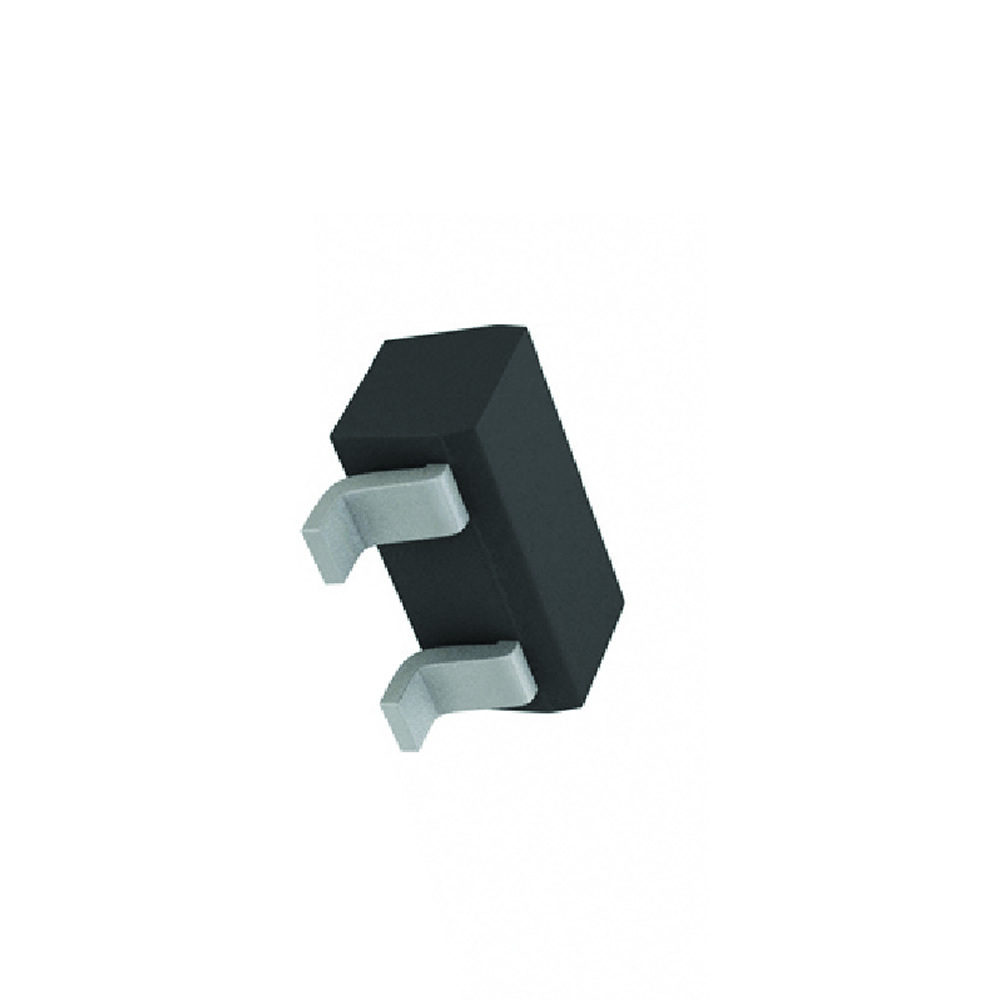

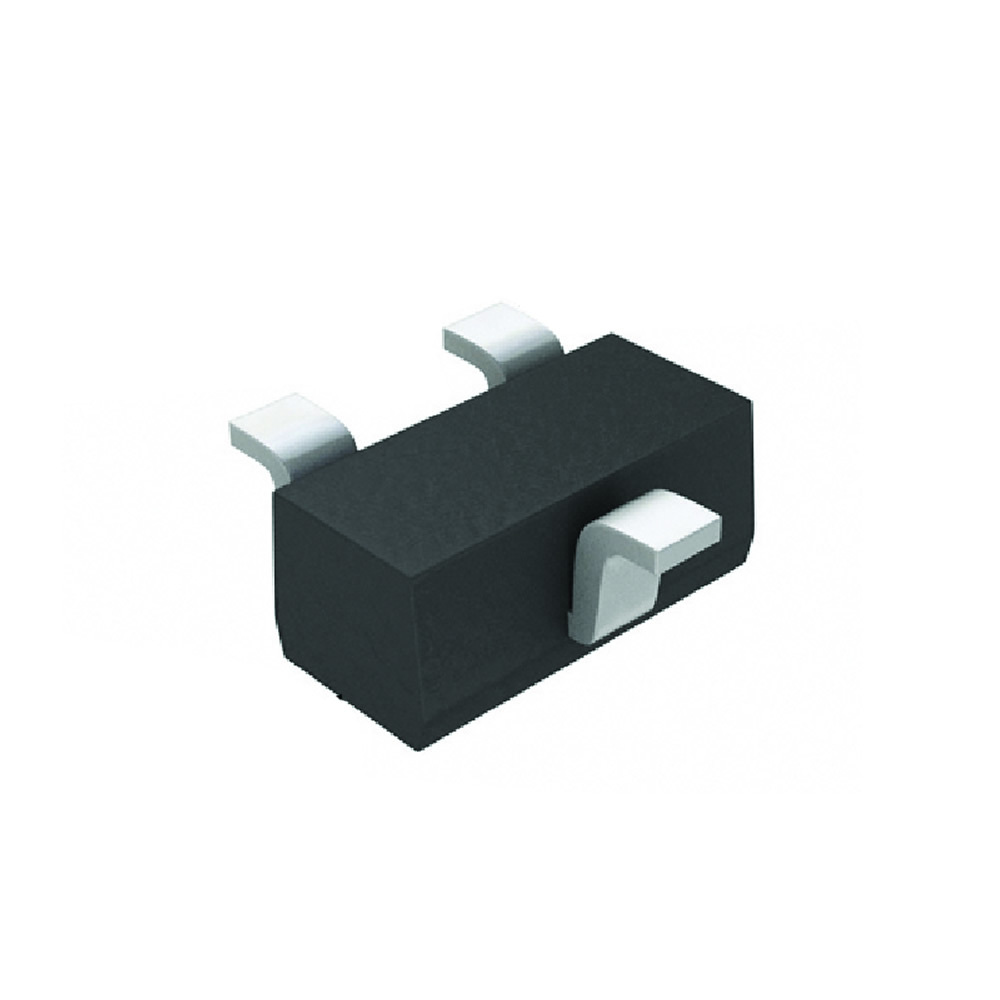

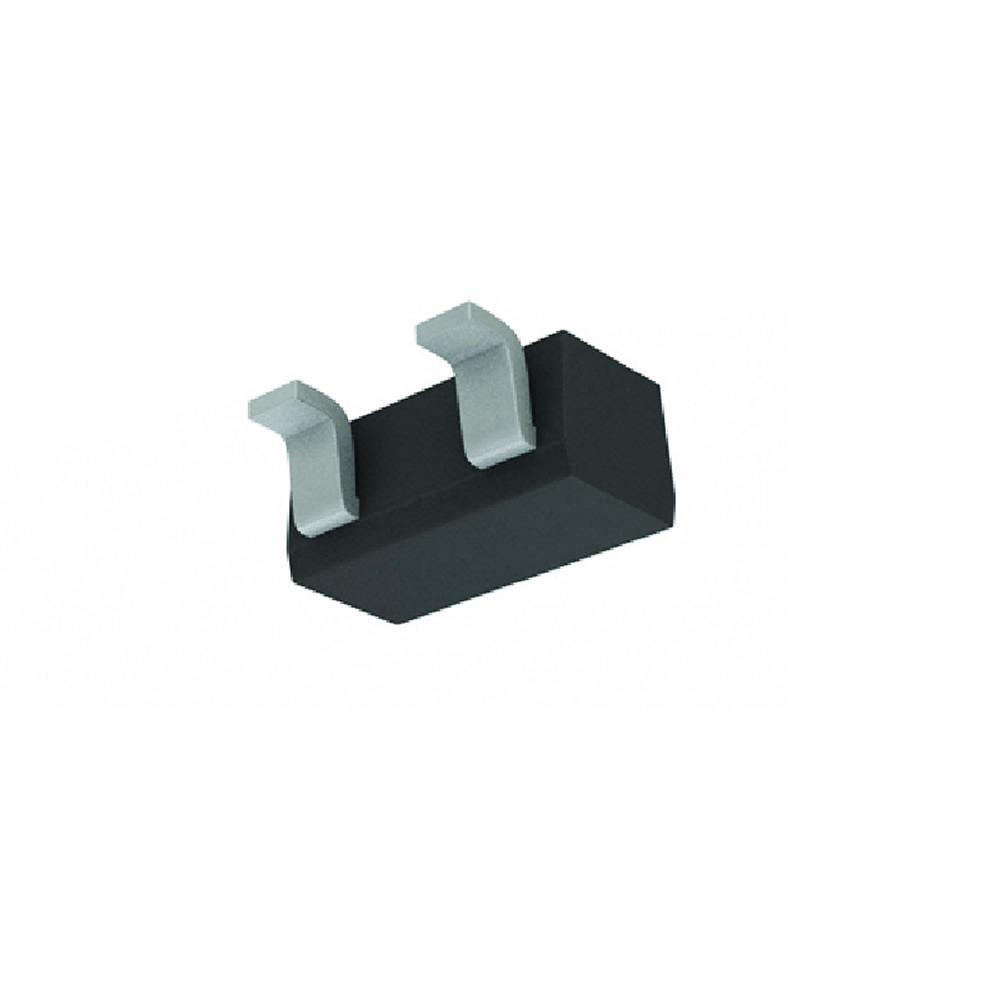

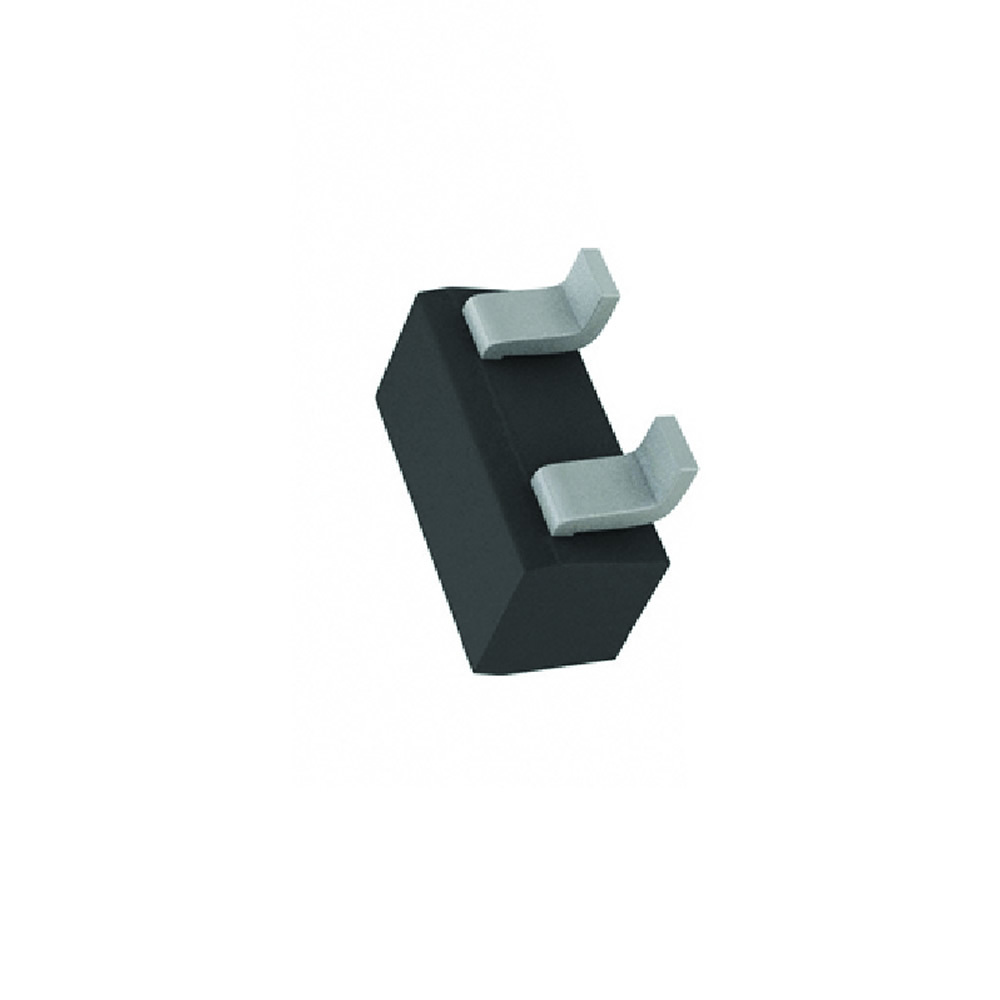

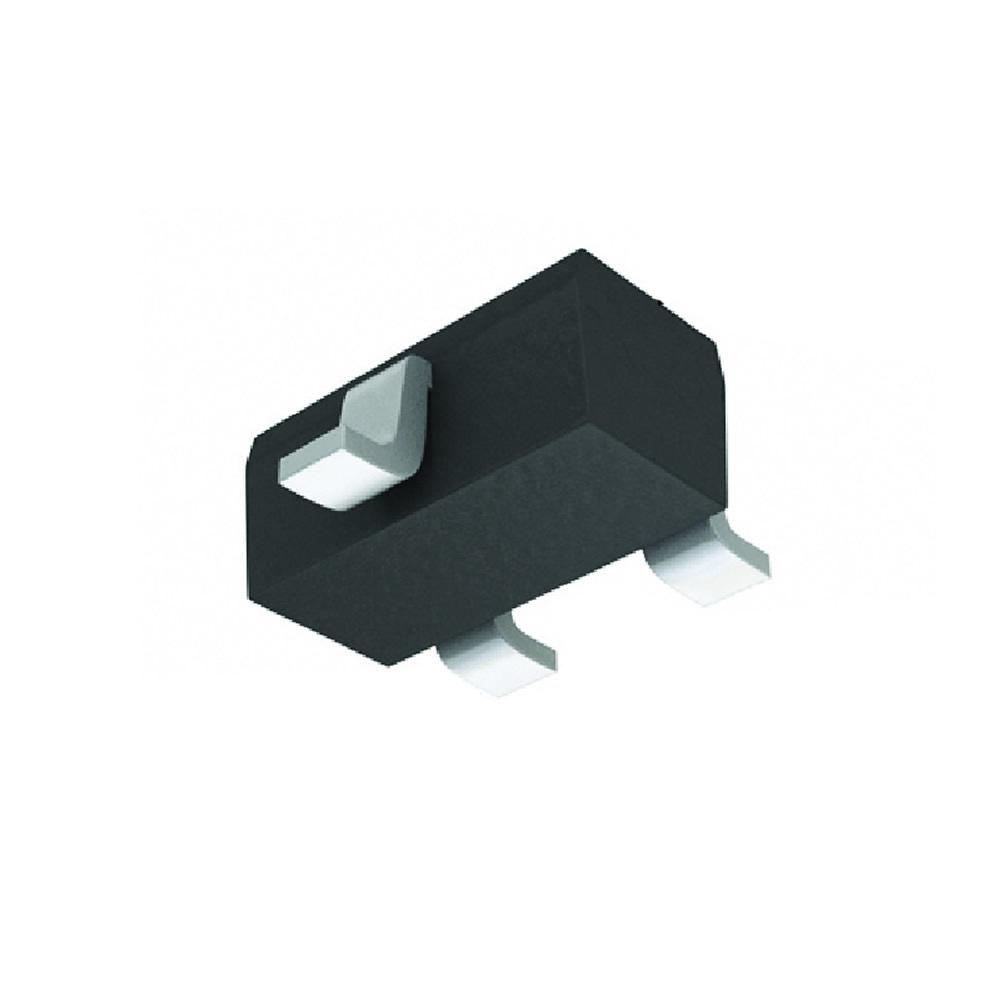

DTA144TE Transistor Silicon NPN CASE: SOT416 MAKE: Rohm Semiconductor
Datasheet
DTA144TE Datasheet
Product specifications
Type Transistor Silicon NPN
Case SOT416
Manufacturer Rohm Semiconductor
Polarity Pre-Biased-PNP
Maximum Collector Power Dissipation (Pc) 0.15 W
Maximum Collector-Emitter Voltage |Vce| 50 V
Maximum Collector Current |Ic max| 0.1 A
Max. Operating Junction Temperature (Tj) 150 °C
Transition Frequency (ft): 250 MHz
Forward Current Transfer Ratio (hFE), MIN 120
SMD Transistor Code 96
Built in Bias Resistor R1 47 kOhm
SKU 351797
