ECG160
View detailed images (4)

ECG160

SKU: ECG160

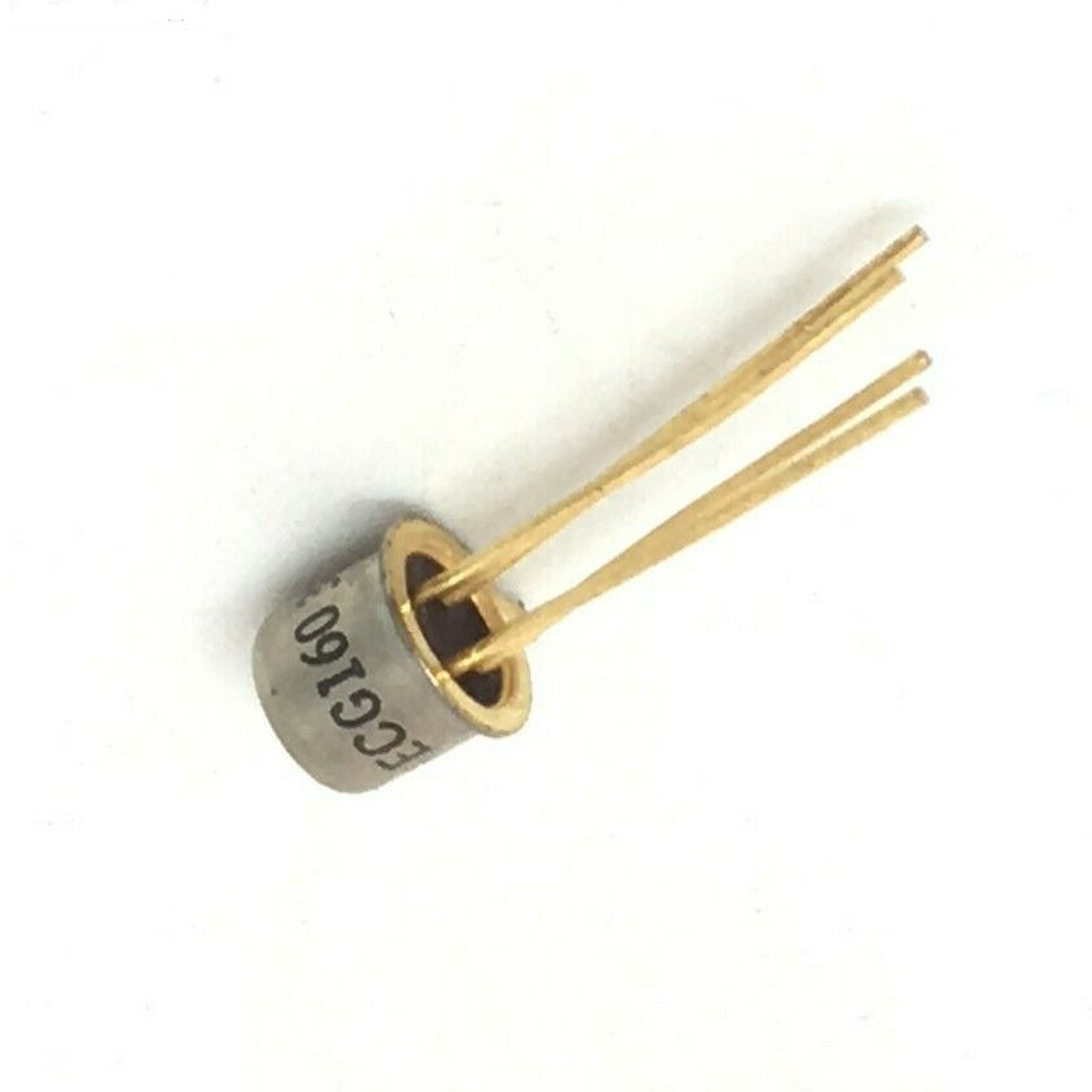

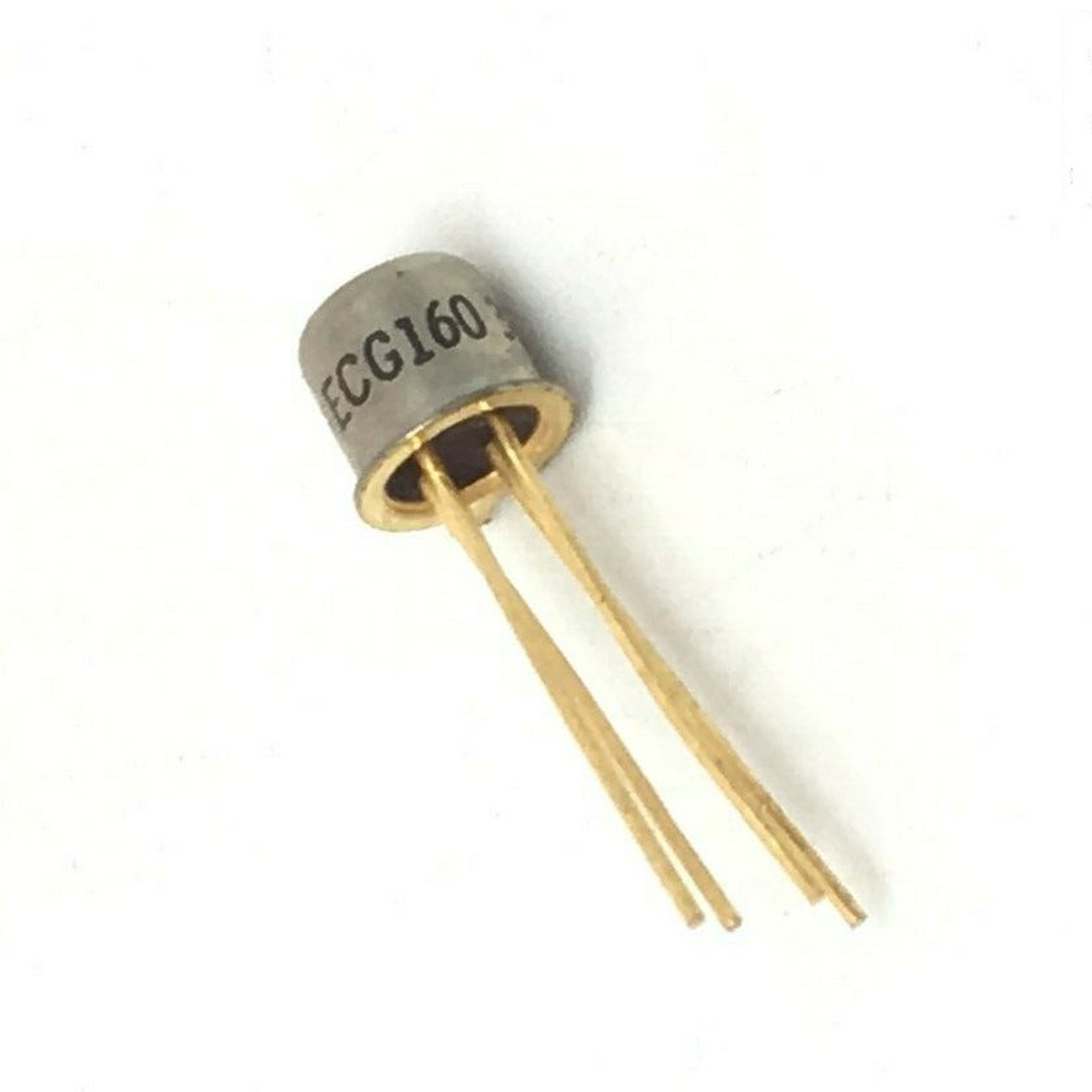

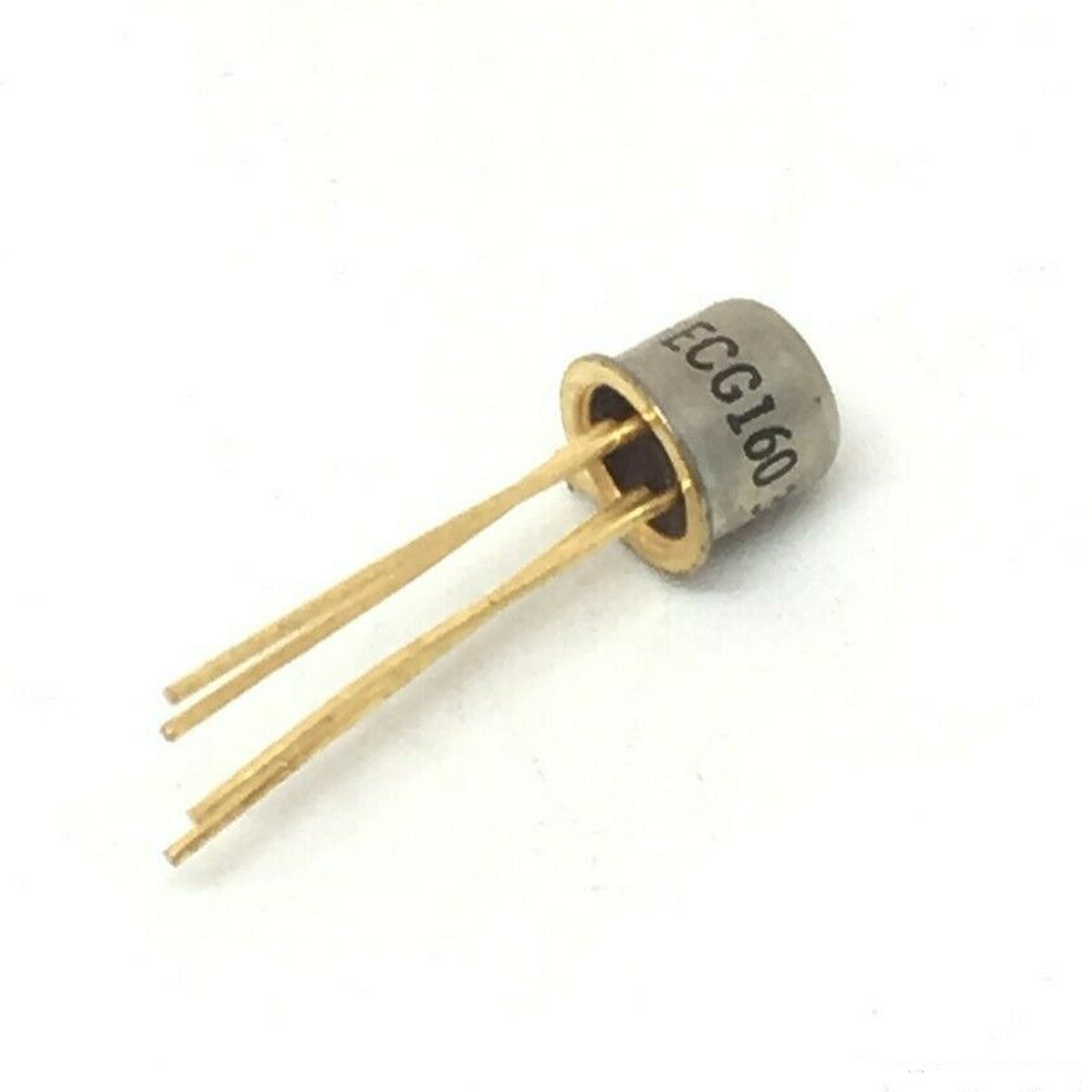

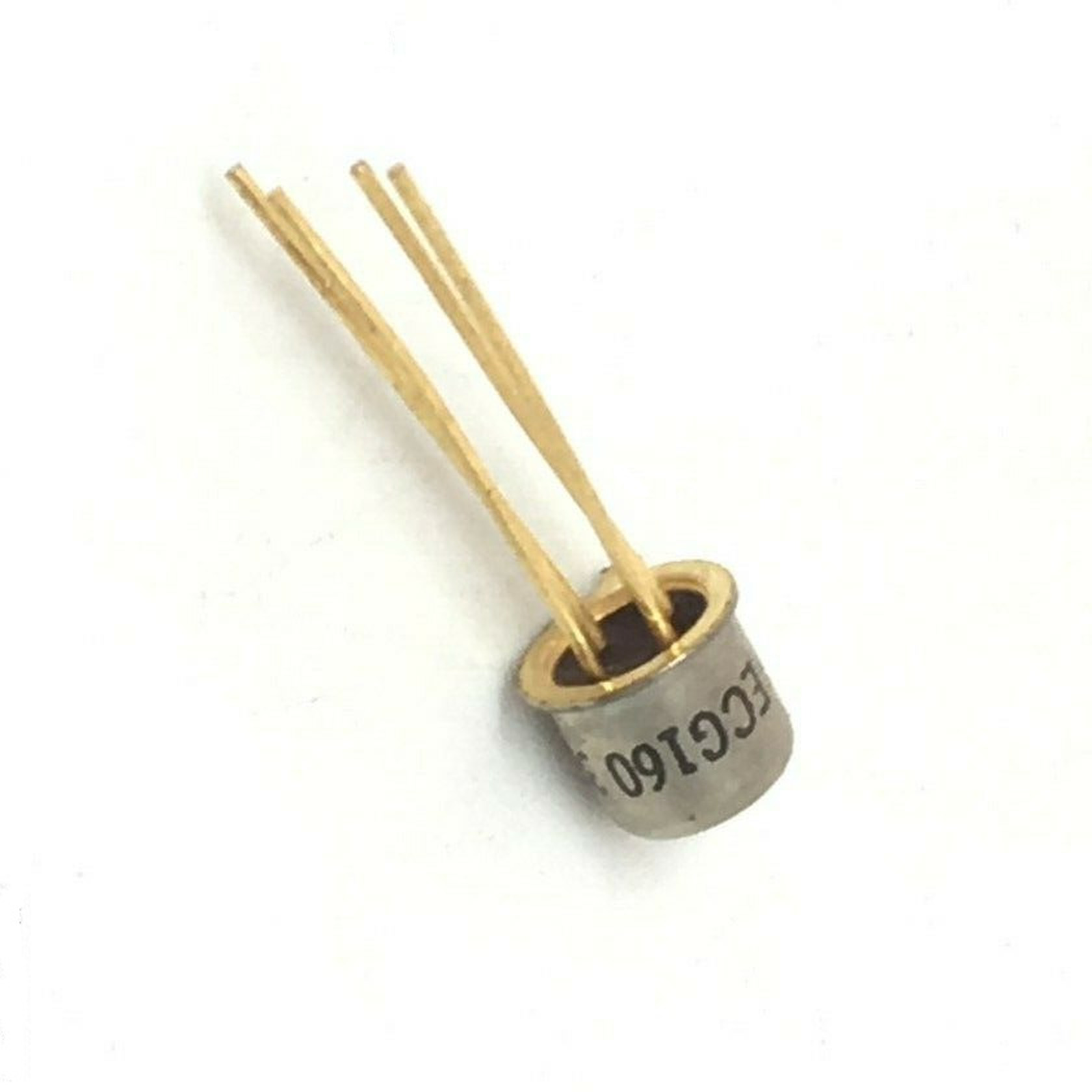

ECG160 Transistor Germanium PNP CASE: TO18 MAKE: ECG
Price:
£5.75 Inc. VAT (£4.79 Ex. VAT)
£5.75 Inc. VAT (£4.79 Ex. VAT)
Qty
  • 5 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Product specifications
Type Transistor Germanium PNP
Case TO18
Manufacturer ECG
Vbr CBO 30
Vbr CEO 20
Max. PD (W) 200m
hfe 20
Ic Max. (A) 10m
Polarity PNP
Trans. Freq (Hz) Min. 400M
Pinout Equivalence Number 4-20
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 0.2 W
Maximum Collector-Base Voltage |Vcb| 30 V
Maximum Collector-Emitter Voltage |Vce| 15 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 0.01 A
Max. Operating Junction Temperature (Tj) 75 °C
Transition Frequency (ft): 400 MHz
Forward Current Transfer Ratio (hFE), MIN 20
SKU 381908
