EMD2
View detailed images (5)

EMD2

SKU: EMD2
EMD2 Transistor Silicon Pre-Biased-NPN - PNP CASE: SOT666 MAKE: Rohm Semiconductor
Datasheet
EMD2 Datasheet
Product specifications
Type Transistor Silicon Pre-Biased-NPN - PNP

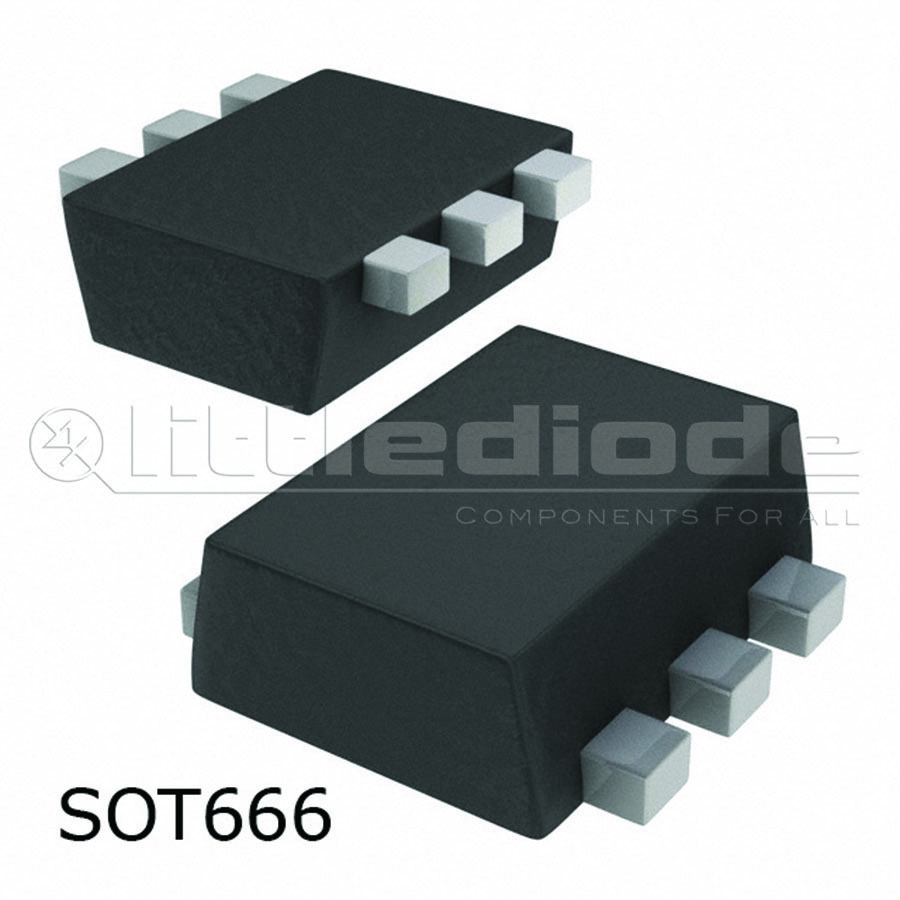

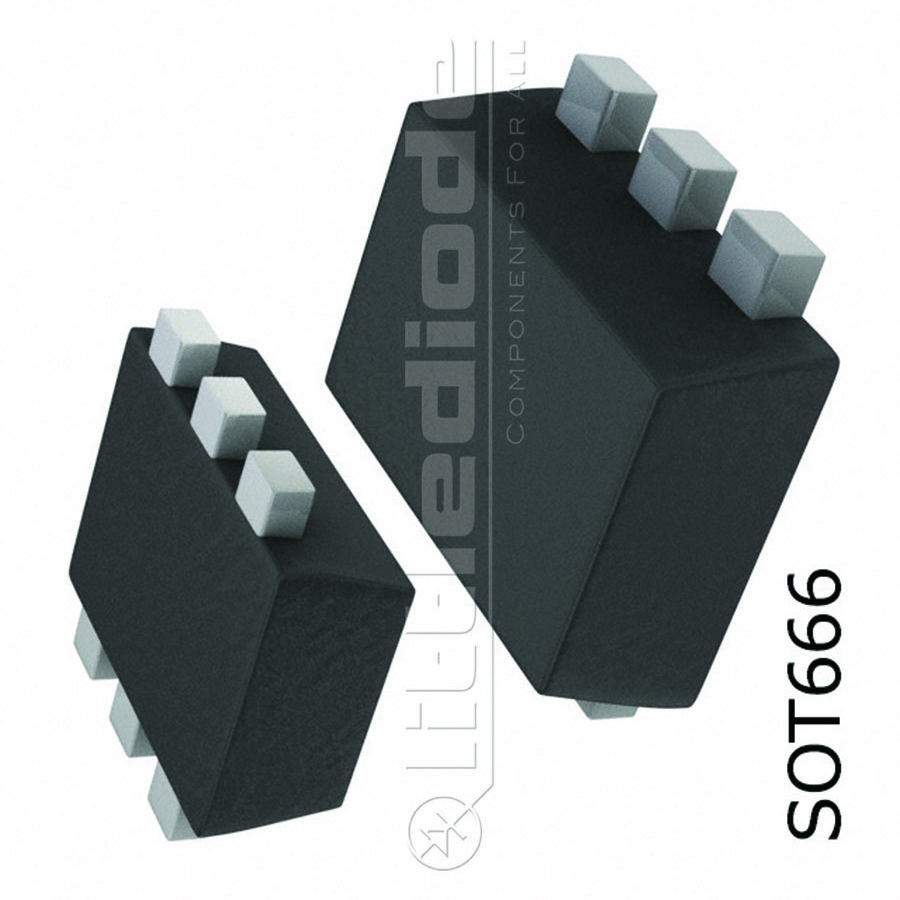

Case SOT666
Manufacturer Rohm Semiconductor
Polarity Pre-Biased-NPN*PNP
Maximum Collector Power Dissipation (Pc) 0.15 W
Maximum Collector-Emitter Voltage |Vce| 50 V
Maximum Emitter-Base Voltage |Veb| 10 V
Maximum Collector Current |Ic max| 0.03 A
Max. Operating Junction Temperature (Tj) 150 °C
Transition Frequency (ft): 250 MHz
Forward Current Transfer Ratio (hFE), MIN 56
SMD Transistor Code D2
Built in Bias Resistor R1 22 kOhm
Built in Bias Resistor R2 22 kOhm
Typical Resistor Ratio R1/R2 1
SKU 567148
