EMD9
View detailed images (5)

EMD9

SKU: EMD9

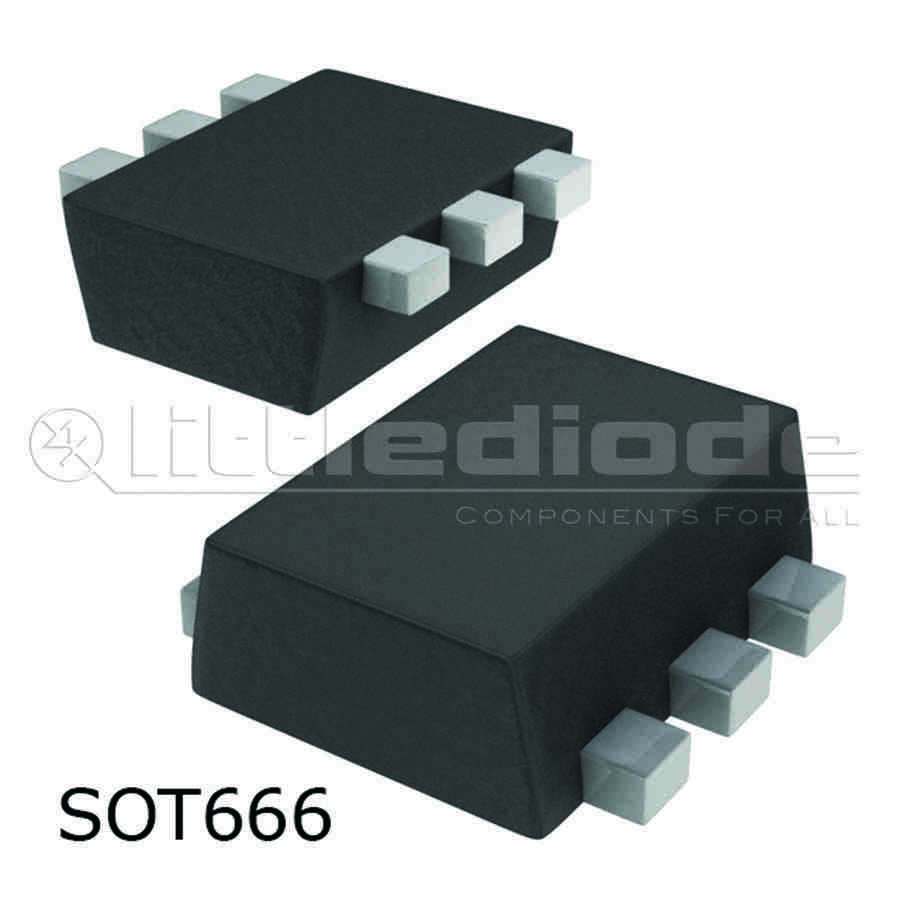

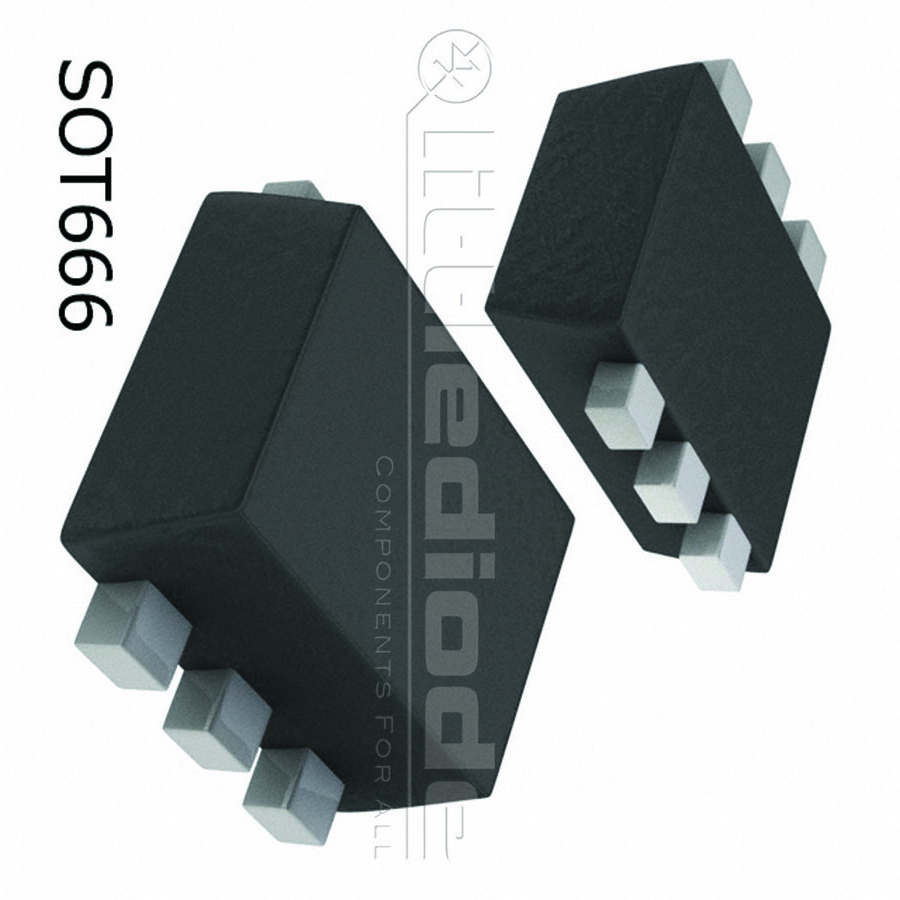

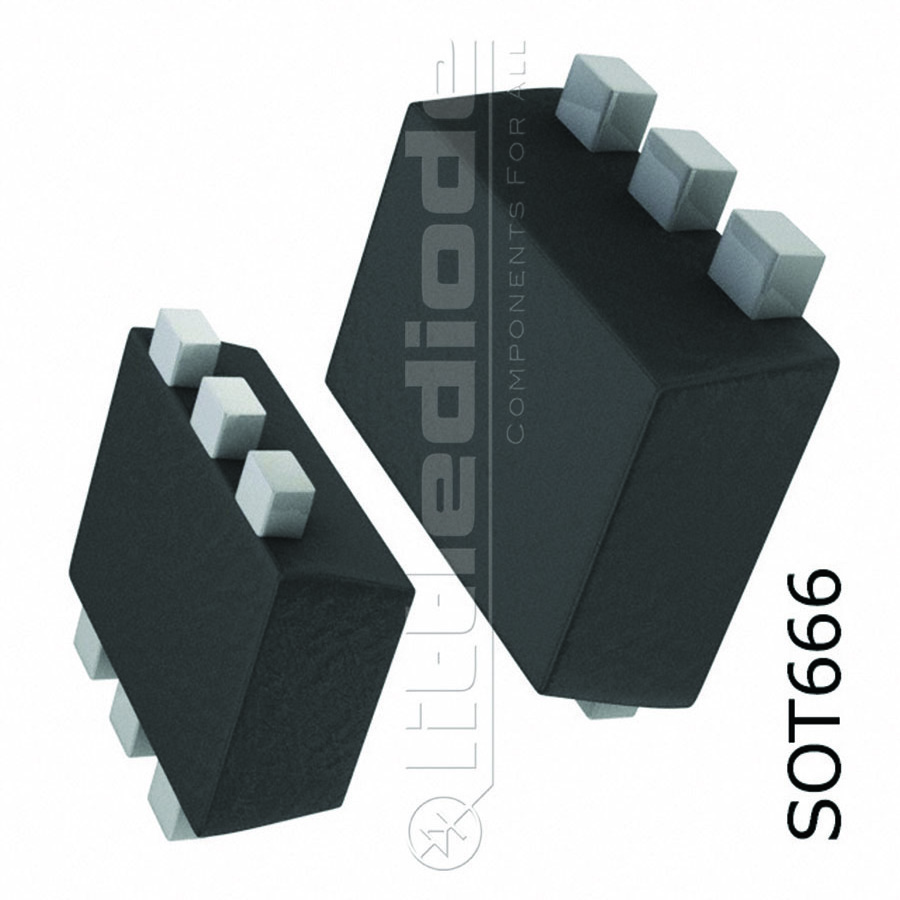

EMD9 Transistor Silicon Pre-Biased-NPN - PNP CASE: SOT666 MAKE: Rohm Semiconductor
Datasheet
EMD9 Datasheet
Product specifications
Type Transistor Silicon Pre-Biased-NPN - PNP
Case SOT666
Manufacturer Rohm Semiconductor
Polarity Pre-Biased-NPN*PNP
Maximum Collector Power Dissipation (Pc) 0.15 W
Maximum Collector-Emitter Voltage |Vce| 50 V
Maximum Emitter-Base Voltage |Veb| 6 V
Maximum Collector Current |Ic max| 0.07 A
Max. Operating Junction Temperature (Tj) 150 °C
Transition Frequency (ft): 250 MHz
Forward Current Transfer Ratio (hFE), MIN 68
SMD Transistor Code D9
Built in Bias Resistor R1 10 kOhm
Built in Bias Resistor R2 47 kOhm
Typical Resistor Ratio R1/R2 0.21
SKU 567152
