ESM101

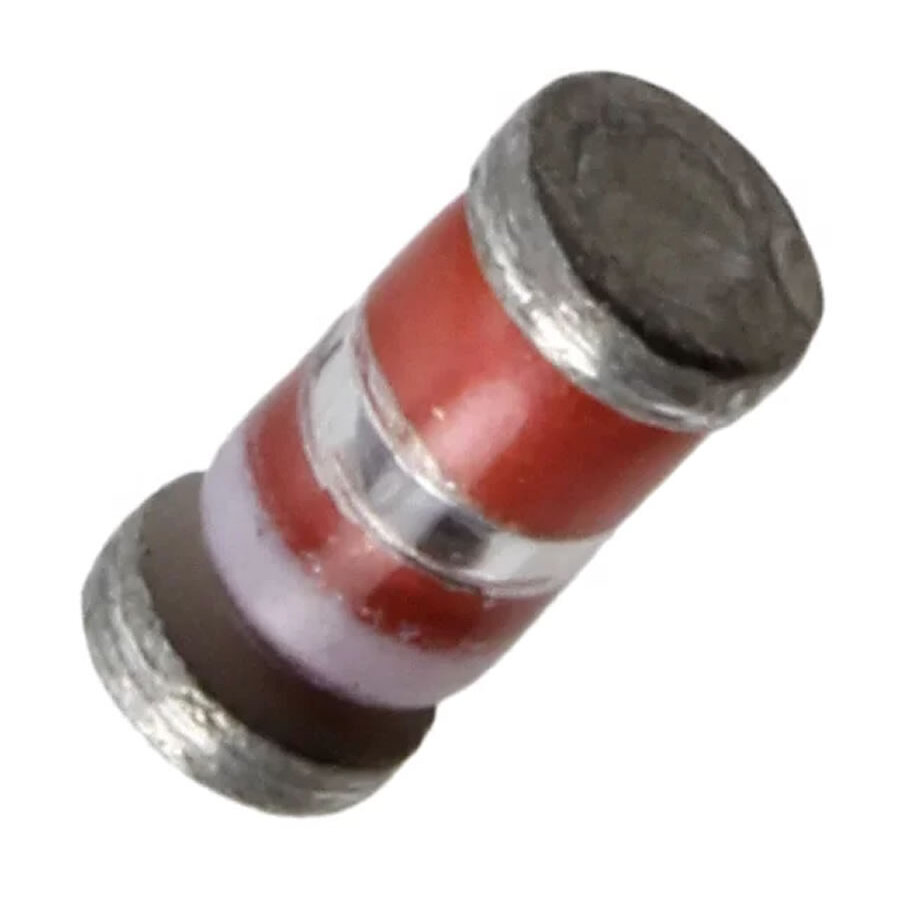

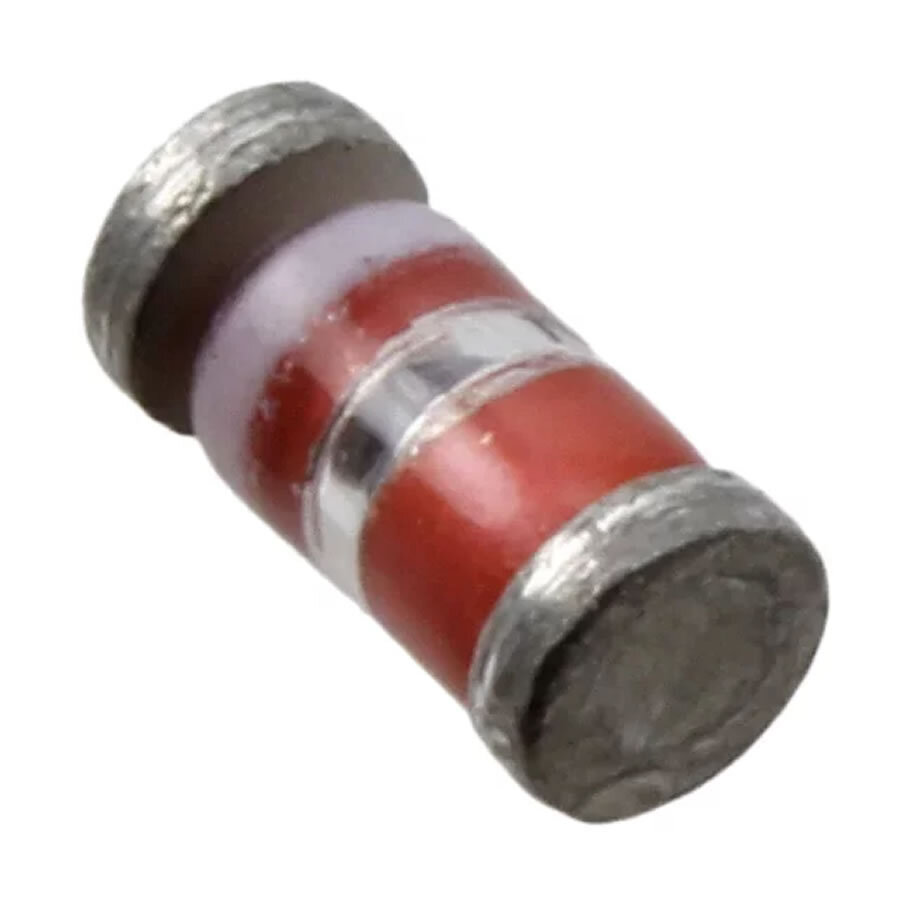

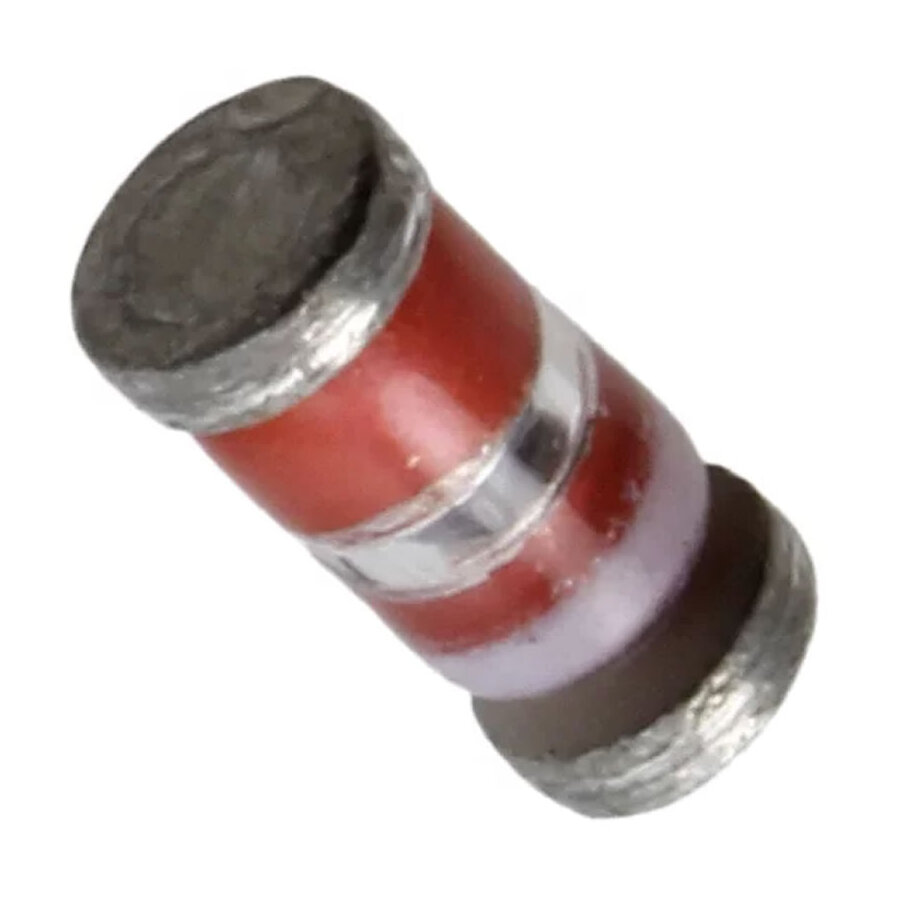

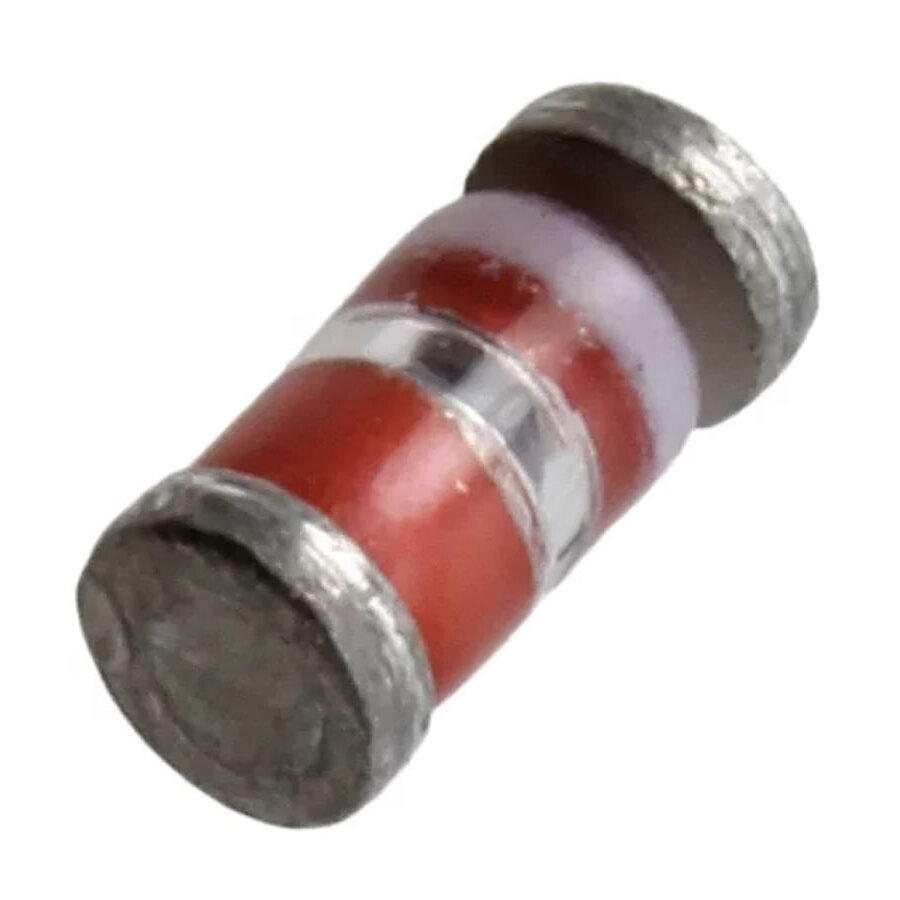

View detailed images (4)

ESM101

SKU: ESM101
ESM101 Semiconductor CASE: DO213AB MAKE: GTN
Datasheet
ESM101 Datasheet
Product specifications
Type Semiconductor
Case DO213AB
Manufacturer GTN
Vbr DSS 500
Ckts Per Dev. 1
Max. PD (W) 500
Id Max. (A) 12
Idss Max. (A) 1.0m
Igss Max. (A) 100n
Mat. Silicon Logic
VRRM 50
t(rr) (S) 35n
R(ds) On (Û) 400m
Therm Res. (J-C) 300m
Vf Max. 950m
Ir @25°C 5.0u
I(out) (If AVG) Max. 1.0
@Volts (test) (V) 50
@If (test) 1.0
Oper. Temp (°C) Max. 125
Isolated Case (Y/N) Yes
Pinout Equivalence Number N/A
Surface Mounted Yes/No YES
SKU 839723
