ESM2070D
View detailed images (5)

ESM2070D

SKU: ESM2070D

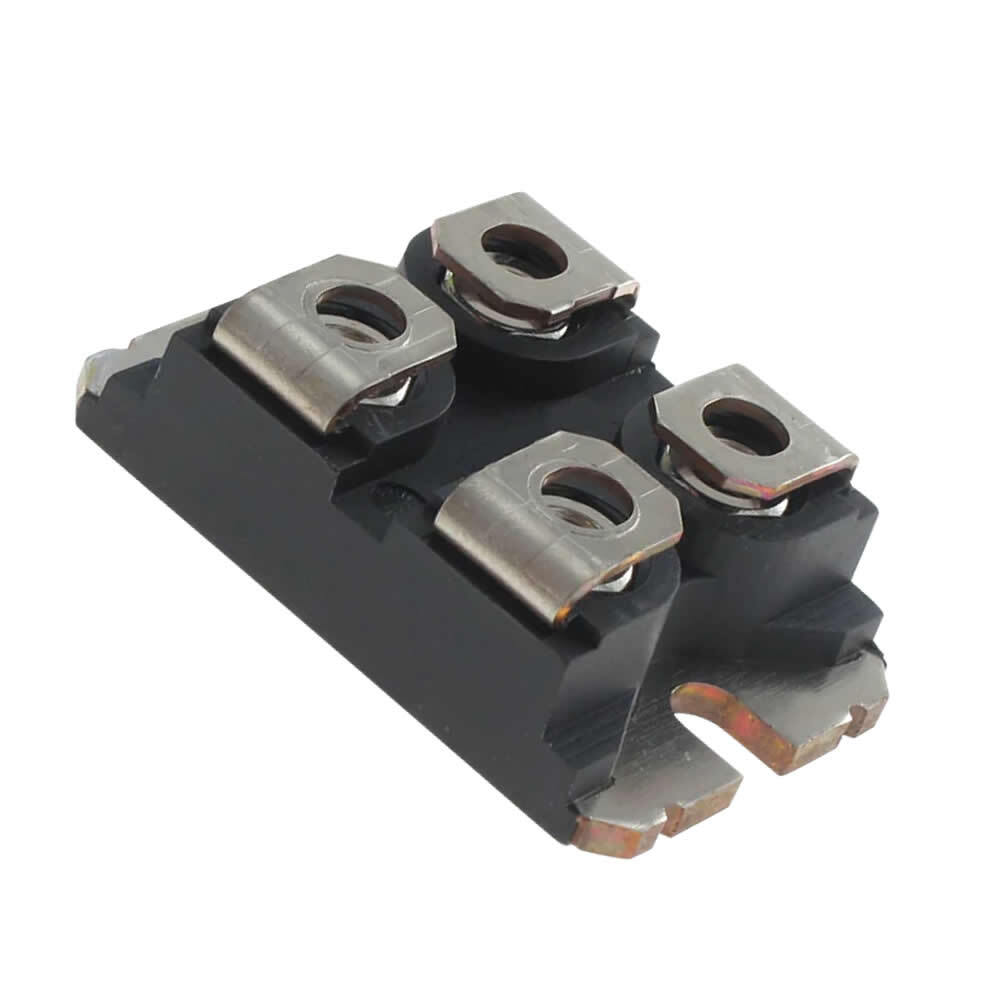

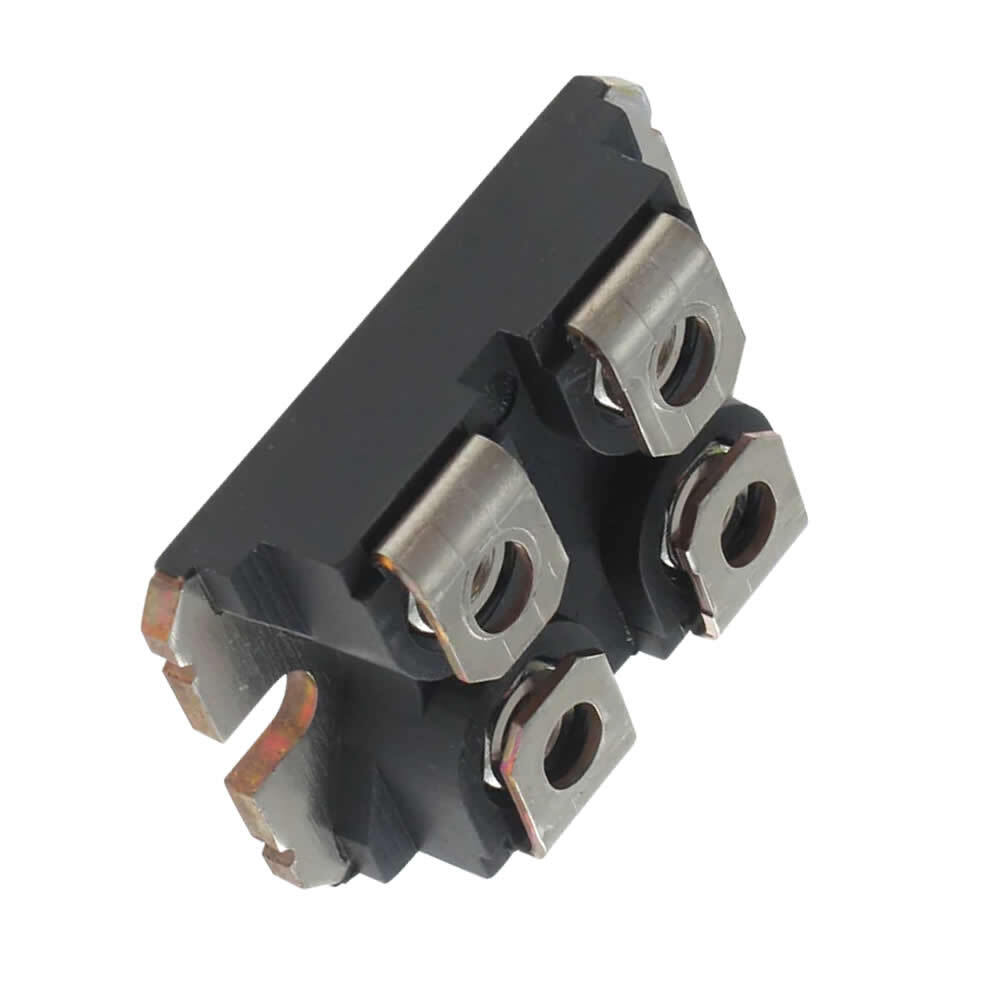

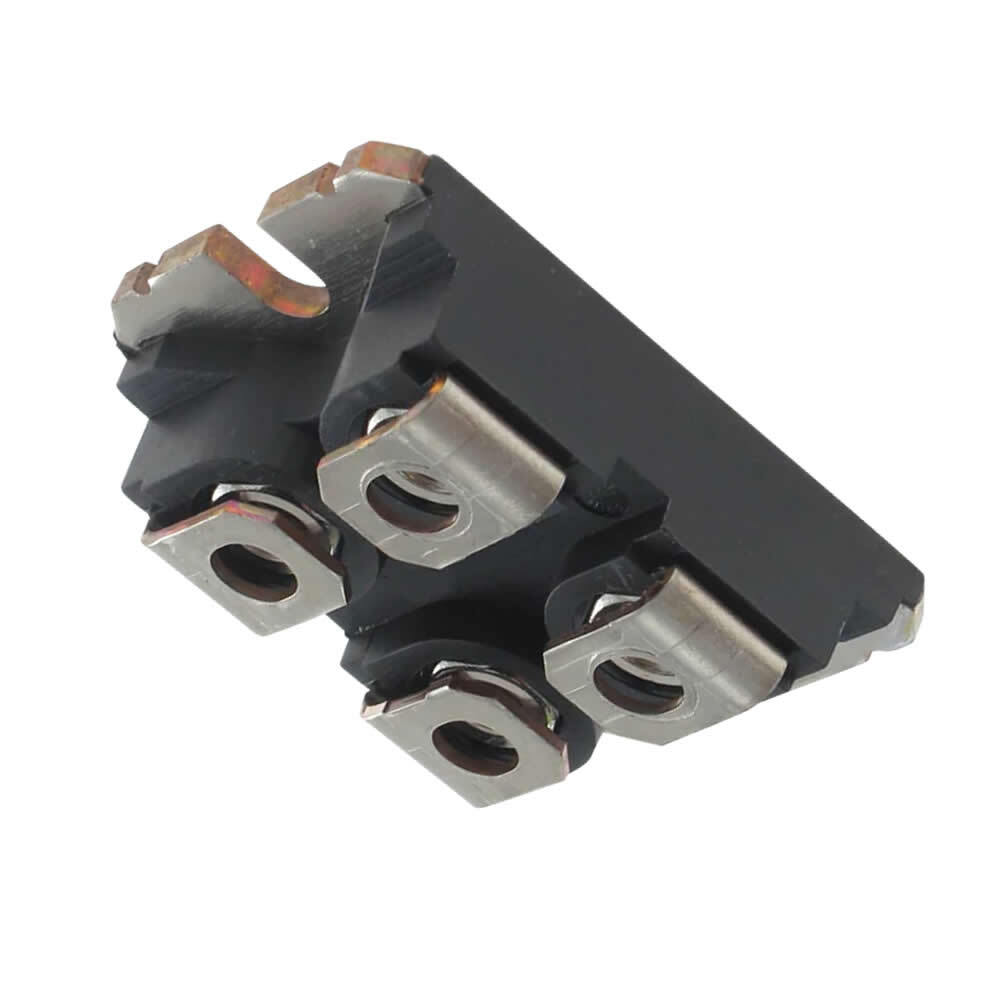

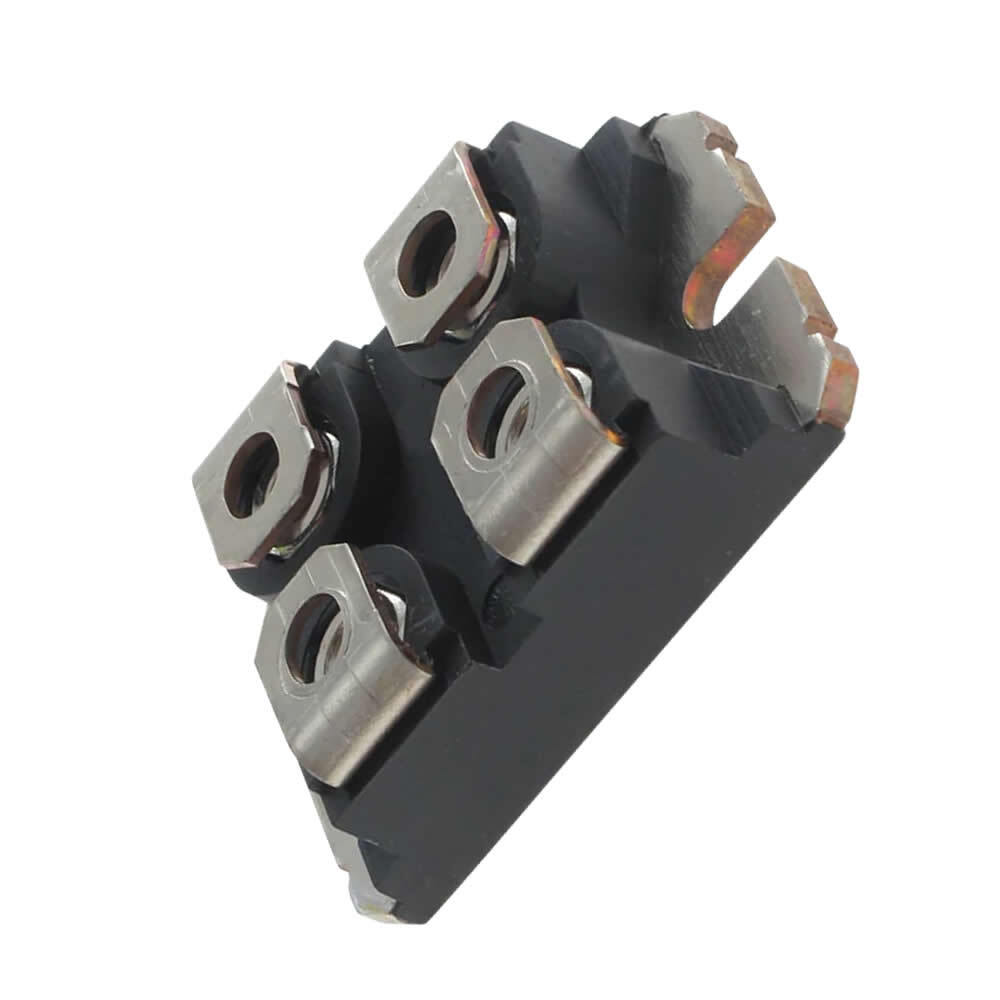

ESM2070D Transistor Silicon NPN CASE: SOT227B MAKE: SGS Thomson
Price:
£23.99 Inc. VAT (£19.99 Ex. VAT)
£23.99 Inc. VAT (£19.99 Ex. VAT)
Qty
  • More pieces shipped in 14 days
?
Product specifications
Type Transistor Silicon NPN

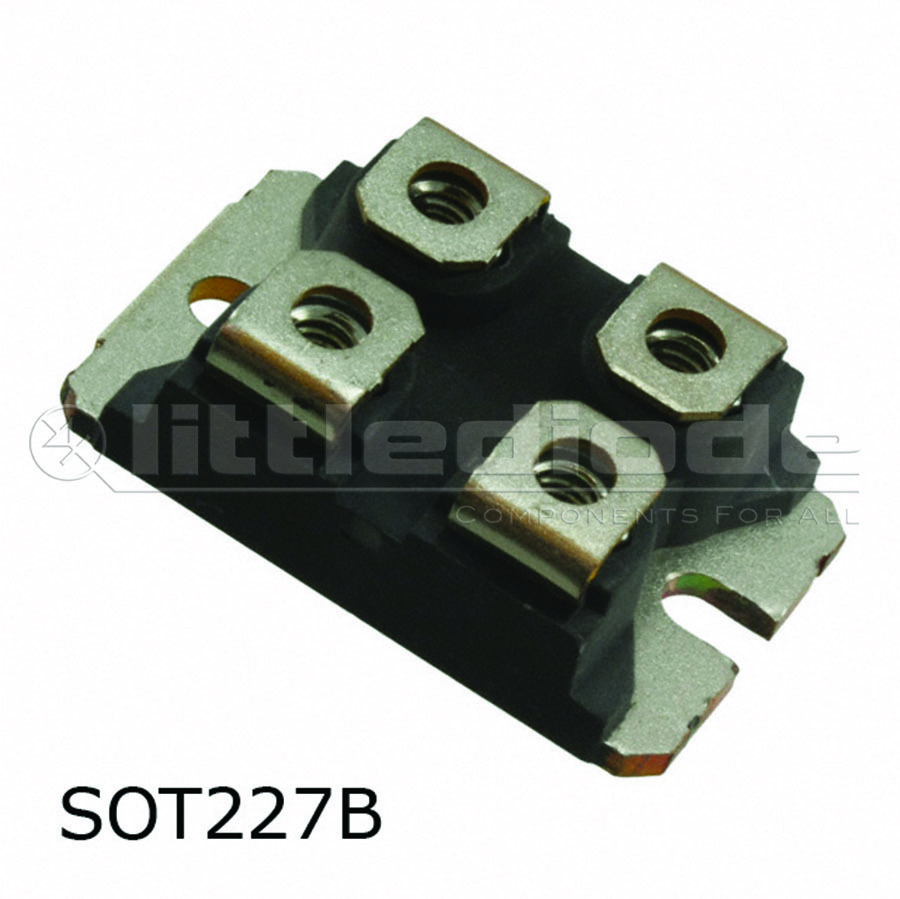

Case SOT227B
Manufacturer SGS Thomson
Vbr CEO 700
Ckts Per Dev. 1
Max. PD (W) 125
t(f) Max. (S) 1.0u
Ic Max. (A) 18
Polarity NPN
Tr Max. (s) 800n
Therm Res. (J-C) 1.0
VCE(sat) Max. 3.5
Oper. Temp (°C) Max. 150
Isolated Case (Y/N) Yes
Pinout Equivalence Number 4-14
Maximum Collector Power Dissipation (Pc) 150 W
Maximum Collector-Base Voltage |Vcb| 800 V
Maximum Collector-Emitter Voltage |Vce| 700 V
Maximum Collector Current |Ic max| 12 A
Max. Operating Junction Temperature (Tj) 175 °C
Forward Current Transfer Ratio (hFE), MIN 10
SKU 415571
