ESM3045DV

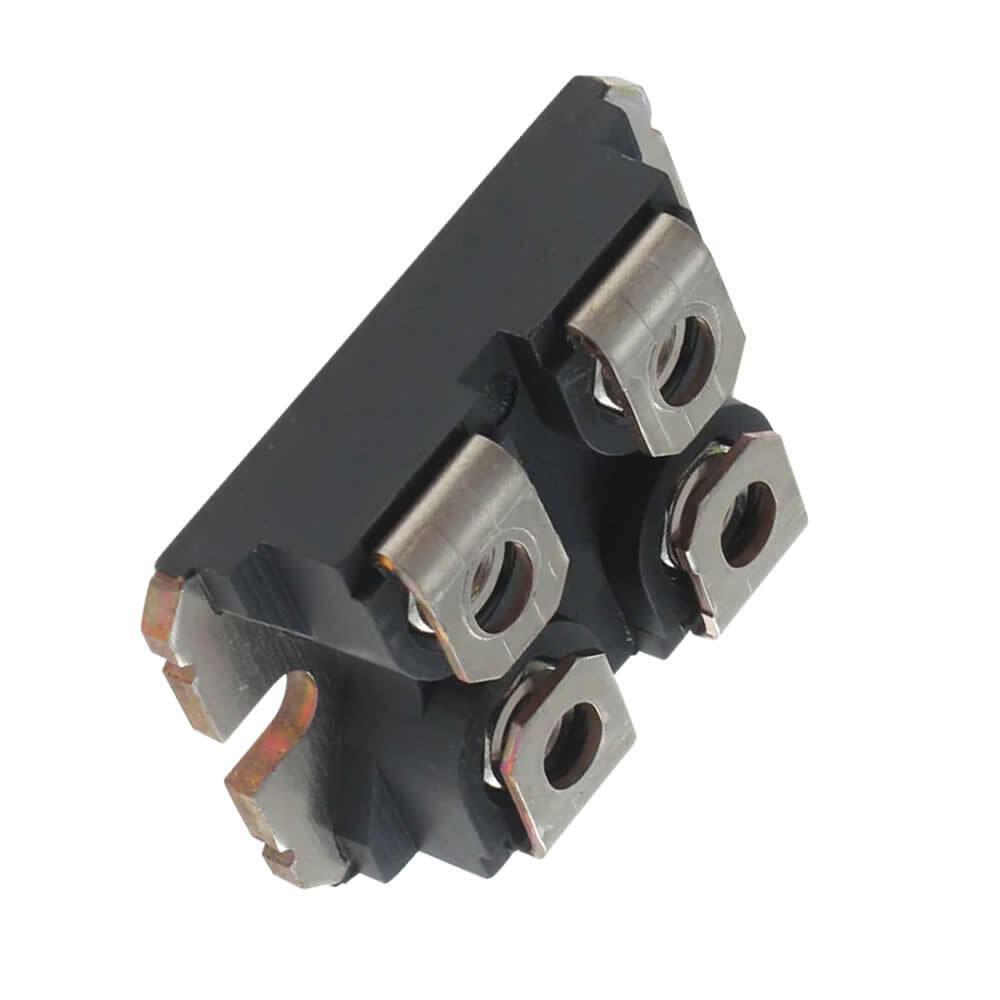

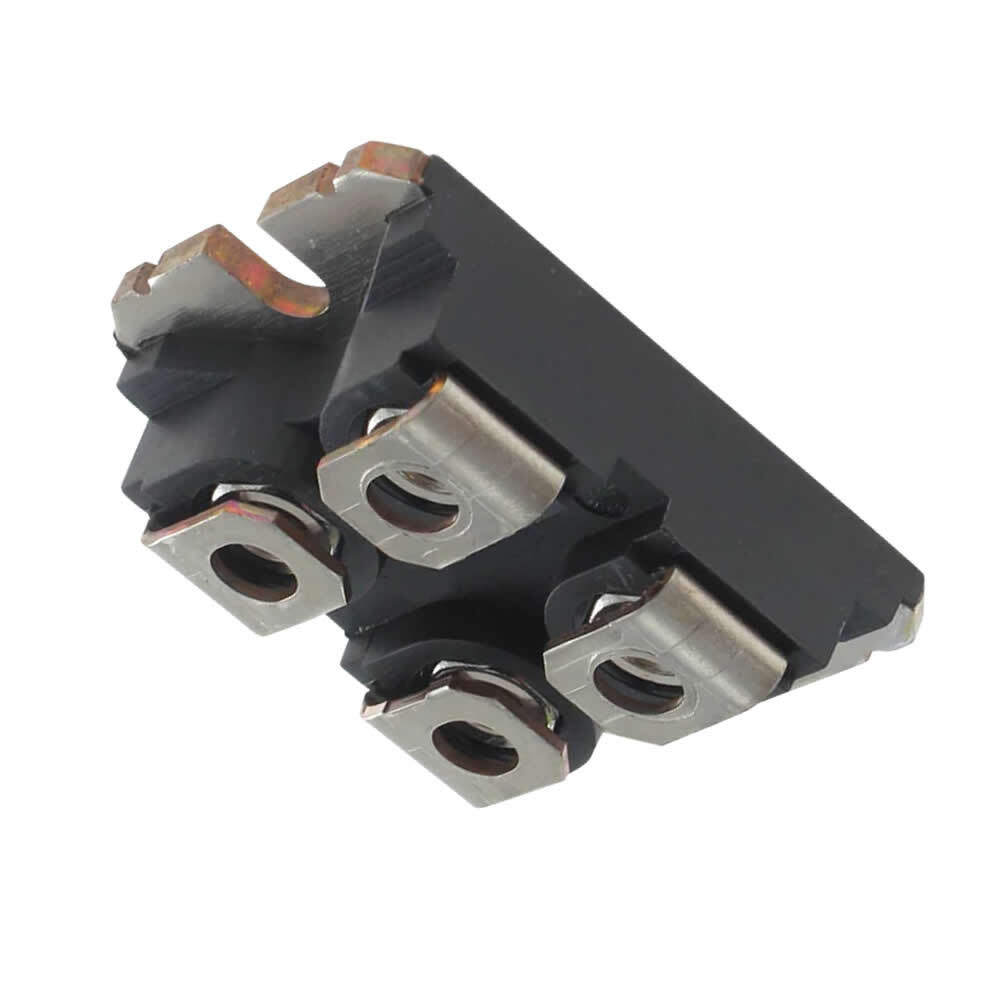

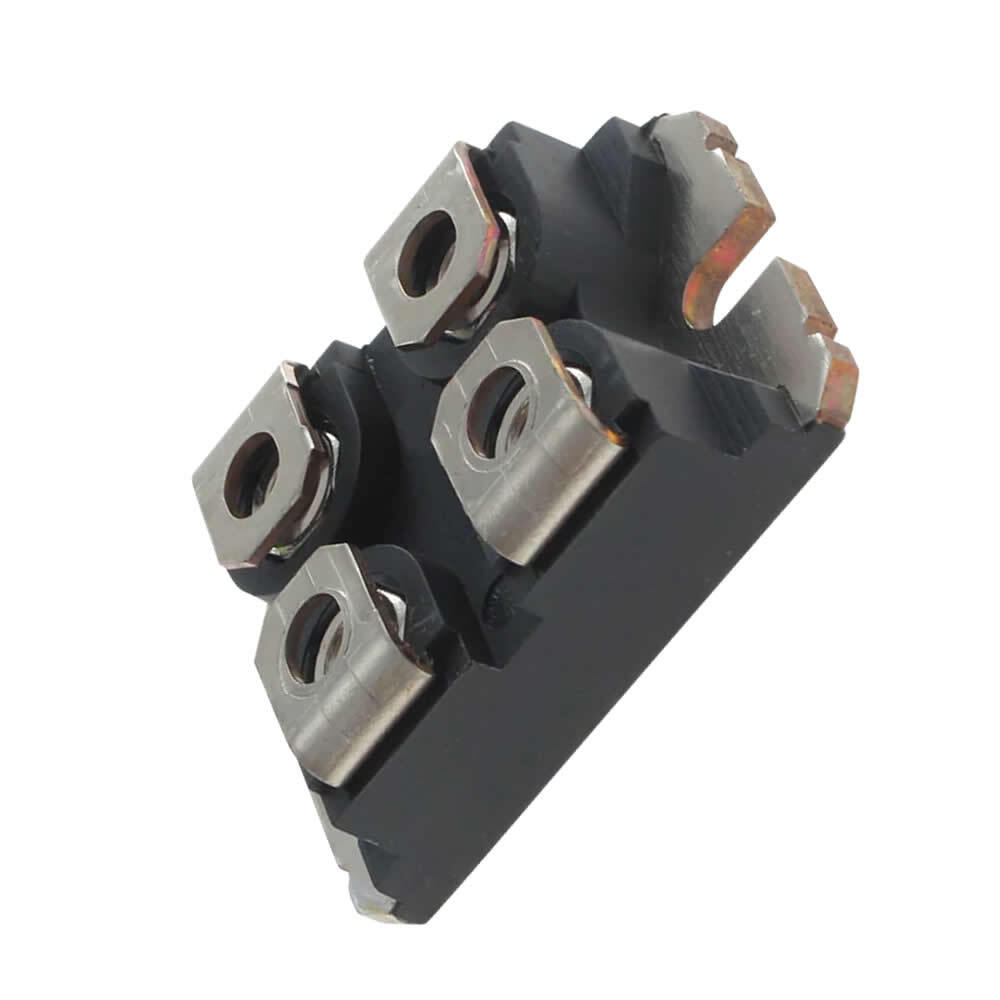

View detailed images (5)

ESM3045DV

SKU: ESM3045DV

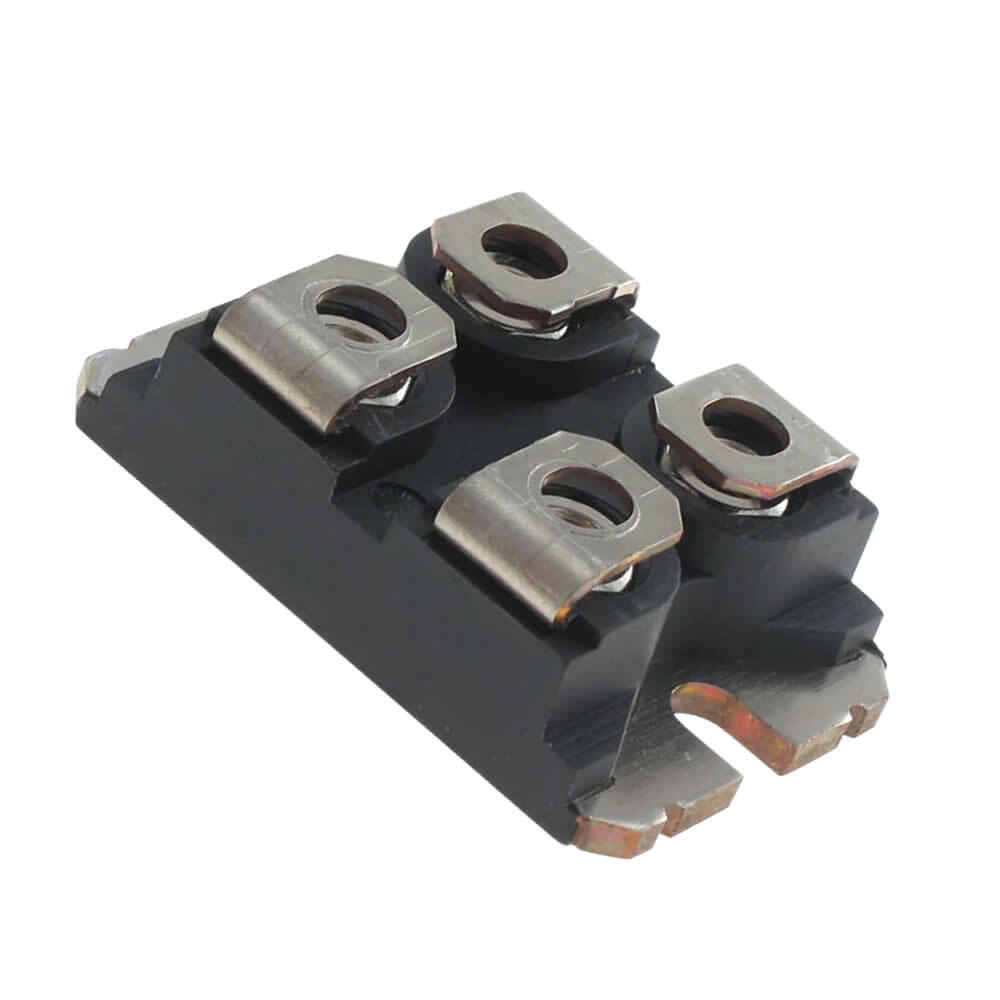

ESM3045DV Transistor Silicon NPN CASE: SOT227B MAKE: ST Microelectronics - STM
Price:
£28.79 Inc. VAT (£23.99 Ex. VAT)
£28.79 Inc. VAT (£23.99 Ex. VAT)
Qty
  • 7 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Datasheet
ESM3045DV Datasheet
Product specifications
Type Transistor Silicon NPN

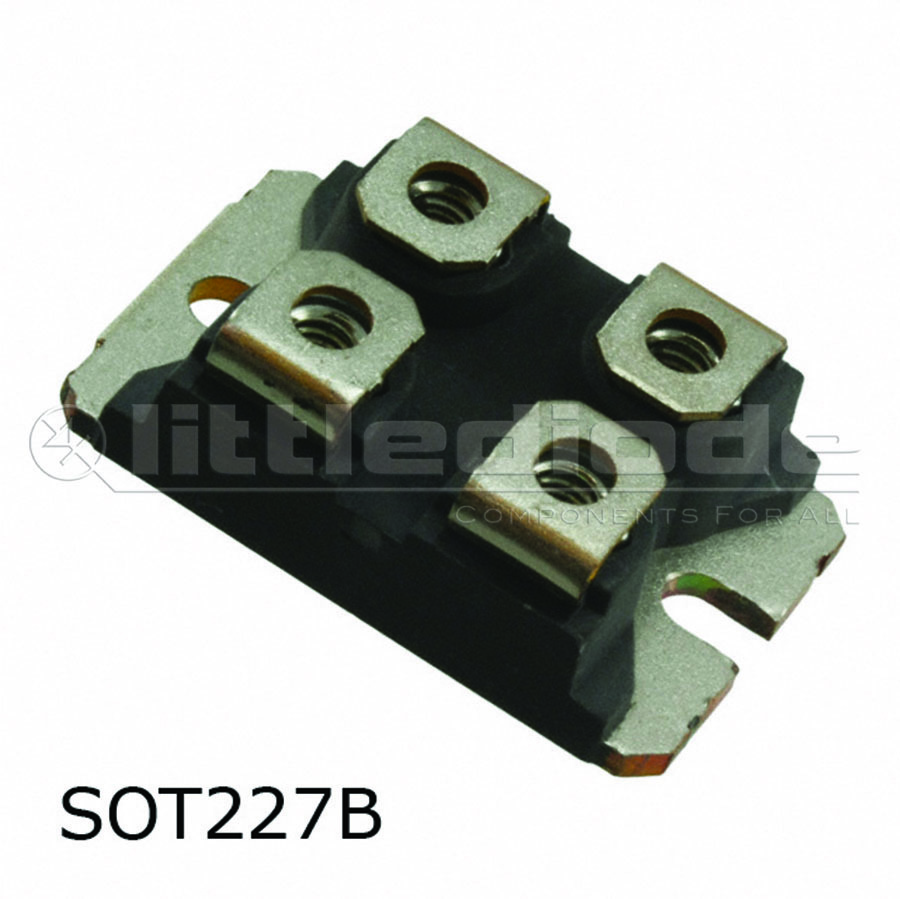

Case SOT227B
Manufacturer ST Microelectronics - STM
Vbr CEO 450
Ckts Per Dev. 1
Max. PD (W) 125
t(f) Max. (S) 1.0u
Ic Max. (A) 24
Polarity NPN
Tr Max. (s) 4.0u
Therm Res. ÚJC (°C/W) 2.0
Therm Res. (J-C) 1.0
VCE(sat) Max. 2.0
Oper. Temp (°C) Max. 125
Isolated Case (Y/N) Yes
Pinout Equivalence Number 4-116
Maximum Collector Power Dissipation (Pc) 125 W
Maximum Collector-Base Voltage |Vcb| 600 V
Maximum Collector-Emitter Voltage |Vce| 450 V
Maximum Emitter-Base Voltage |Veb| 2 V
Maximum Collector Current |Ic max| 24 A
Max. Operating Junction Temperature (Tj) 175 °C
Forward Current Transfer Ratio (hFE), MIN 1200
SKU 82120
