ESM4045AV
View detailed images (12)

ESM4045AV

SKU: ESM4045AV

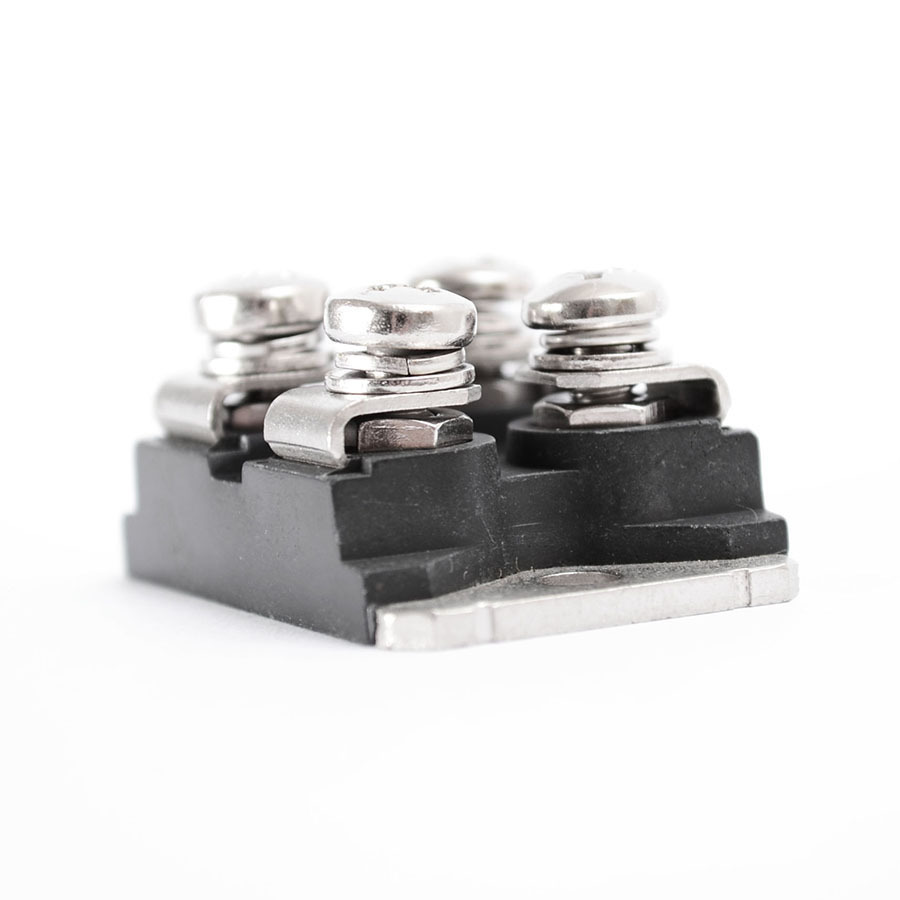

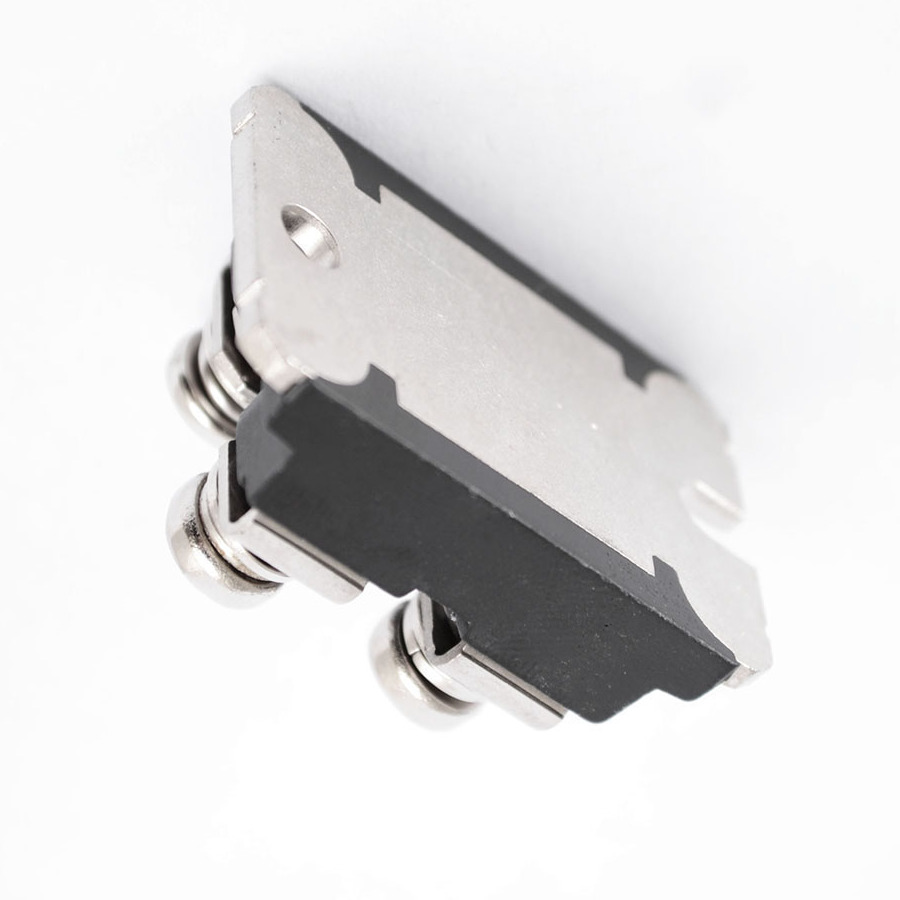

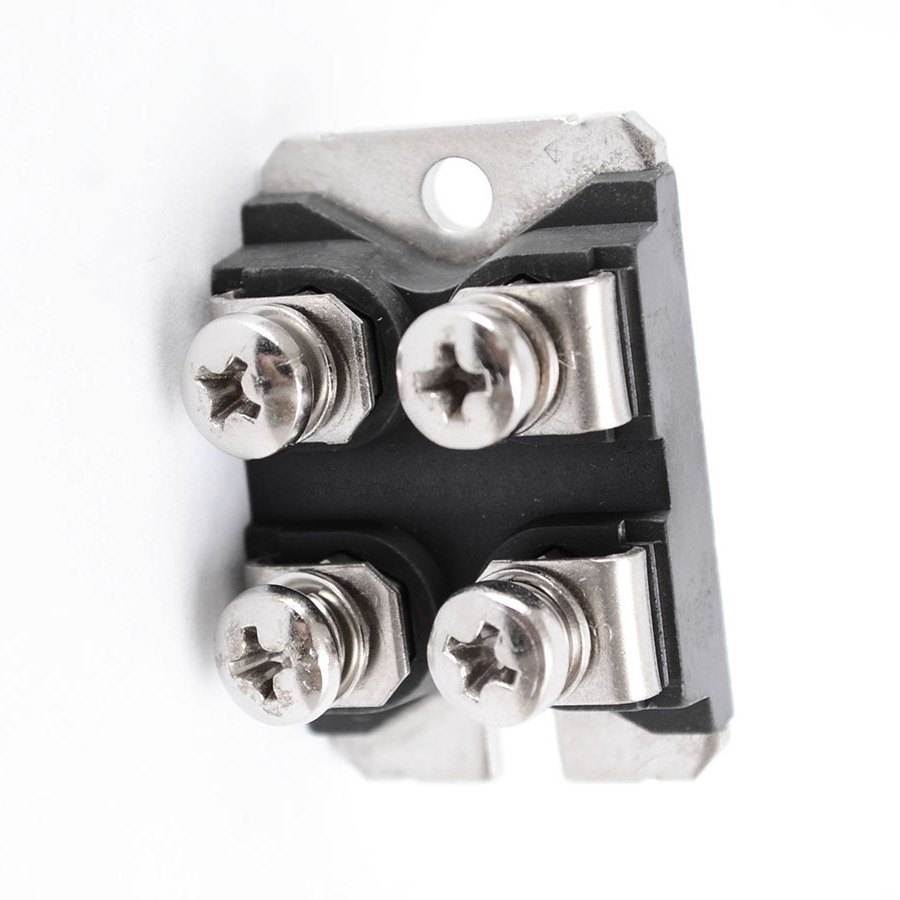

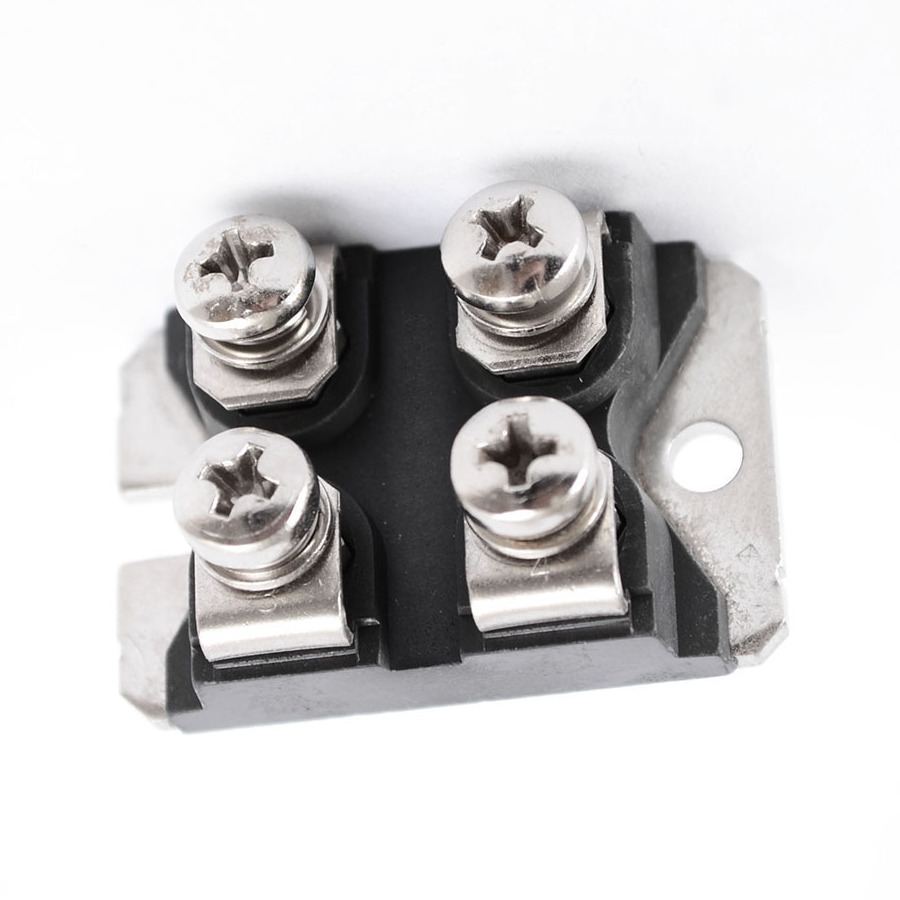

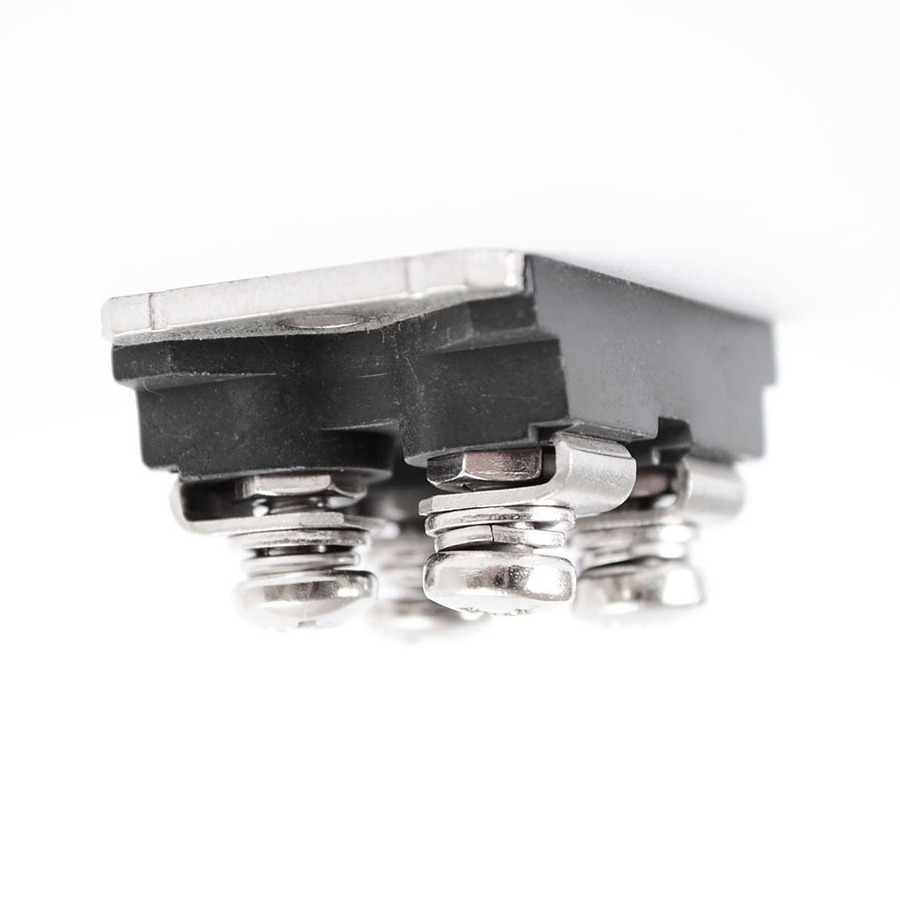

ESM4045AV Transistor Silicon NPN CASE: SOT227A MAKE: ST Microelectronics - STM
Price:
£62.39 Inc. VAT (£51.99 Ex. VAT)
£62.39 Inc. VAT (£51.99 Ex. VAT)
Qty
  • 4 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Product specifications
Type Transistor Silicon NPN
Case SOT227A
Manufacturer ST Microelectronics - STM
Vbr CEO 450
Ckts Per Dev. 1
Max. PD (W) 150
t(f) Max. (S) 500n
Ic Max. (A) 42
Polarity NPN
Tr Max. (s) 4.5u
Therm Res. (J-C) 830m
VCE(sat) Max. 2.0
Oper. Temp (°C) Max. 150
Isolated Case (Y/N) Yes
Pinout Equivalence Number 4-117
Maximum Collector Power Dissipation (Pc) 150 W
Maximum Collector-Base Voltage |Vcb| 1000 V
Maximum Collector-Emitter Voltage |Vce| 450 V
Maximum Emitter-Base Voltage |Veb| 2 V
Maximum Collector Current |Ic max| 36 A
Max. Operating Junction Temperature (Tj) 175 °C
Forward Current Transfer Ratio (hFE), MIN 2000
SKU 81894
