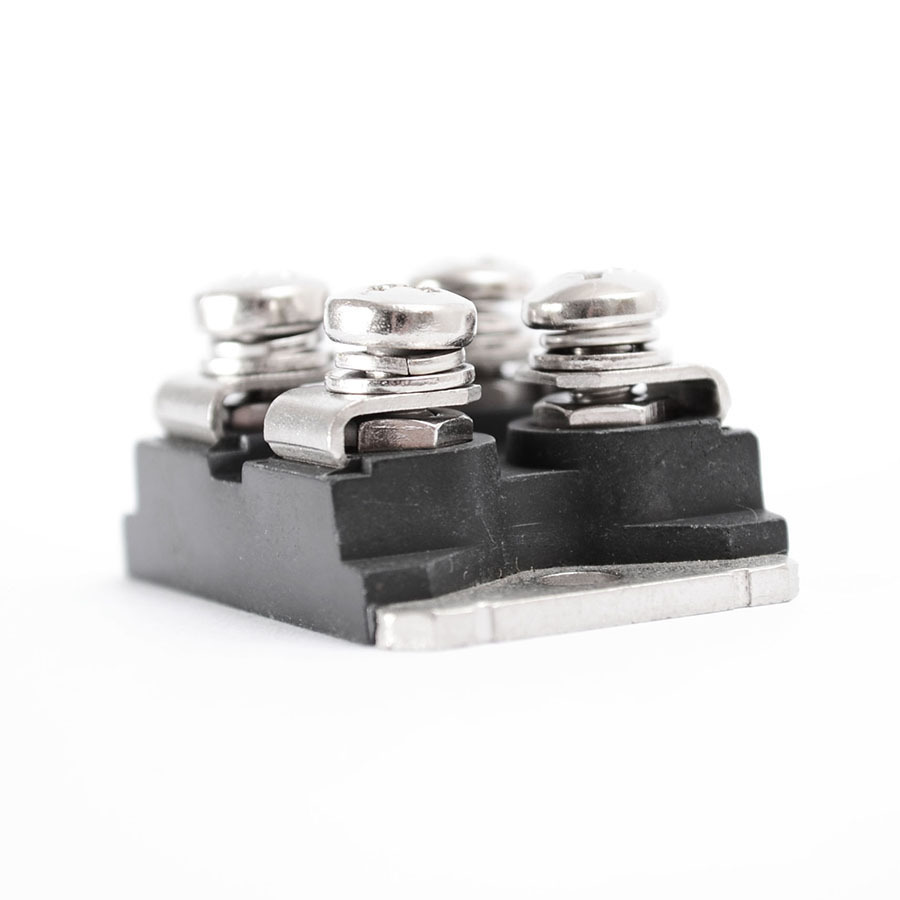

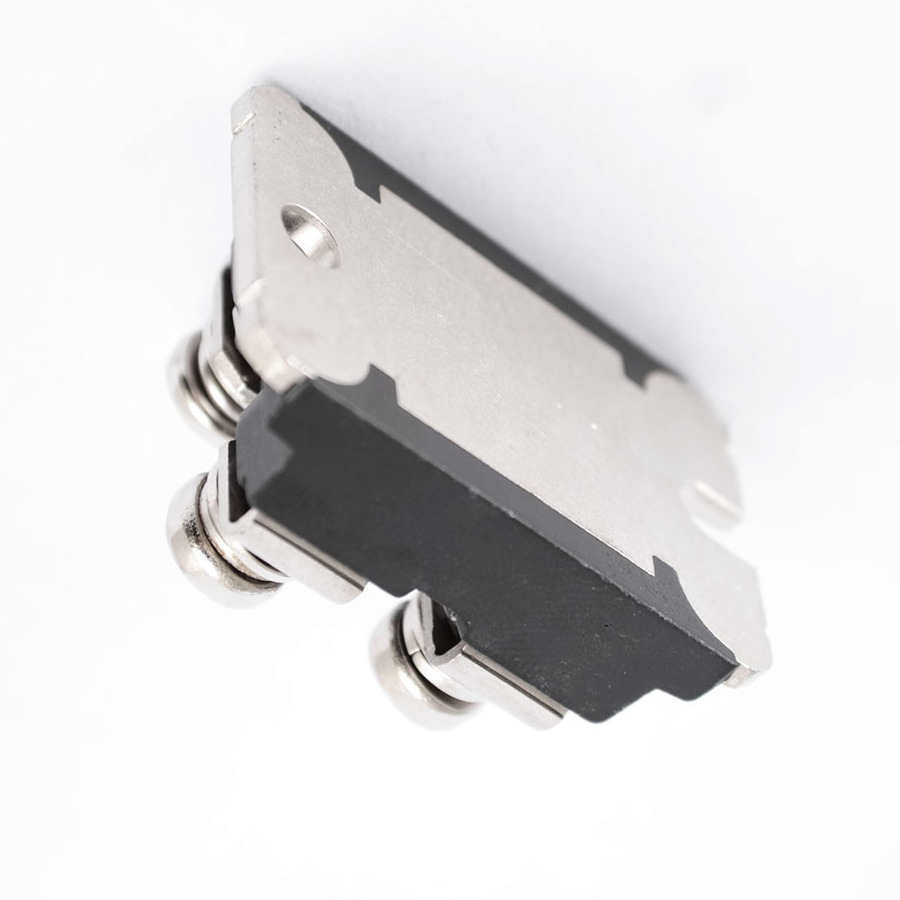

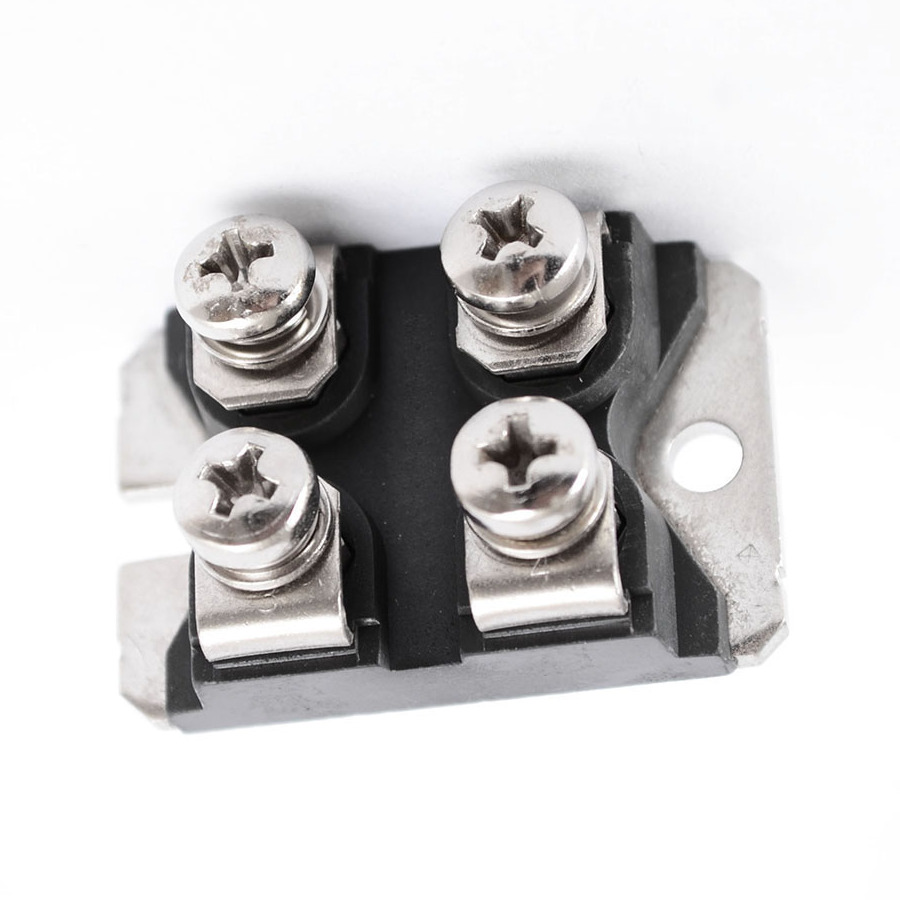

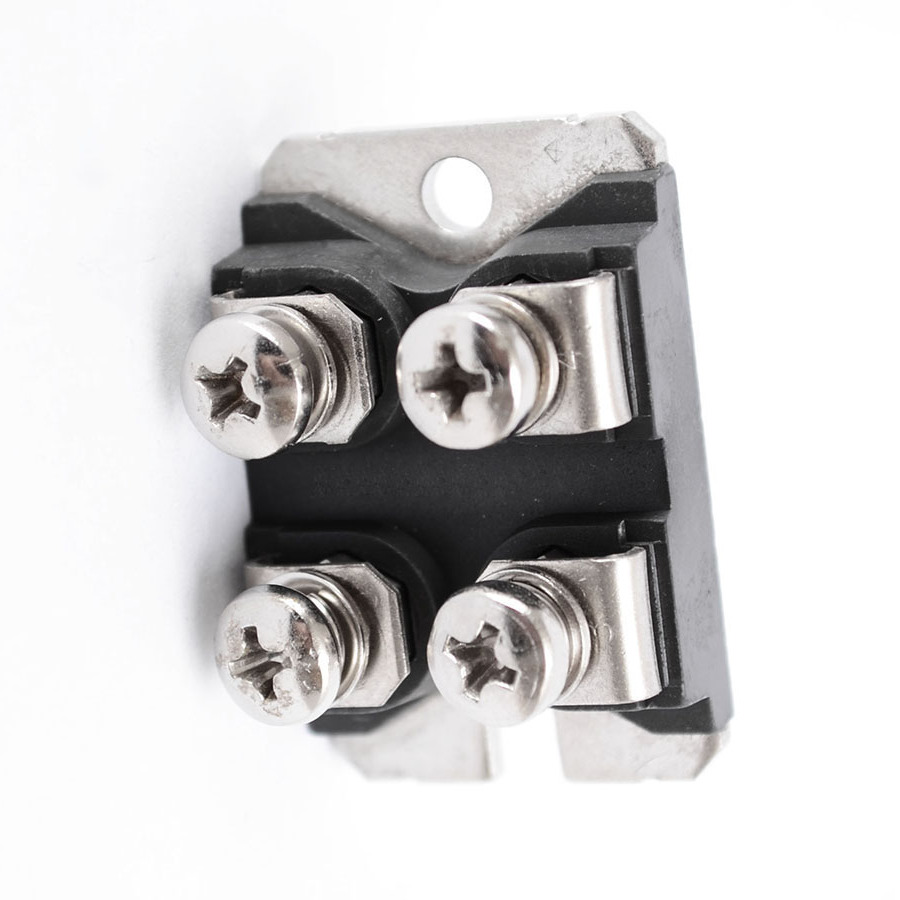

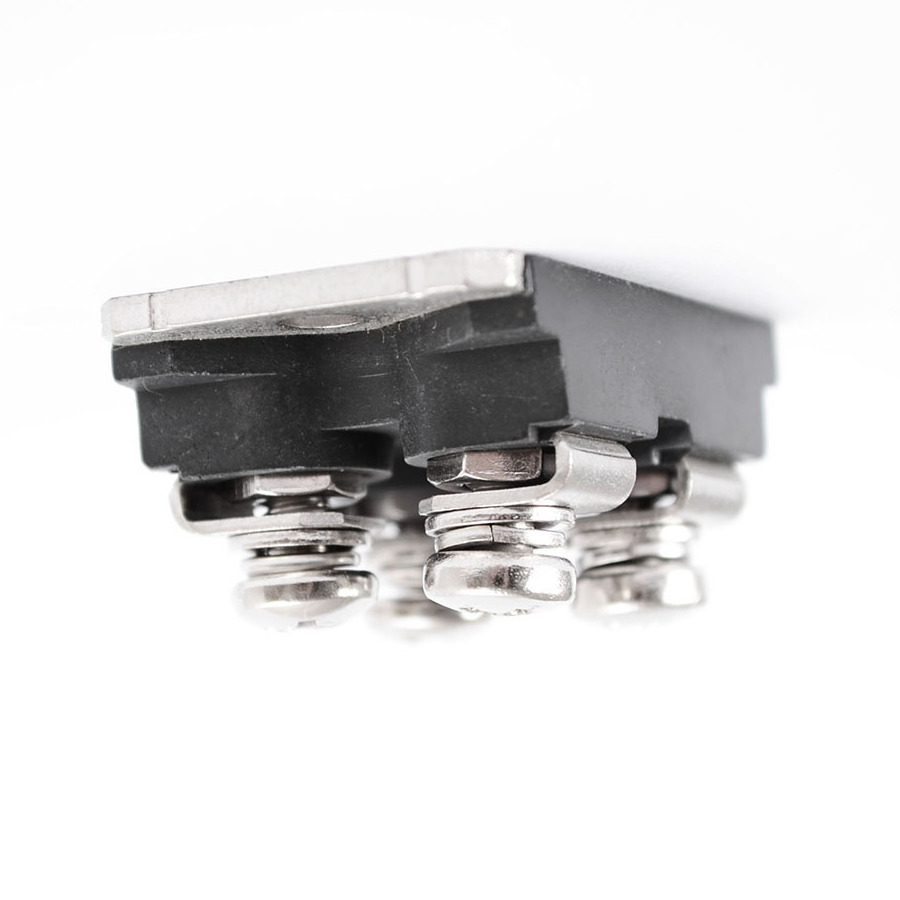

ESM5045DV
View detailed images (12)

ESM5045DV

SKU: ESM5045DV
ESM5045DV Semiconductor - Case: SOT227A Make: ST Microelectronics - STM
Price: £65.99
+ VAT 20% for UK purchases
£65.99
Qty
+ VAT 20% for UK purchases
  • More pieces shipped in 14 days
?
Datasheet
ESM5045DV Datasheet
Product specifications
Type Semiconductor
Case SOT227A
Manufacturer ST Microelectronics - STM
Vbr CEO 450
Ckts Per Dev. 1
Max. PD (W) 175
t(f) Max. (S) 500n
Ic Max. (A) 60
@Ic (test) (A) 50
Polarity NPN
Therm Res. ÚJC (°C/W) 1.2
Therm Res. (J-C) .71
VCE(sat) Max. 2.0
Oper. Temp (°C) Max. 150
Isolated Case (Y/N) Yes
Pinout Equivalence Number 4-116
Maximum Collector Power Dissipation (Pc) 175 W
Maximum Collector-Base Voltage |Vcb| 600 V
Maximum Collector-Emitter Voltage |Vce| 450 V
Maximum Emitter-Base Voltage |Veb| 2 V
Maximum Collector Current |Ic max| 60 A
Max. Operating Junction Temperature (Tj) 175 °C
Forward Current Transfer Ratio (hFE), MIN 2000
SKU 81958
