ESM6045DV

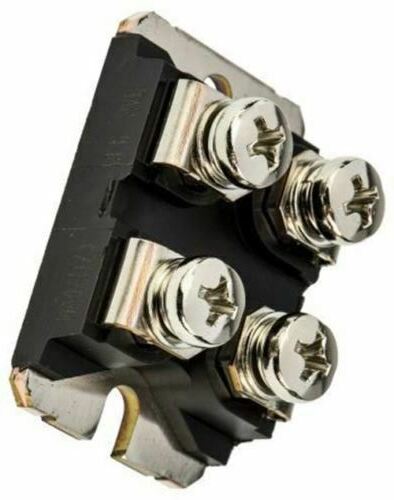

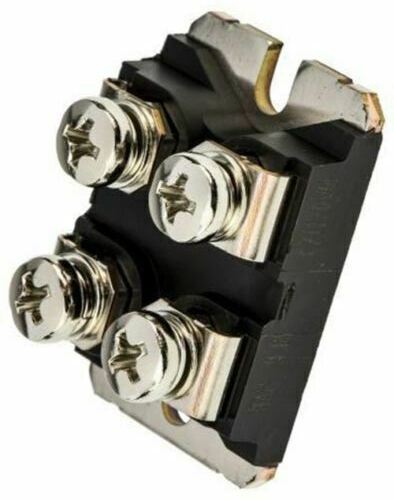

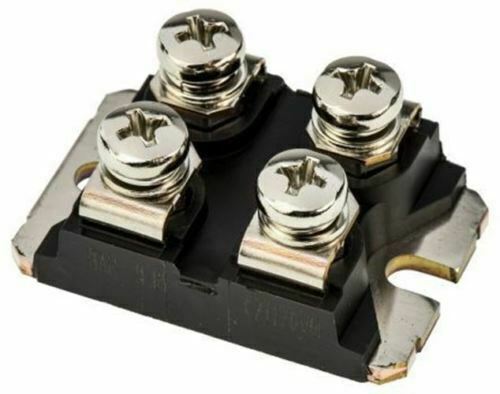

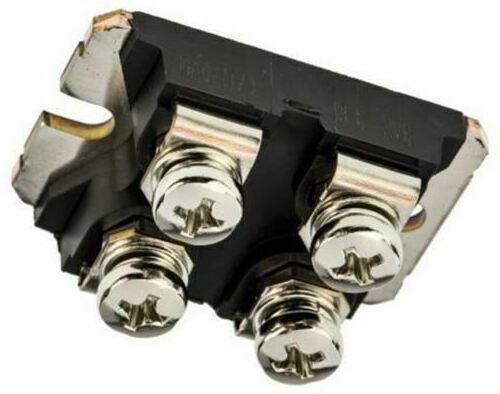

View detailed images (4)

ESM6045DV

SKU: ESM6045DV
ESM6045DV Semiconductor - Case: ISOTOP Make: ST Microelectronics - STM
Price: £43.99
+ VAT 20% for UK purchases
£43.99
Qty
+ VAT 20% for UK purchases
  • More pieces shipped in 14 days
Datasheet
ESM6045DV Datasheet
Product specifications
Manufacturer ST Microelectronics - STM
Case ISOTOP
Type Semiconductor
Vbr CEO 450
Ckts Per Dev. 1
Max. PD (W) 175
Ic Max. (A) 84
Polarity NPN
Tr Max. (s) 5.5u
Therm Res. ÚJC (°C/W) 1.2
Therm Res. (J-C) 710m
VCE(sat) Max. 2.0
Oper. Temp (°C) Max. 150
Isolated Case (Y/N) Yes
Pinout Equivalence Number 4-116
Maximum Collector Power Dissipation (Pc) 250 W
Maximum Collector-Base Voltage |Vcb| 600 V
Maximum Collector-Emitter Voltage |Vce| 450 V
Maximum Emitter-Base Voltage |Veb| 7 V
Maximum Collector Current |Ic max| 84 A
Max. Operating Junction Temperature (Tj) 175 °C
Forward Current Transfer Ratio (hFE), MIN 2000
SKU 81913
