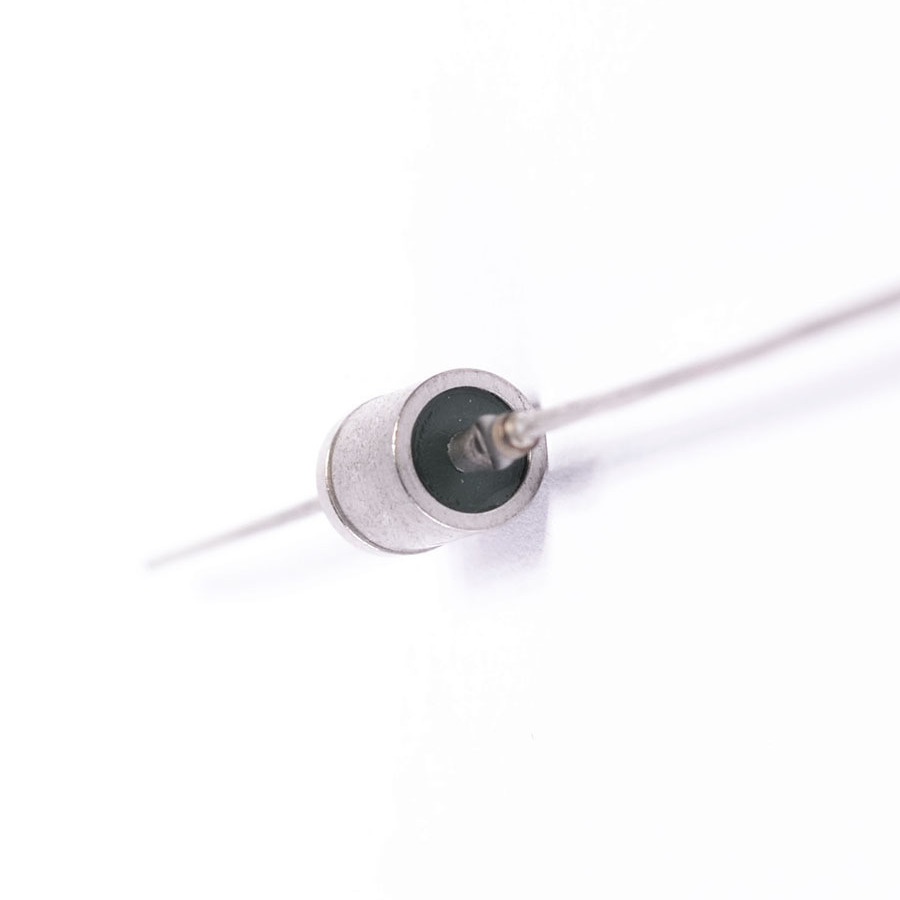

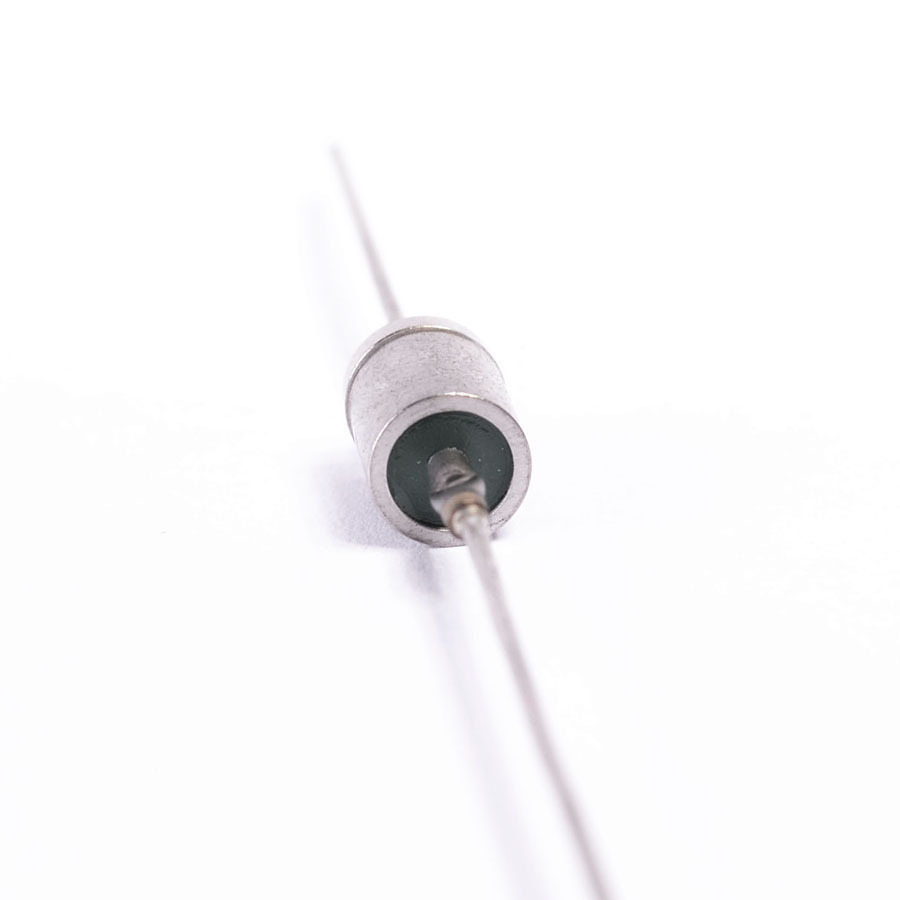

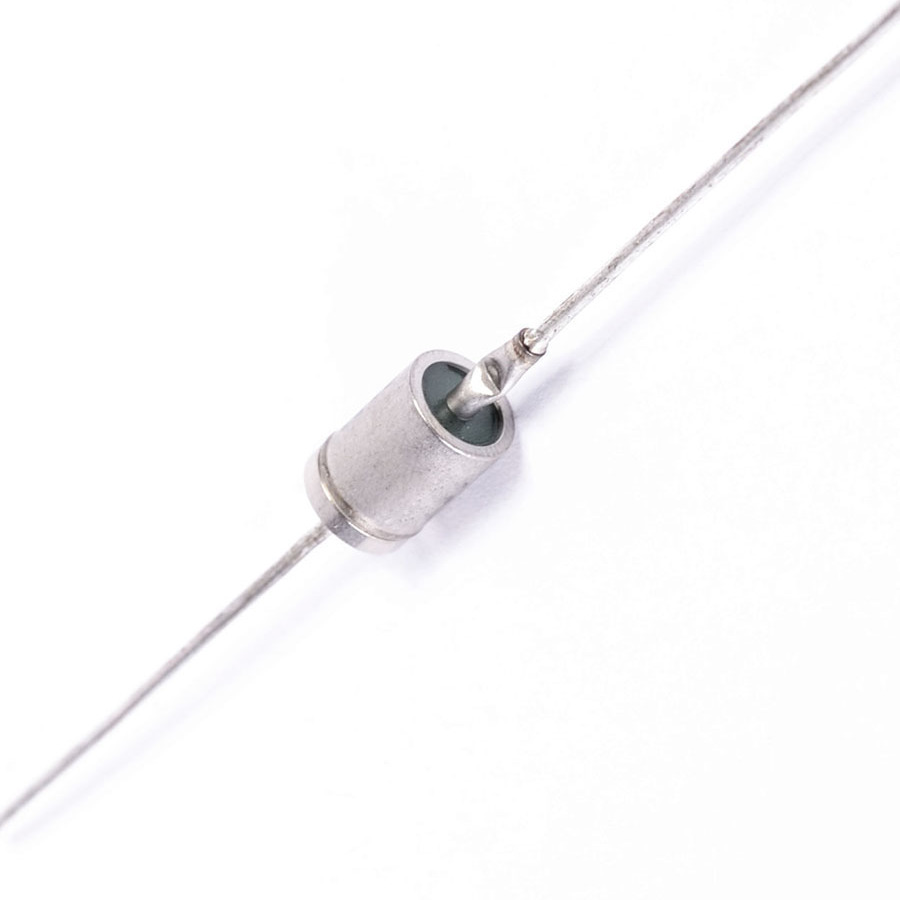

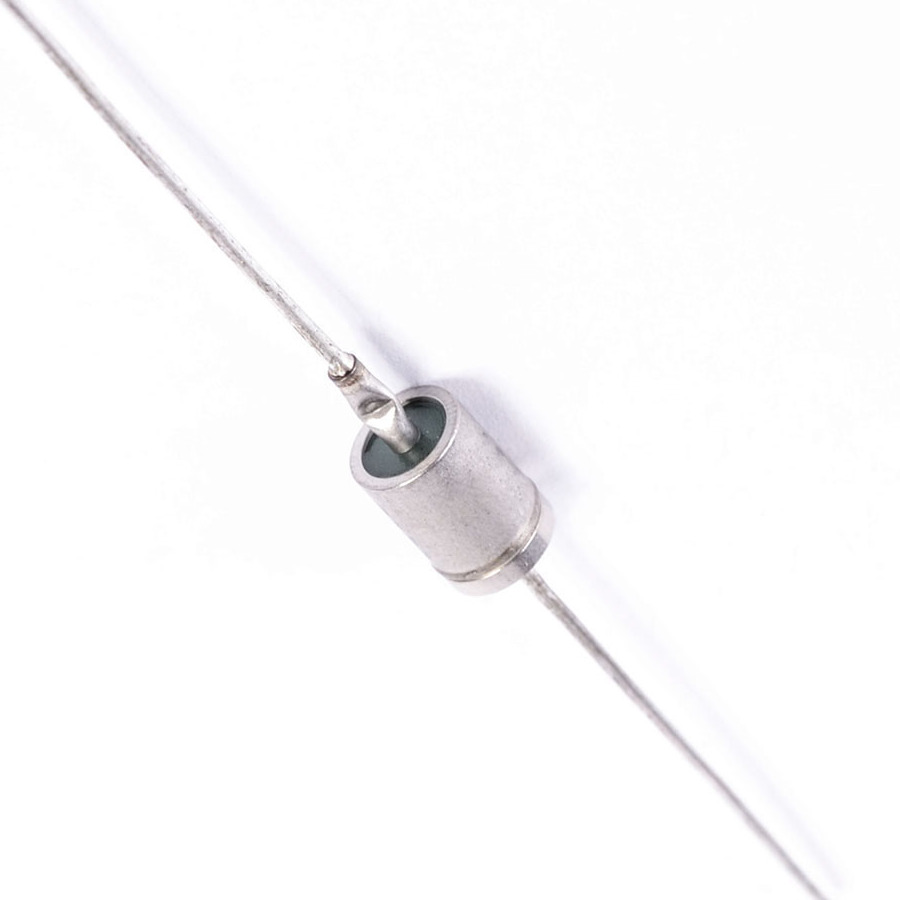

F101 Transistor Silicon NPN CASE: DO13 MAKE: SSC - Silec SemiConductors
Product specifications
Type Transistor Silicon NPN
Case DO13
Manufacturer SSC - Silec SemiConductors
Vbr CBO 30
Vbr CEO 30
Max. PD (W) 85
Max. hFE 50
Min hFE 10
Ic Max. (A) 4.0
@Ic (test) (A) 1.0
@Temp. (test) (°C) 25
Ir @ Diff. Temp (A) 1.0m
VRRM 1.0k
Polarity NPN
PD Max. (W) 400m
R(sat) (Û) 5.0
1-Cycle Surge Current (A) 30
@Temp (test) (°C) 150
@Temp. (test) for Vf) 25#
Derate Above 25°C 476m
Vf Max. 1.2
I(out) (If AVG) Max. 1.25
Trans. Freq (Hz) Min. 1.0M
@Volts (test) (V) 1.0k
@If (test) 1.2
Oper. Temp (°C) Max. 140
@VCE (V) 15
Ireg Nom. (A) 130u
V limit Max. 0.5
Z(t) Max. (Û) 6.0M
Peak Oper. Volt 100
Pinout Equivalence Number N/A
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 85 W
Maximum Collector-Base Voltage |Vcb| 30 V
Maximum Collector-Emitter Voltage |Vce| 30 V
Maximum Collector Current |Ic max| 4 A
Max. Operating Junction Temperature (Tj) 175 °C
Transition Frequency (ft): 1 MHz
Forward Current Transfer Ratio (hFE), MIN 10
SKU 183769
