F121
View detailed images (12)

F121

SKU: F121

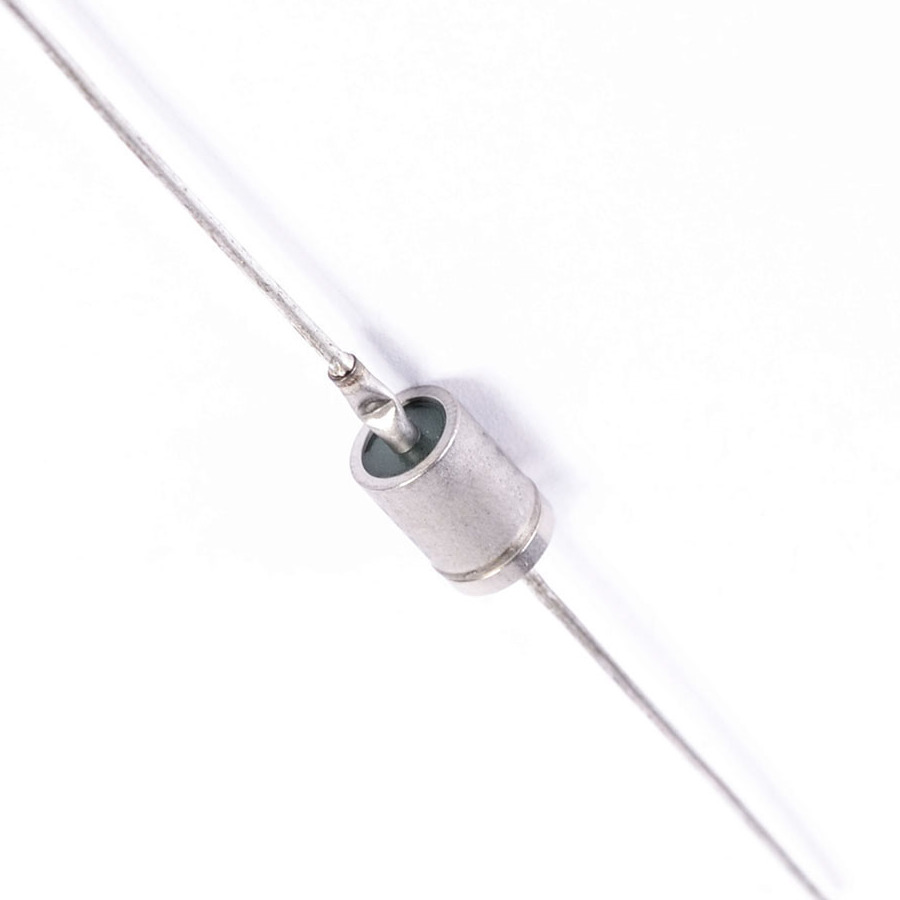

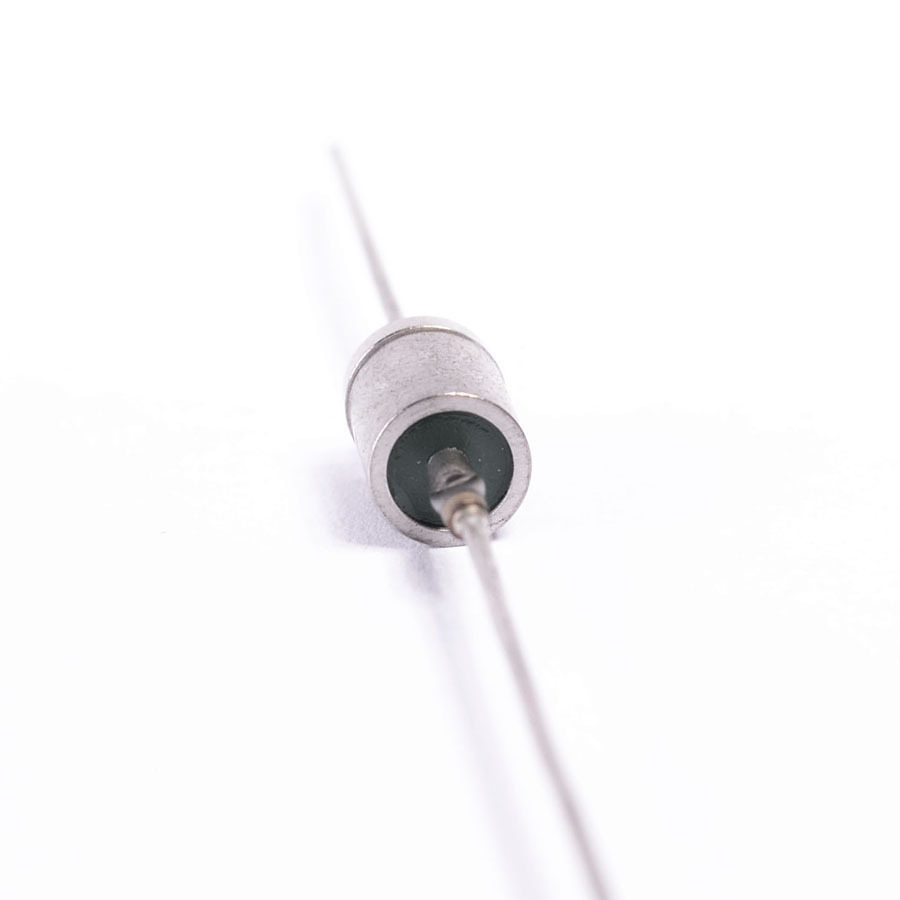

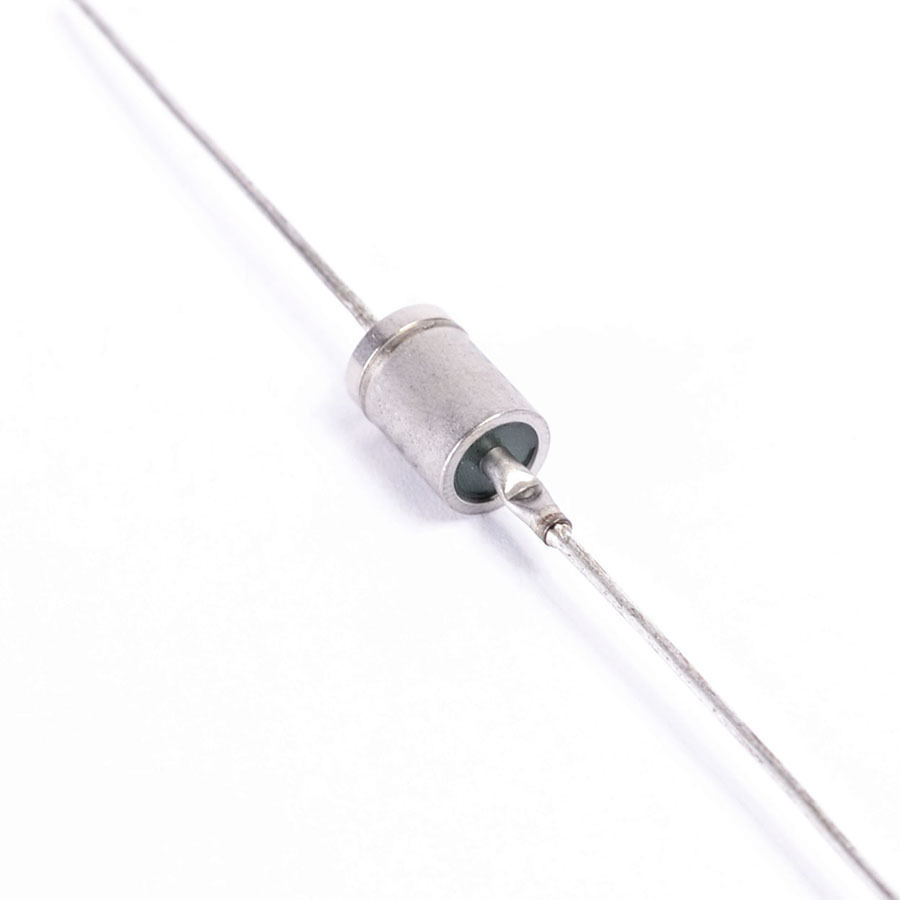

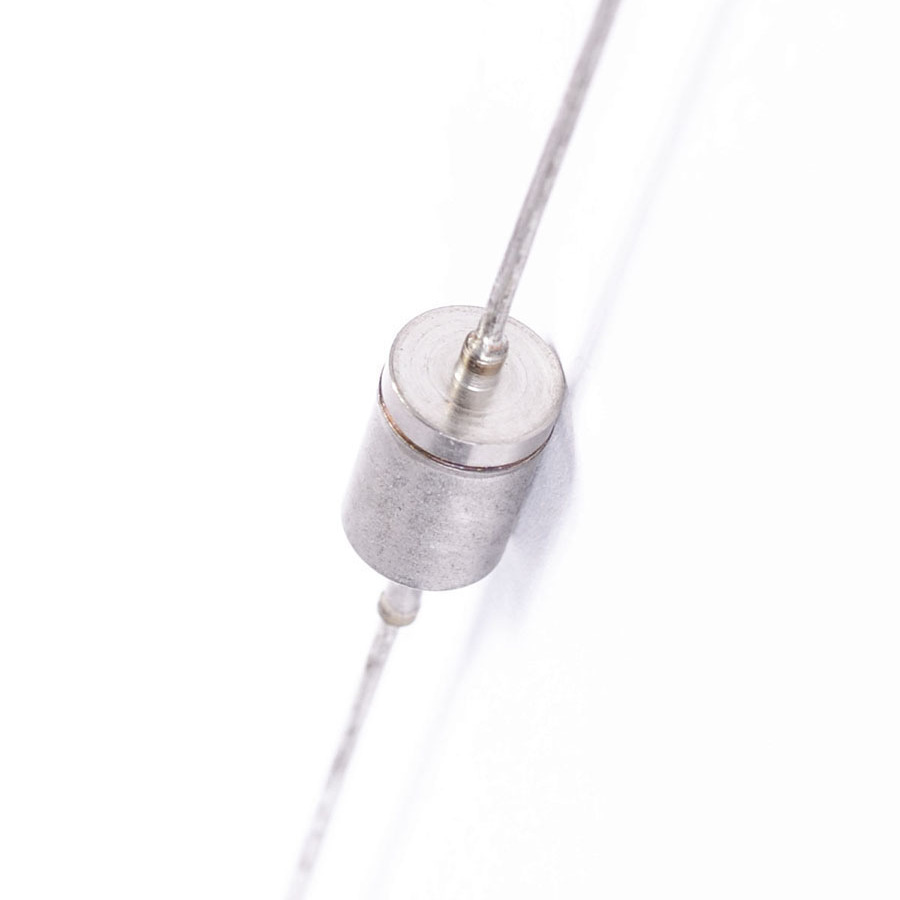

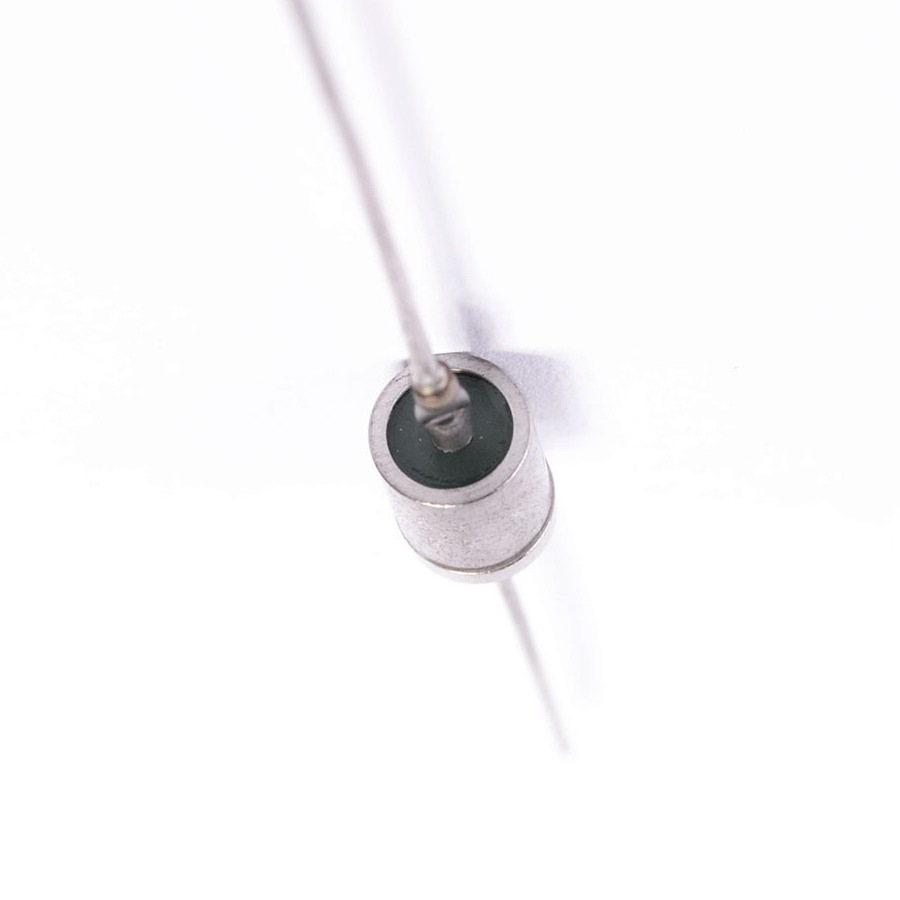

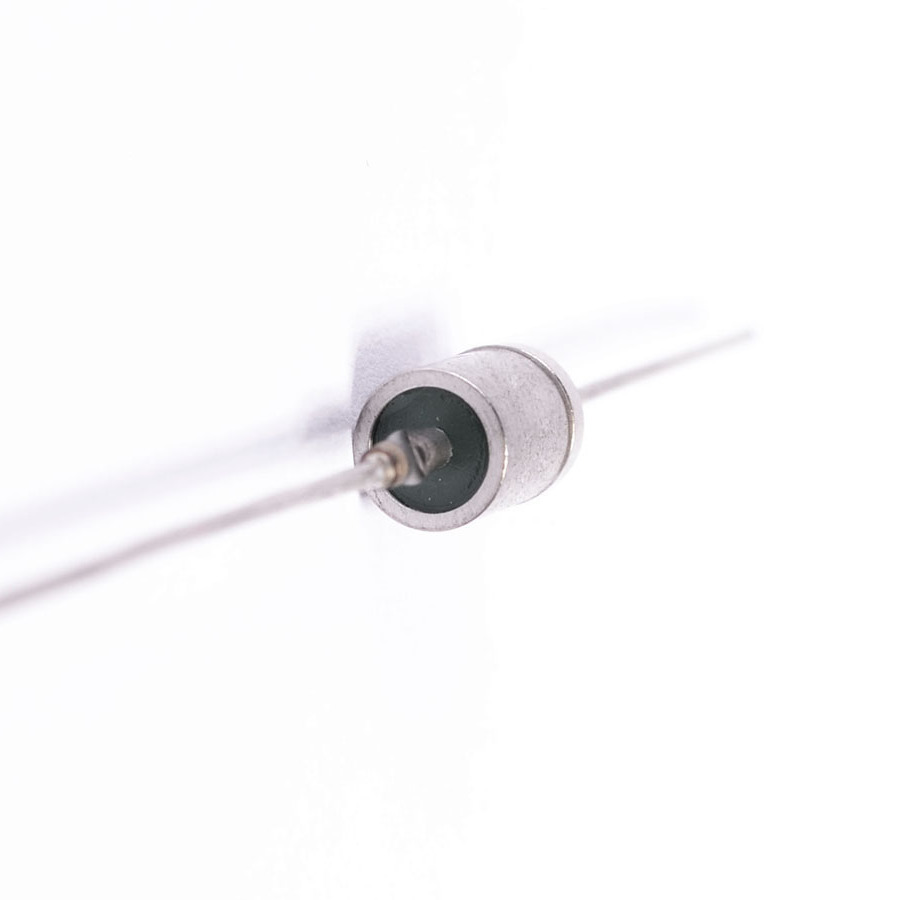

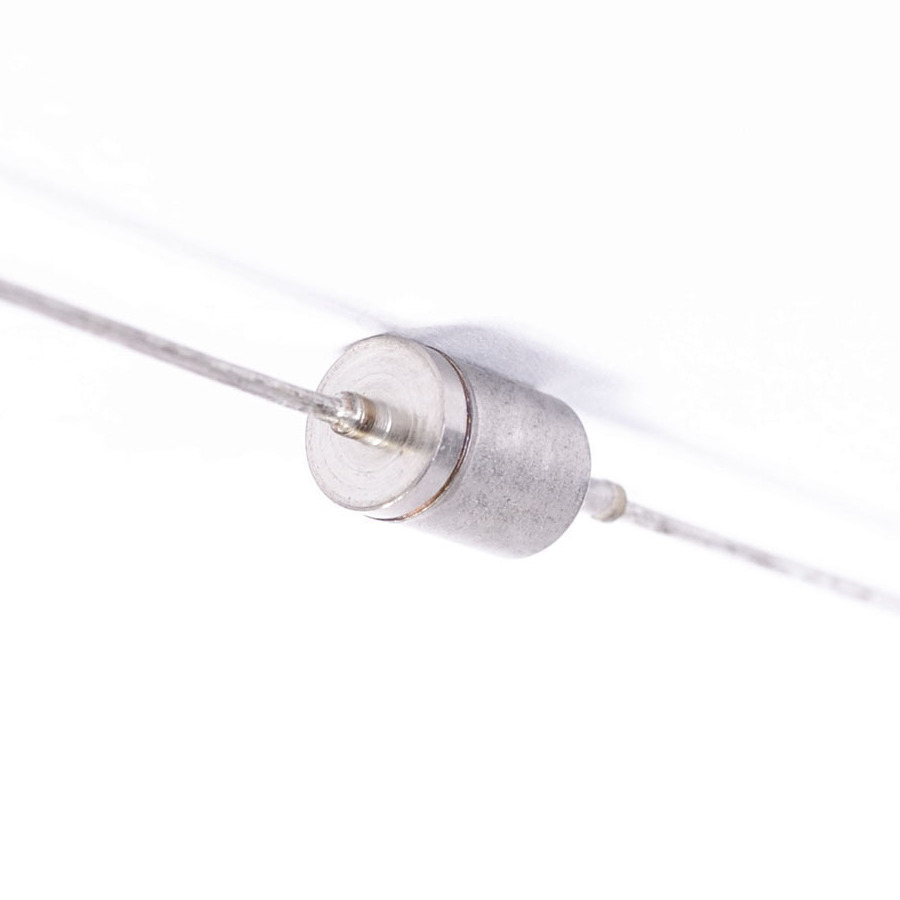

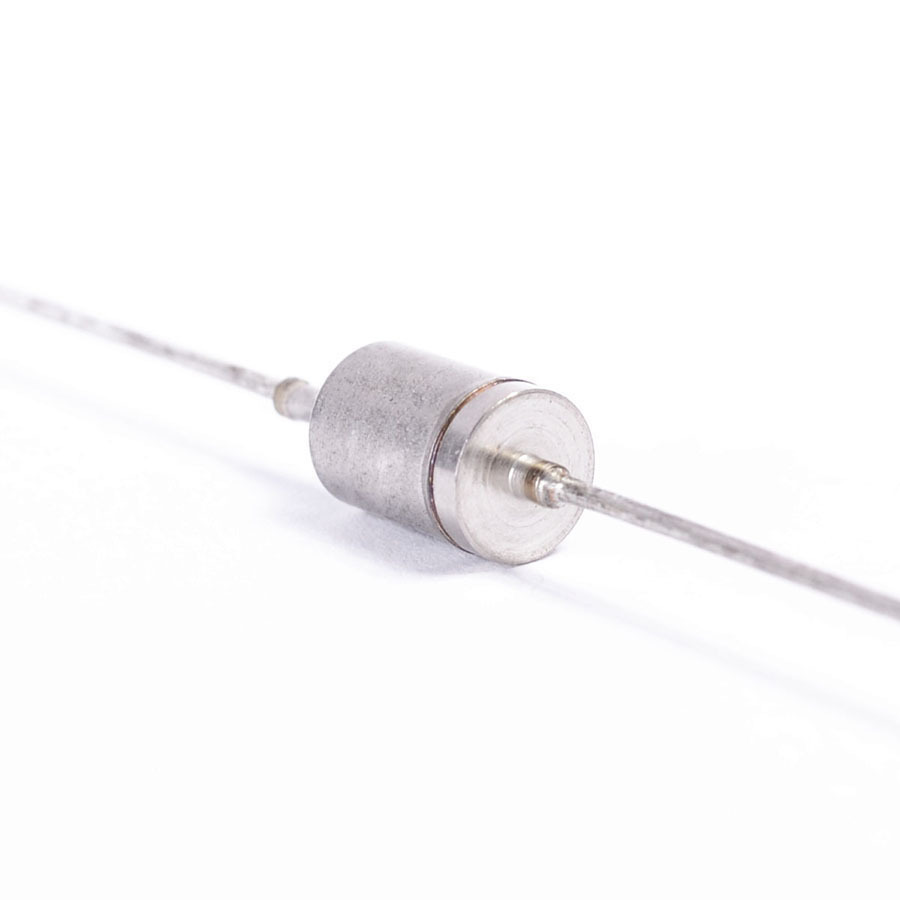

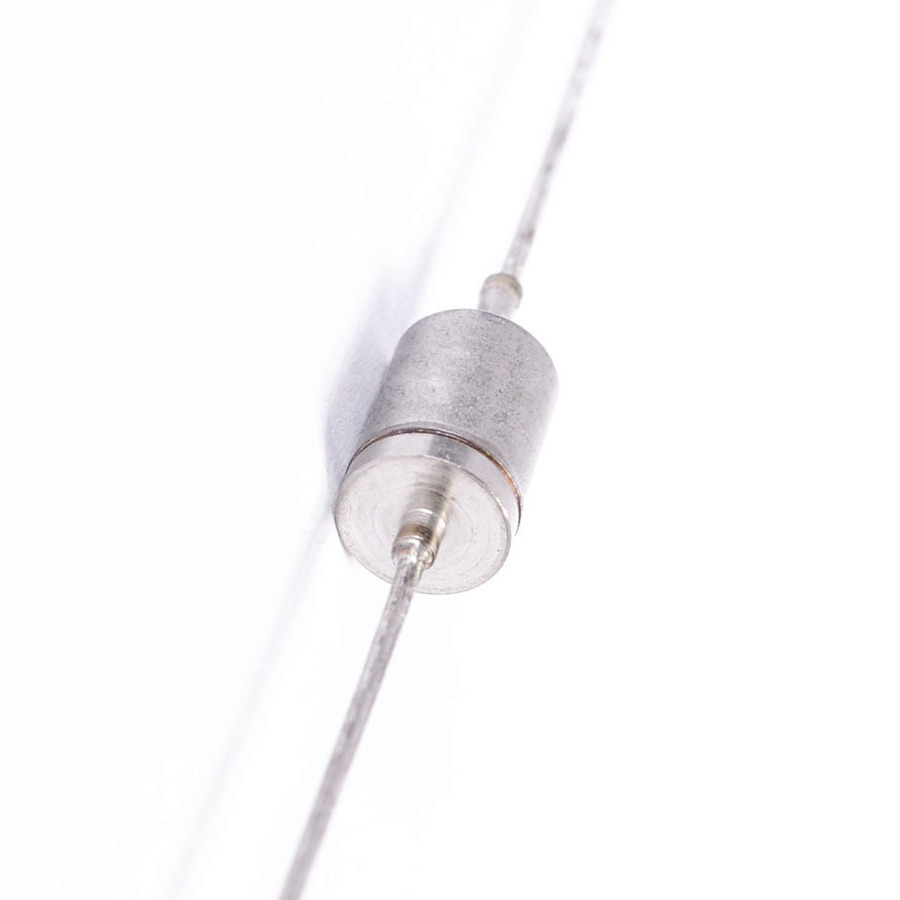

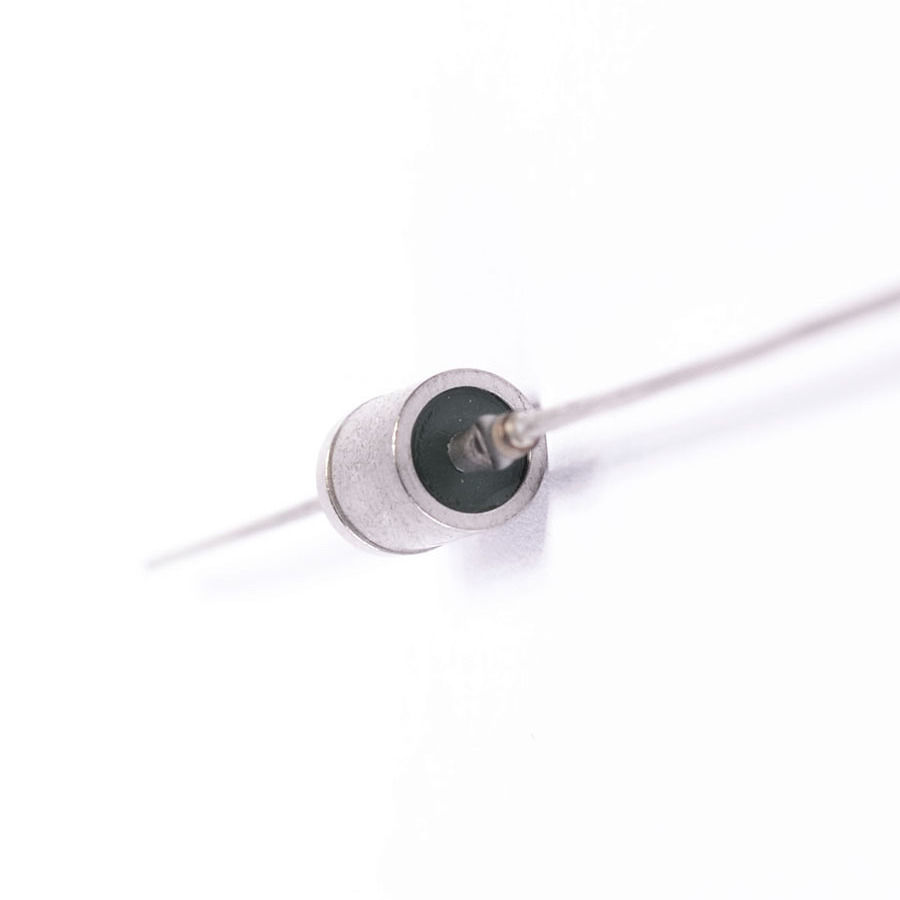

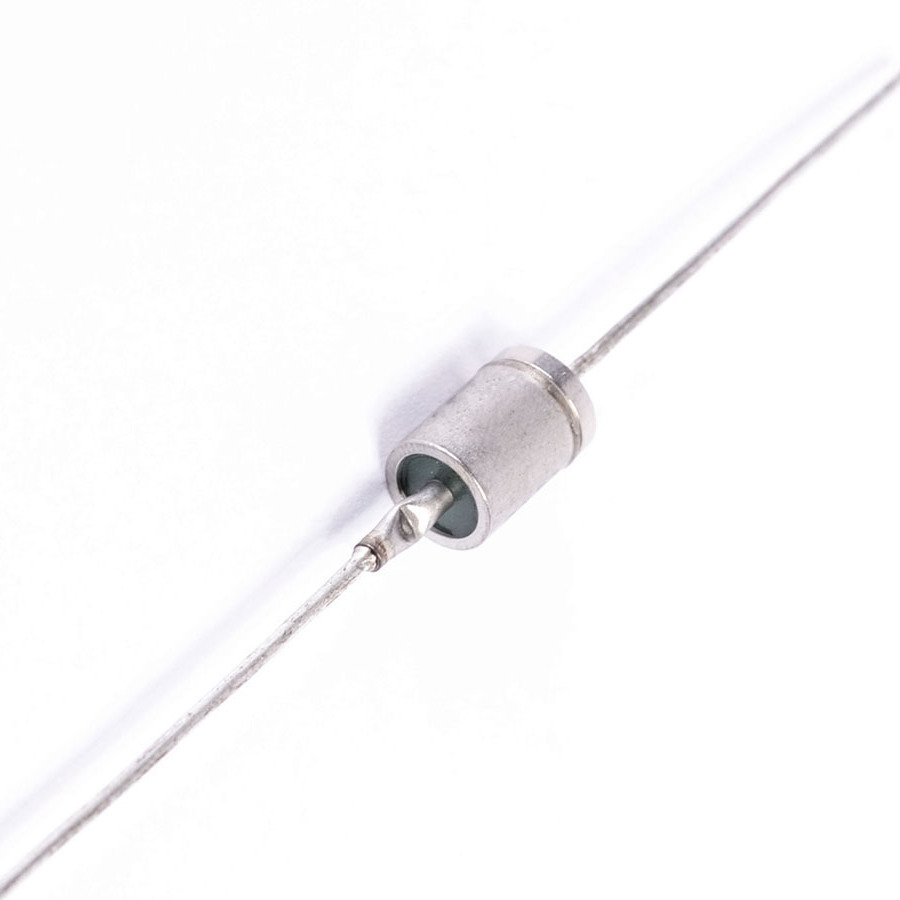

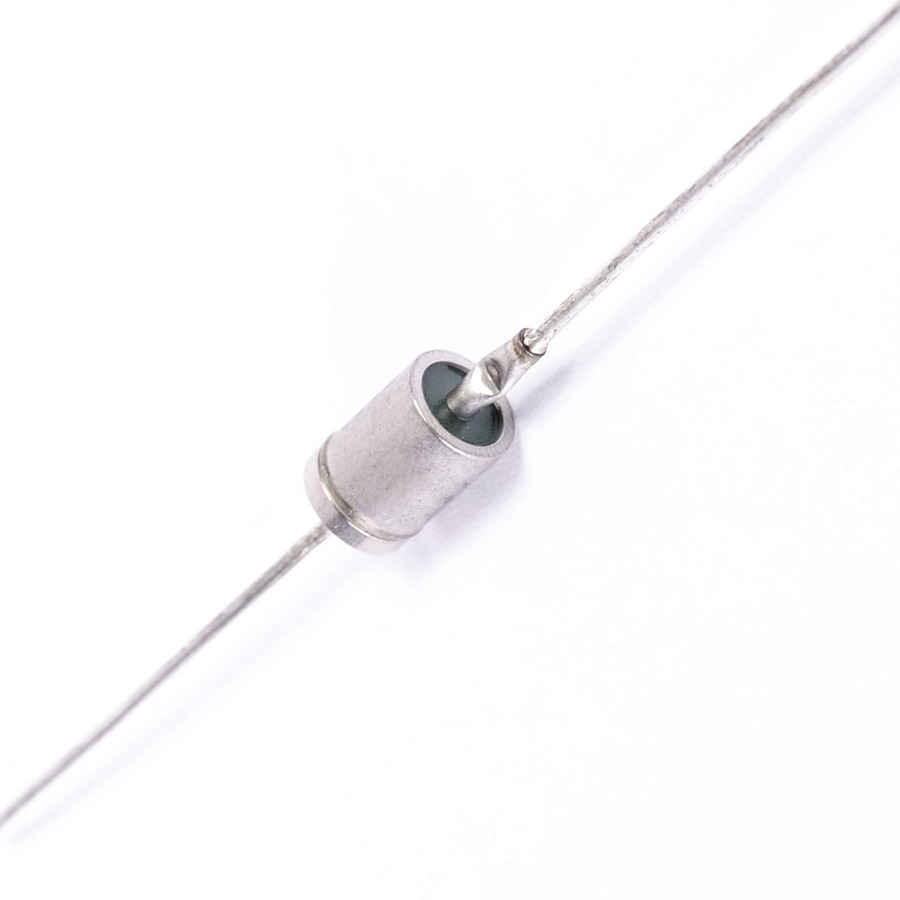

F121 Transistor Silicon NPN CASE: DO13 MAKE: SSC - Silec SemiConductors
Product specifications
Type Transistor Silicon NPN
Case DO13
Manufacturer SSC - Silec SemiConductors
Vbr CBO 55
Vbr CEO 55
Max. PD (W) 85
Max. hFE 50
Min hFE 10
Ic Max. (A) 4.0
@Ic (test) (A) 1.0
@Temp. (test) (°C) 25
Ir @ Diff. Temp (A) 1.0m
VRRM 1.2k
Polarity NPN
R(sat) (Û) 5.0
1-Cycle Surge Current (A) 30
@Temp (test) (°C) 150#
@Temp. (test) for Vf) 25
Derate Above 25°C 476m
Vf Max. 1.2
I(out) (If AVG) Max. 1.2
Trans. Freq (Hz) Min. 1.0M
@Volts (test) (V) 1.2k
@If (test) 1.2
Oper. Temp (°C) Max. 100
@VCE (V) 15
Pinout Equivalence Number N/A
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 85 W
Maximum Collector-Base Voltage |Vcb| 55 V
Maximum Collector-Emitter Voltage |Vce| 55 V
Maximum Collector Current |Ic max| 4 A
Max. Operating Junction Temperature (Tj) 100 °C
Transition Frequency (ft): 1 MHz
Forward Current Transfer Ratio (hFE), MIN 10
SKU 579569
