FC106
View detailed images (5)

FC106

SKU: FC106

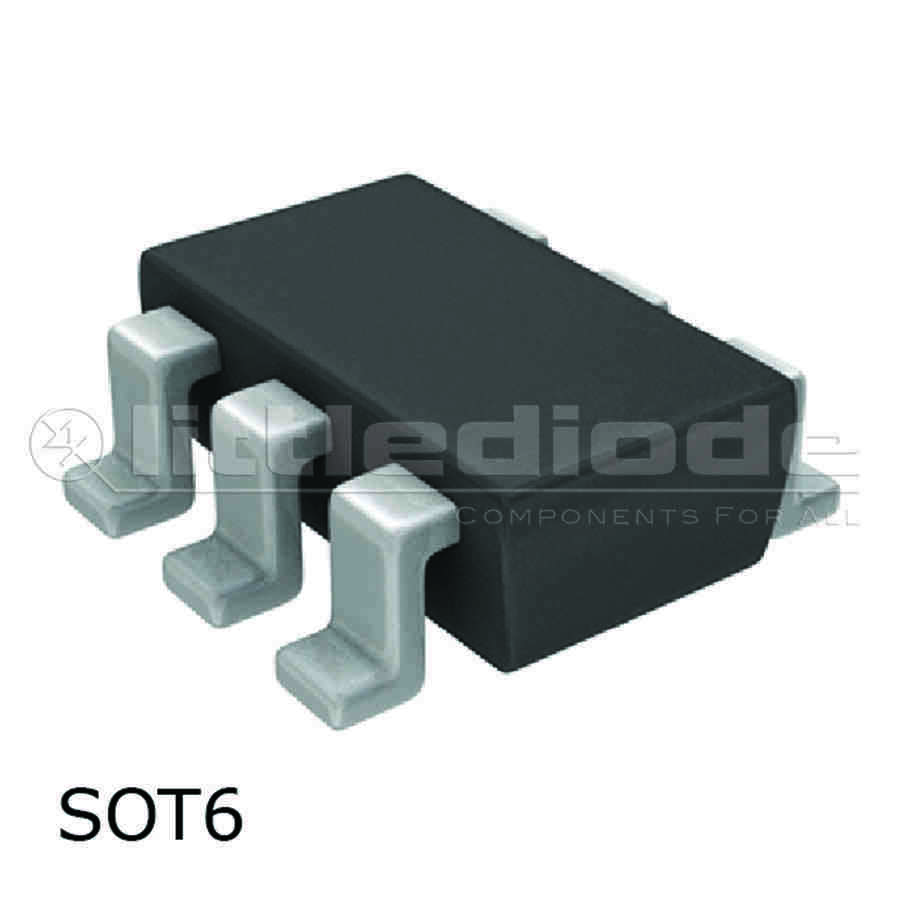

FC106 Transistor Silicon NPN CASE: SOT6 MAKE: Sanyo Semiconductor
Datasheet
FC106 Datasheet
Product specifications
Type Transistor Silicon NPN
Case SOT6
Manufacturer Sanyo Semiconductor
Min hFE 50
@Ic (test) (A) 5.0m
Icbo Max. @Vcb Max. (A) 100n
Mat. Silicon Logic
Polarity NPN
Mat. Struct. NPN
@VCE (V) 5.0
Pinout Equivalence Number 6-58
Surface Mounted Yes/No YES
Maximum Collector Power Dissipation (Pc) 0.3 W
Maximum Collector-Base Voltage |Vcb| 50 V
Maximum Collector-Emitter Voltage |Vce| 50 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 0.1 A
Max. Operating Junction Temperature (Tj) 150 °C
Forward Current Transfer Ratio (hFE), MIN 50
SMD Transistor Code 106
SKU 352696
