FC119
View detailed images (5)

FC119

SKU: FC119

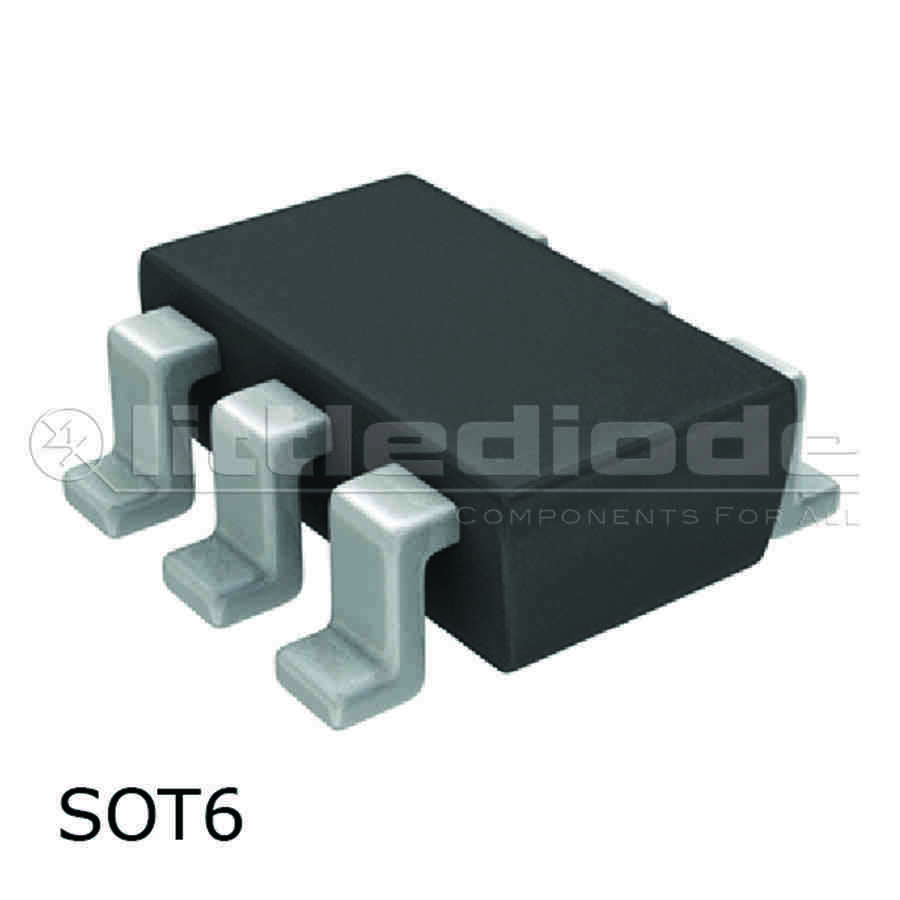

FC119 Transistor Silicon NPN CASE: SOT6 MAKE: Sanyo Semiconductor
Datasheet
FC119 Datasheet
Product specifications
Type Transistor Silicon NPN
Case SOT6
Manufacturer Sanyo Semiconductor
fT Min (Hz) 320M
Min hFE 80
Mat. Silicon Logic
Polarity NPN
PD Max. (W) 300m
@VCE (test) (V) 6.0
@Ic (test) 1.0m
Ic Max. 30m
Vceo Max. 20
Pinout Equivalence Number 6-59
Descript Noise Figure 3.0dB typ
Surface Mounted Yes/No YES
Maximum Collector Power Dissipation (Pc) 0.2 W
Maximum Collector-Base Voltage |Vcb| 30 V
Maximum Collector-Emitter Voltage |Vce| 20 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 0.03 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 1.2 pF
Transition Frequency (ft): 320 MHz
Forward Current Transfer Ratio (hFE), MIN 80
SKU 352710
