FC120
View detailed images (5)

FC120

SKU: FC120

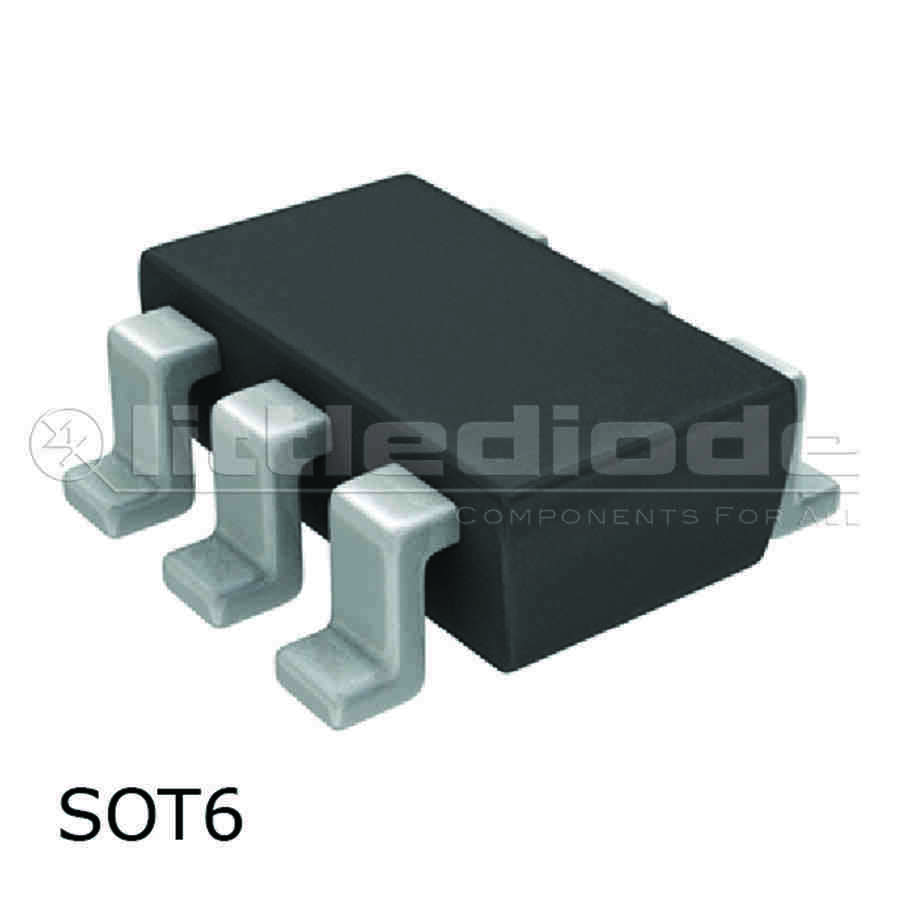

FC120 Transistor Silicon NPN CASE: SOT6 MAKE: Sanyo Semiconductor
Datasheet
FC120 Datasheet
Product specifications
Type Transistor Silicon NPN
Case SOT6
Manufacturer Sanyo Semiconductor
fT Min (Hz) 750M
Min hFE 80
Mat. Silicon Logic
Polarity NPN
PD Max. (W) 300m
@VCE (test) (V) 6.0
@Ic (test) 1.0m
Ic Max. 30m
Vceo Max. 20
Pinout Equivalence Number 6-59
Descript Noise Figure 2.2dB typ
Surface Mounted Yes/No YES
Maximum Collector Power Dissipation (Pc) 0.2 W
Maximum Collector-Base Voltage |Vcb| 25 V
Maximum Collector-Emitter Voltage |Vce| 20 V
Maximum Emitter-Base Voltage |Veb| 3 V
Maximum Collector Current |Ic max| 0.03 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 0.9 pF
Transition Frequency (ft): 750 MHz
Forward Current Transfer Ratio (hFE), MIN 80
SKU 352712
