FJAF4210
View detailed images (12)

FJAF4210

SKU: FJAF4210

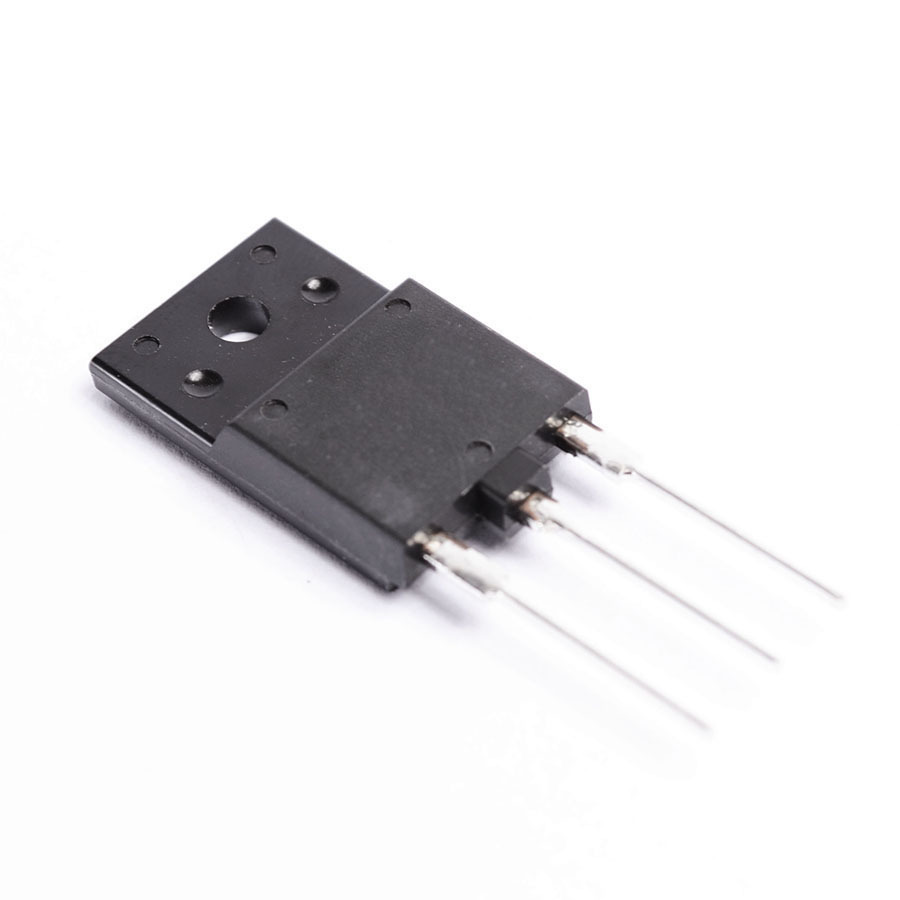

FJAF4210 Transistor Silicon PNP CASE: TO3PF MAKE: Fairchild Semiconductor
Datasheet
FJAF4210 Datasheet
Product specifications
Type Transistor Silicon PNP
Case TO3PF
Manufacturer Fairchild Semiconductor
Polarity PNP
Maximum Collector Power Dissipation (Pc) 80 W
Maximum Collector-Base Voltage |Vcb| 200 V
Maximum Collector-Emitter Voltage |Vce| 140 V
Maximum Emitter-Base Voltage |Veb| 6 V
Maximum Collector Current |Ic max| 10 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 400 pF
Transition Frequency (ft): 30 MHz
Forward Current Transfer Ratio (hFE), MIN 50
SKU 537823
