Home / Actives / Transistor / FJL6920
FJL6920

FJL6920

SKU: FJL6920

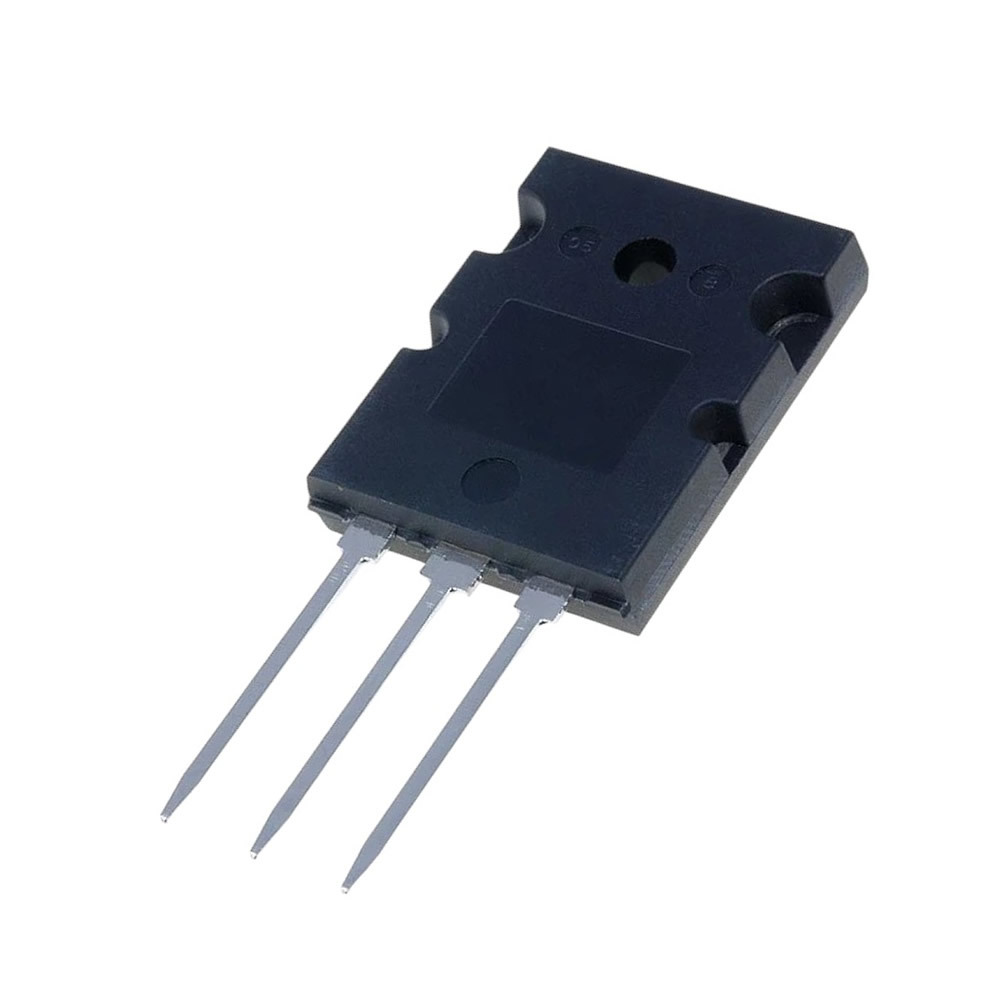

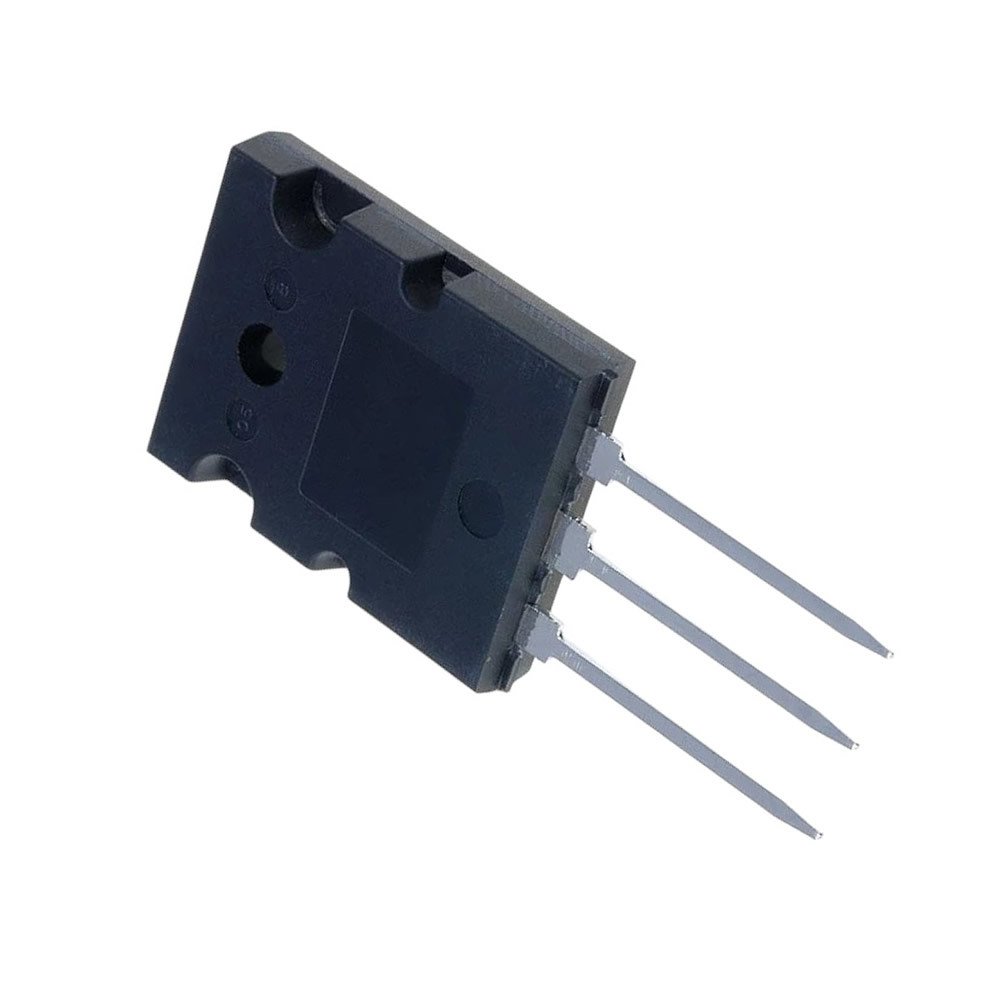

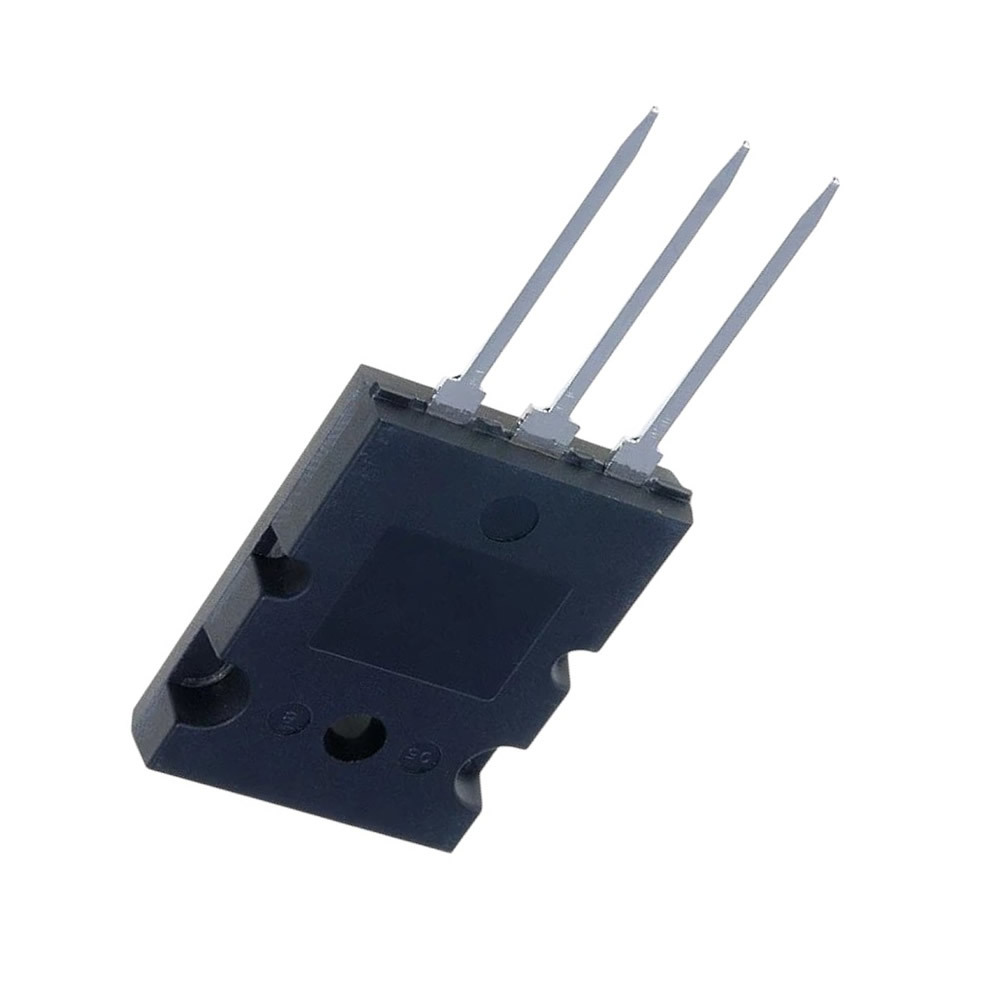

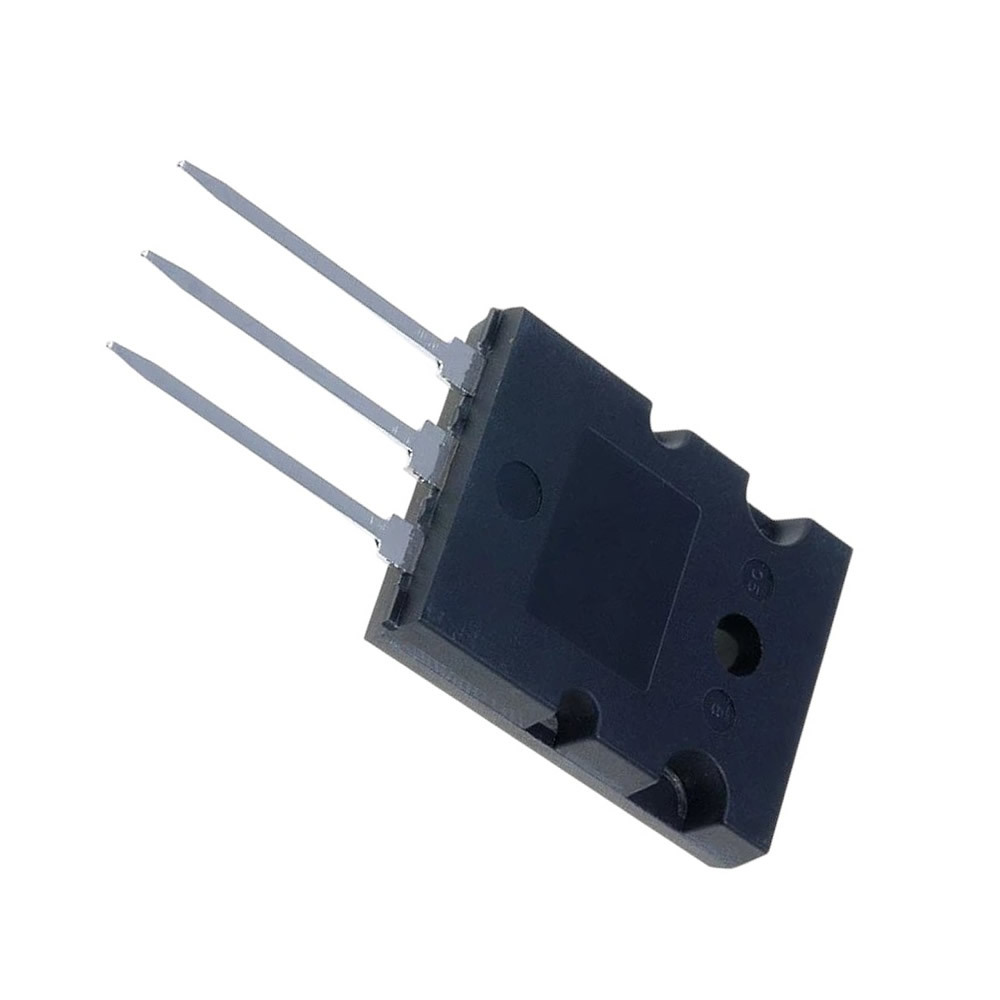

FJL6920 Transistor Silicon NPN CASE: TO264 MAKE: Fairchild Semiconductor
Price:
£14.39 Inc. VAT (£11.99 Ex. VAT)
£14.39 Inc. VAT (£11.99 Ex. VAT)
Qty
  • More pieces shipped in 14 days
?
Datasheet
FJL6920 Datasheet
Product specifications
Type Transistor Silicon NPN
Case TO264
Manufacturer Fairchild Semiconductor
Polarity NPN
Maximum Collector Power Dissipation (Pc) 200 W
Maximum Collector-Base Voltage |Vcb| 1700 V
Maximum Collector-Emitter Voltage |Vce| 800 V
Maximum Emitter-Base Voltage |Veb| 6 V
Maximum Collector Current |Ic max| 20 A
Max. Operating Junction Temperature (Tj) 150 °C
Forward Current Transfer Ratio (hFE), MIN 5.5
SMD Transistor Code J6920
SKU 352833
