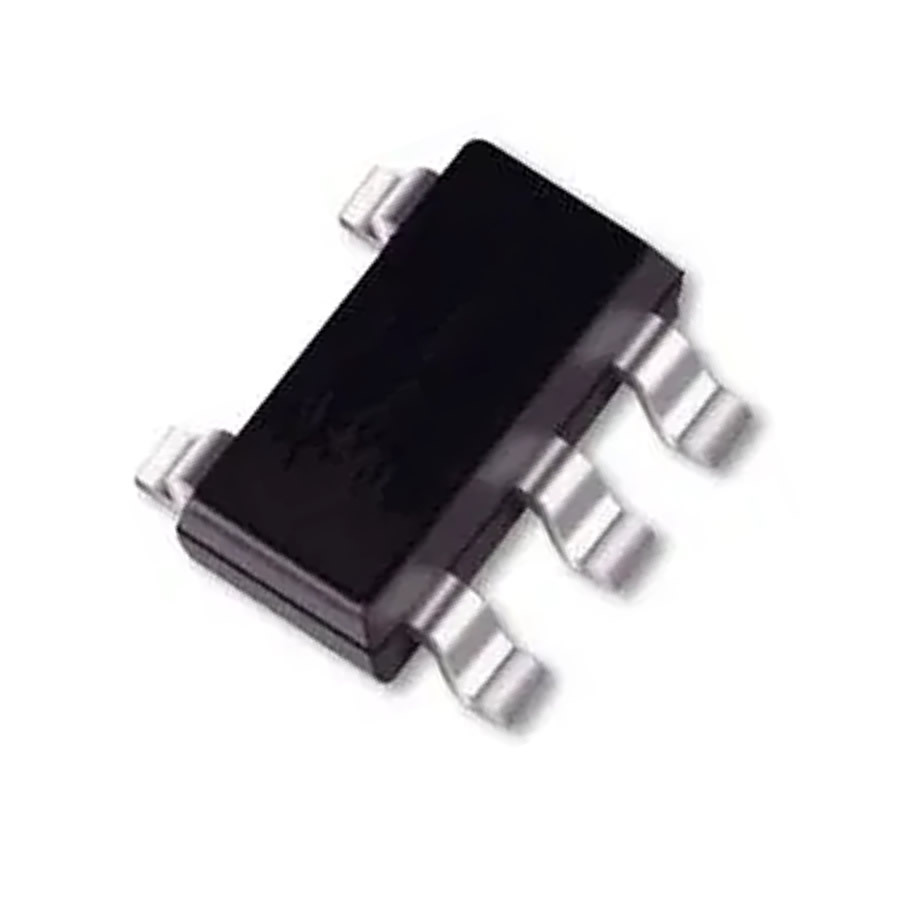

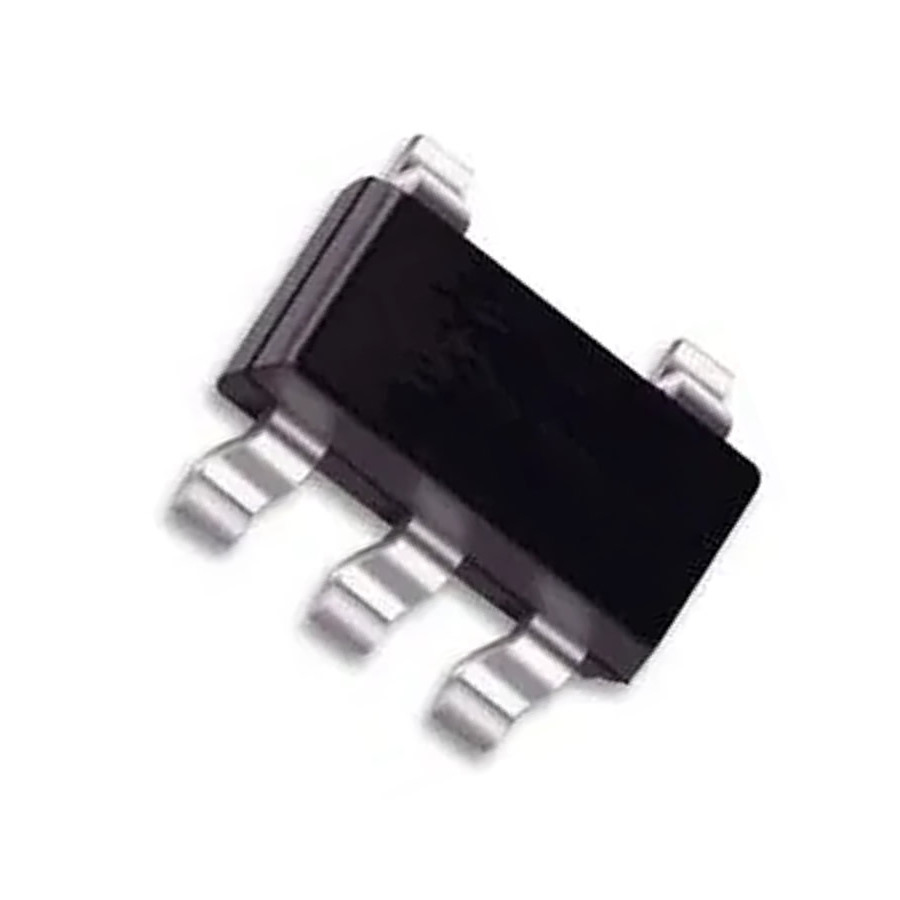

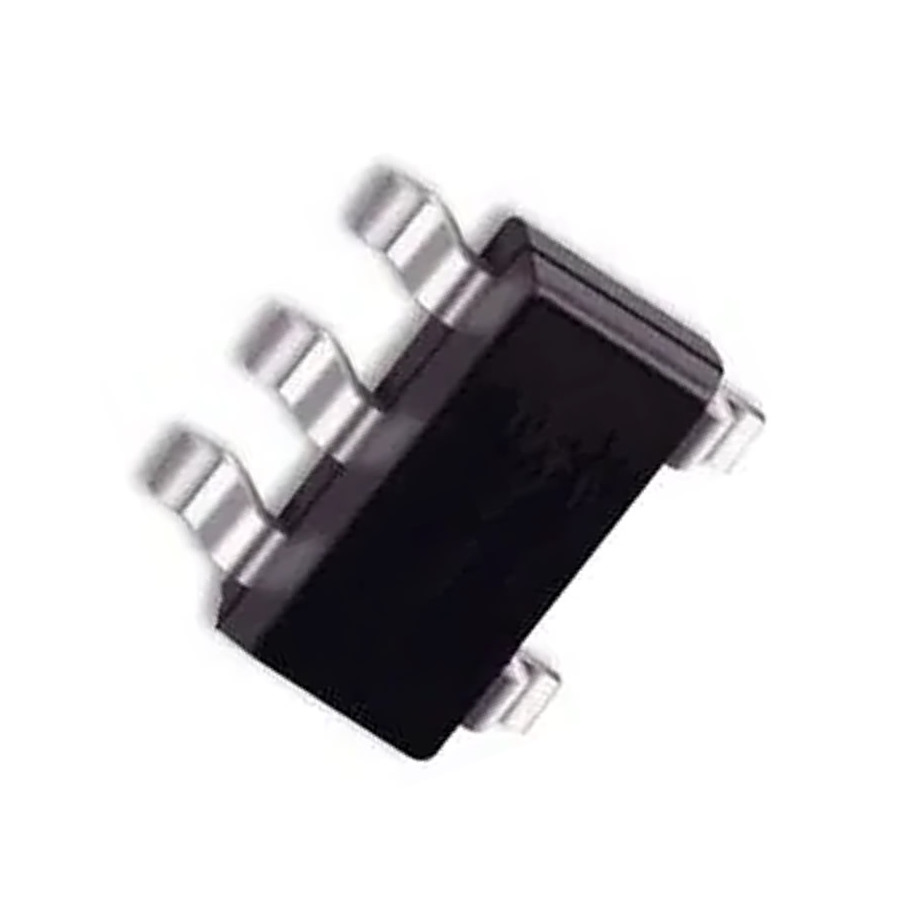

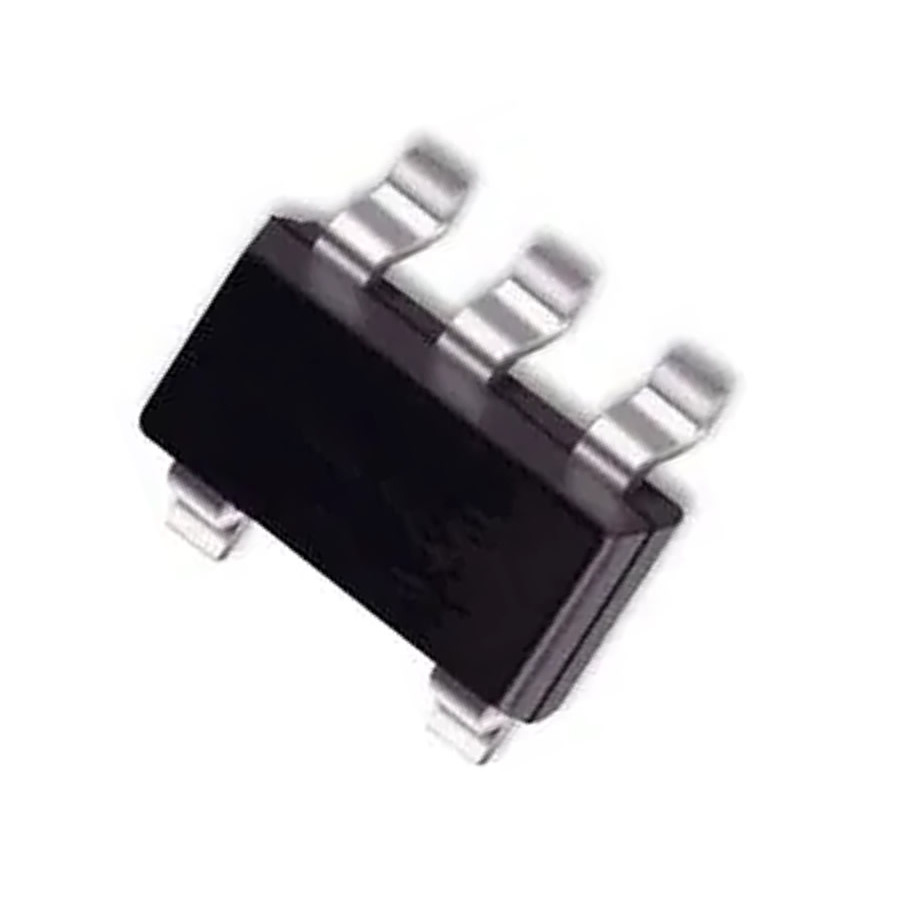

FMA8A
View detailed images (4)

FMA8A

SKU: FMA8A
FMA8A Transistor Silicon NPN CASE: SOT23-5 MAKE: Rohm Semiconductor
Datasheet
FMA8A Datasheet
Product specifications
Type Transistor Silicon NPN
Case SOT23-5
Manufacturer Rohm Semiconductor
Polarity Pre-Biased-PNP
Maximum Collector Power Dissipation (Pc) 0.3 W
Maximum Collector-Emitter Voltage |Vce| 50 V
Maximum Emitter-Base Voltage |Veb| 6 V
Maximum Collector Current |Ic max| 0.1 A
Max. Operating Junction Temperature (Tj) 150 °C
Transition Frequency (ft): 140 MHz
Forward Current Transfer Ratio (hFE), MIN 68
SMD Transistor Code A8
Built in Bias Resistor R1 10 kOhm
Built in Bias Resistor R2 47 kOhm
Typical Resistor Ratio R1/R2 0.21
SKU 567264
