FMBM5401
View detailed images (4)

FMBM5401

SKU: FMBM5401

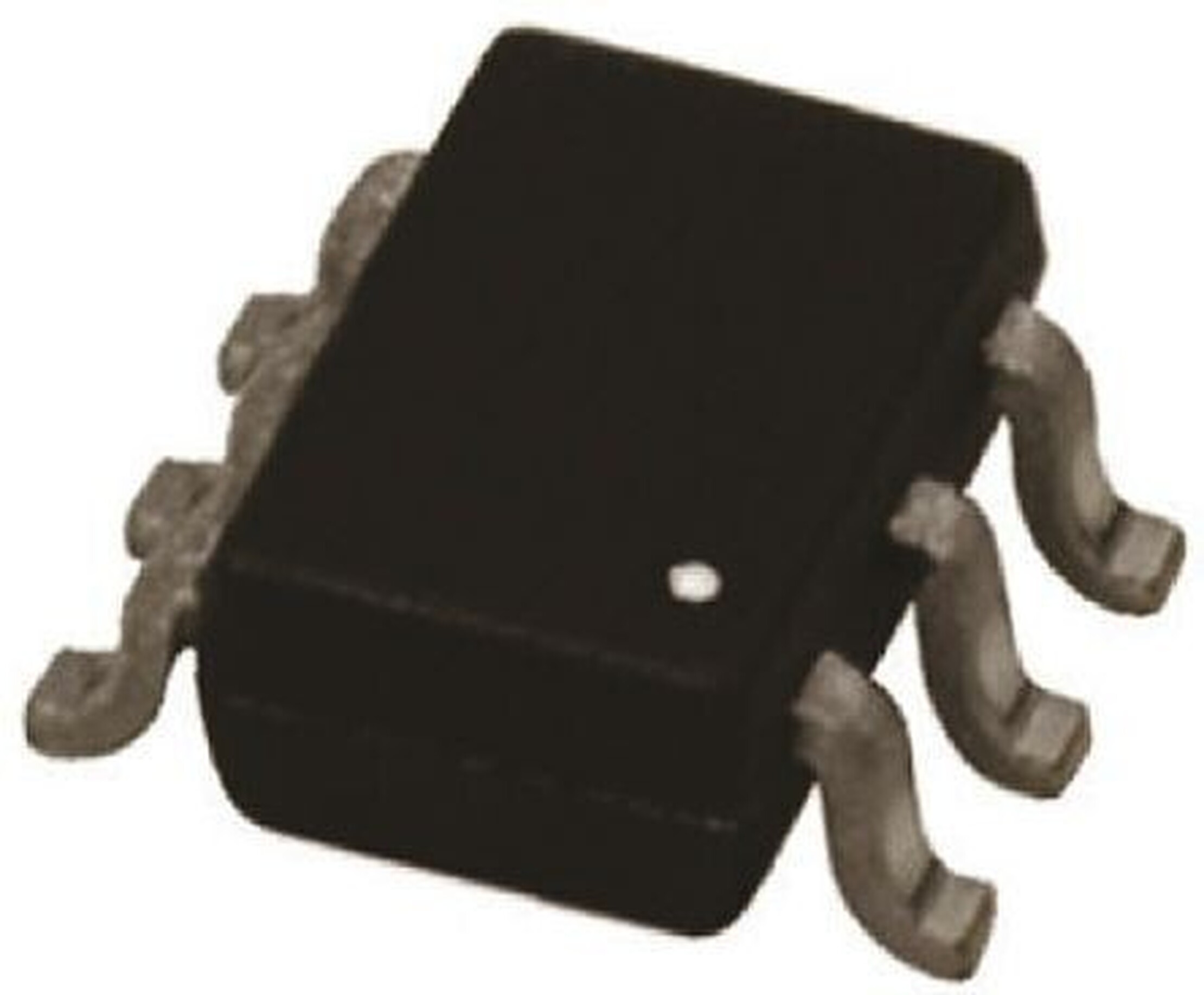

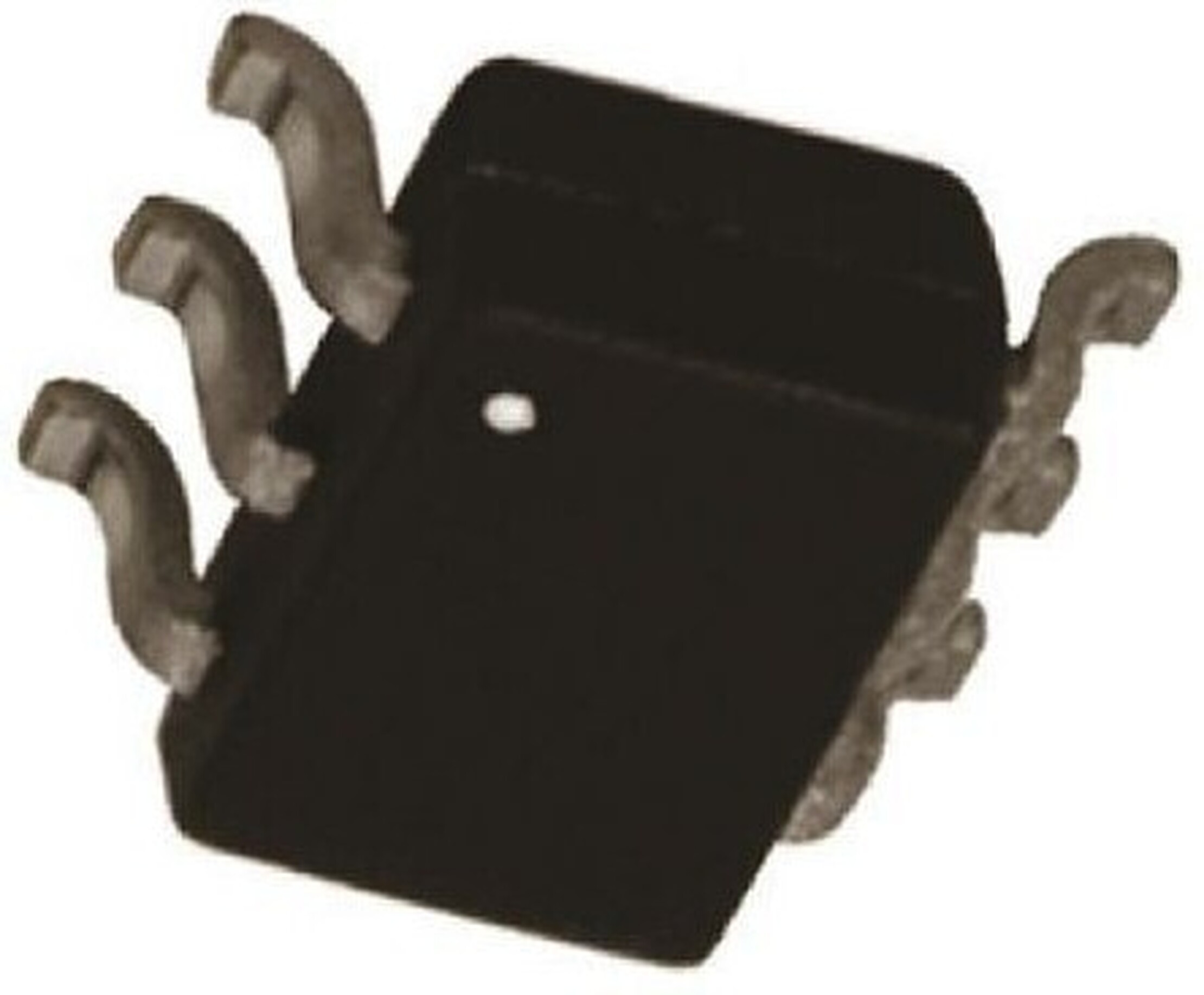

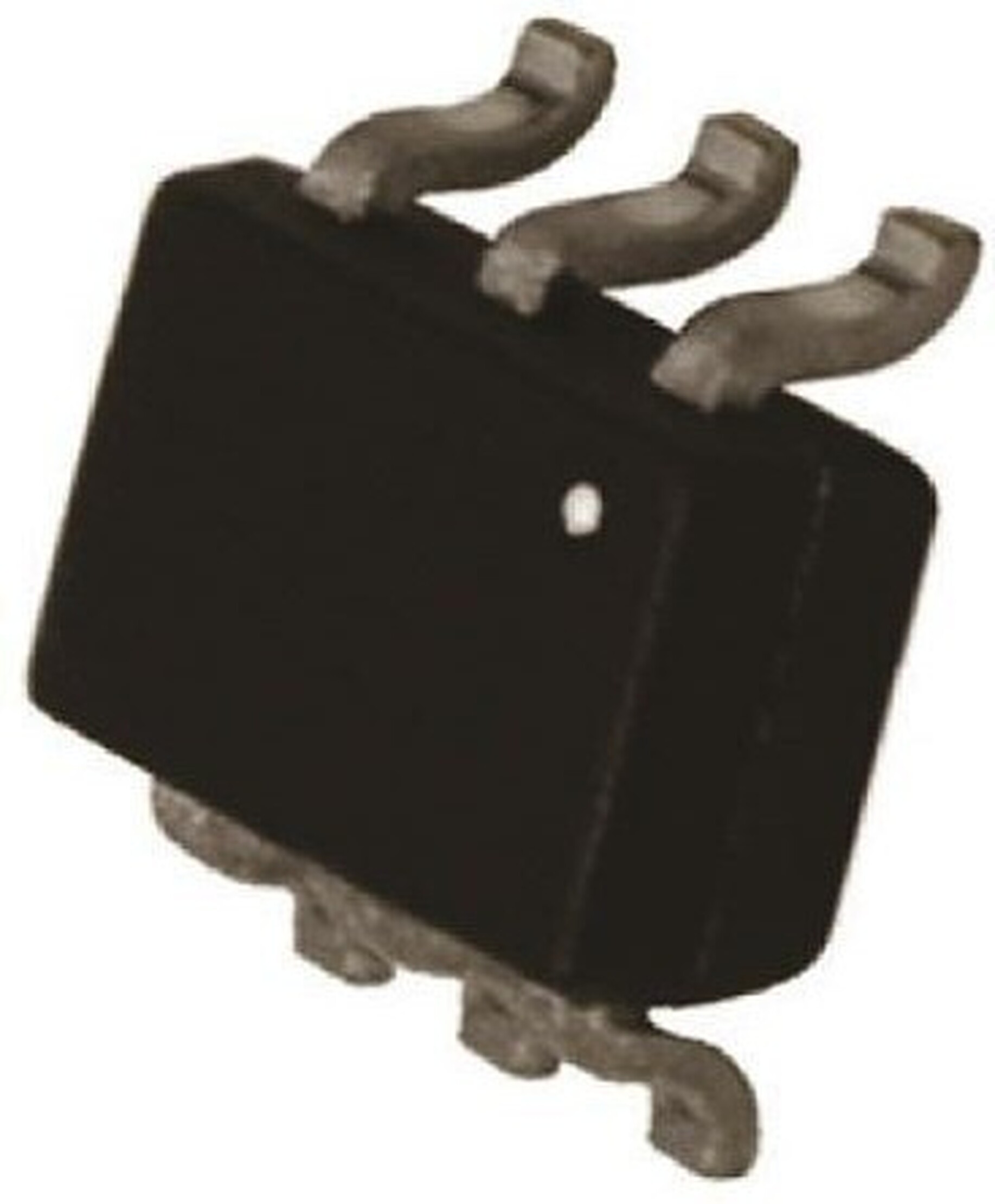

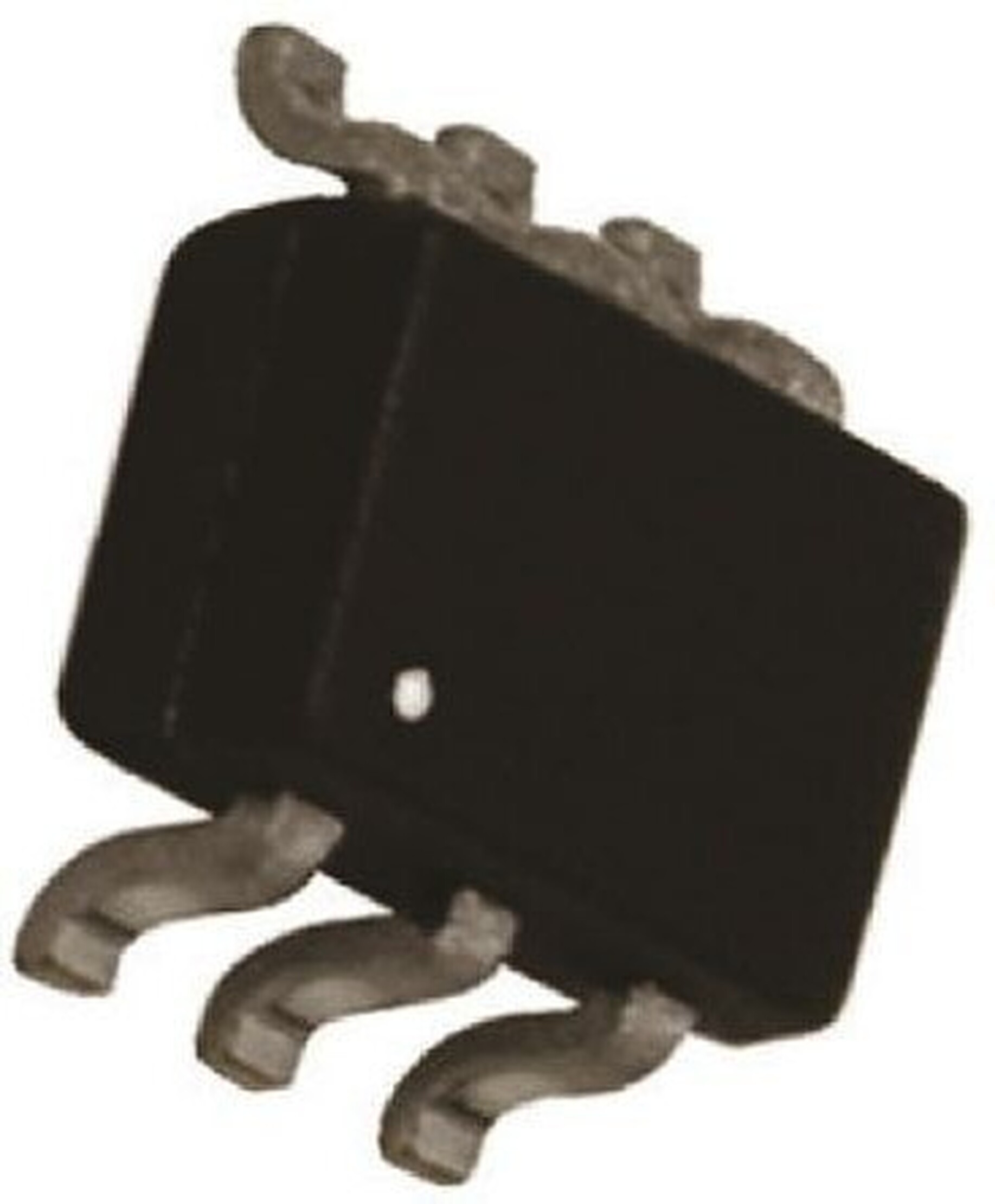

FMBM5401 Transistor Silicon PNP CASE: SSOT6 MAKE: Sanken
Datasheet
FMBM5401 Datasheet
Product specifications
Type Transistor Silicon PNP
Case SSOT6
Manufacturer Sanken
Polarity PNP
Maximum Collector Power Dissipation (Pc) 0.7 W
Maximum Collector-Base Voltage |Vcb| 160 V
Maximum Collector-Emitter Voltage |Vce| 150 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 0.6 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 6 pF
Transition Frequency (ft): 100 MHz
Forward Current Transfer Ratio (hFE), MIN 50
SMD Transistor Code 4S2
SKU 1431344
