FMBM5551

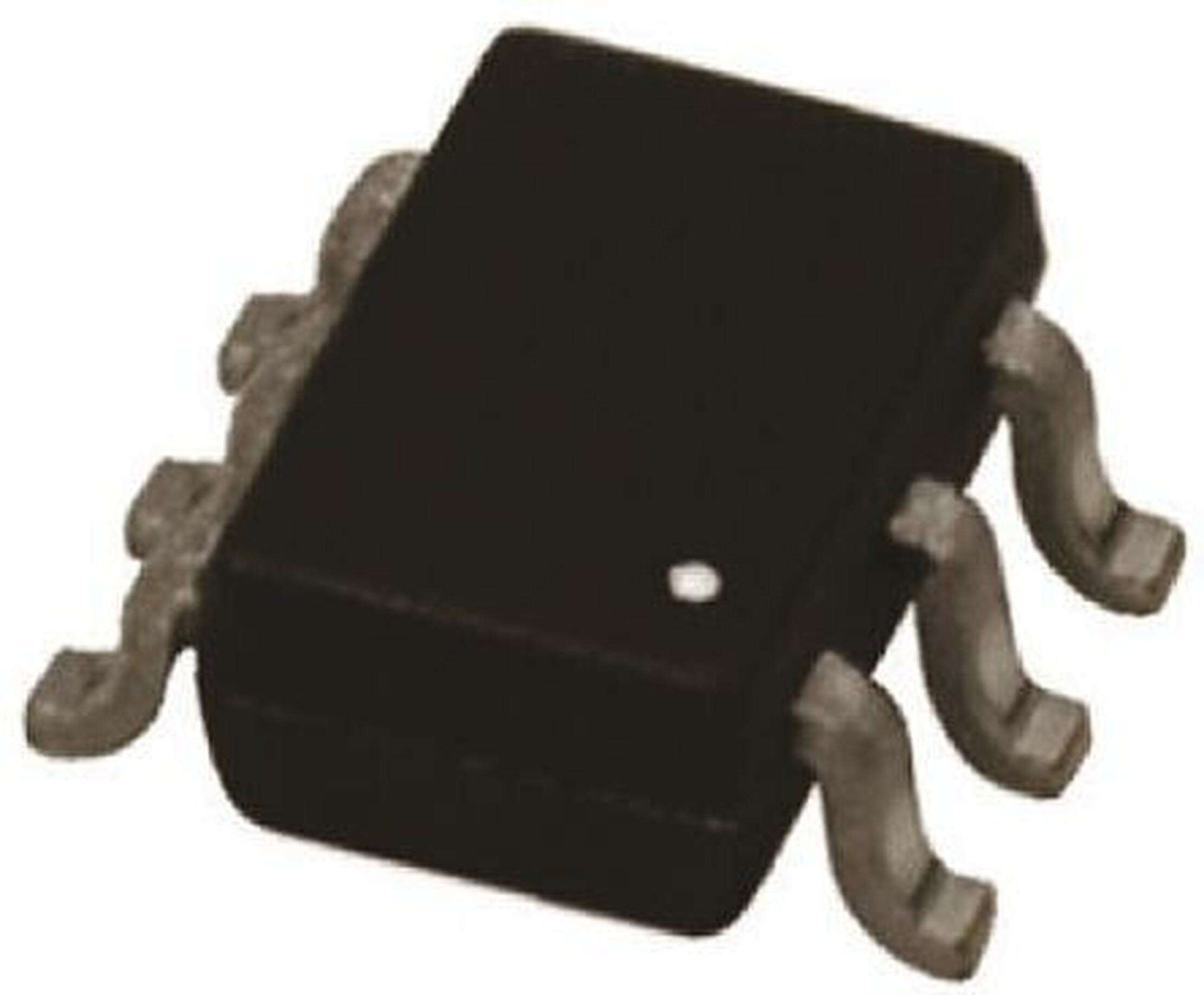

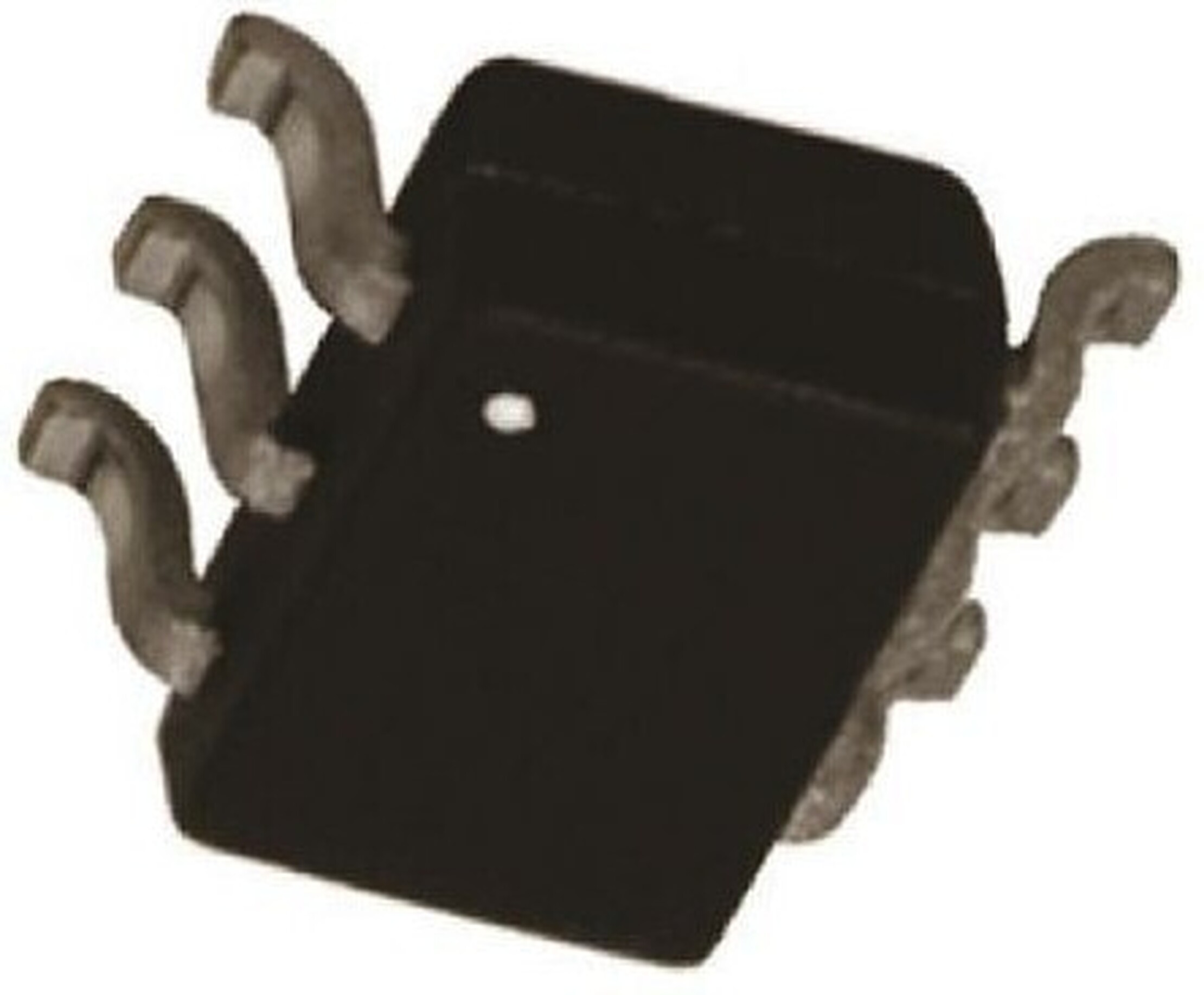

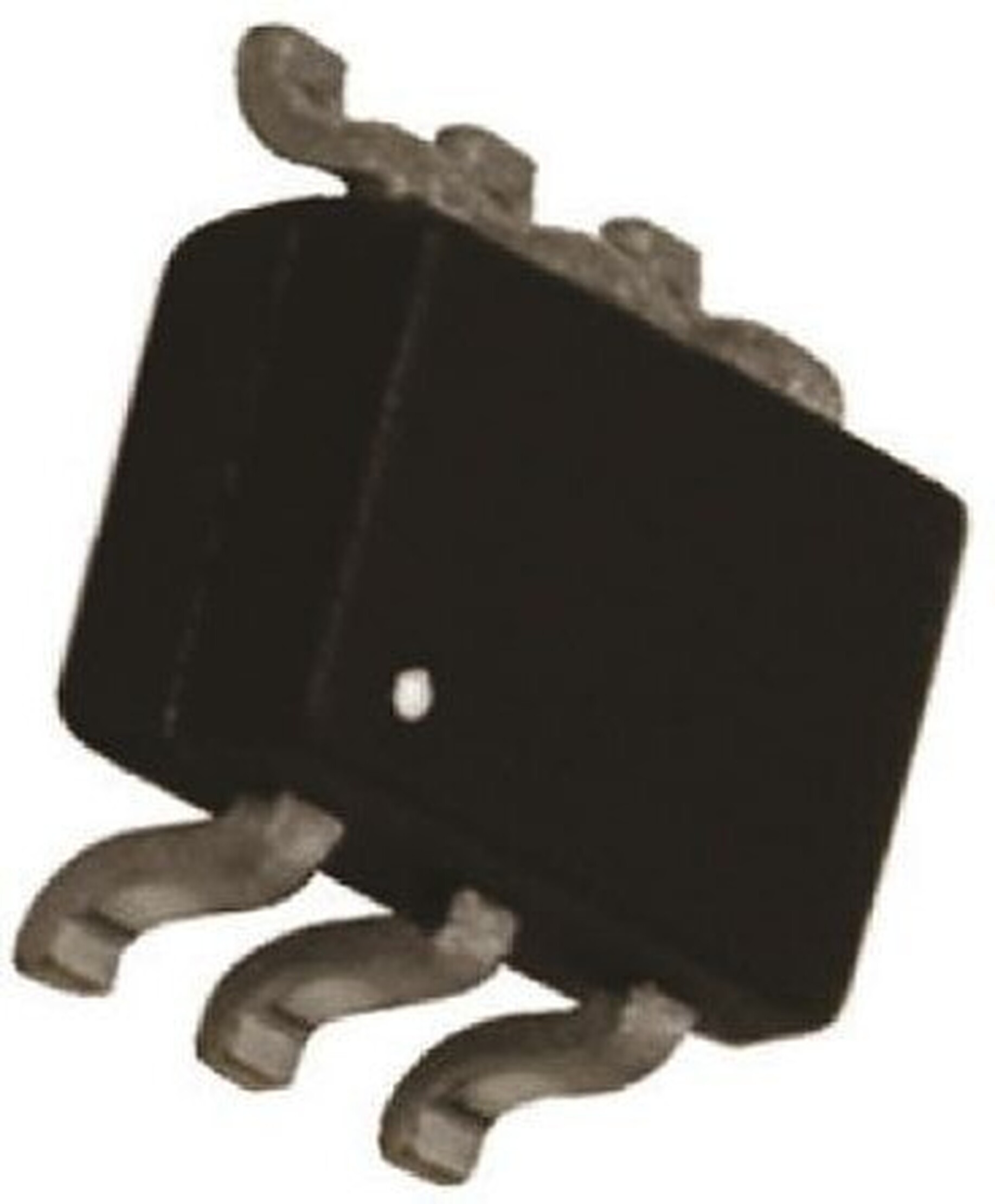

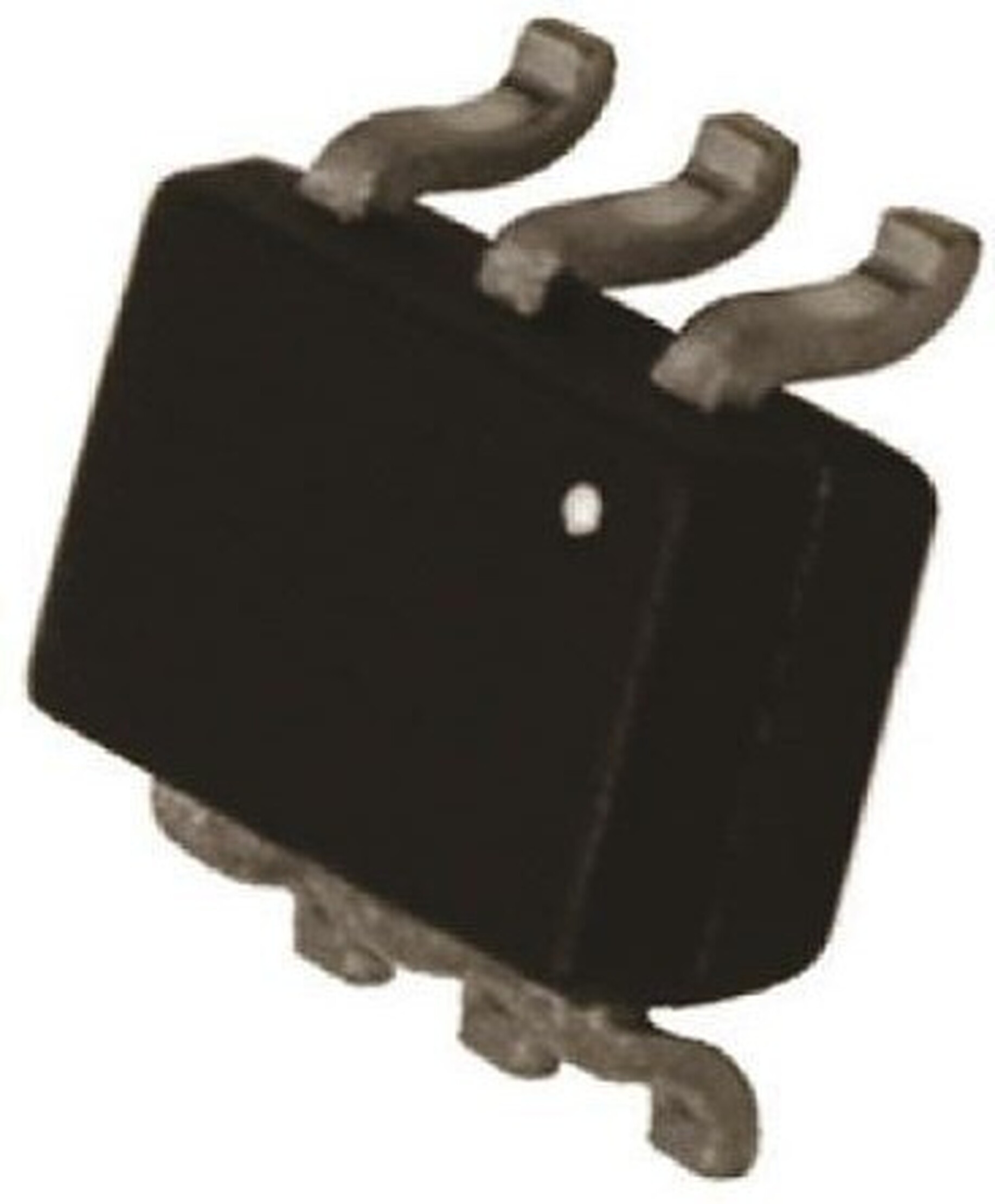

View detailed images (4)

FMBM5551

SKU: FMBM5551
FMBM5551 Transistor Silicon NPN CASE: SSOT6 MAKE: Sanken
Datasheet
FMBM5551 Datasheet
Product specifications
Type Transistor Silicon NPN
Case SSOT6
Manufacturer Sanken
Polarity NPN
Maximum Collector Power Dissipation (Pc) 0.7 W
Maximum Collector-Base Voltage |Vcb| 180 V
Maximum Collector-Emitter Voltage |Vce| 160 V
Maximum Emitter-Base Voltage |Veb| 6 V
Maximum Collector Current |Ic max| 0.6 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 6 pF
Transition Frequency (ft): 100 MHz
Forward Current Transfer Ratio (hFE), MIN 80
SMD Transistor Code 3S2
SKU 1431345
