FMMT449

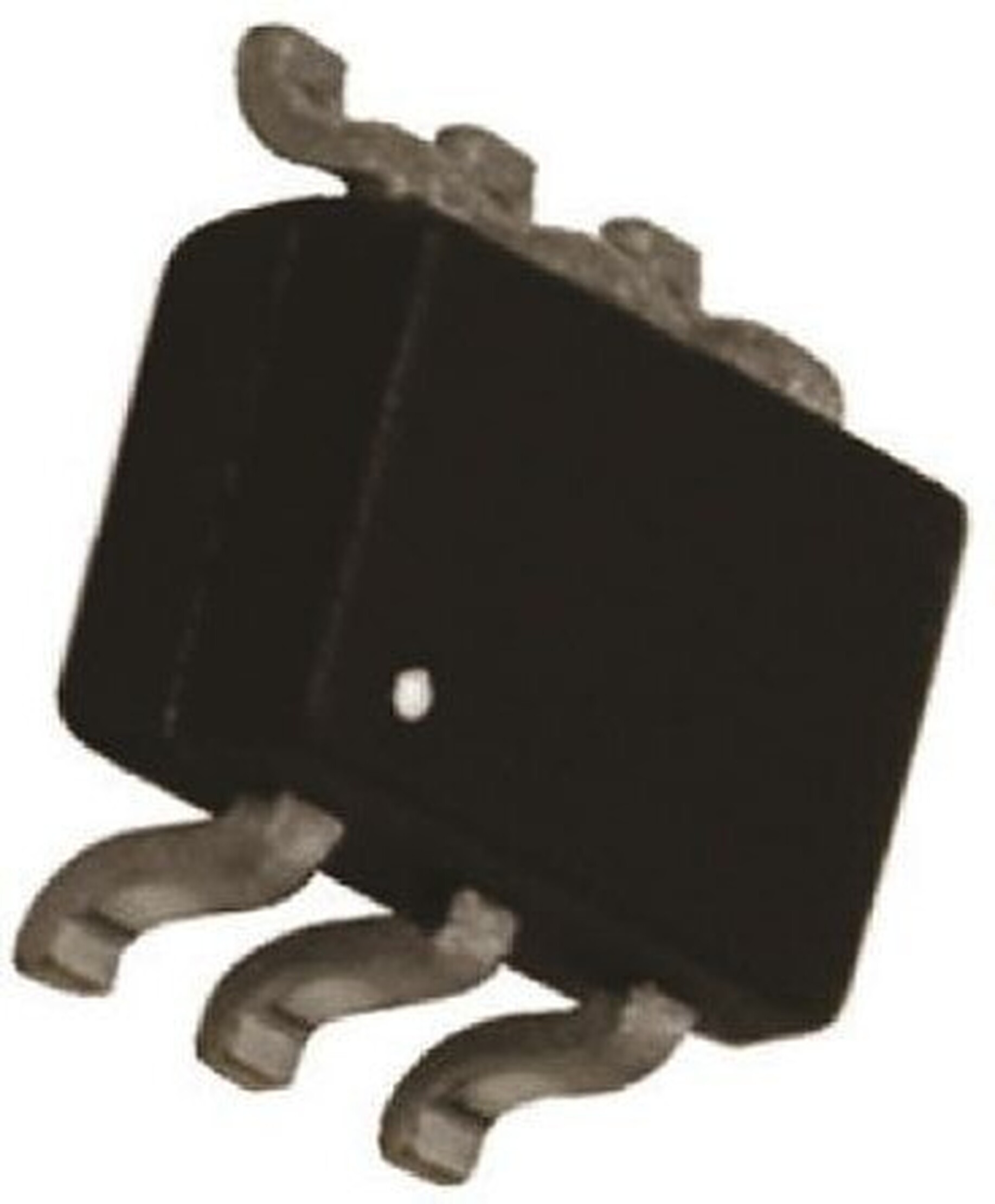

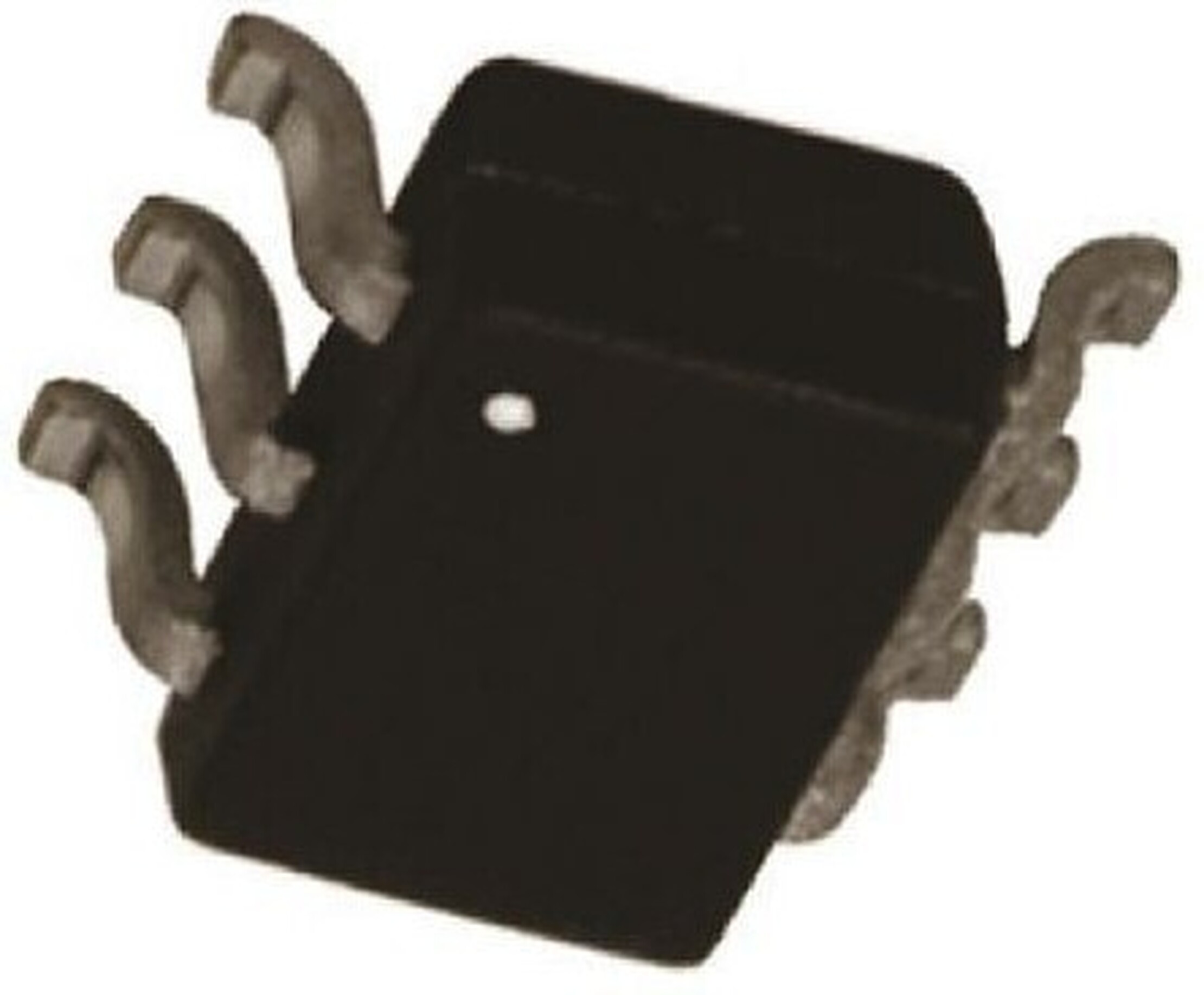

View detailed images (4)

FMMT449

SKU: FMMT449
FMMT449 Transistor Silicon NPN CASE: TO236 MAKE: Zetex
Datasheet
FMMT449 Datasheet
Product specifications
Type Transistor Silicon NPN
Case TO236
Manufacturer Zetex
Vbr CBO 50
Vbr CEO 30
Max. PD (W) 425m
C(ob) (F) 15p
Derate (Amb) (W/°C) 3.4m
hfe 70
Ic Max. (A) 1.0
Icbo Max. @Vcb Max. (A) 10u
Polarity NPN
Trans. Freq (Hz) Min. 150M
@VCE (test) (V) 2.0
Oper. Temp (°C) Max. 150
@Ic (A) 50m
Pinout Equivalence Number 3-12
Surface Mounted Yes/No YES
Maximum Collector Power Dissipation (Pc) 0.5 W
Maximum Collector-Base Voltage |Vcb| 50 V
Maximum Collector-Emitter Voltage |Vce| 30 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 1 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 15 pF
Transition Frequency (ft): 150 MHz
Forward Current Transfer Ratio (hFE), MIN 80
SMD Transistor Code 449
SKU 712829
