FMMT549

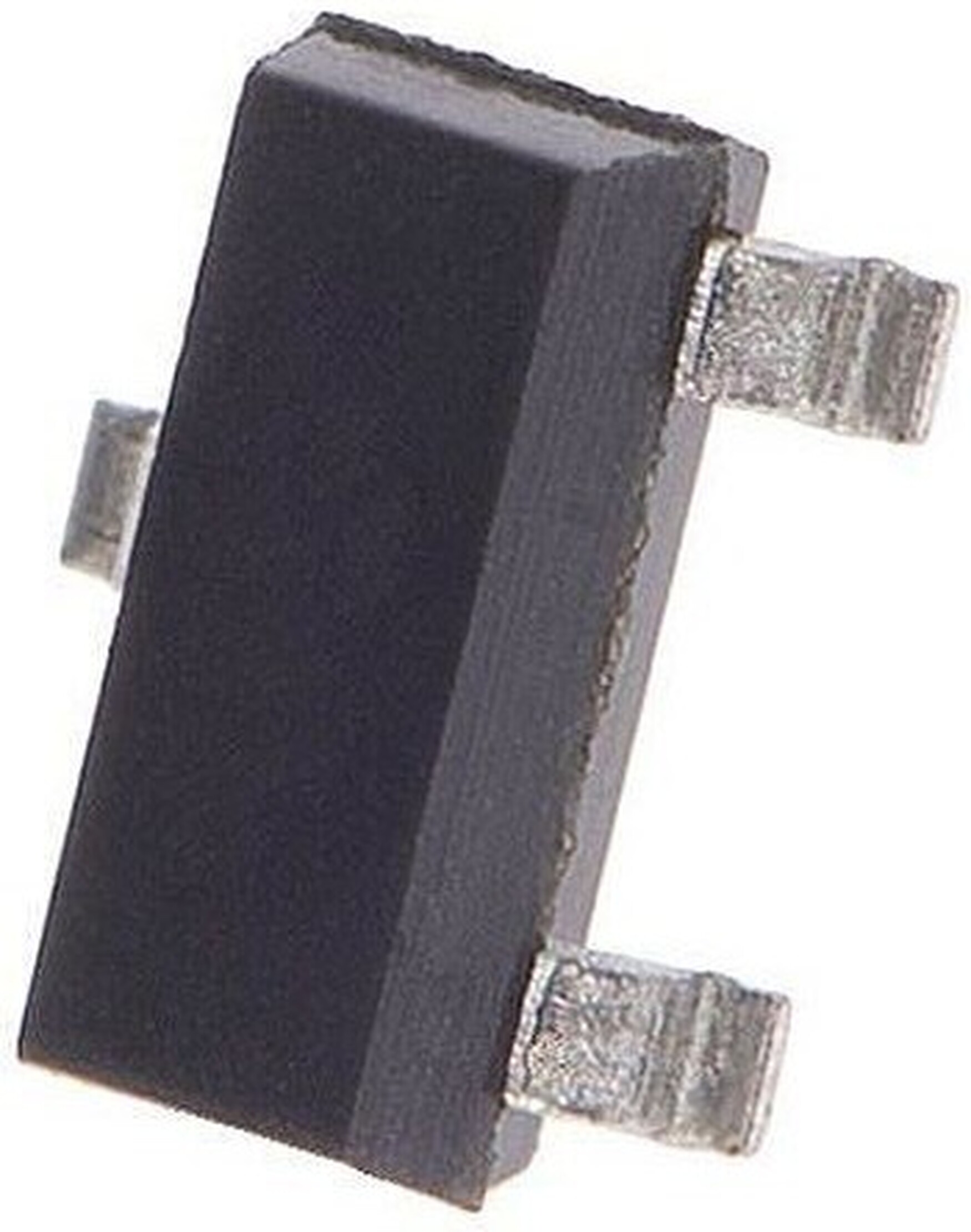

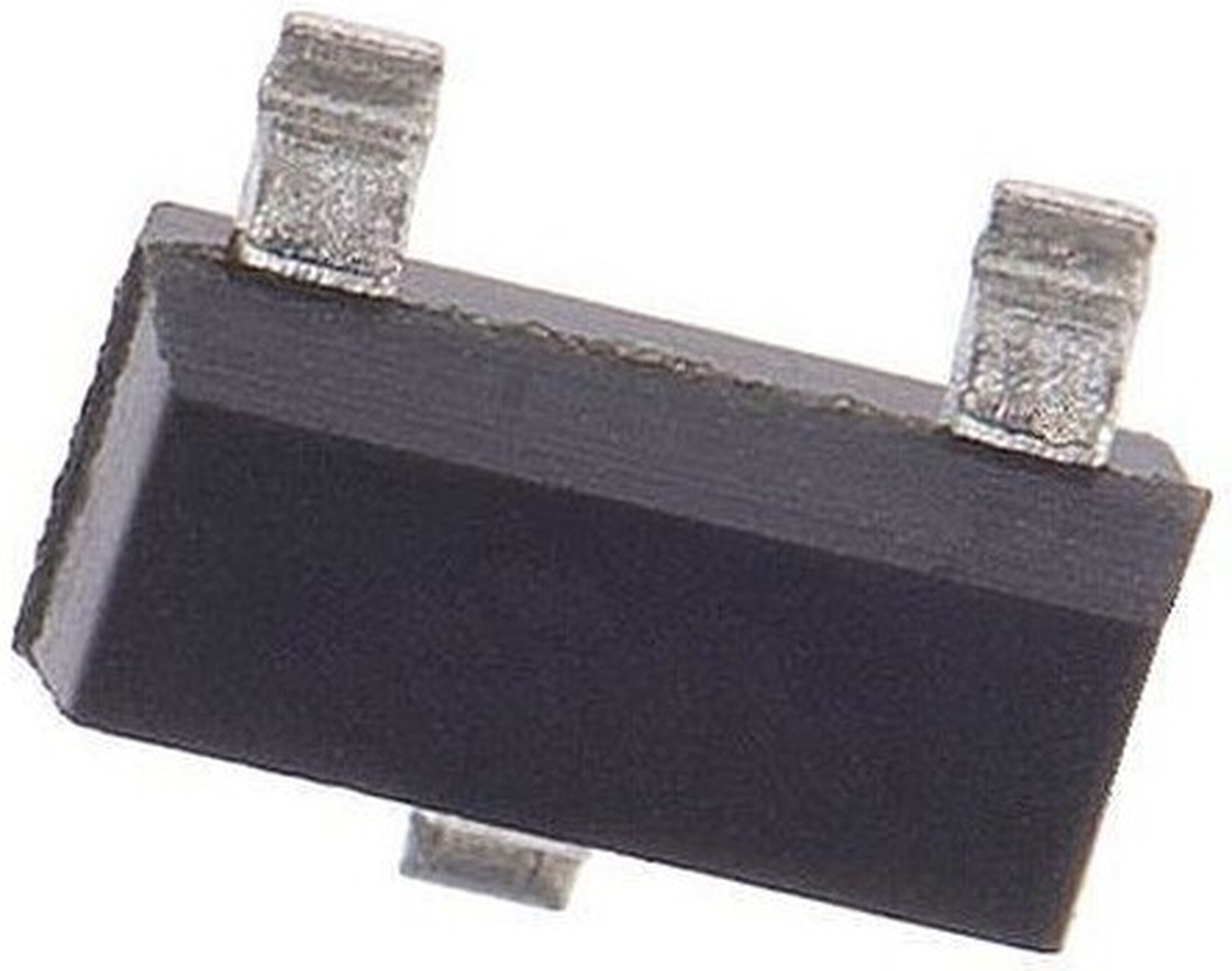

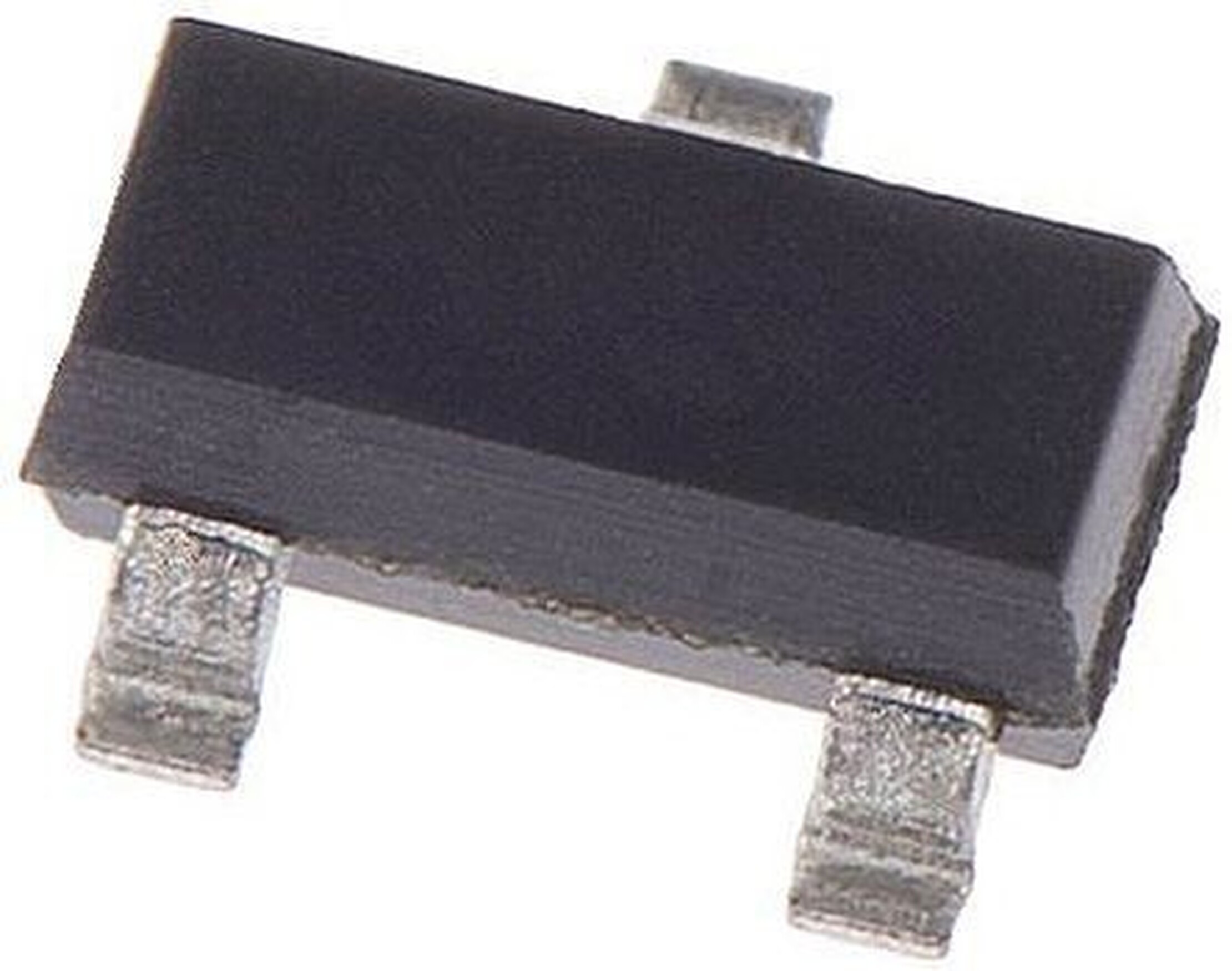

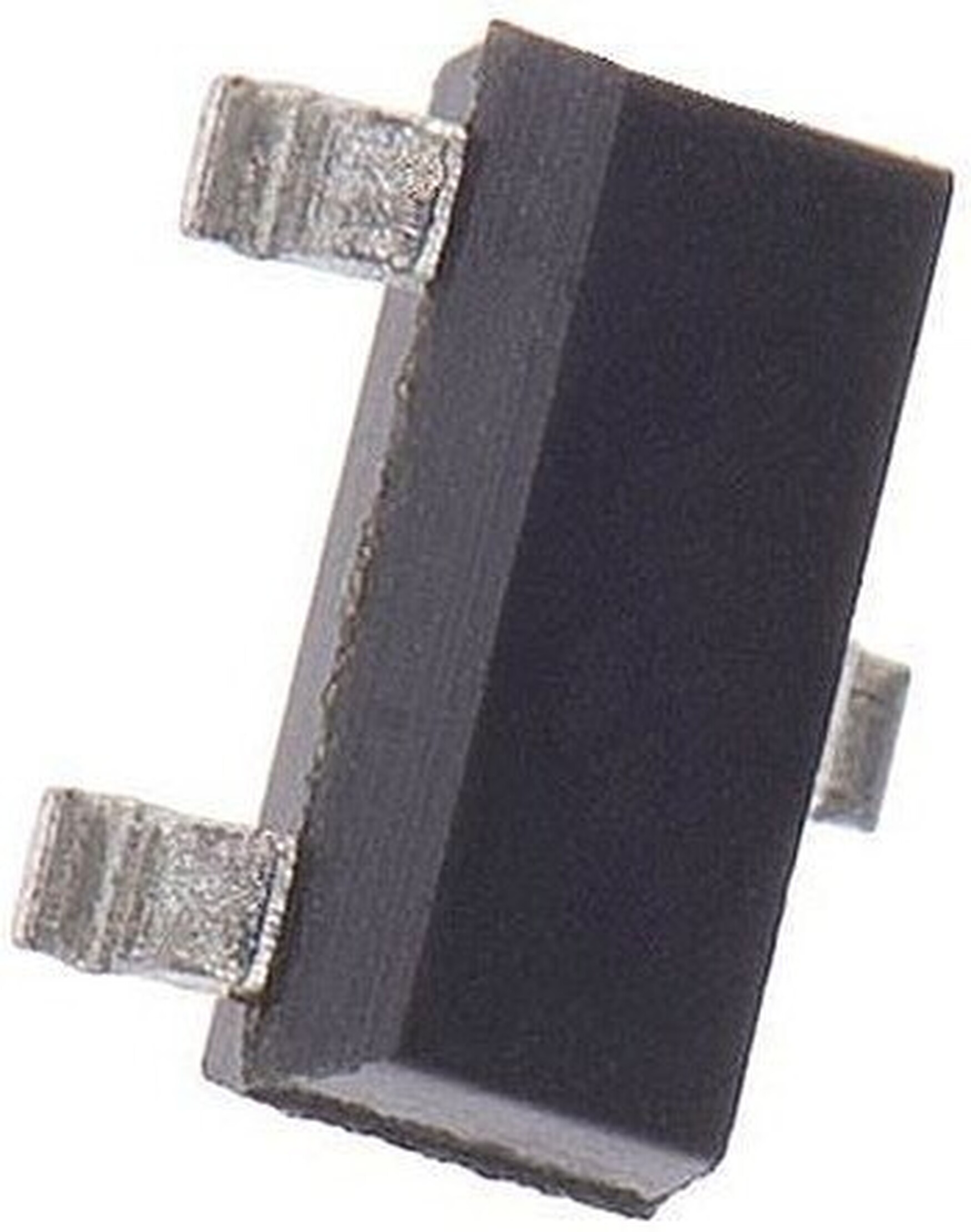

View detailed images (4)

FMMT549

SKU: FMMT549
FMMT549 Transistor Silicon PNP CASE: TO236 MAKE: Zetex
Price:
£4.79 Inc. VAT (£3.99 Ex. VAT)
£4.79 Inc. VAT (£3.99 Ex. VAT)
Qty
  • 9 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Datasheet
FMMT549 Datasheet
Product specifications
Type Transistor Silicon PNP
Case TO236
Manufacturer Zetex
Vbr CBO 35
Vbr CEO 30
Max. PD (W) 425m
C(ob) (F) 25p
Derate (Amb) (W/°C) 3.4m
hfe 100
Ic Max. (A) 1.0
Icbo Max. @Vcb Max. (A) 10u
Polarity PNP
Trans. Freq (Hz) Min. 100M
@VCE (test) (V) 2.0
Oper. Temp (°C) Max. 150
@Ic (A) 500m
Pinout Equivalence Number 3-12
Surface Mounted Yes/No YES
Maximum Collector Power Dissipation (Pc) 0.5 W
Maximum Collector-Base Voltage |Vcb| 35 V
Maximum Collector-Emitter Voltage |Vce| 30 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 1 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 25 pF
Transition Frequency (ft): 100 MHz
Forward Current Transfer Ratio (hFE), MIN 100
SMD Transistor Code 549
SKU 597846
