FMS4
View detailed images (4)

FMS4

SKU: FMS4

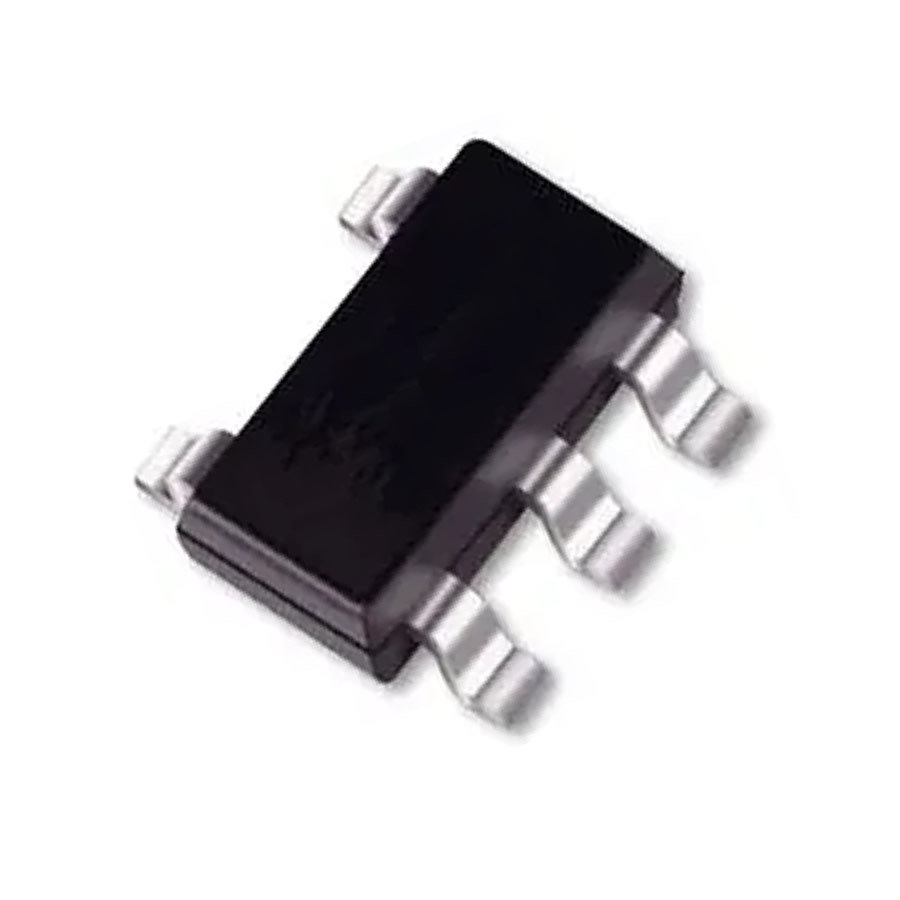

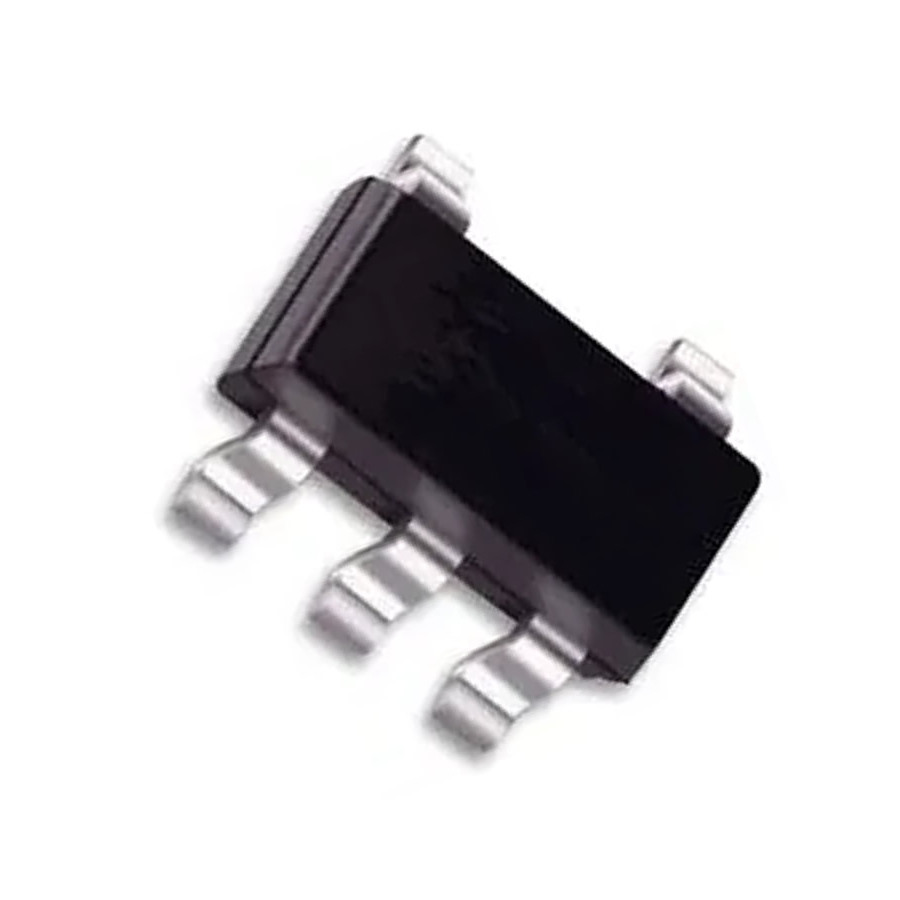

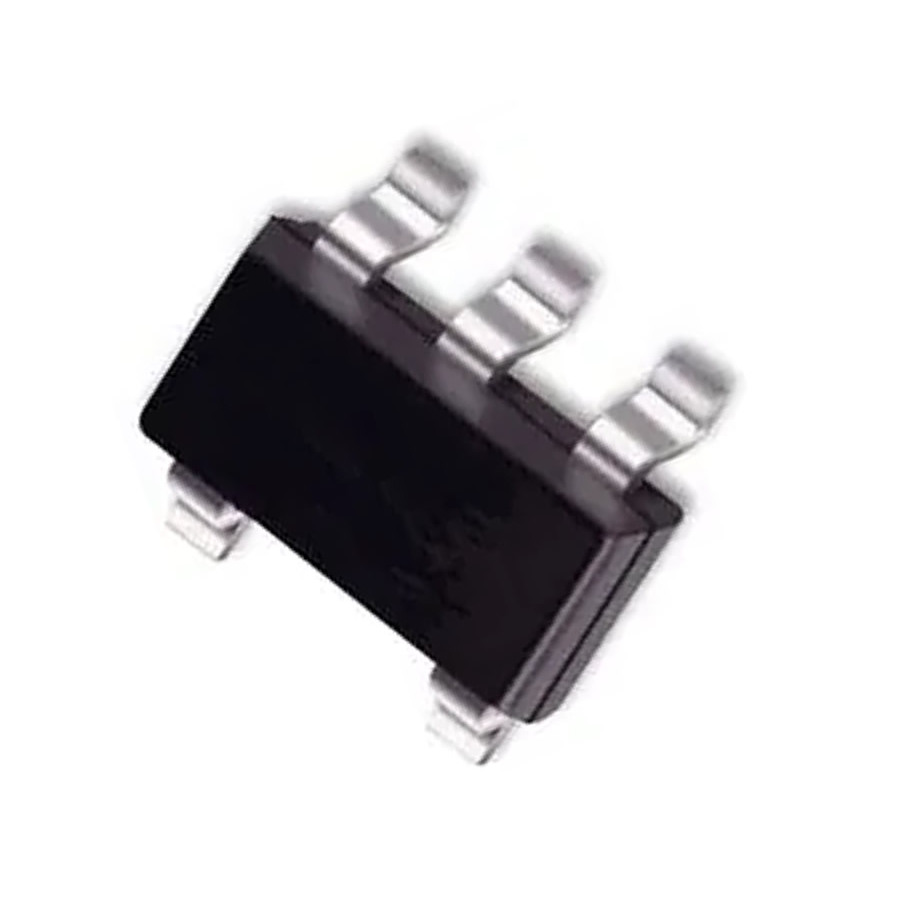

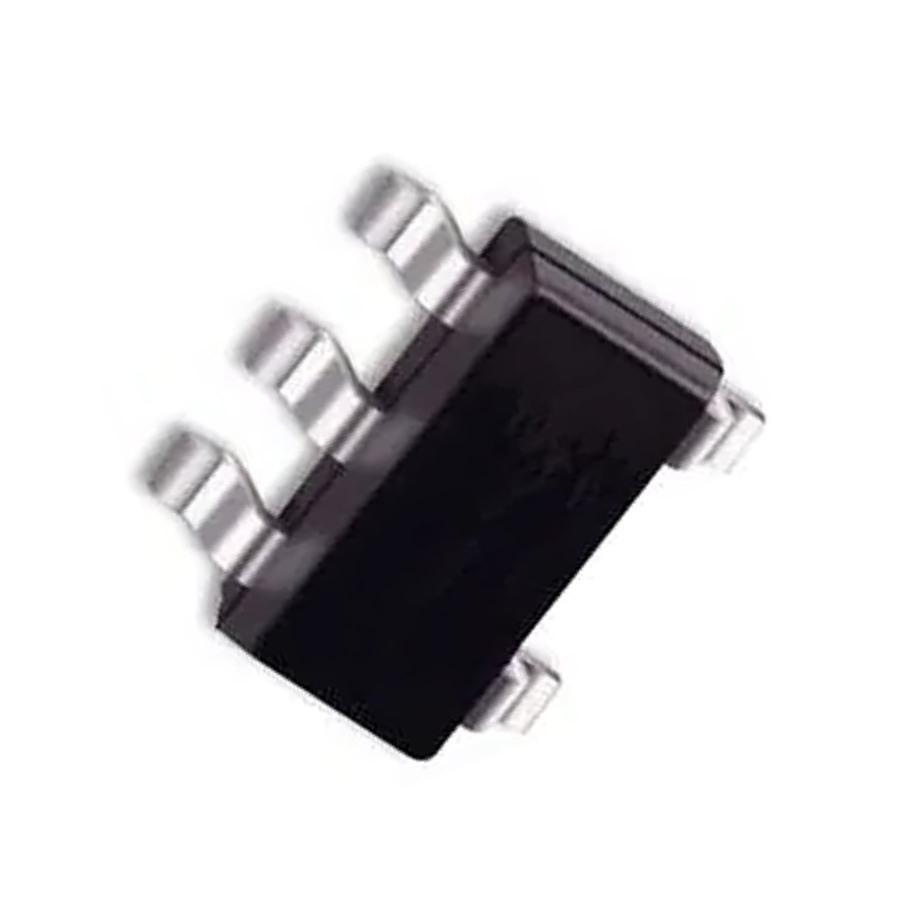

FMS4 Transistor Silicon PNP CASE: SOT23-5 MAKE: Rohm Semiconductor
Datasheet
FMS4 Datasheet
Product specifications
Type Transistor Silicon PNP
Case SOT23-5
Manufacturer Rohm Semiconductor
Mat. Silicon Logic
Polarity PNP
Mat. Struct. PNP
Pinout Equivalence Number 5-35
Surface Mounted Yes/No YES
Maximum Collector Power Dissipation (Pc) 0.3 W
Maximum Collector-Base Voltage |Vcb| 120 V
Maximum Collector-Emitter Voltage |Vce| 120 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 0.05 A
Max. Operating Junction Temperature (Tj) 150 °C
Transition Frequency (ft): 140 MHz
Forward Current Transfer Ratio (hFE), MIN 180
SMD Transistor Code S4
SKU 567175
