FMW2

SKU: FMW2

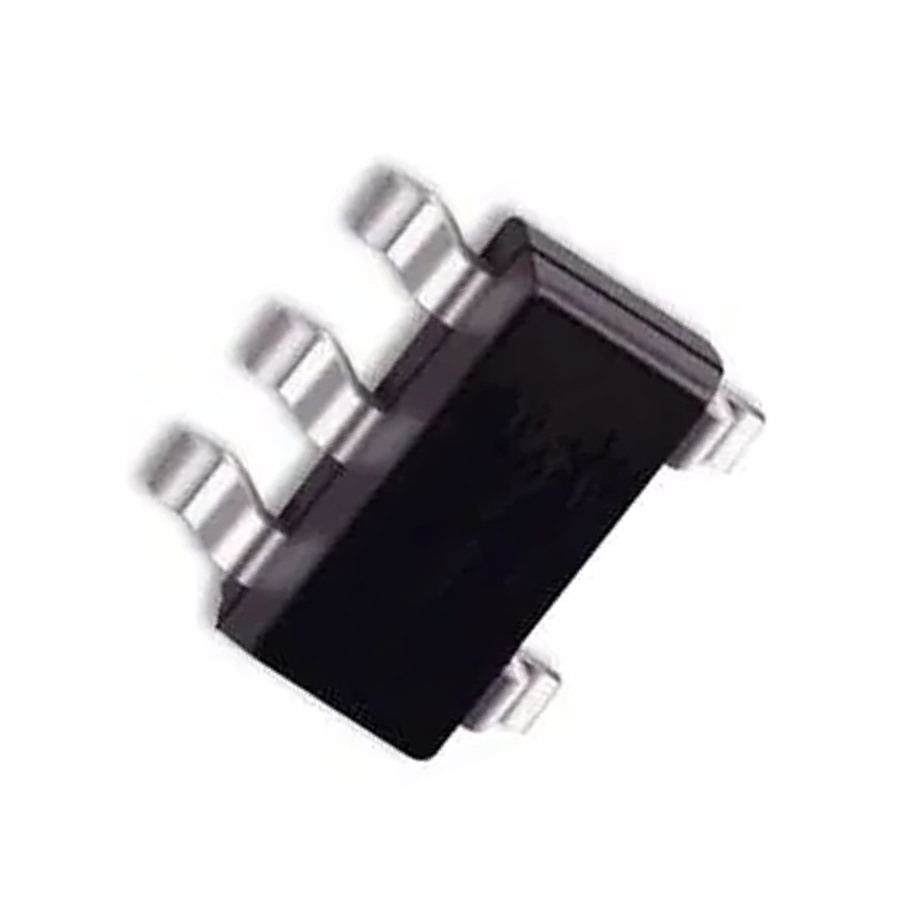

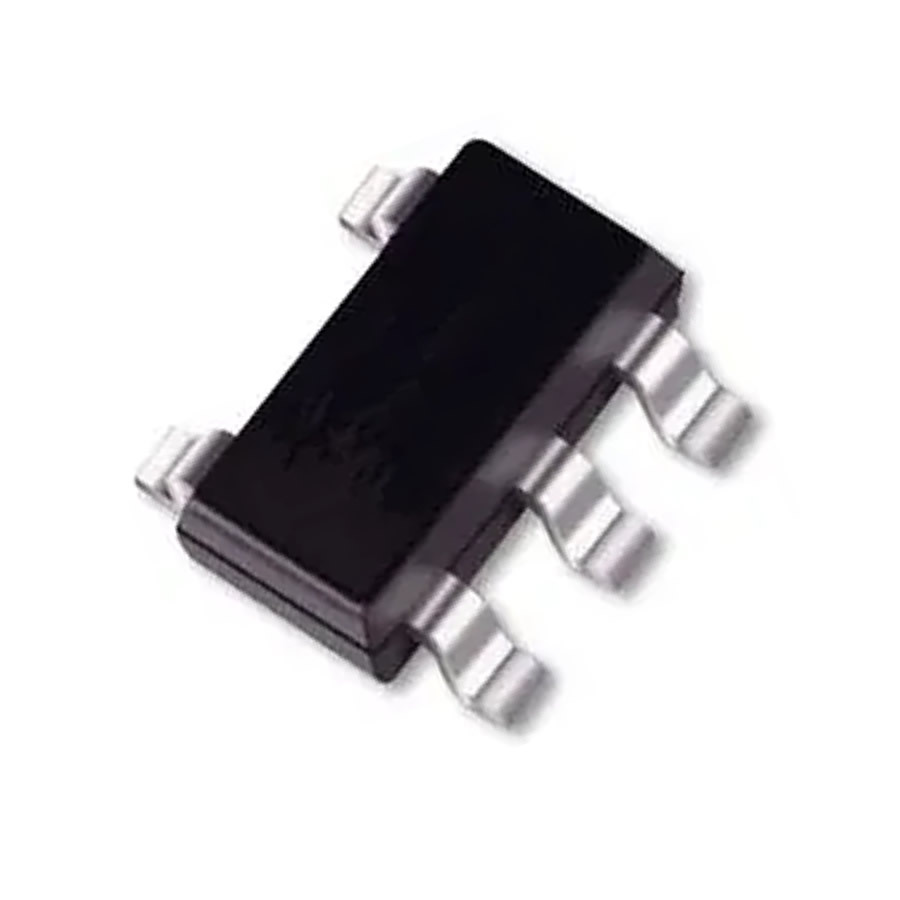

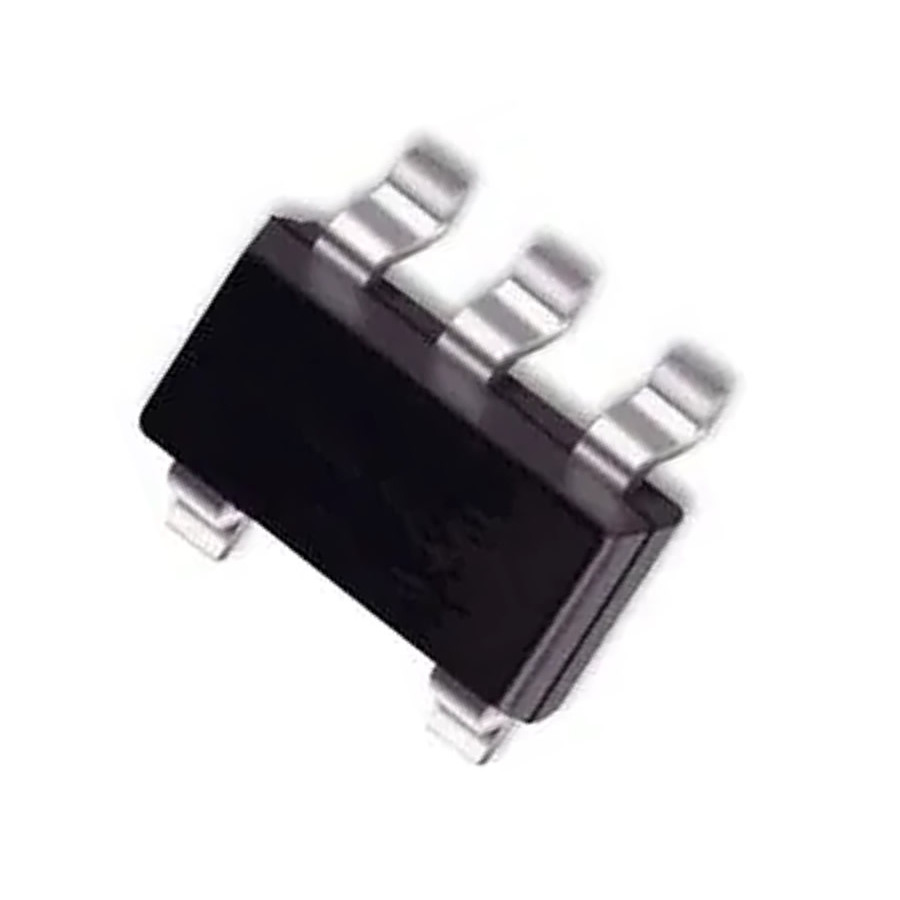

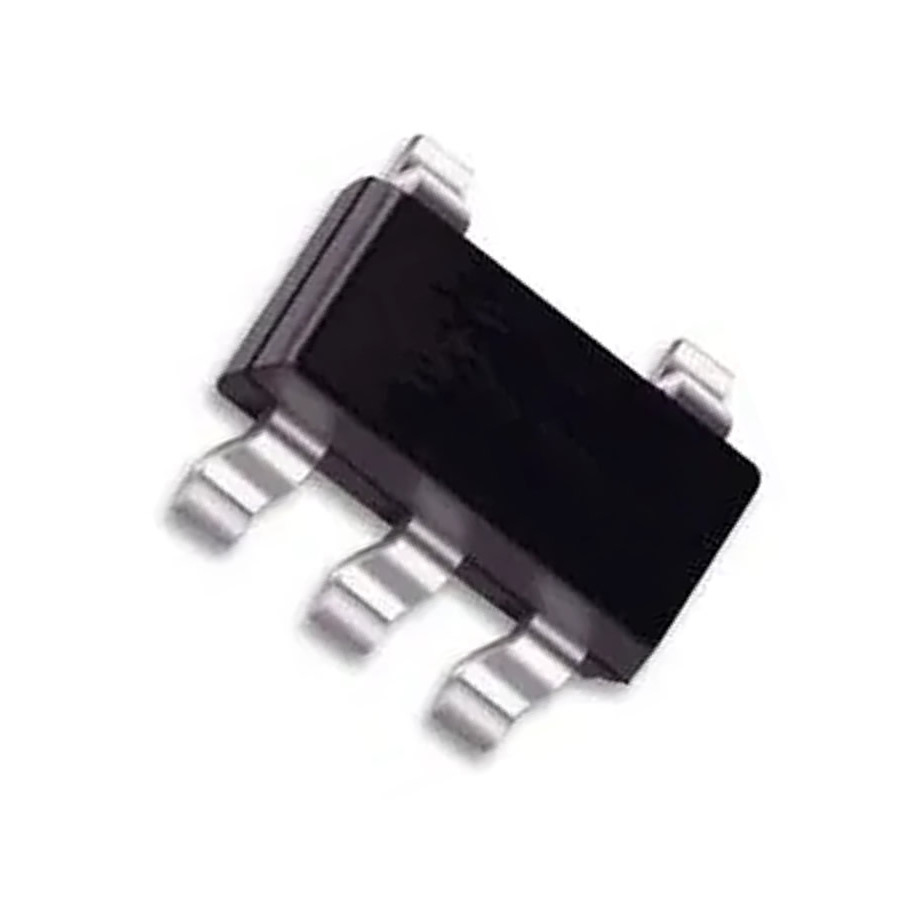

FMW2 Transistor Silicon NPN CASE: SOT23-5 MAKE: Rohm Semiconductor
Product specifications
Type Transistor Silicon NPN
Case SOT23-5
Manufacturer Rohm Semiconductor
Min hFE 120
@Ic (test) (A) 1m
Mat. Silicon Logic
Polarity NPN
Mat. Struct. NPN
@VCE (V) 6
Pinout Equivalence Number 5-35
Surface Mounted Yes/No YES
Maximum Collector Power Dissipation (Pc) 0.3 W
Maximum Collector-Base Voltage |Vcb| 60 V
Maximum Collector-Emitter Voltage |Vce| 50 V
Maximum Emitter-Base Voltage |Veb| 7 V
Maximum Collector Current |Ic max| 0.15 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 2 pF
Transition Frequency (ft): 140 MHz
Forward Current Transfer Ratio (hFE), MIN 120
SMD Transistor Code W2
SKU 567177
