FMW3
View detailed images (4)

FMW3

SKU: FMW3

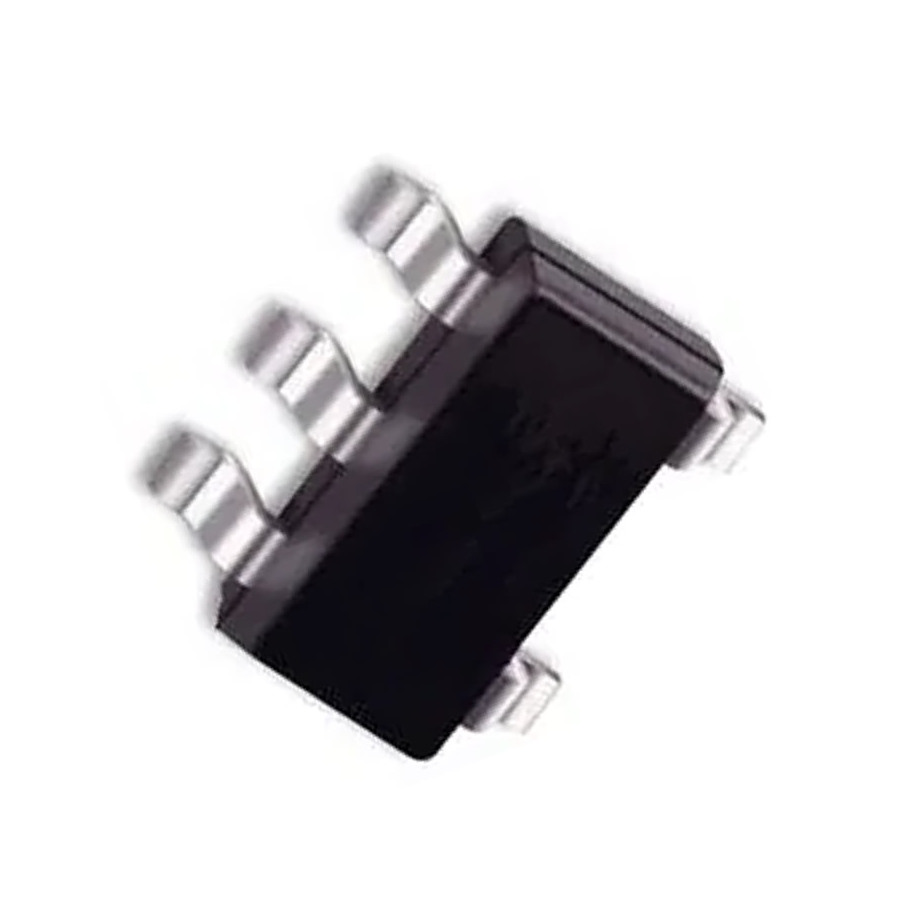

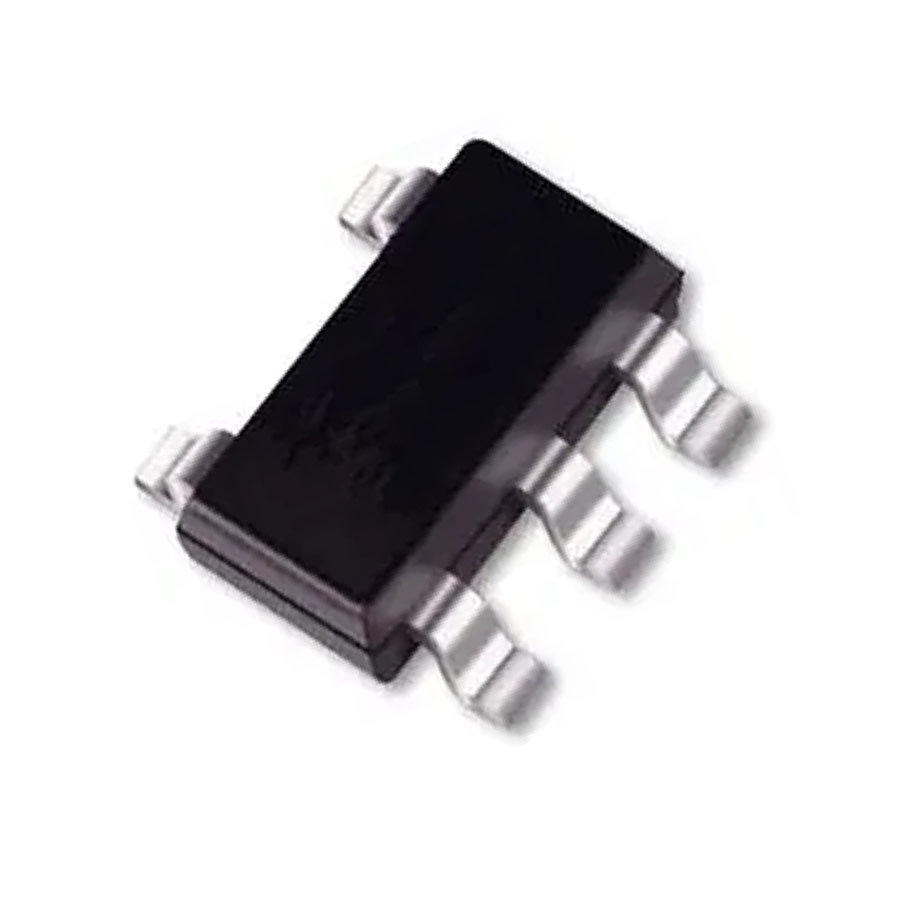

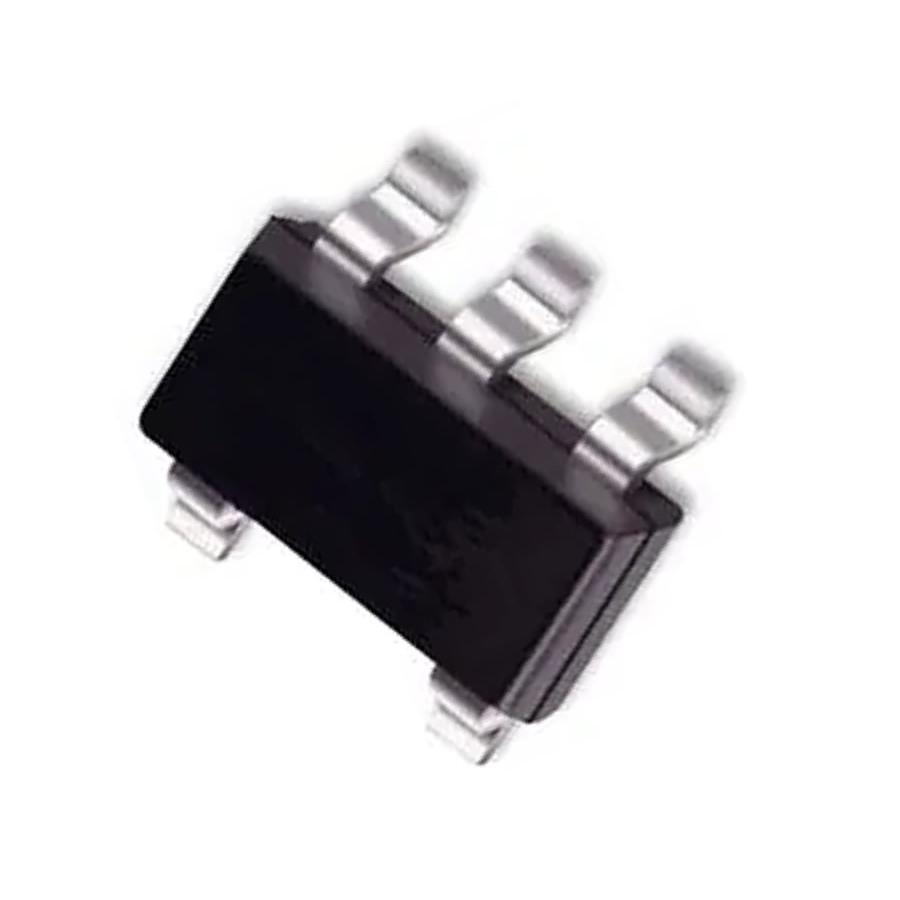

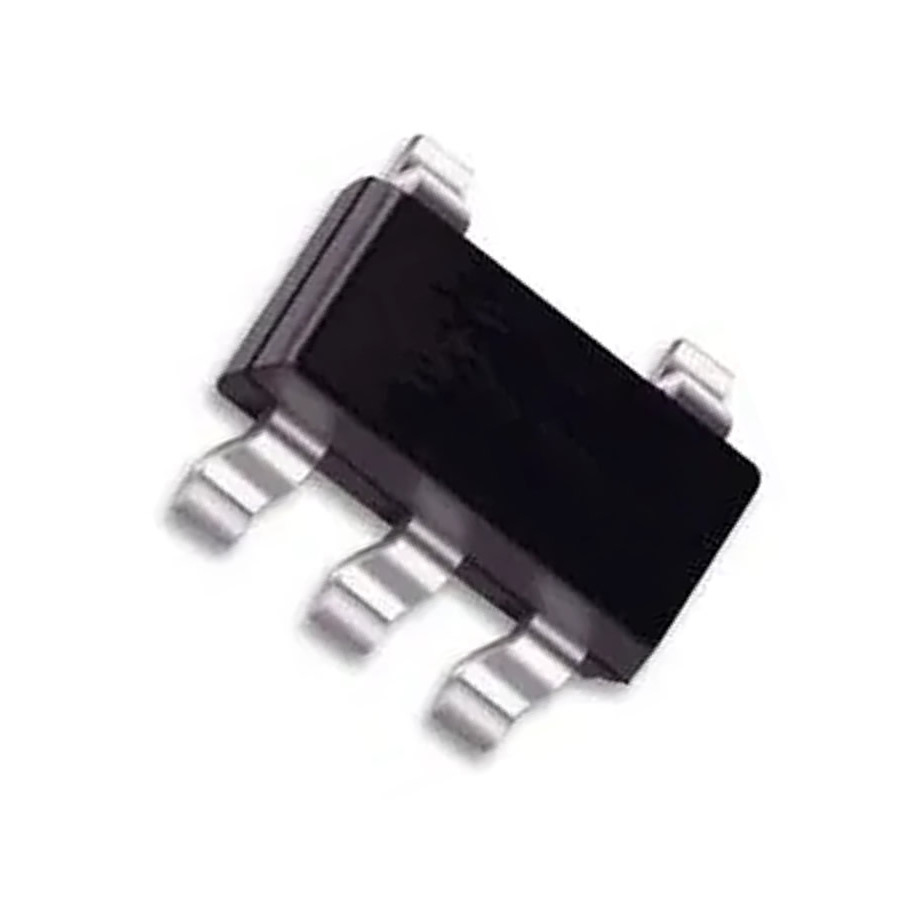

FMW3 Transistor Silicon NPN CASE: SOT23-5 MAKE: Rohm Semiconductor
Datasheet
FMW3 Datasheet
Product specifications
Type Transistor Silicon NPN
Case SOT23-5
Manufacturer Rohm Semiconductor
Mat. Silicon Logic
Polarity NPN
Mat. Struct. NPN
Pinout Equivalence Number 5-33
Surface Mounted Yes/No YES
Maximum Collector Power Dissipation (Pc) 0.3 W
Maximum Collector-Base Voltage |Vcb| 120 V
Maximum Collector-Emitter Voltage |Vce| 120 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 0.05 A
Max. Operating Junction Temperature (Tj) 150 °C
Transition Frequency (ft): 140 MHz
Forward Current Transfer Ratio (hFE), MIN 180
SMD Transistor Code S3_W3
SKU 567178
