FMW8

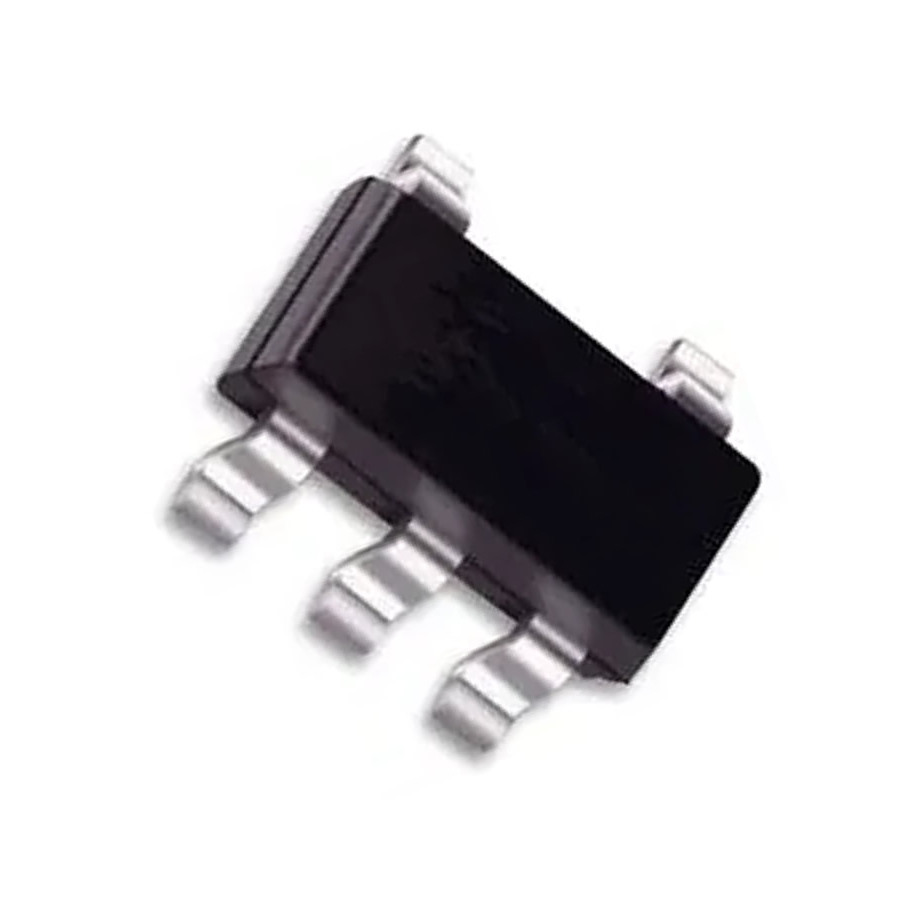

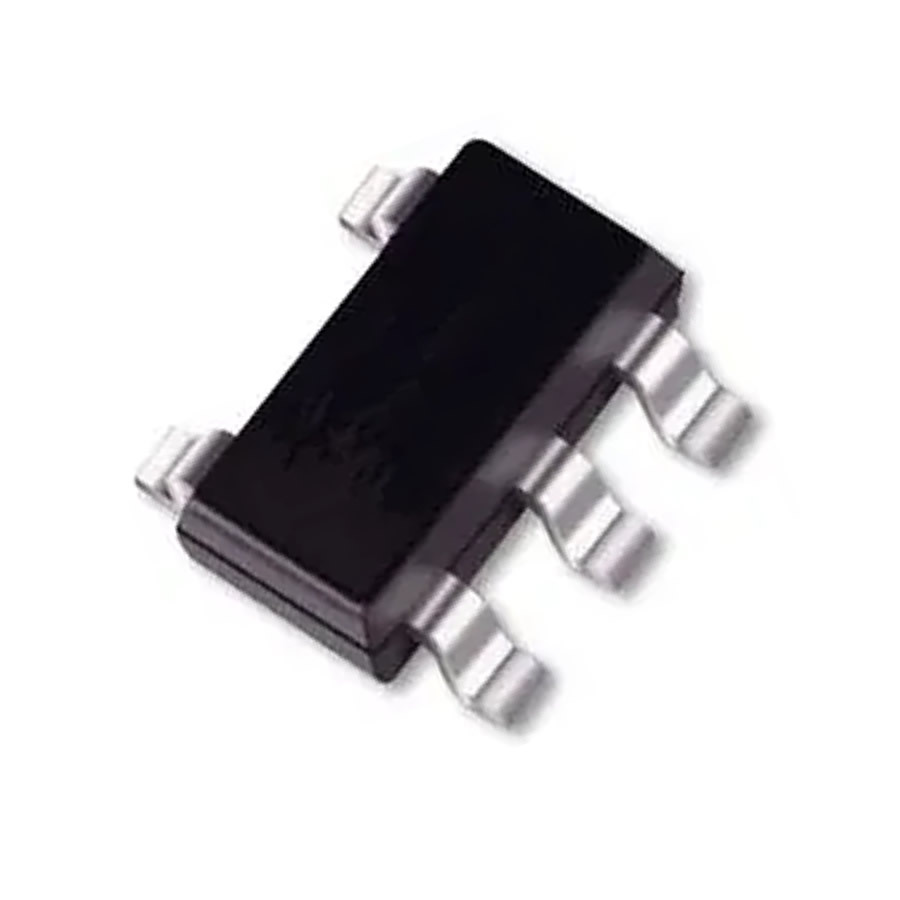

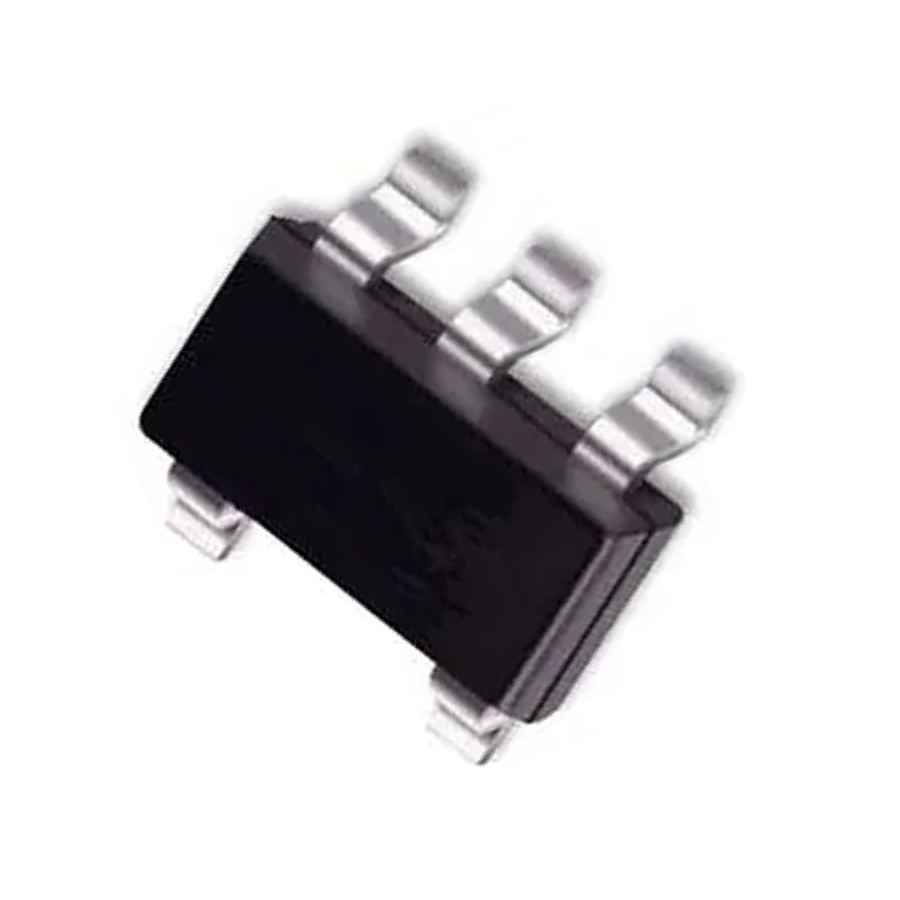

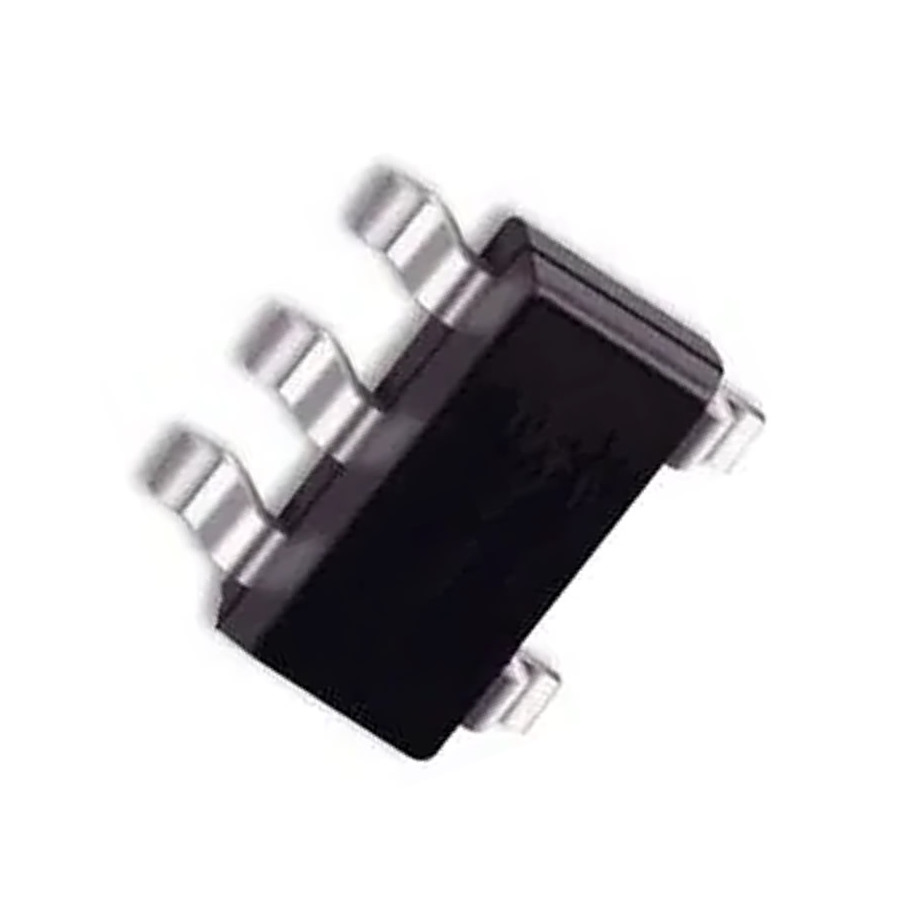

View detailed images (4)

FMW8

SKU: FMW8
FMW8 Transistor Silicon NPN CASE: SOT23-5 MAKE: Rohm Semiconductor
Product specifications
Type Transistor Silicon NPN
Case SOT23-5
Manufacturer Rohm Semiconductor
Min hFE 27
@Ic (test) (A) 5m
Mat. Silicon Logic
Polarity NPN
Mat. Struct. NPN
@VCE (V) 10
Pinout Equivalence Number 5-33
Surface Mounted Yes/No YES
Maximum Collector Power Dissipation (Pc) 0.3 W
Maximum Collector-Base Voltage |Vcb| 20 V
Maximum Collector-Emitter Voltage |Vce| 11 V
Maximum Emitter-Base Voltage |Veb| 3 V
Maximum Collector Current |Ic max| 0.05 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 0.9 pF
Transition Frequency (ft): 1400 MHz
Forward Current Transfer Ratio (hFE), MIN 27
SMD Transistor Code W8
SKU 567183
