FMY6

FMY6

SKU: FMY6

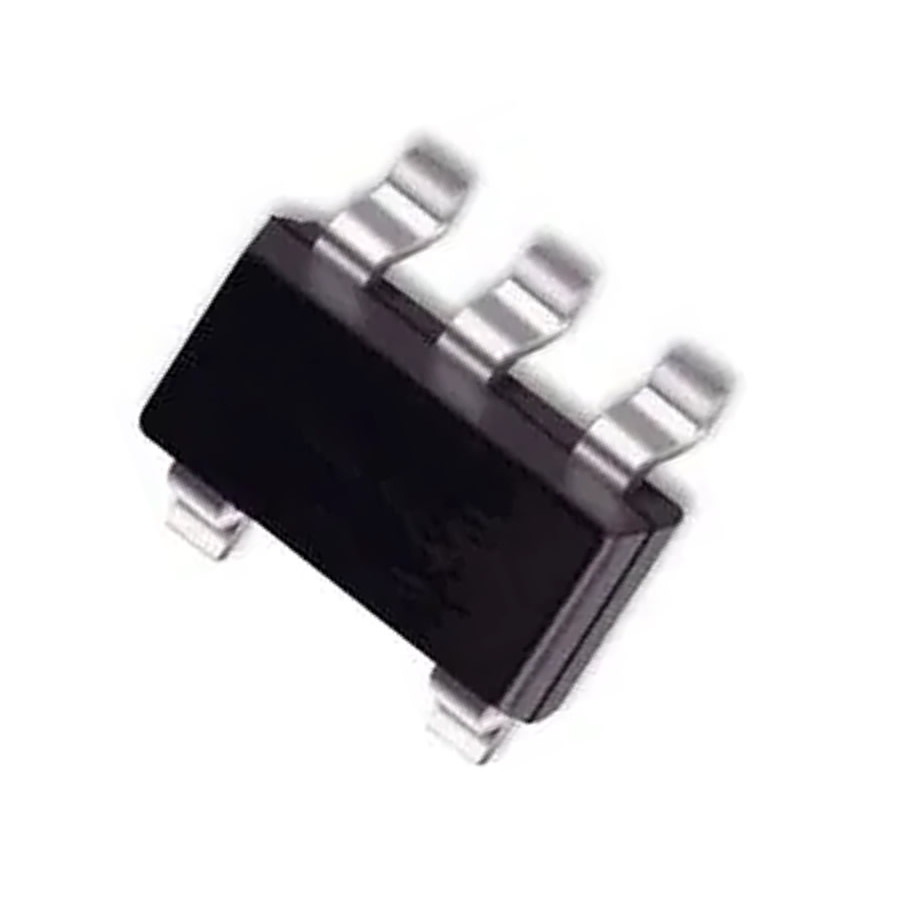

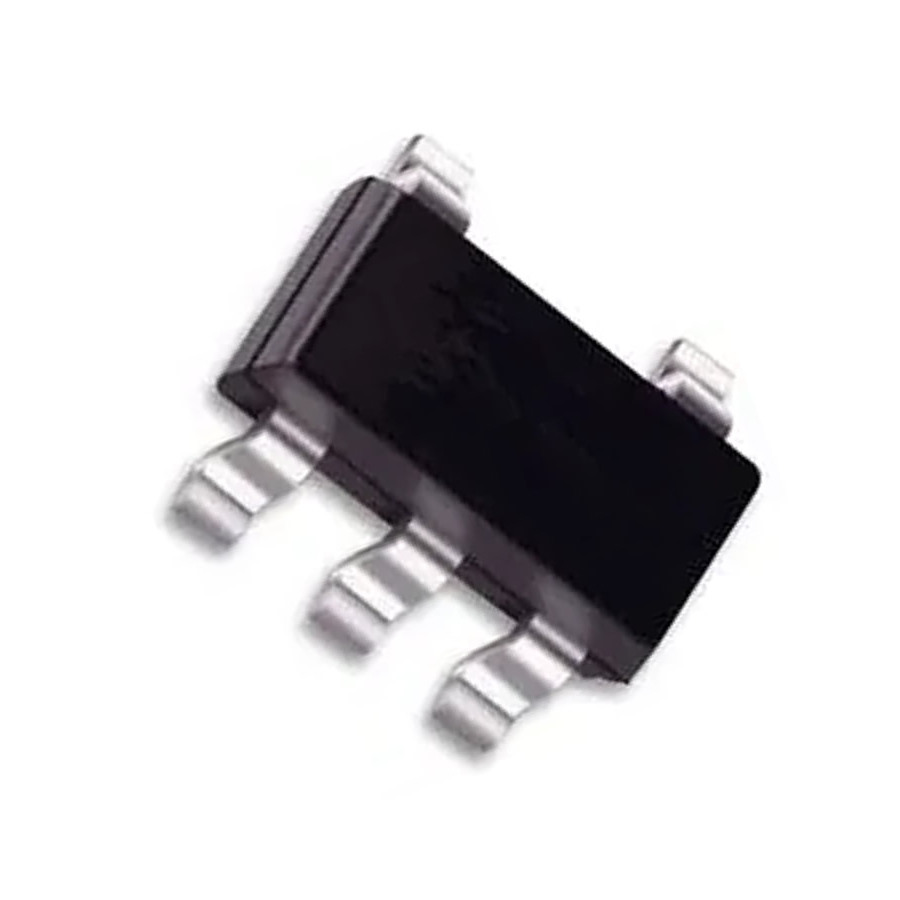

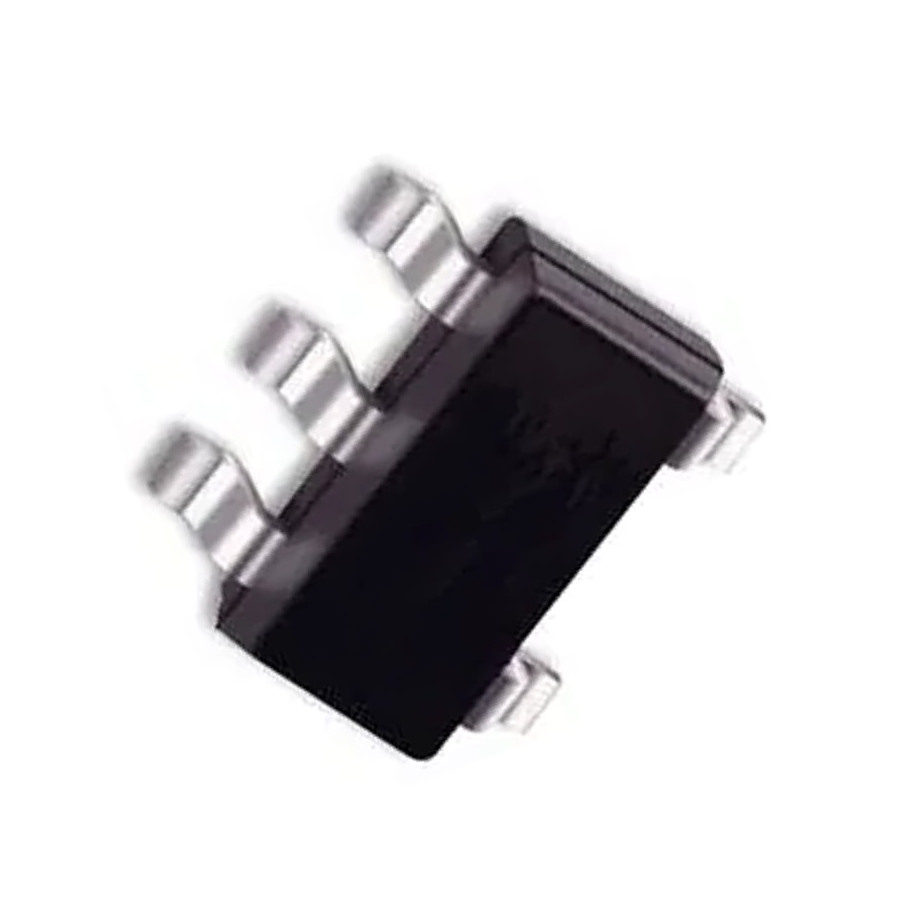

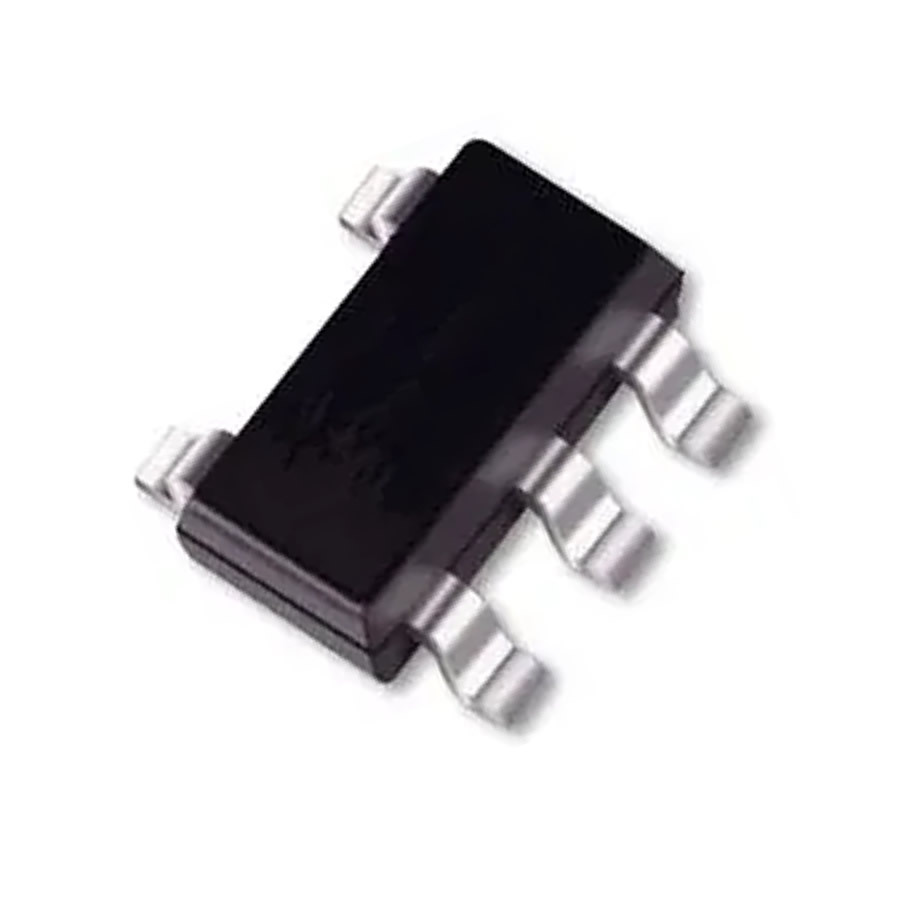

FMY6 Transistor Silicon NPN - PNP CASE: SOT23-5 MAKE: Rohm Semiconductor
Datasheet
FMY6 Datasheet
Product specifications
Type Transistor Silicon NPN - PNP
Case SOT23-5
Manufacturer Rohm Semiconductor
Polarity NPN*PNP
Maximum Collector Power Dissipation (Pc) 0.3 W
Maximum Collector-Base Voltage |Vcb| 40 V
Maximum Collector-Emitter Voltage |Vce| 32 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 0.5 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 7 pF
Transition Frequency (ft): 140 MHz
Forward Current Transfer Ratio (hFE), MIN 120
SMD Transistor Code Y6
SKU 567188
