FTC1027
View detailed images (12)

FTC1027

SKU: FTC1027

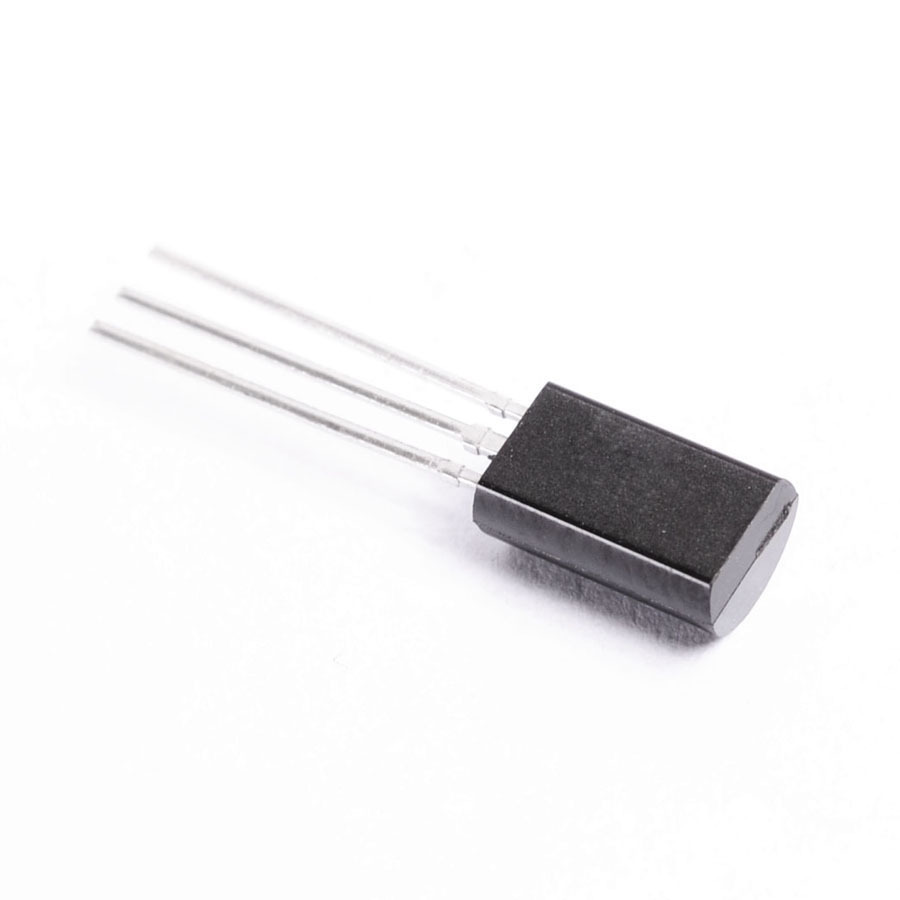

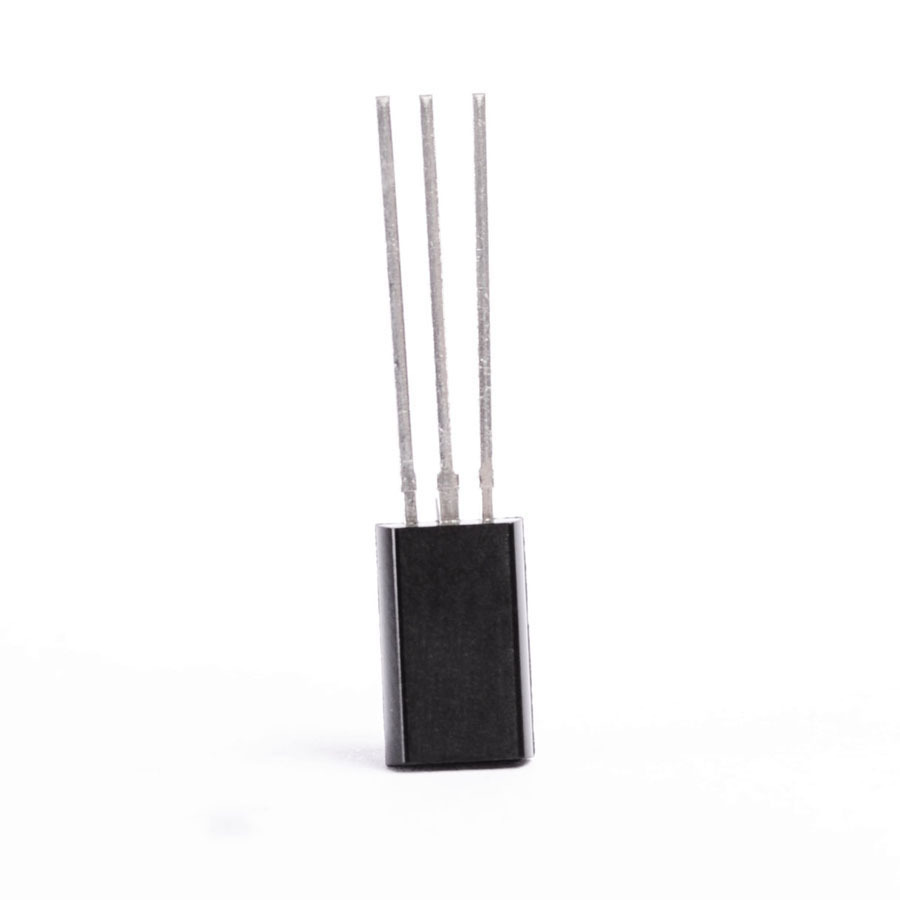

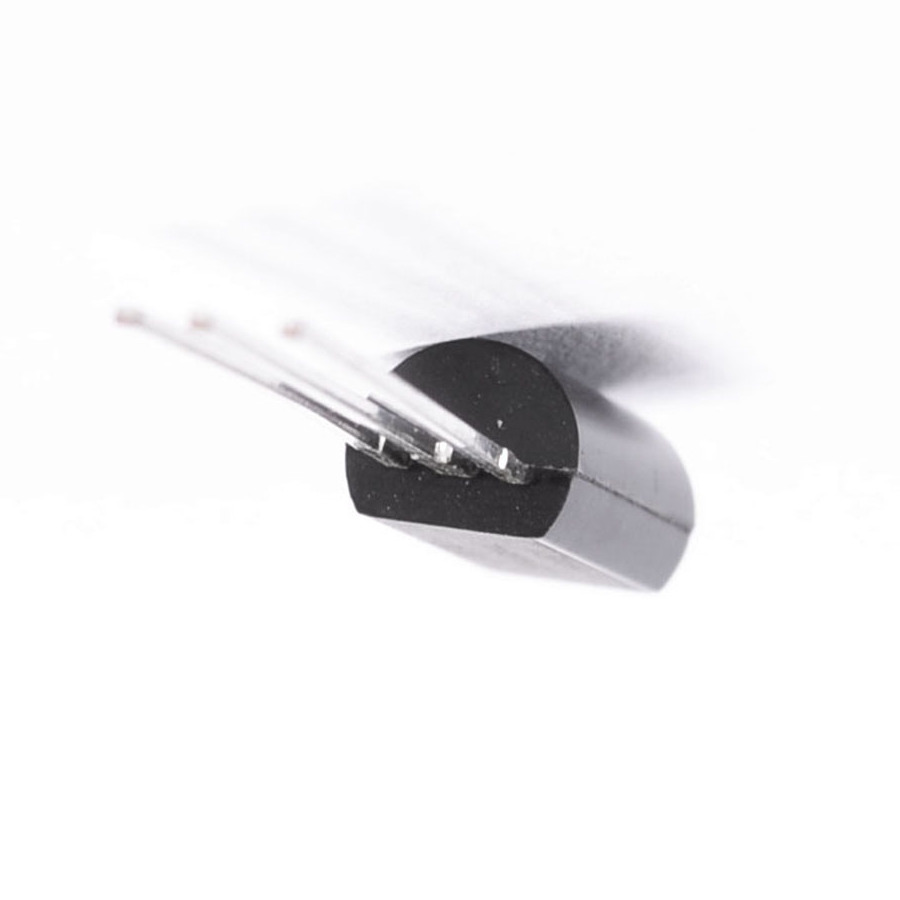

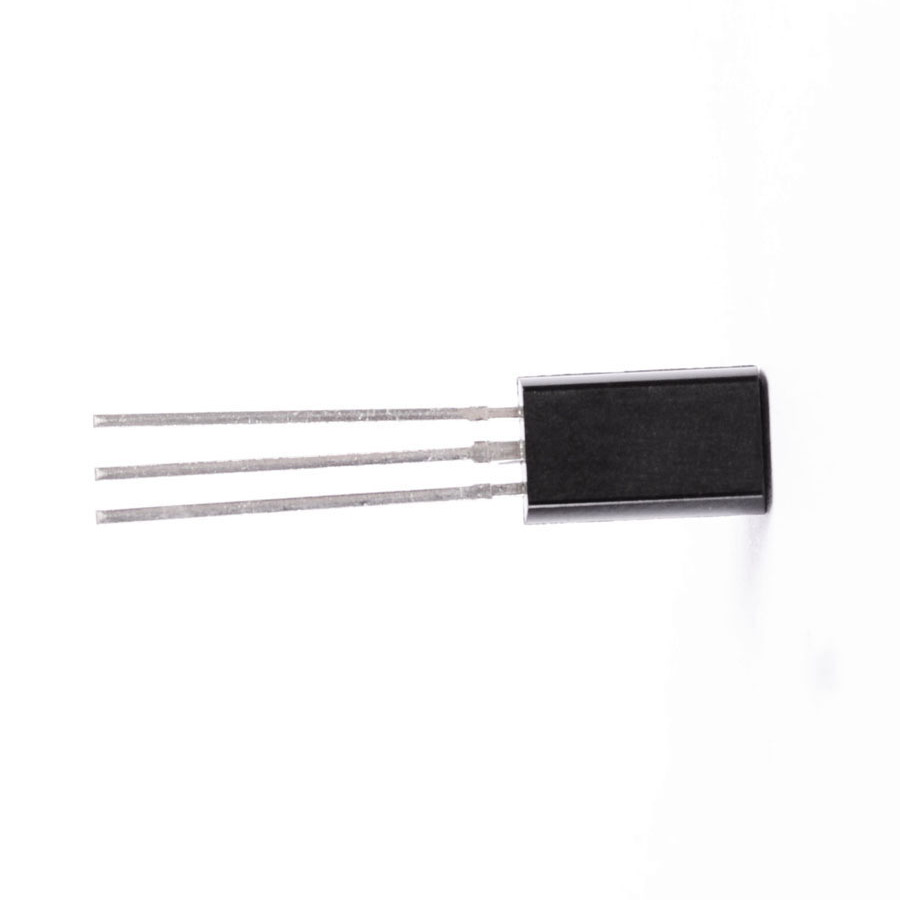

FTC1027 Transistor Silicon NPN CASE: TO92L MAKE: Generic
Product specifications
Type Transistor Silicon NPN
Case TO92L
Manufacturer Generic
Polarity NPN
Maximum Collector Power Dissipation (Pc) 1 W
Maximum Collector-Base Voltage |Vcb| 120 V
Maximum Collector-Emitter Voltage |Vce| 120 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 0.8 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 30 pF
Transition Frequency (ft): 120 MHz
Forward Current Transfer Ratio (hFE), MIN 80
SKU 1431599
