FZT649
View detailed images (8)

FZT649

SKU: FZT649

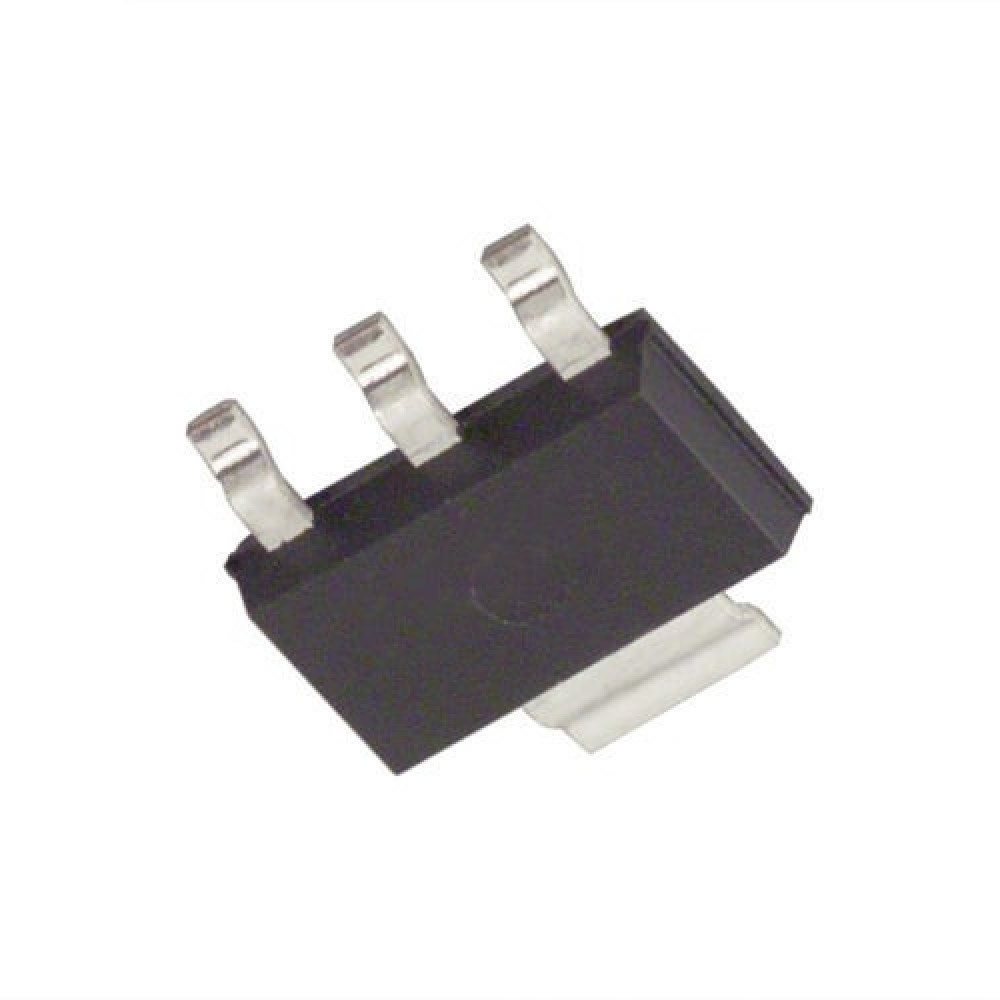

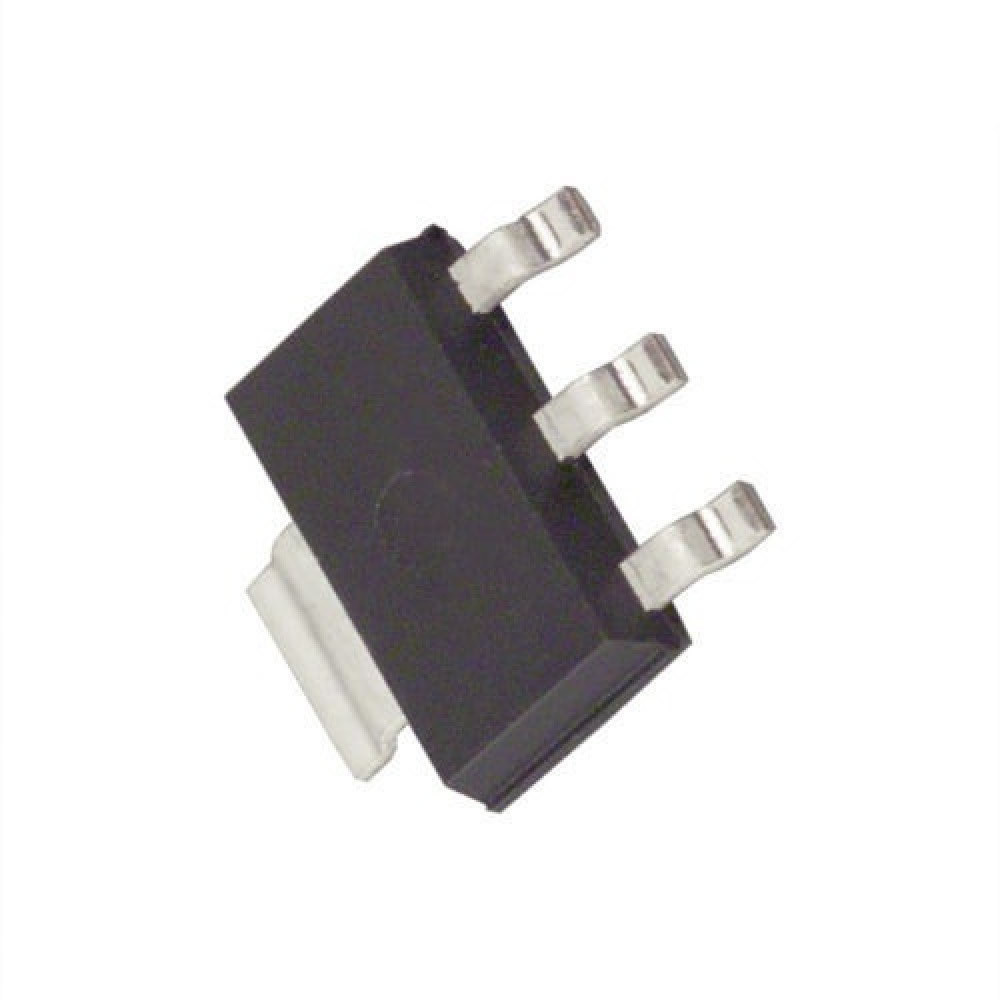

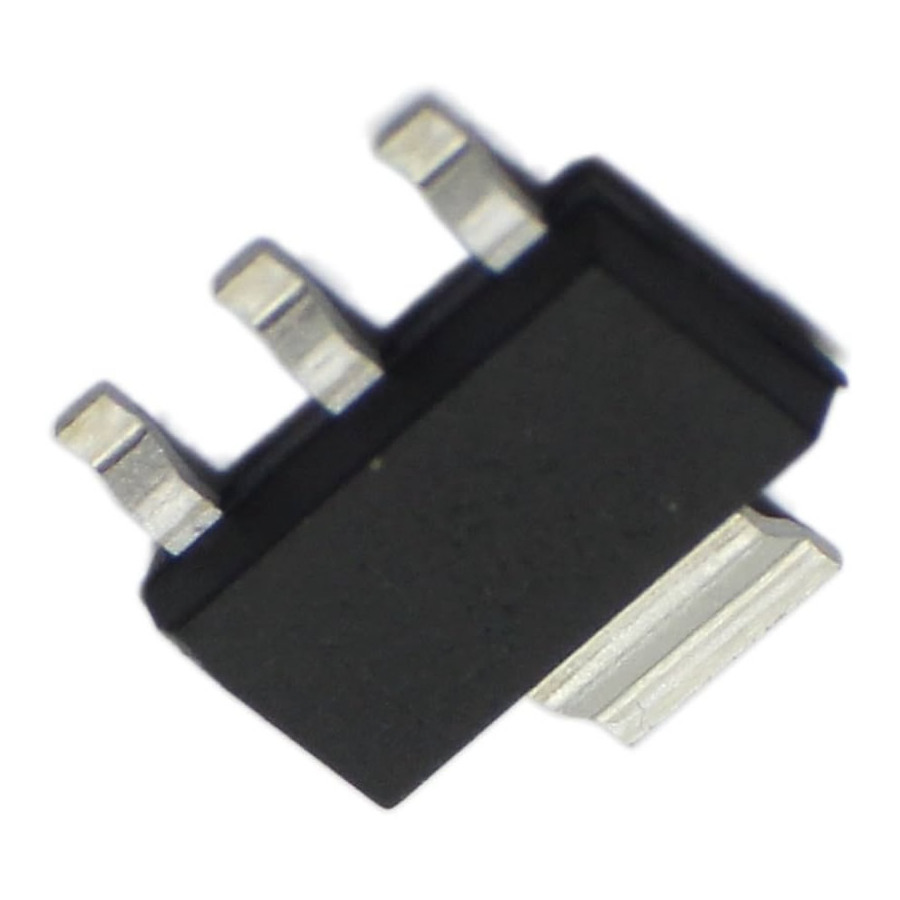

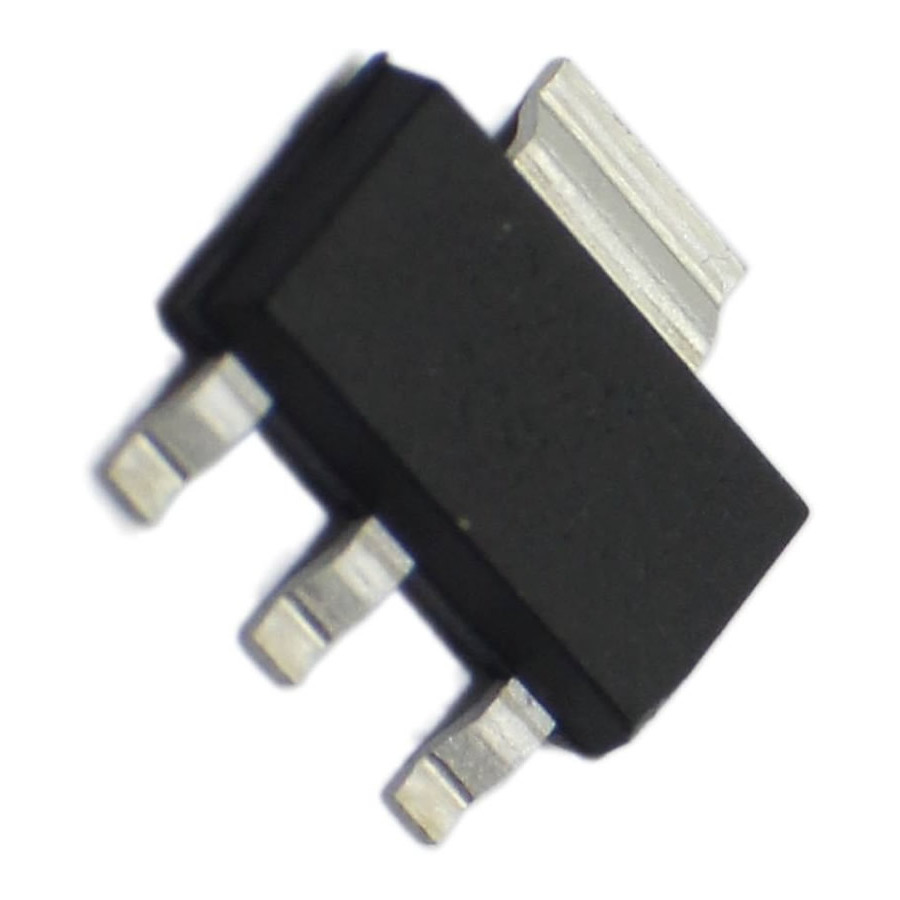

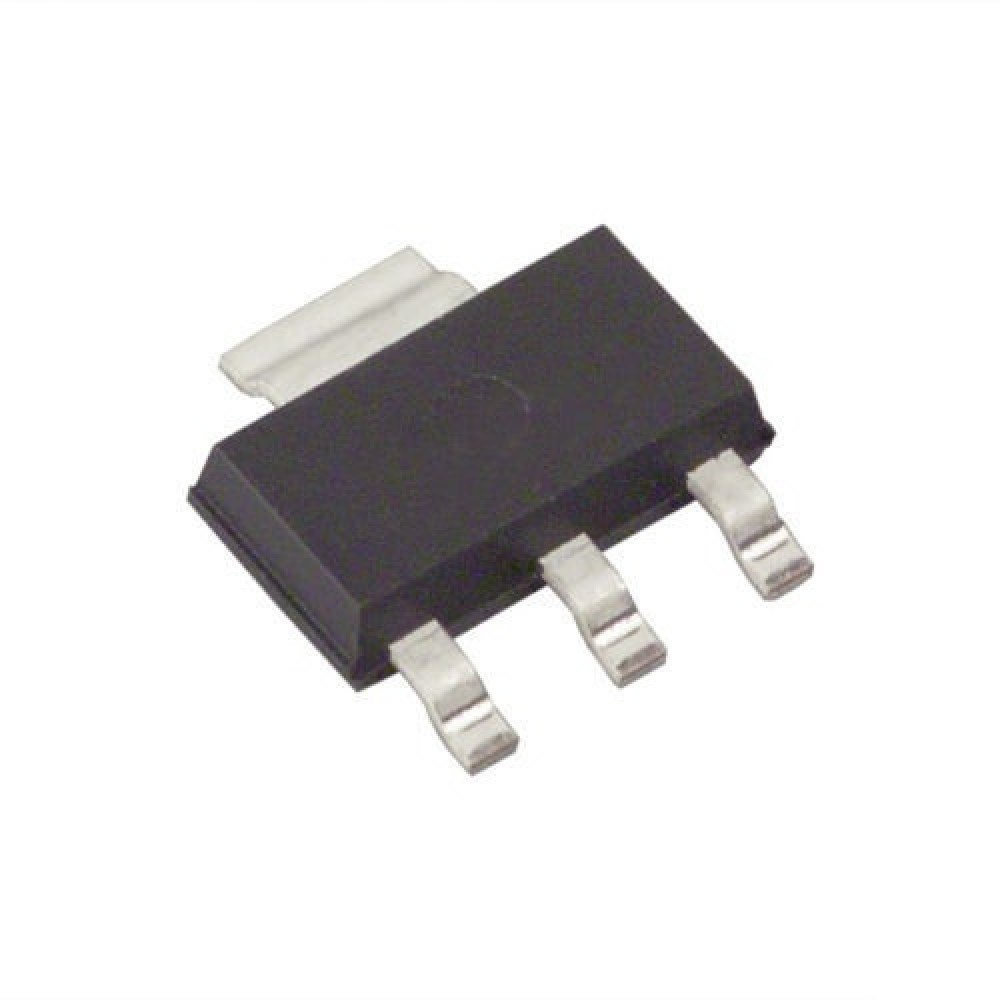

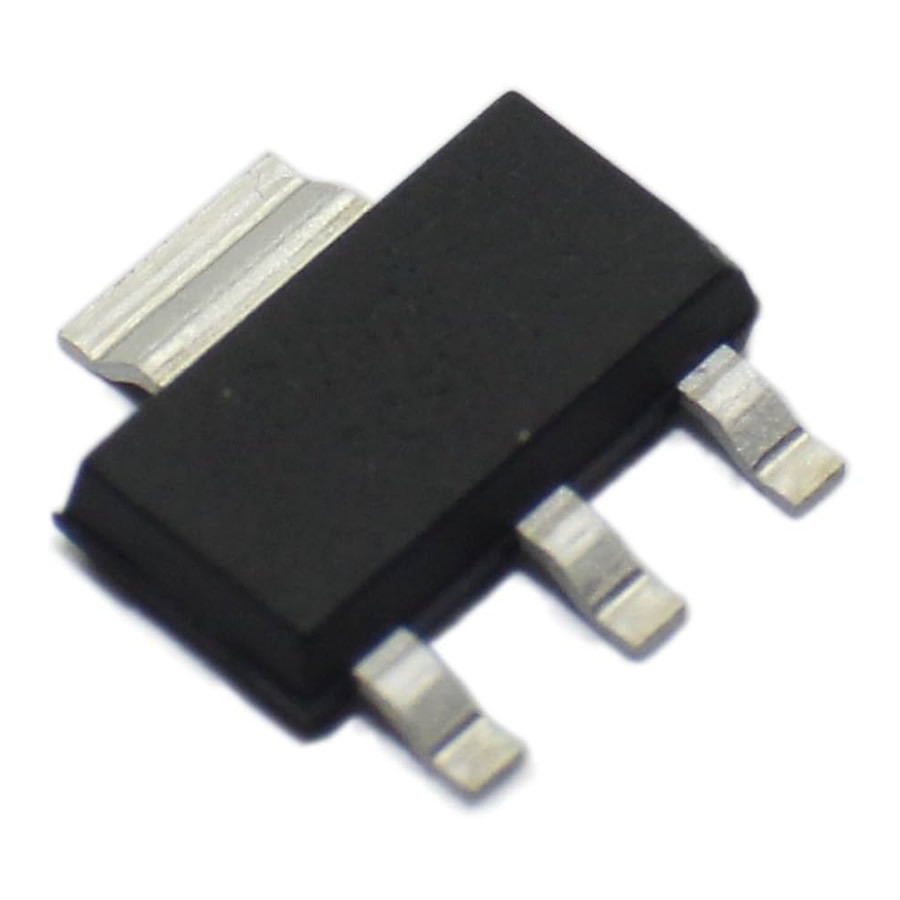

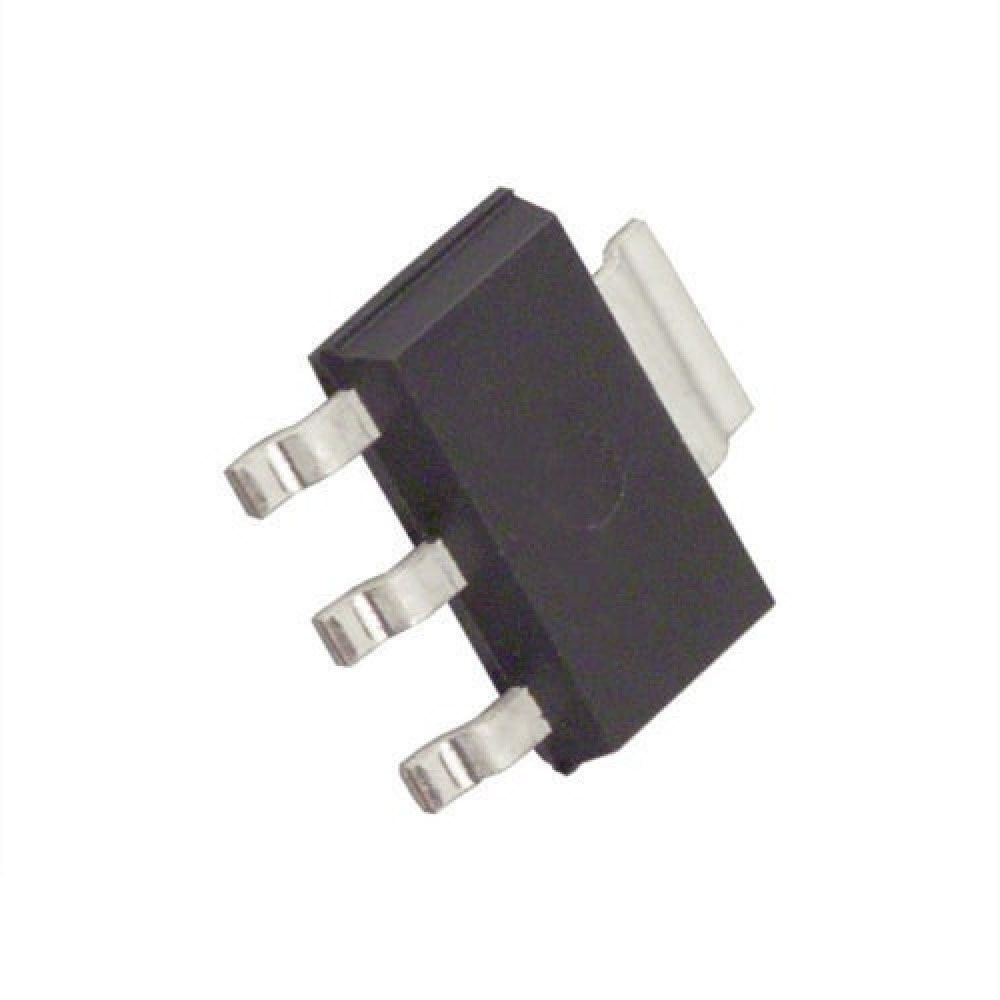

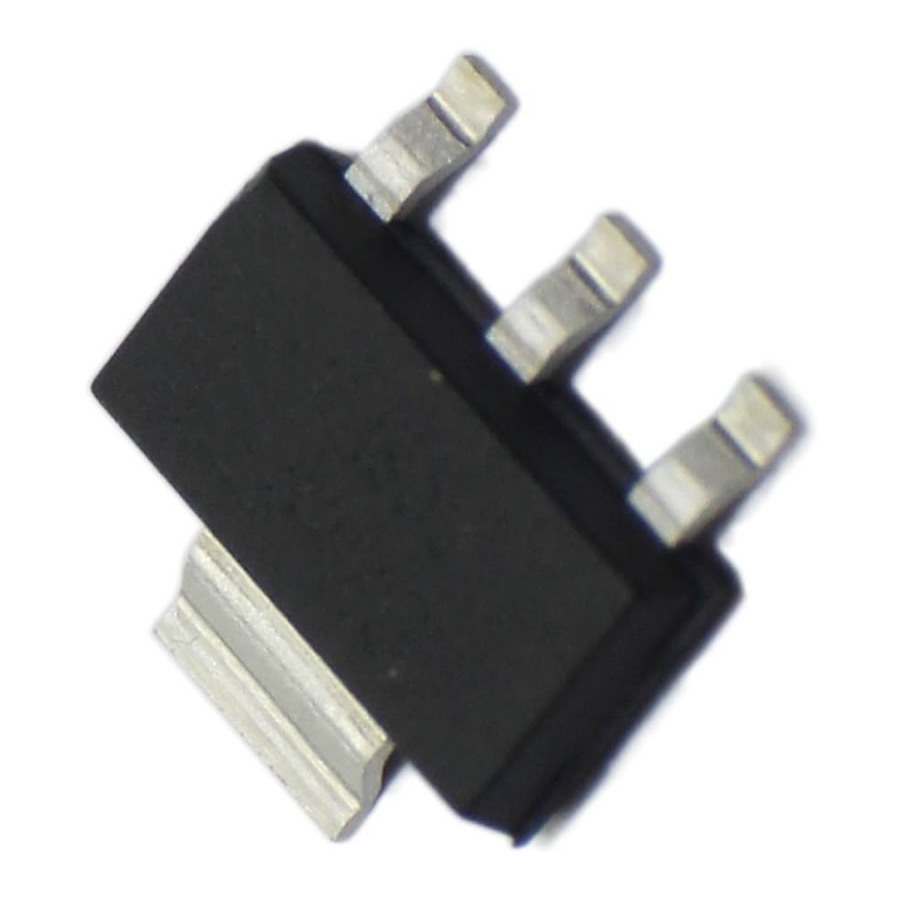

FZT649 Transistor Silicon NPN CASE: SOT223 MAKE: Zetex
Datasheet
FZT649 Datasheet
Product specifications
Type Transistor Silicon NPN
Case SOT223
Manufacturer Zetex
Vbr CBO 35
Vbr CEO 25
Max. PD (W) 2
Max. hFE 300
Min hFE 100
Ic Max. (A) 3
@Ic (test) (A) 1
Icbo Max. @Vcb Max. (A) 100n
Polarity NPN
Trans. Freq (Hz) Min. 150M
Oper. Temp (°C) Max. 150
@VCE (V) 2
Pinout Equivalence Number 4-118
Surface Mounted Yes/No YES
Maximum Collector Power Dissipation (Pc) 2 W
Maximum Collector-Base Voltage |Vcb| 35 V
Maximum Collector-Emitter Voltage |Vce| 25 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 3 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 50 pF
Transition Frequency (ft): 150 MHz
Forward Current Transfer Ratio (hFE), MIN 100
SKU 187837
