HCPL2503

HCPL2503

SKU: HCPL2503

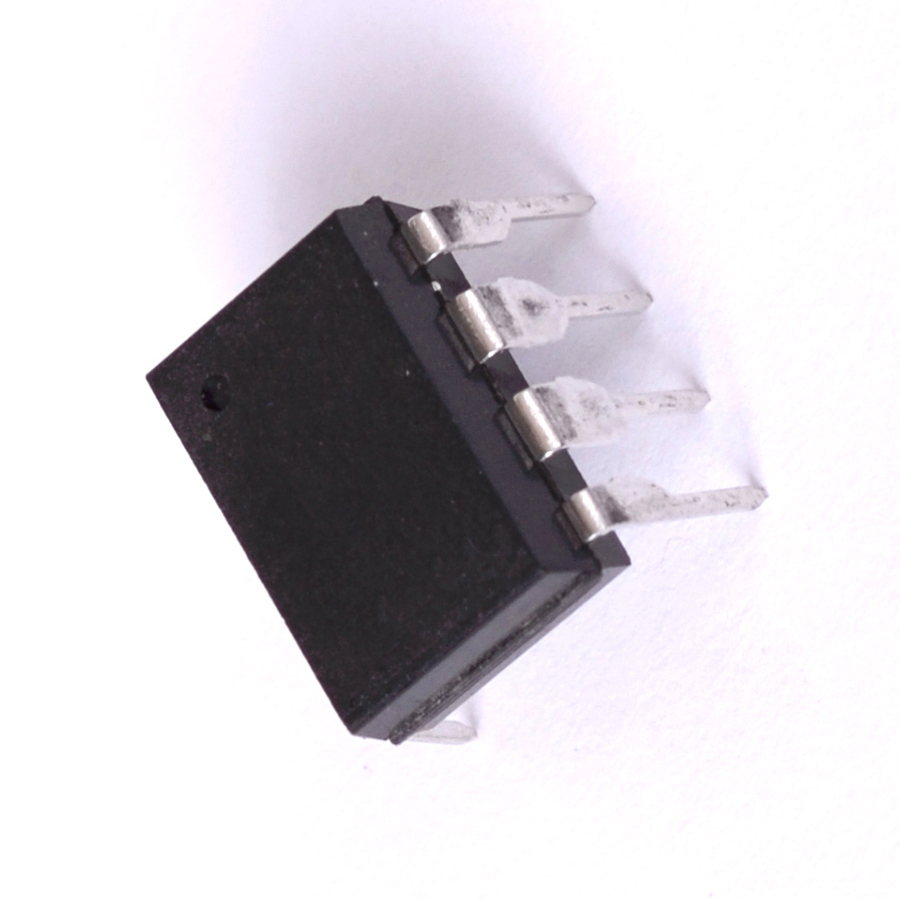

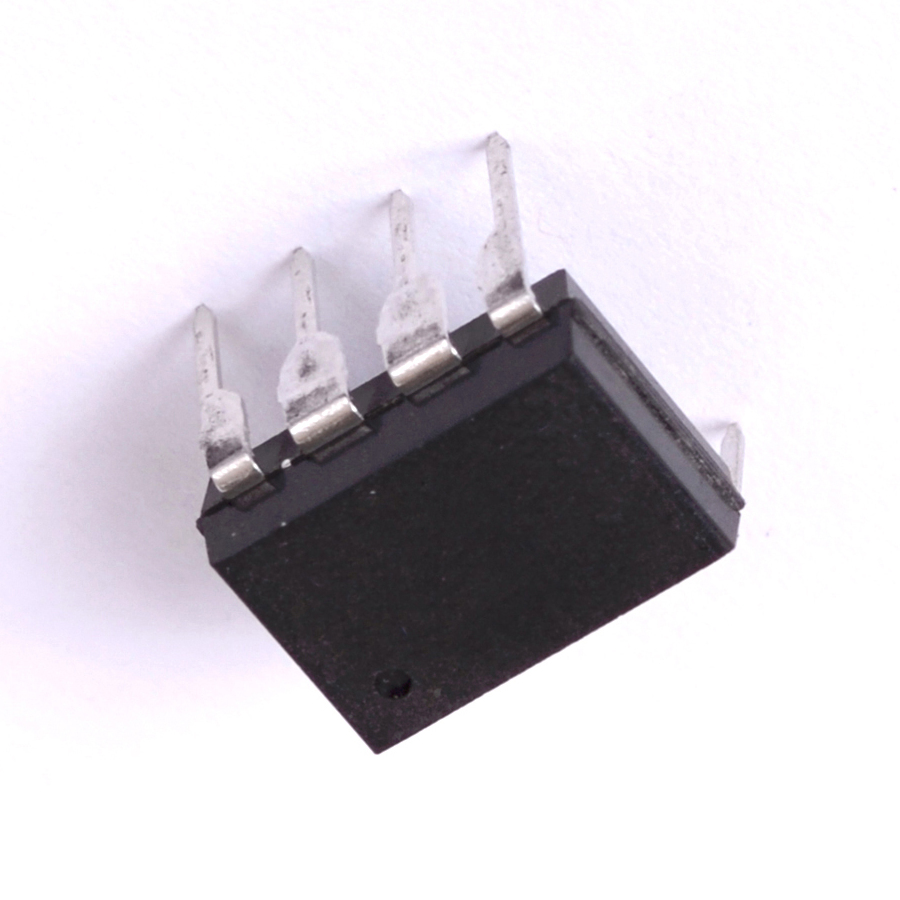

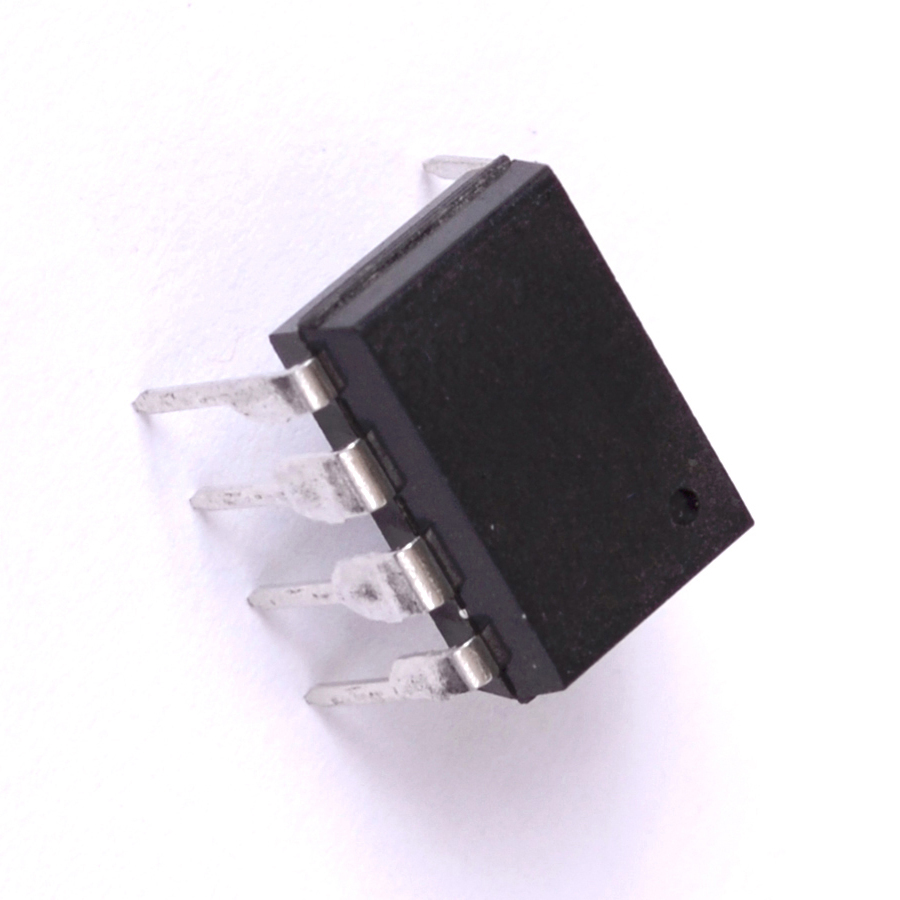

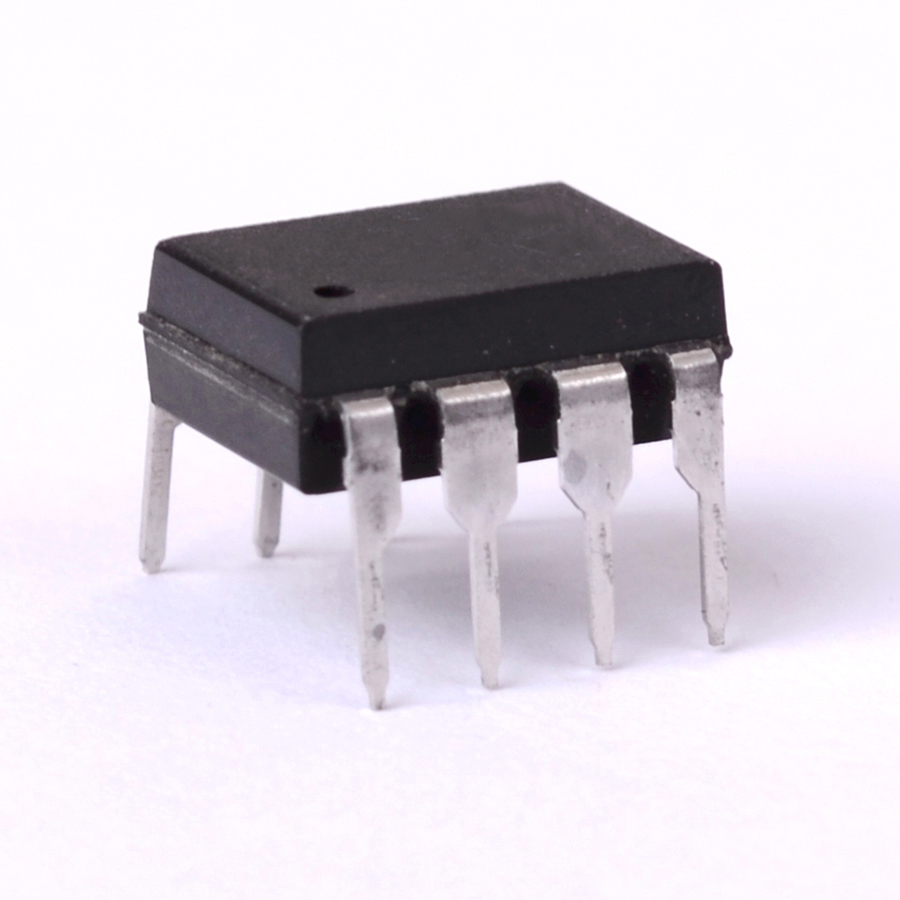

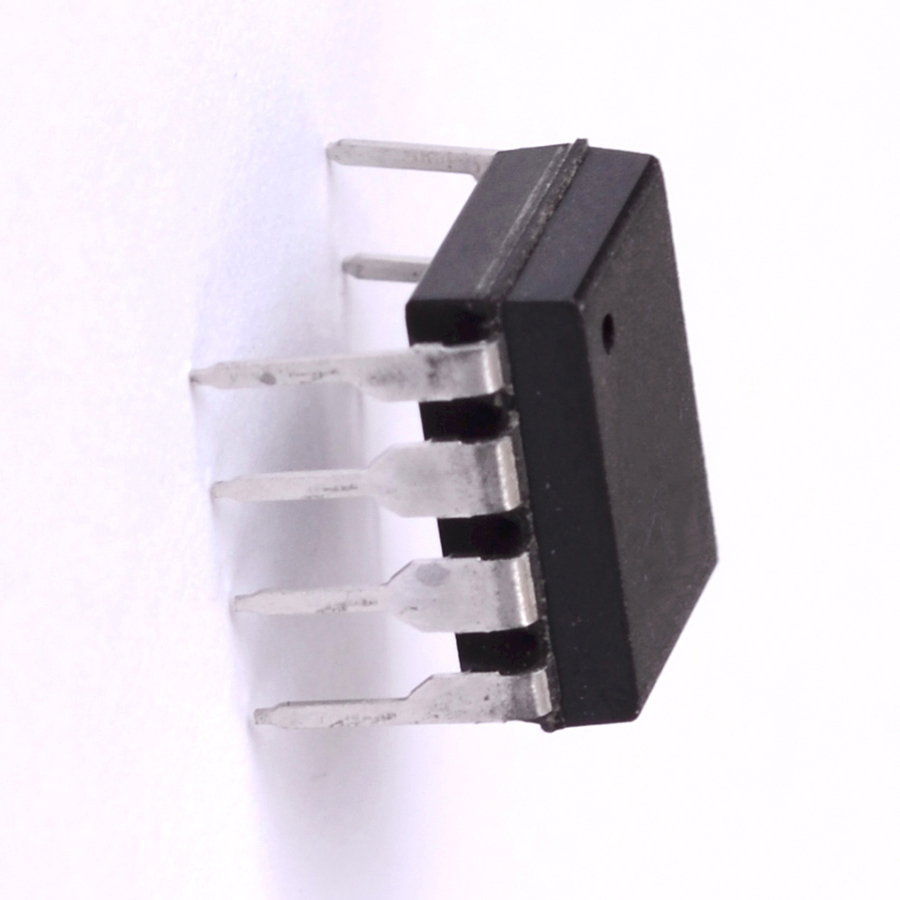

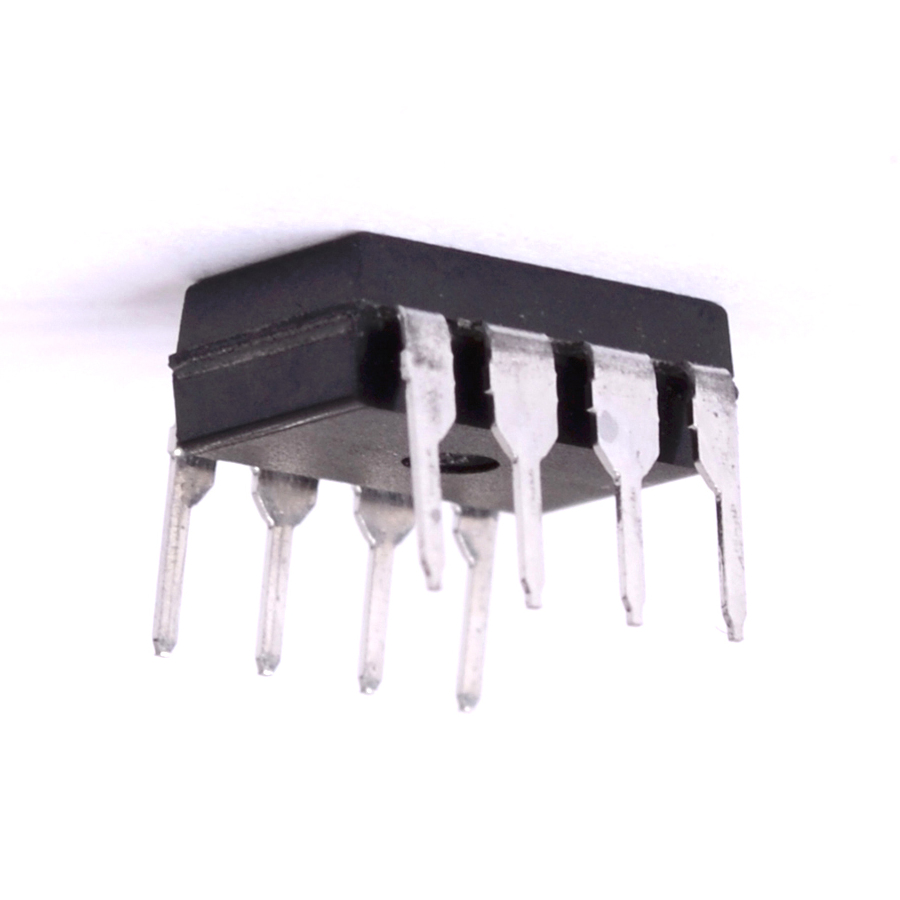

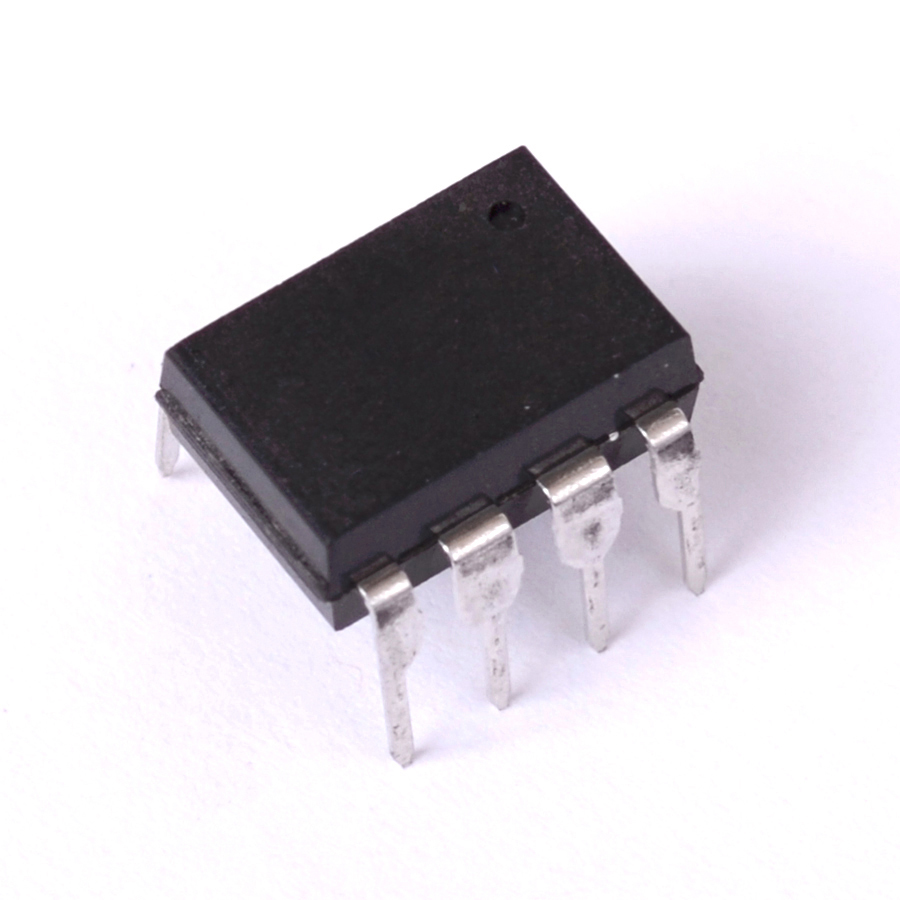

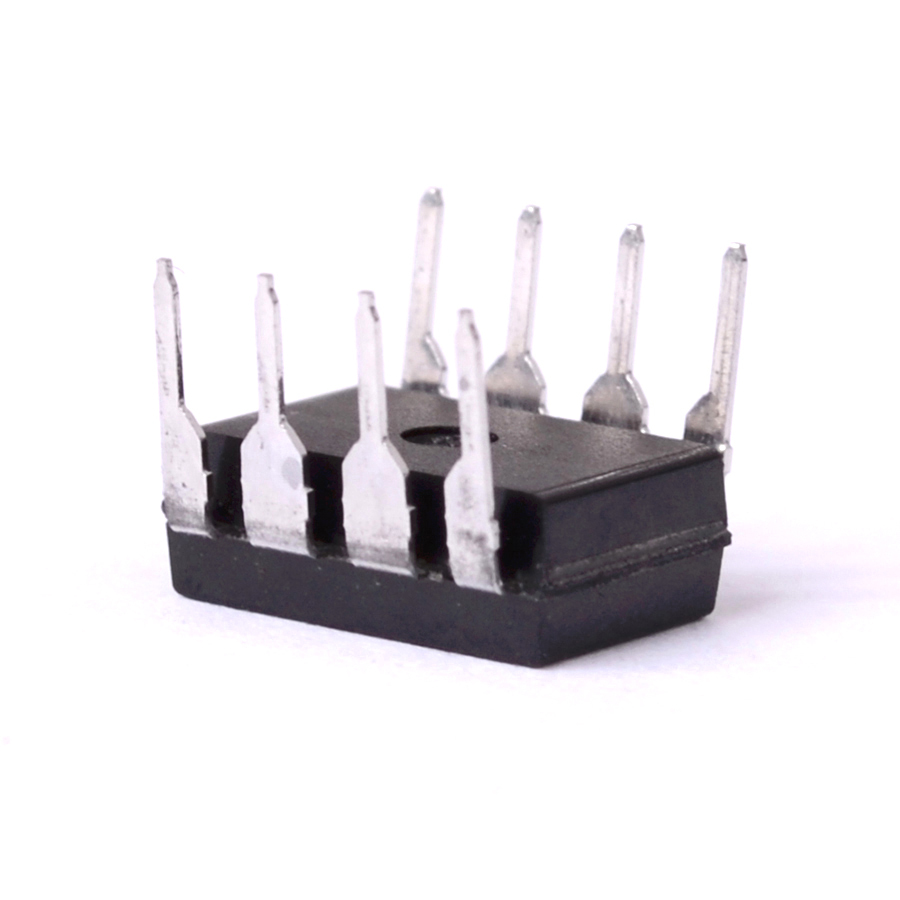

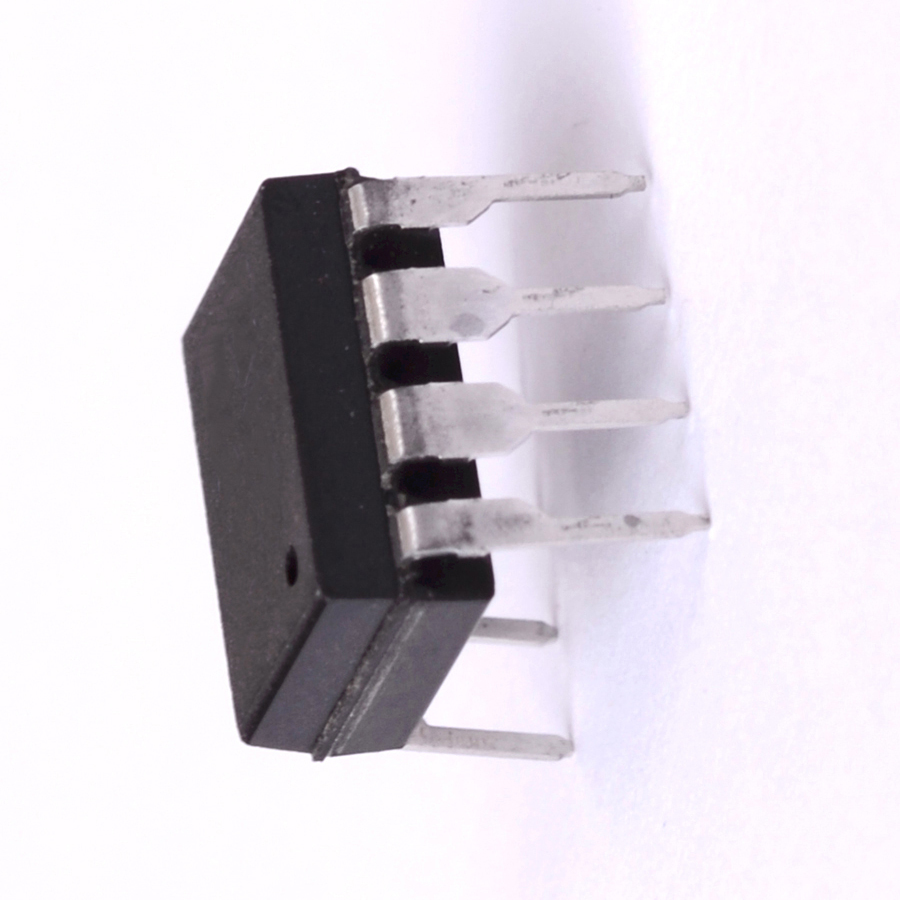

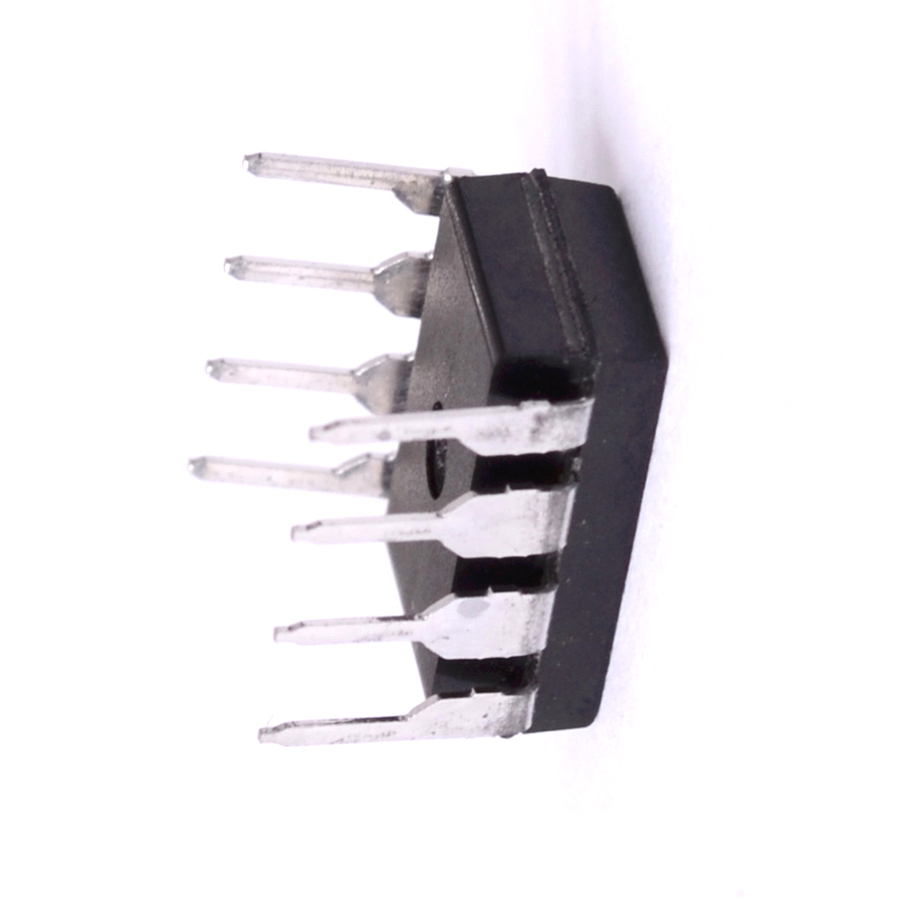

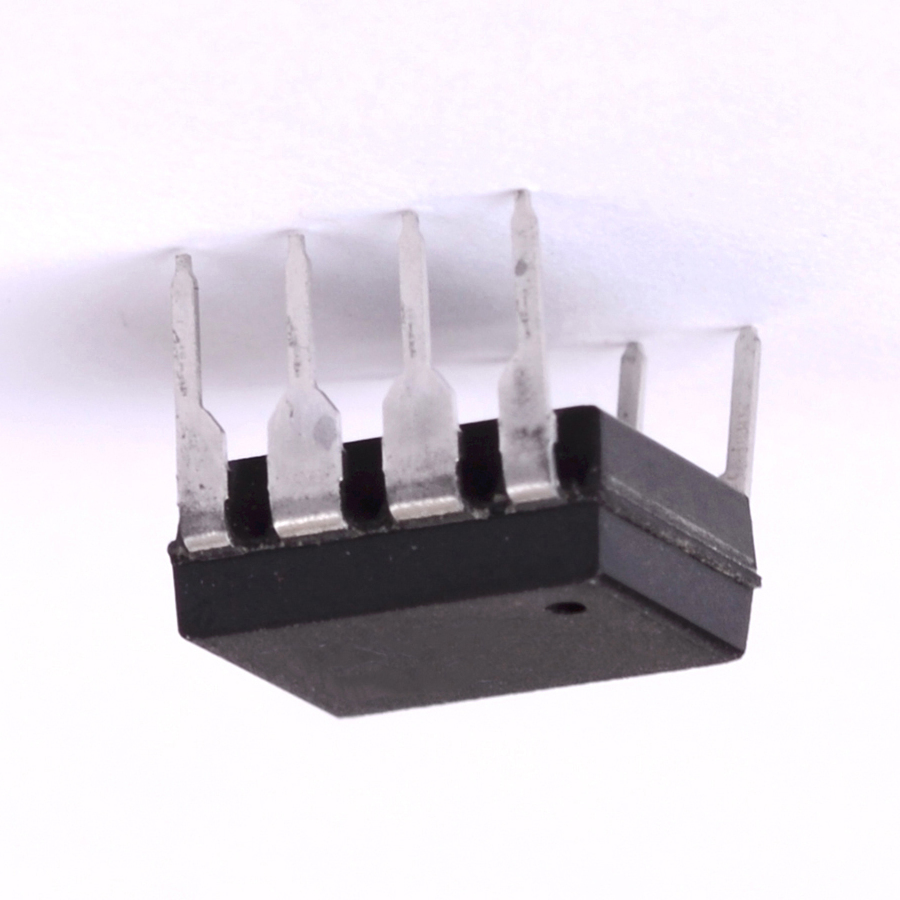

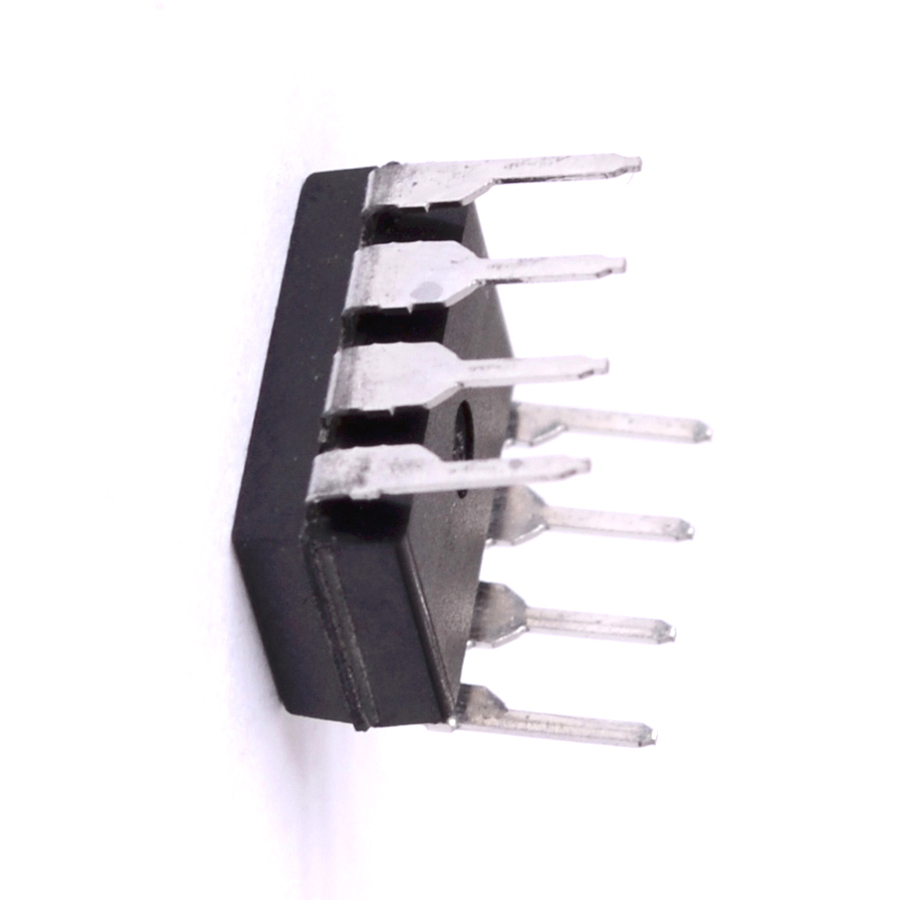

HCPL2503 SemiConductor CASE: DIP8 MAKE: Quality Technologies
Datasheet
HCPL2503 Datasheet
Product specifications
Type SemiConductor
Case DIP8
Manufacturer Quality Technologies
CTR (%) 12
V(isol) Max. (V) 500
Ic Max. (A) 8.0m
If Max. (A) 25m
@If (test) (A) 16m
PD Max. (W) 100m
VCE(sat) Max. 500m
Vf Max. 1.7
@Ic (test) 1.1m
@VCE (test) 4.5
Oper. Temp (°C) Min 0
Oper. Temp (°C) Max. 70
@If (A) 16m
@If (A) 16m
Number of Chan. 1
Pinout Equivalence Number 8-37
Surface Mounted Yes/No NO
SKU 354189
