Home / Integrated Circuit / HD404222FP
HD404222FP

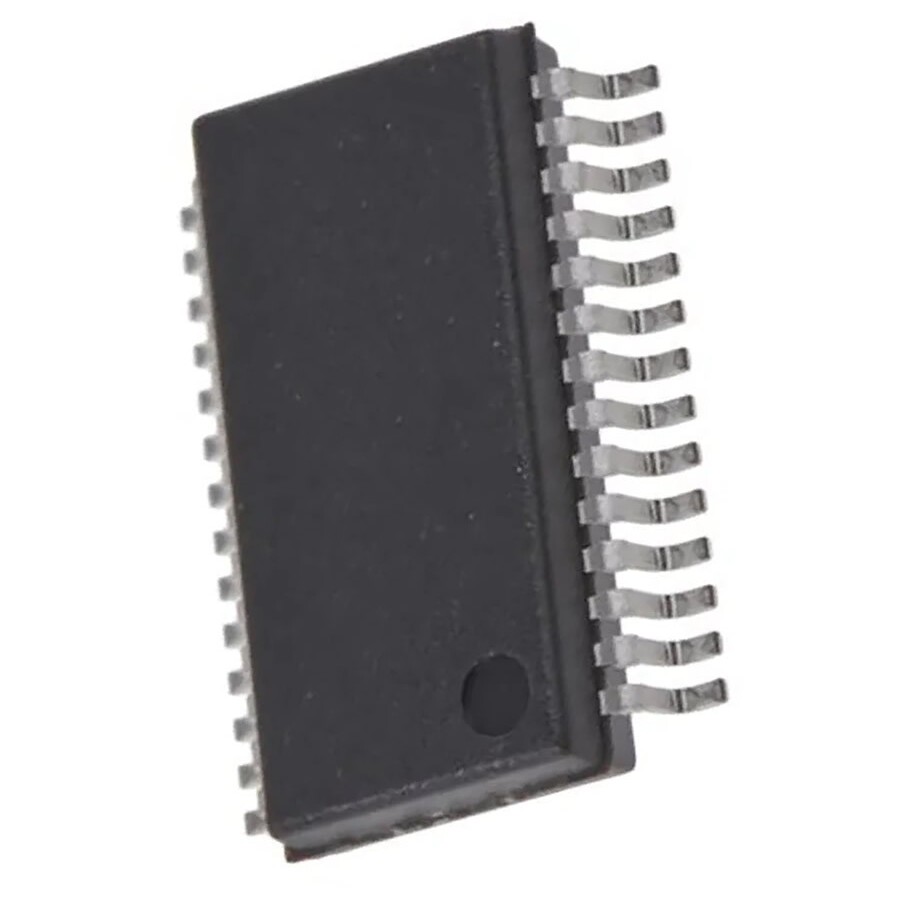

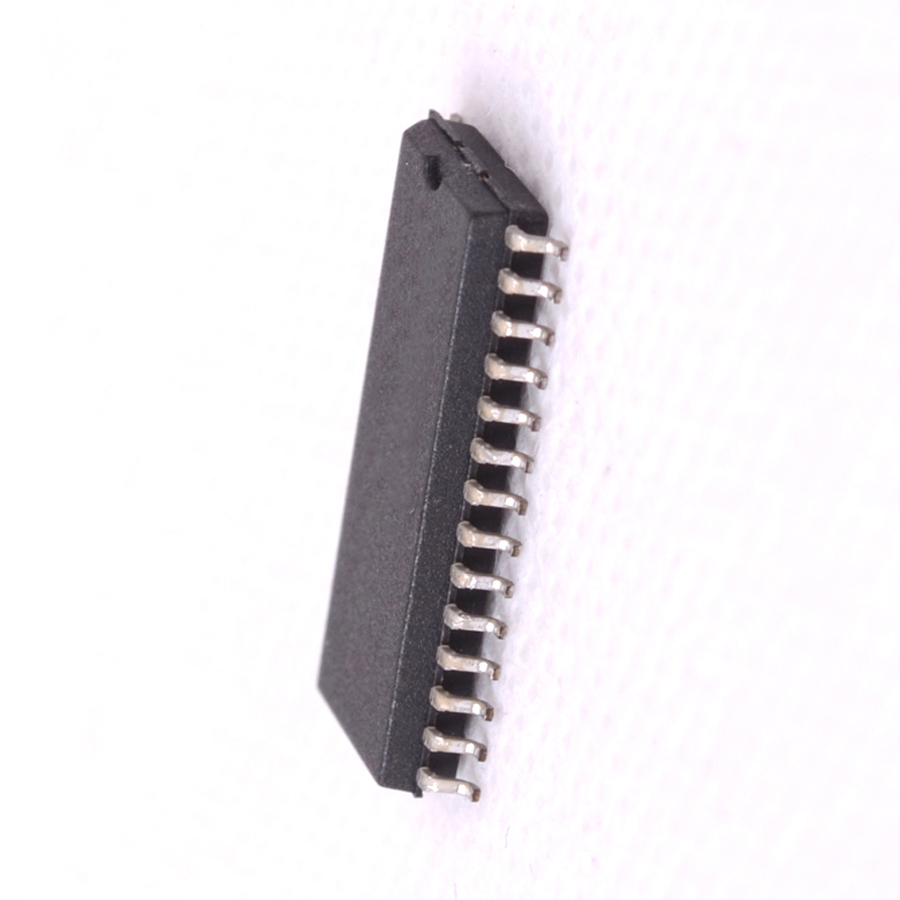

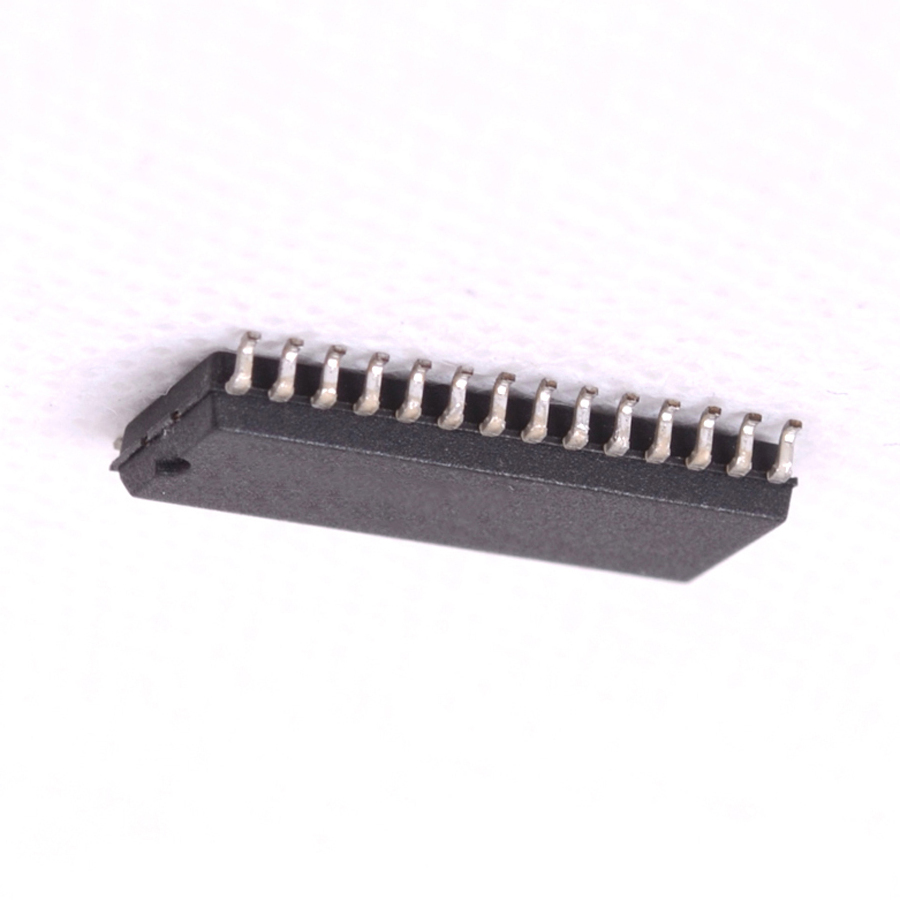

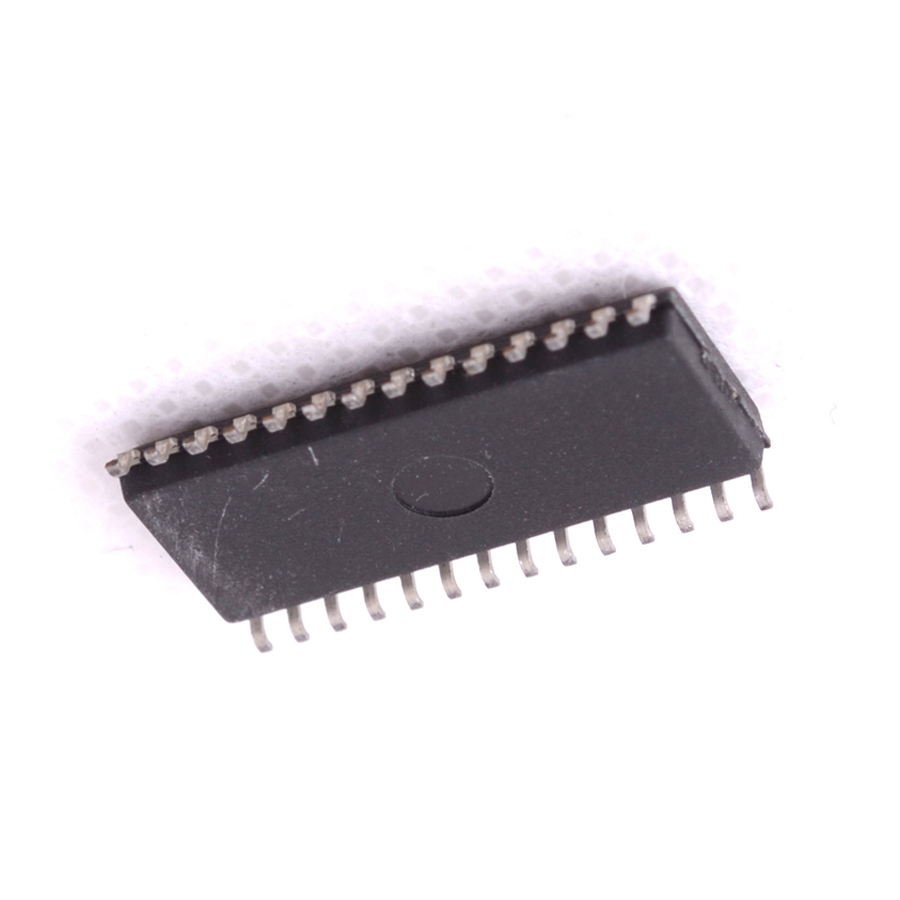

View detailed images (12)

HD404222FP

SKU: HD404222FP

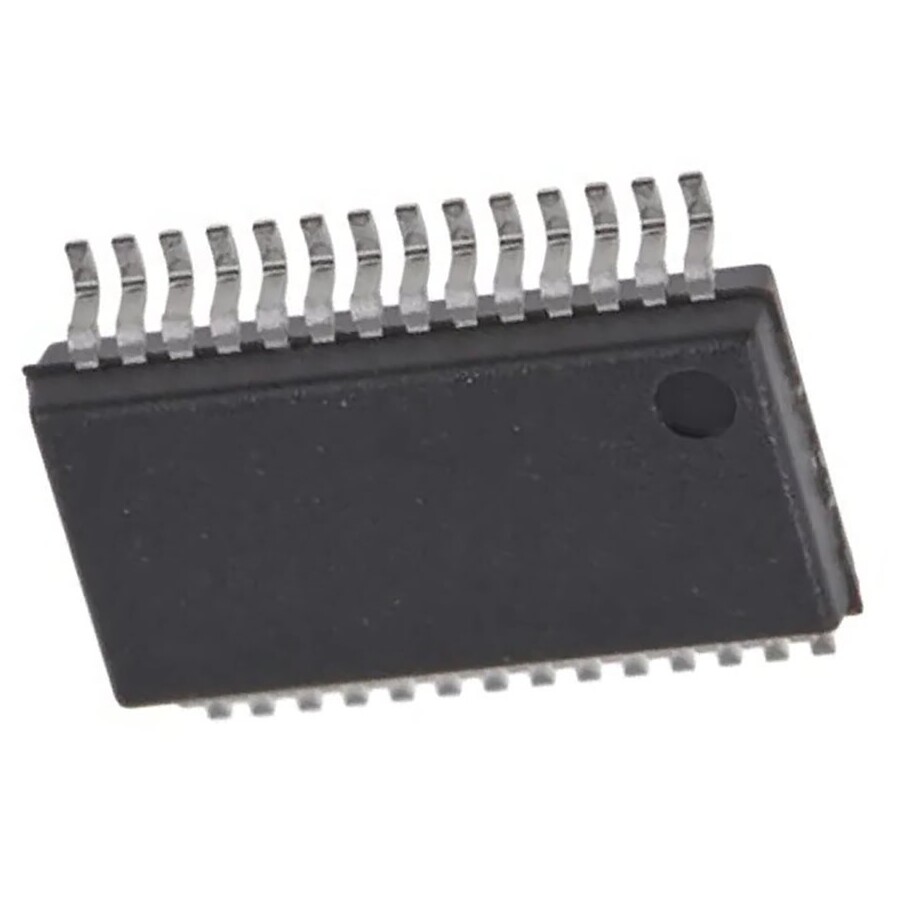

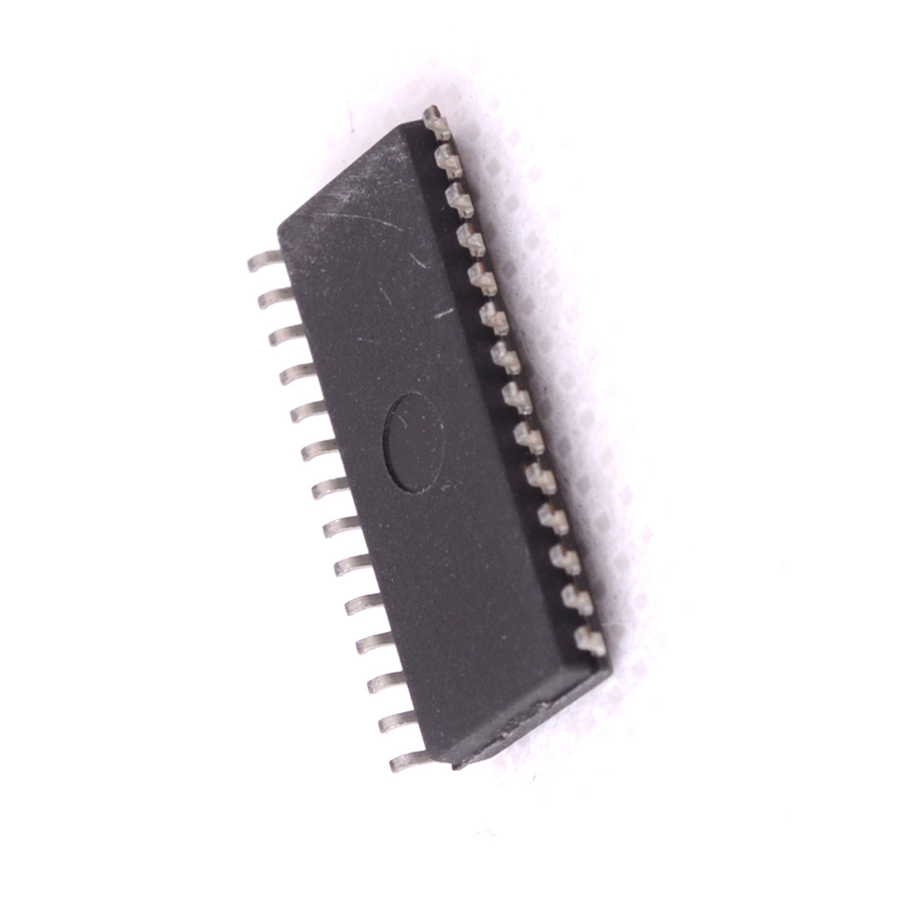

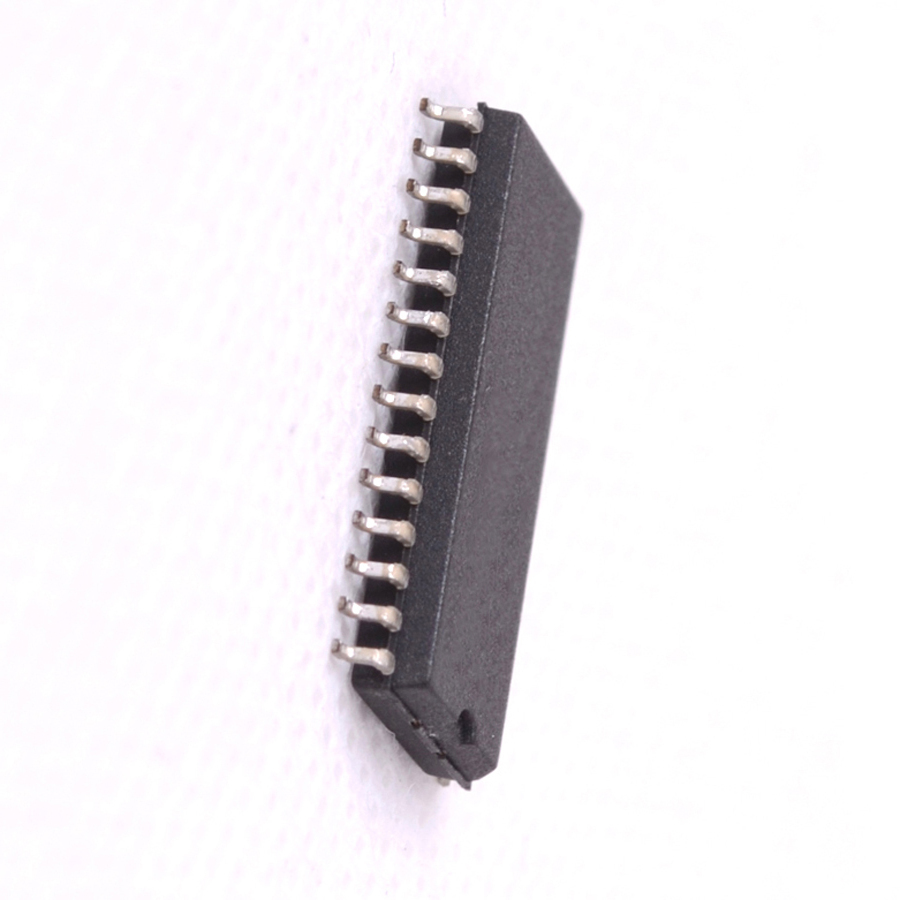

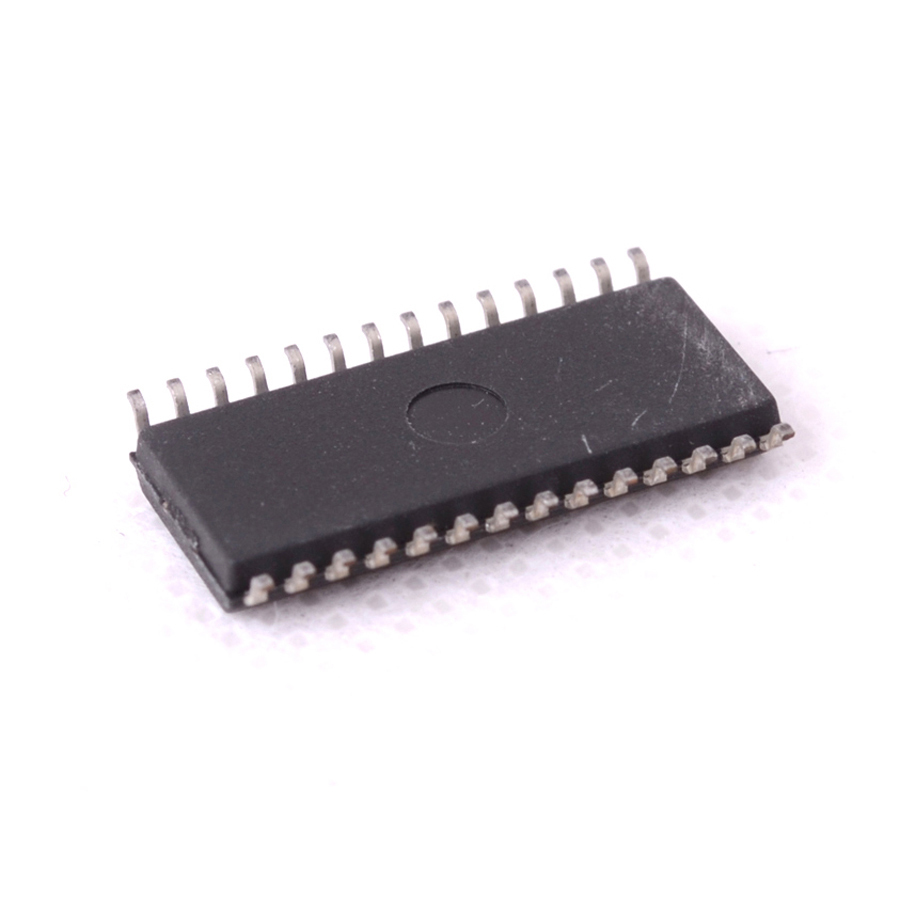

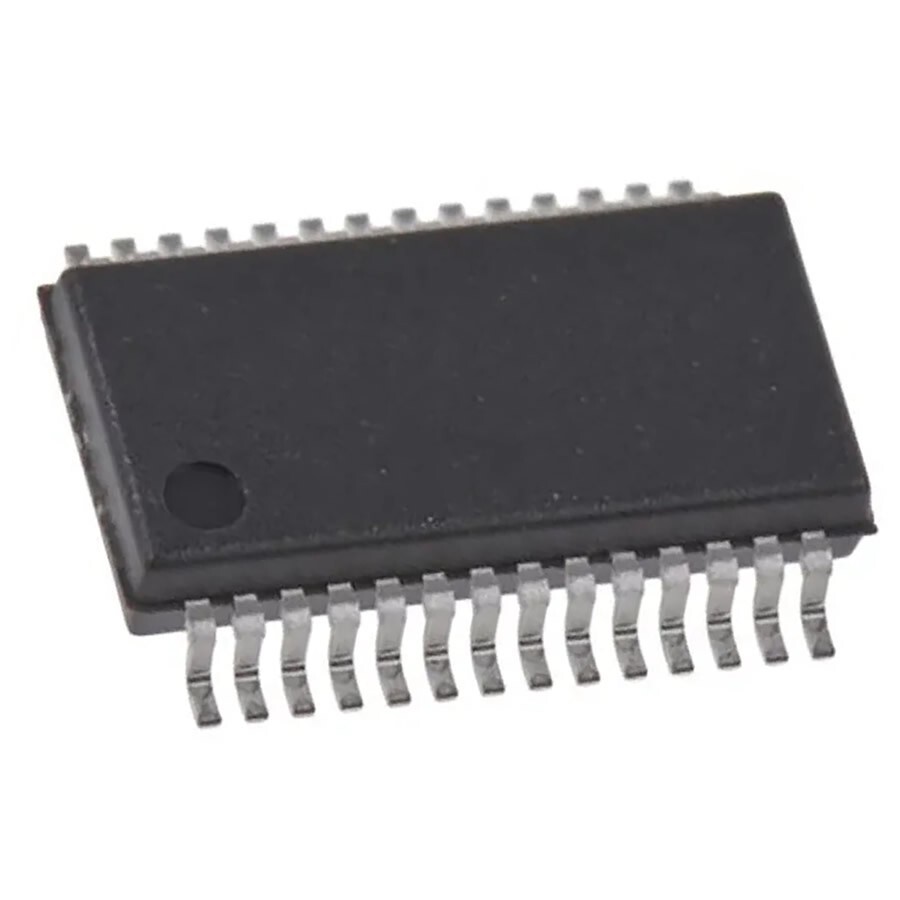

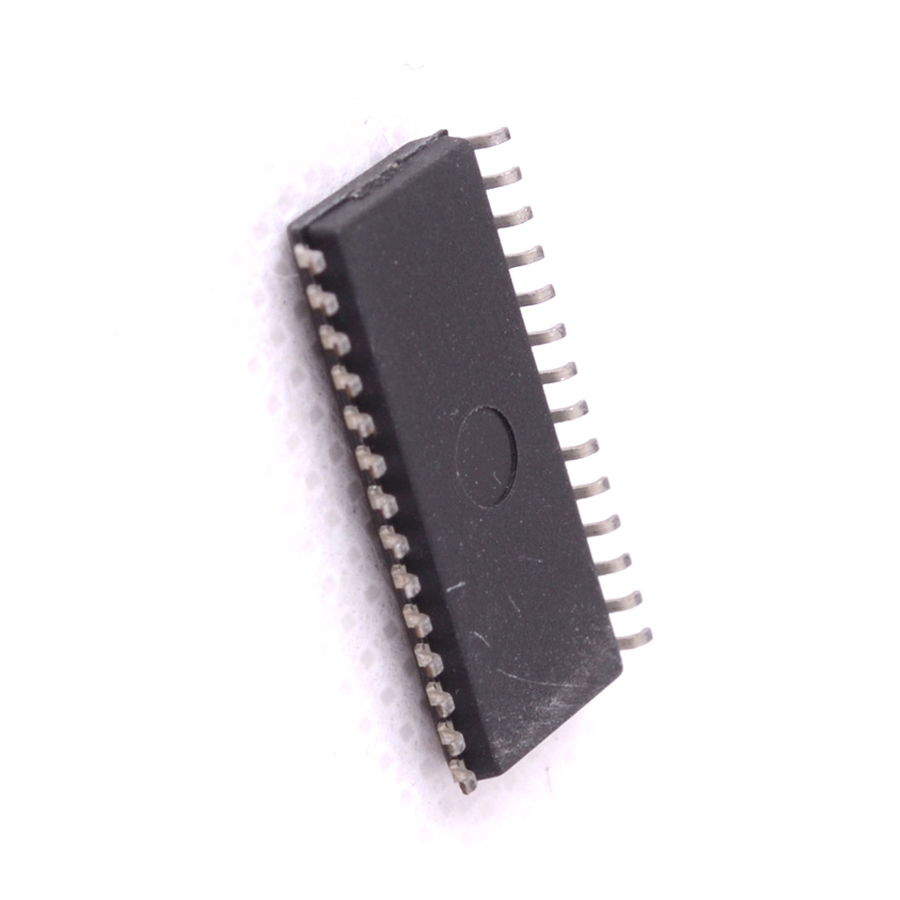

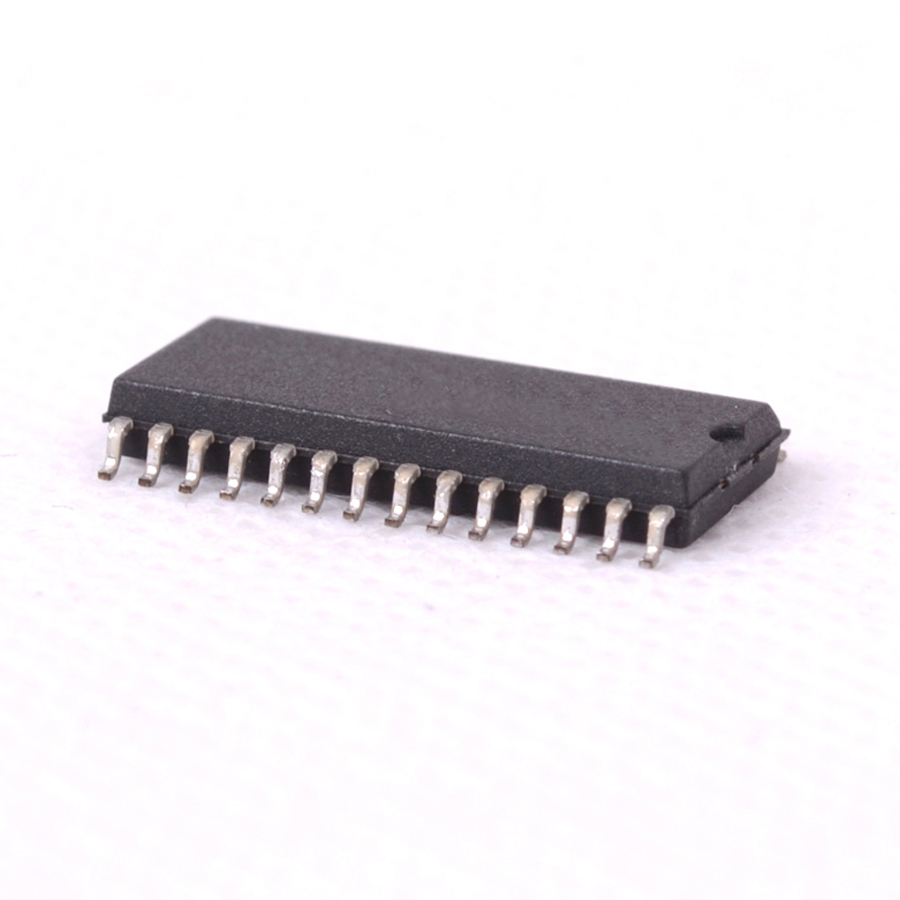

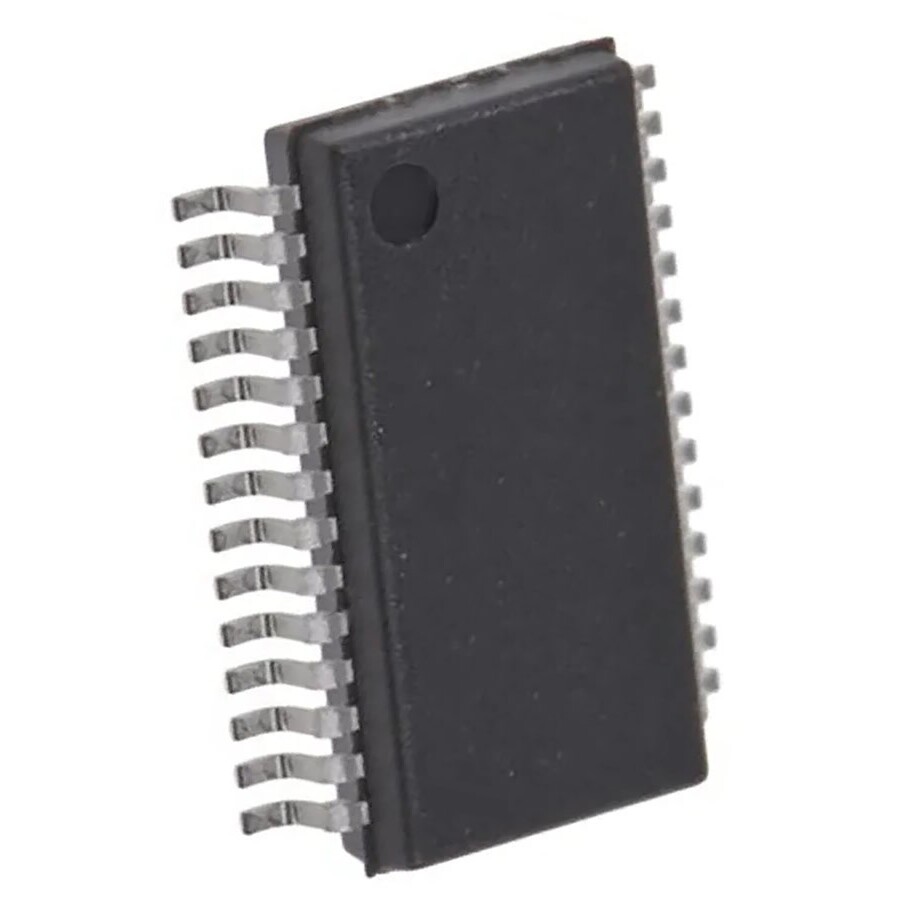

HD404222FP Integrated Circuit CASE: SOP28 MAKE: Hitachi
Product specifications
Type Integrated Circuit
Case SOP28
Manufacturer Hitachi
No.of Addr. Modes 7
I/O Line Types Ser/Parall
Max. Inst. Len (bits) 20
Min Inst. Len (bits) 10
No. of Intrpt Lines 1
No. of Intrpt (NMI) 0
Intrpt Types Mask/Int V
No. of Intrpt (mask) 4
fClk Max. (Hz) 4.5M
fClk Min (Hz) 1.0M
No. of I/O Ports 4
On-Chip ROM (bytes) 2.0k
Nom. Supp Volt 5.0
Tech. CMOS Integrated Circuit
On-Chip RAM (Bytes) 128
Oper. Temp (°C) Min -20
Oper. Temp (°C) Max. 75
Pinout Equivalence Number 28-644
No. of Pins 28
Surface Mounted Yes/No YES
SKU 1125390
