HD614120S
View detailed images (13)

HD614120S

SKU: HD614120S

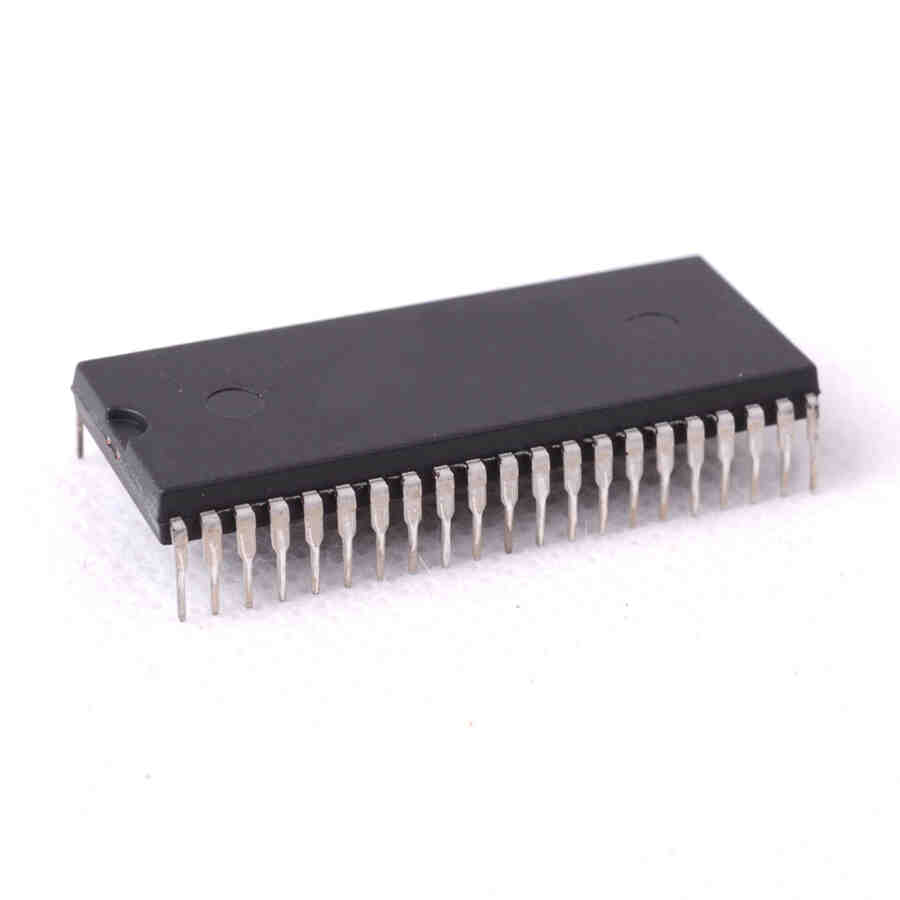

HD614120S Integrated Circuit CASE: DIP42 MAKE: Hitachi
Product specifications
Type Integrated Circuit
Case DIP42
Manufacturer Hitachi
Mem. Addr Rnge 2k
No.of Addr. Modes 7
No. of I/O Lines 36
I/O Line Types Gen. Purp.
Max. Inst. Len (bits) 16
Min Inst. Len (bits) 8
No. of Intrpt Lines 3
No. of Intrpt (NMI) 1
Intrpt Types Prty/Int V
No. of Intrpt (mask) 2
fClk Max. (Hz) 4.5M
fClk Min (Hz) 400k
No. of I/O Ports 7
On-Chip ROM (bytes) 2k
Nom. Supp Volt 3.5
Tech. CMOS Integrated Circuit
On-Chip RAM (Bytes) 80
Oper. Temp (°C) Min -20
Oper. Temp (°C) Max. 75
Pinout Equivalence Number 42-69
No. of Pins 42
Surface Mounted Yes/No NO
SKU 1125183
