HD6301X0FJ
View detailed images (9)

HD6301X0FJ

SKU: HD6301X0FJ

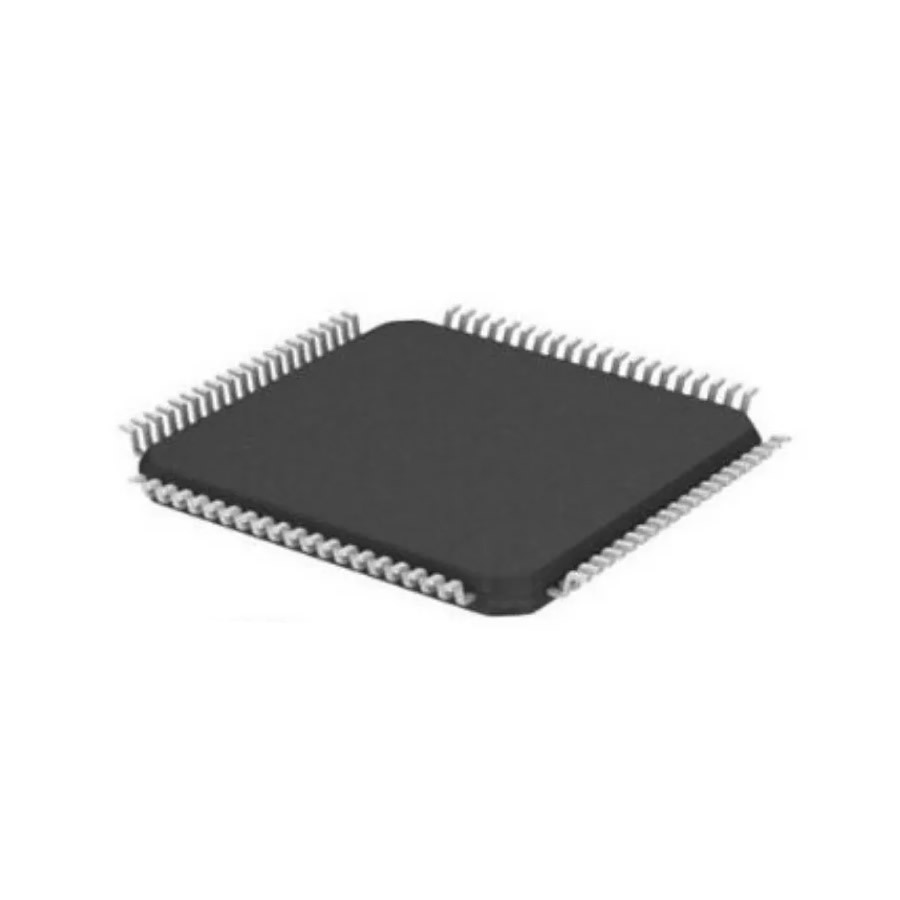

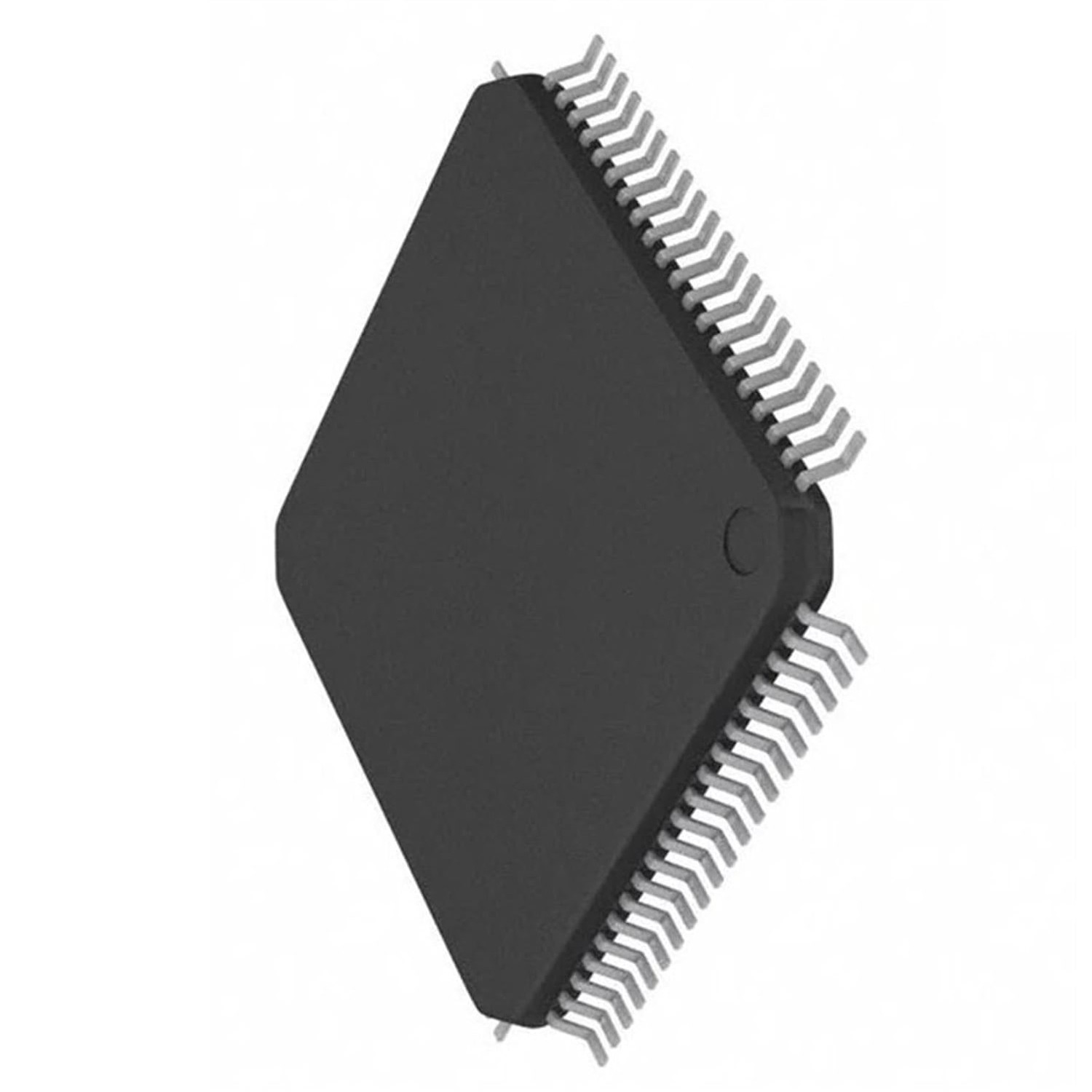

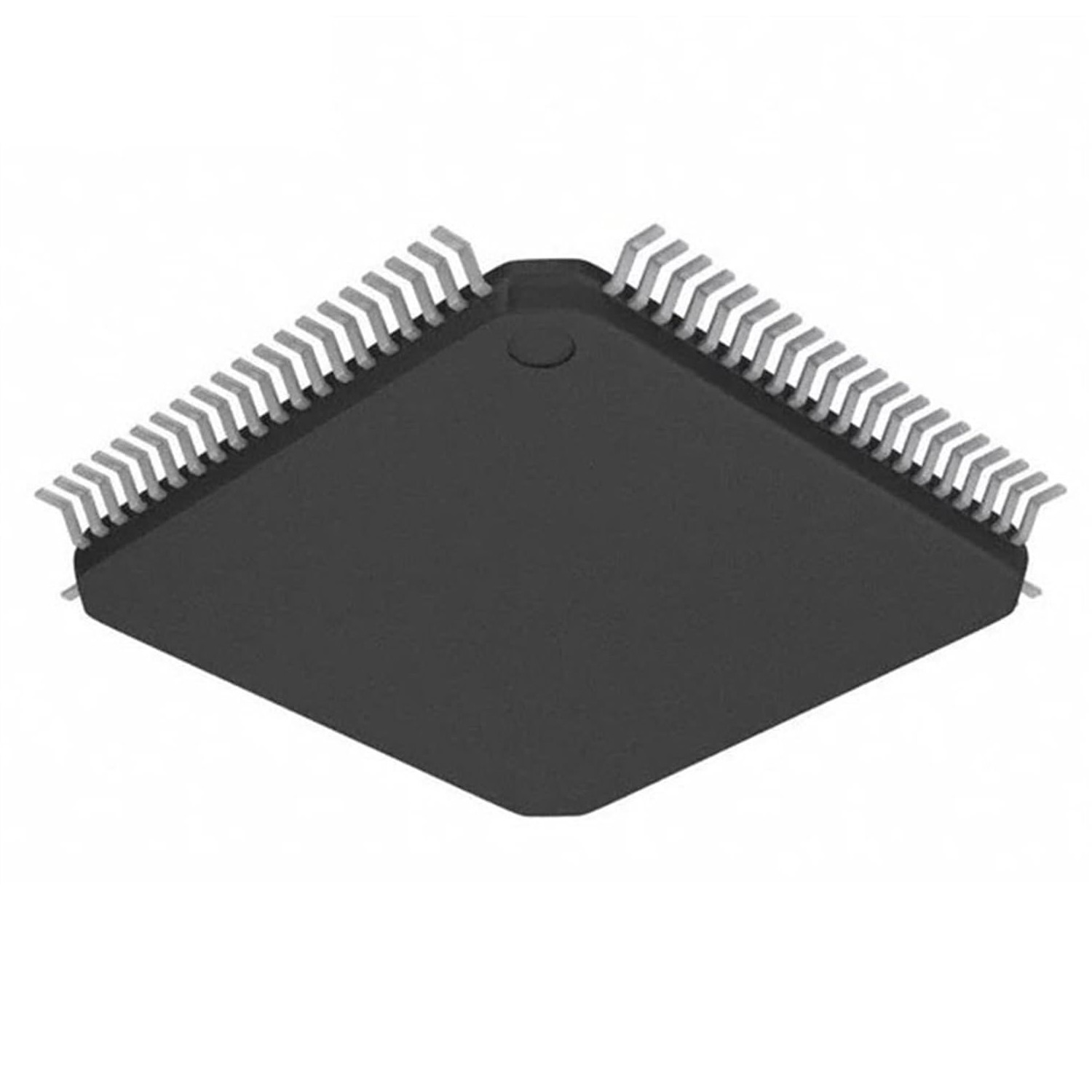

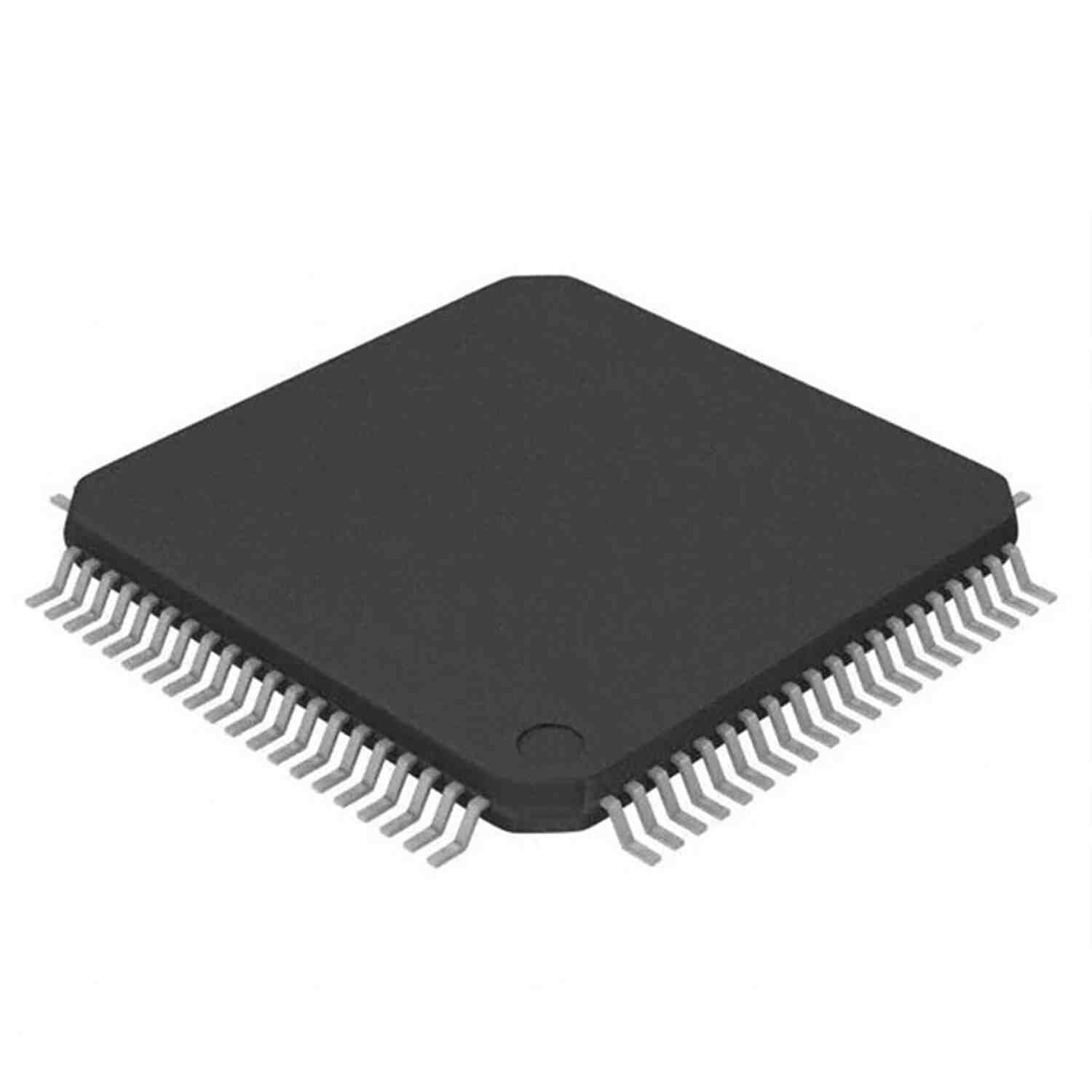

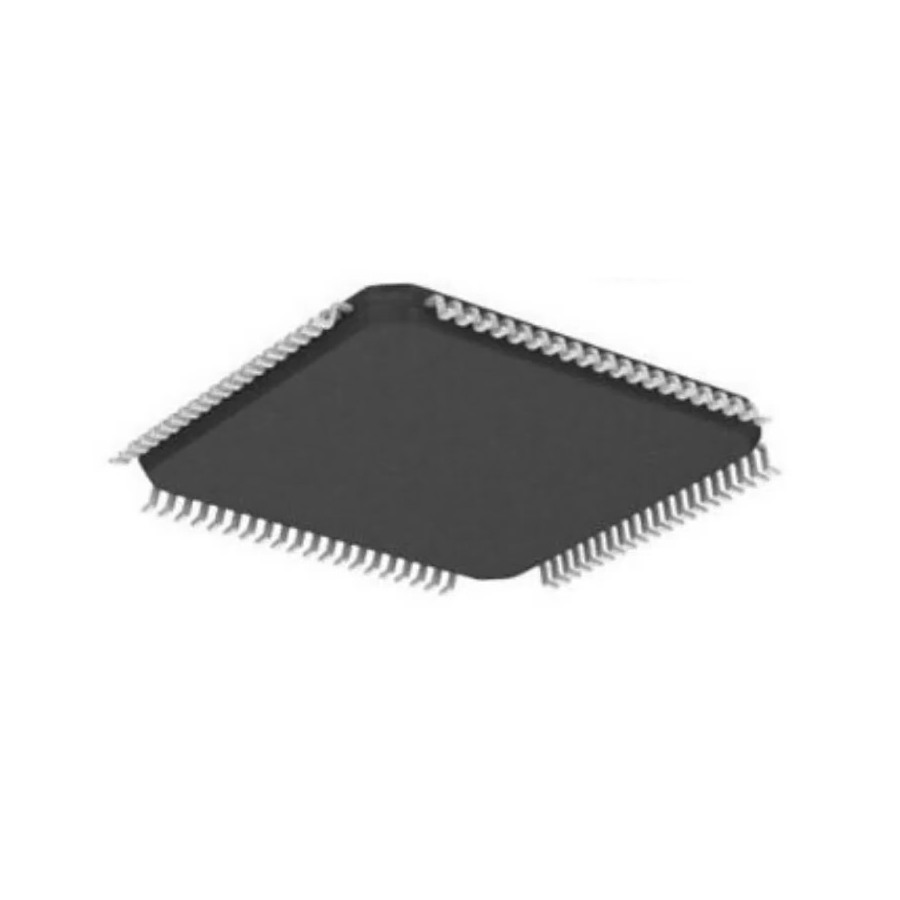

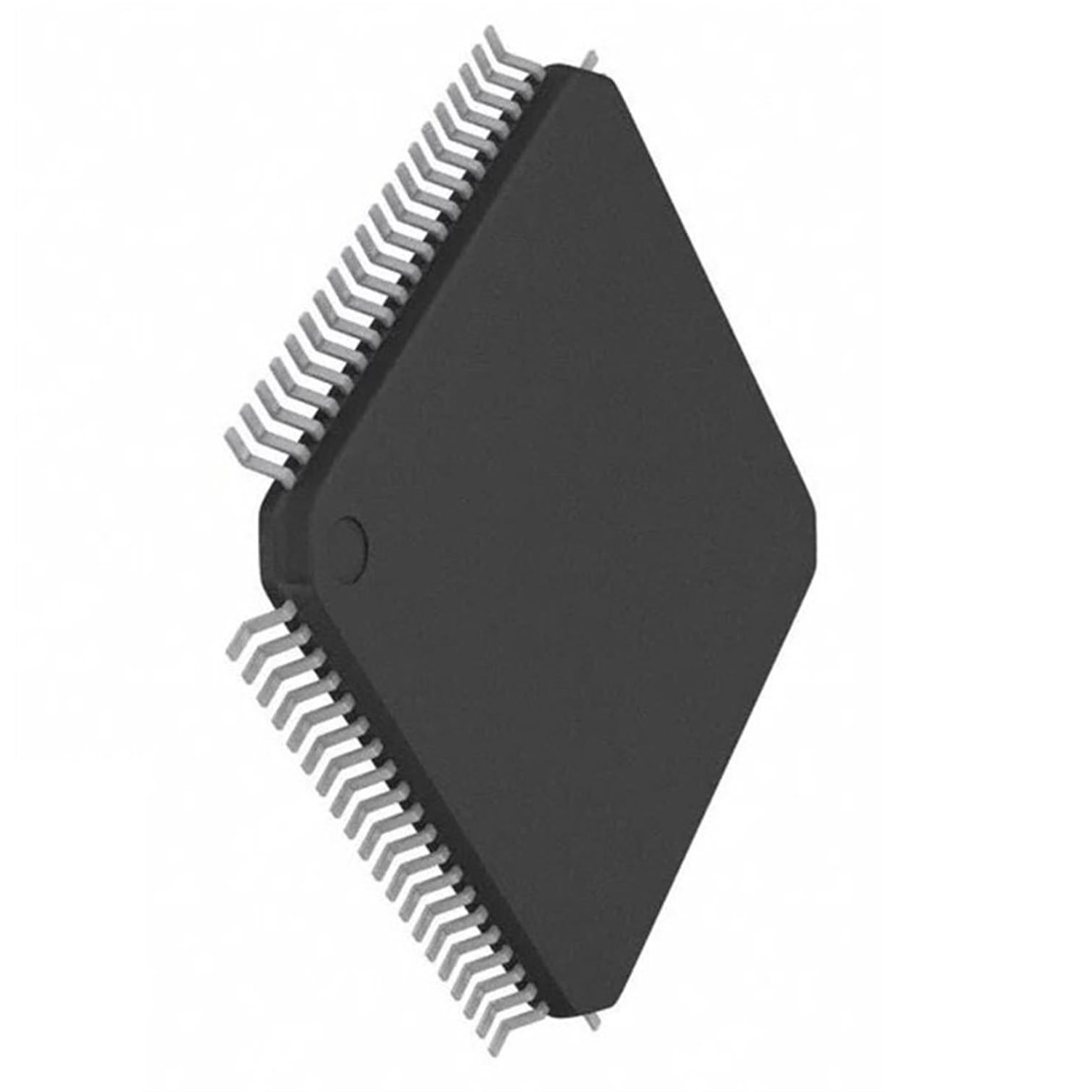

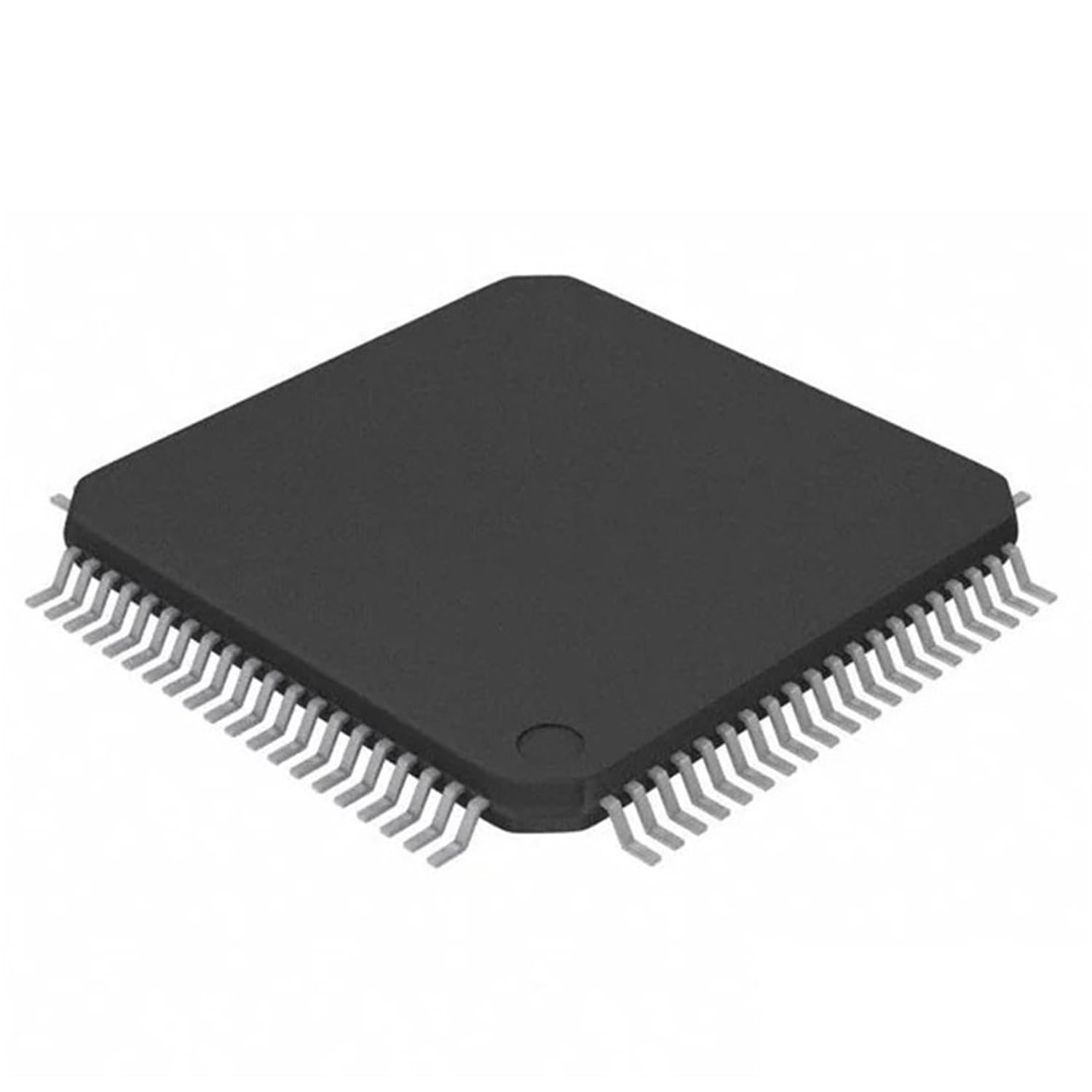

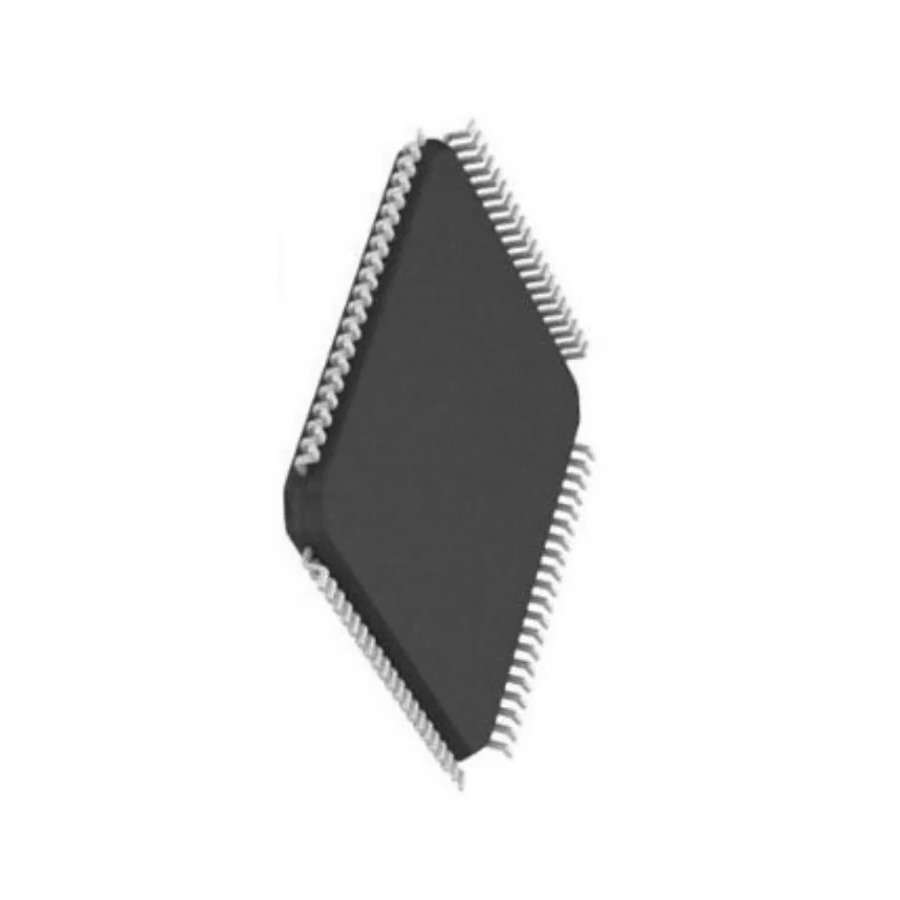

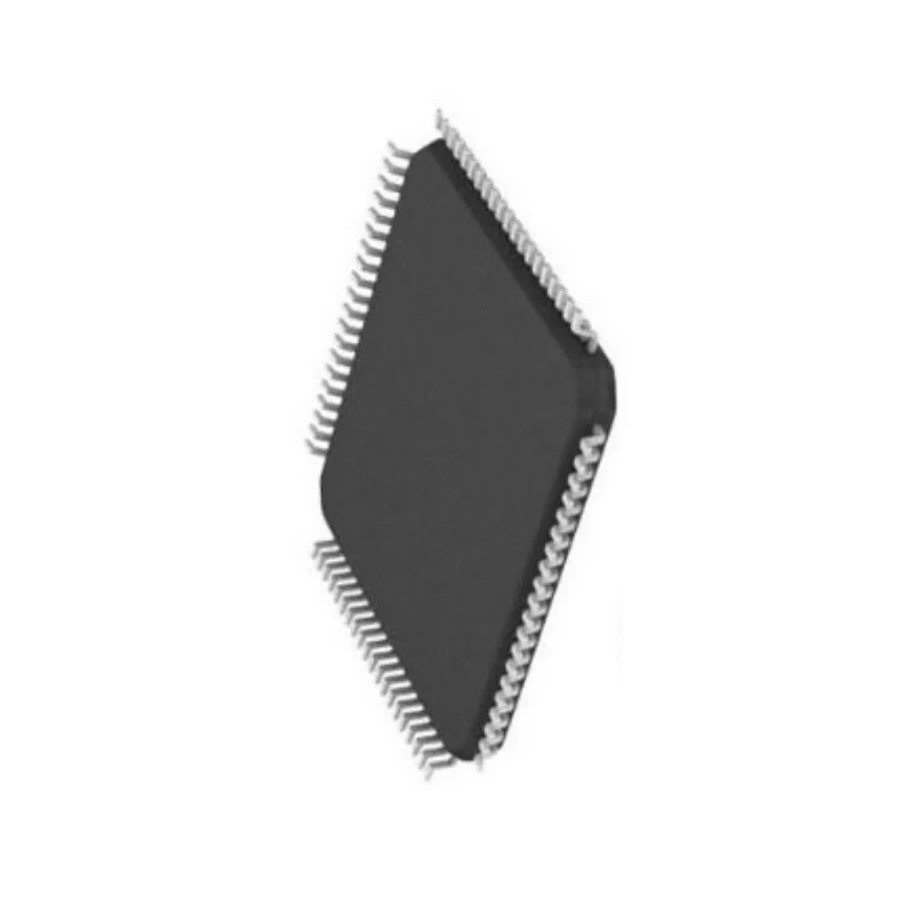

HD6301X0FJ Integrated Circuit CASE: QFP80 MAKE: Hitachi
Product specifications
Type Integrated Circuit
Case QFP80
Manufacturer Hitachi
Mem. Addr Rnge 64k
No.of Addr. Modes 7
No. of I/O Lines 53
I/O Line Types ByteSerial
Max. Inst. Len (bits) 24
Min Inst. Len (bits) 8
No. of Intrpt Lines 3
No. of Intrpt (NMI) 1
Intrpt Types Prty/Softw
No. of Intrpt (mask) 9
fClk Max. (Hz) 4.0M
No. of I/O Ports 7
On-Chip ROM (bytes) 4k
Nom. Supp Volt 5.0
Tech. CMOS Integrated Circuit
On-Chip RAM (Bytes) 192
Oper. Temp (°C) Min -40
Oper. Temp (°C) Max. 85
Pinout Equivalence Number 80-6
Descript 1.0MHz bus timing
No. of Pins 80
Surface Mounted Yes/No YES
SKU 1127363
