HD647180XOCP8L
View detailed images (5)

HD647180XOCP8L

SKU: HD647180XOCP8L

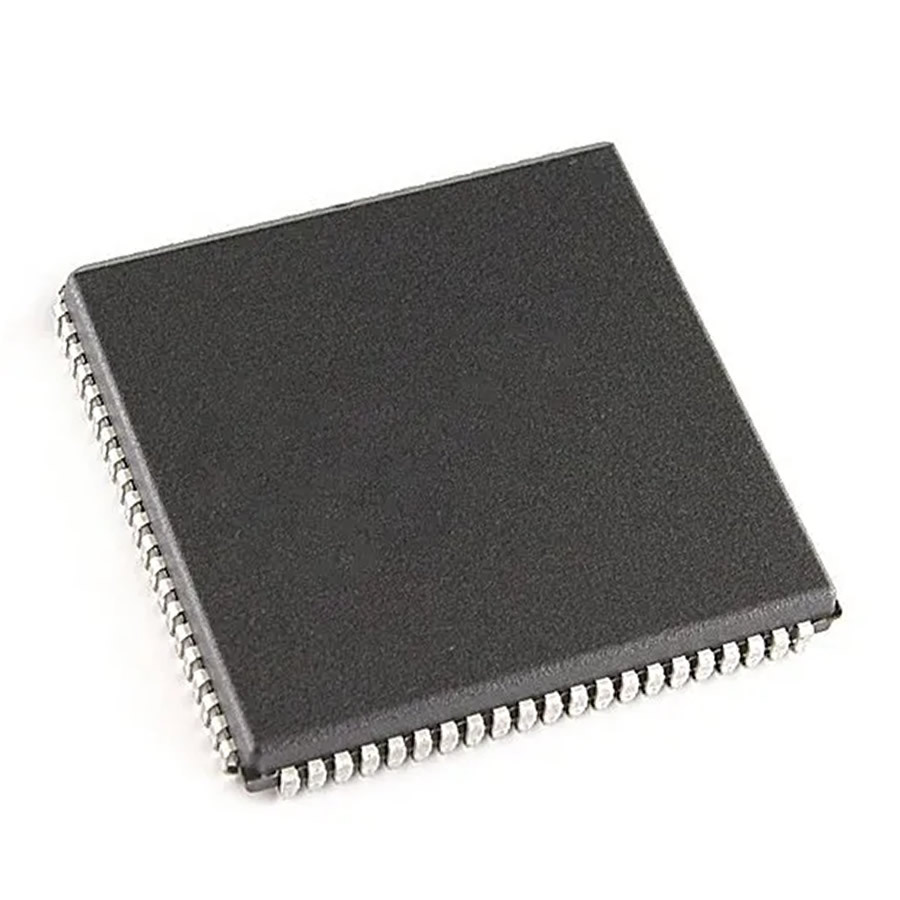

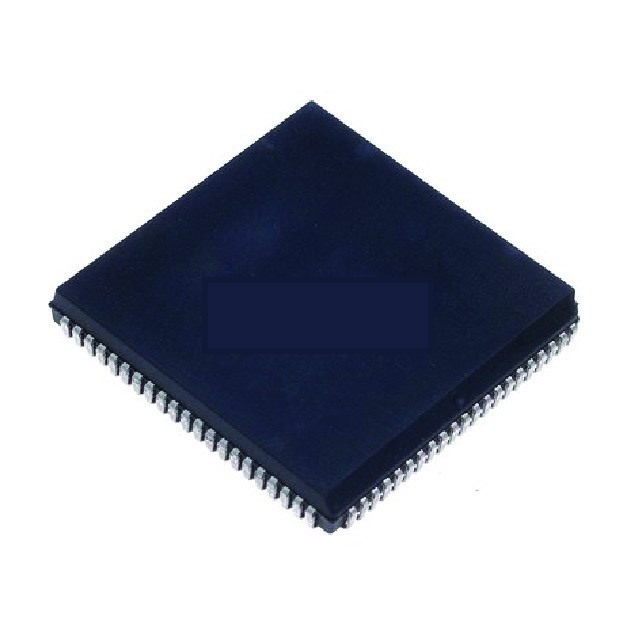

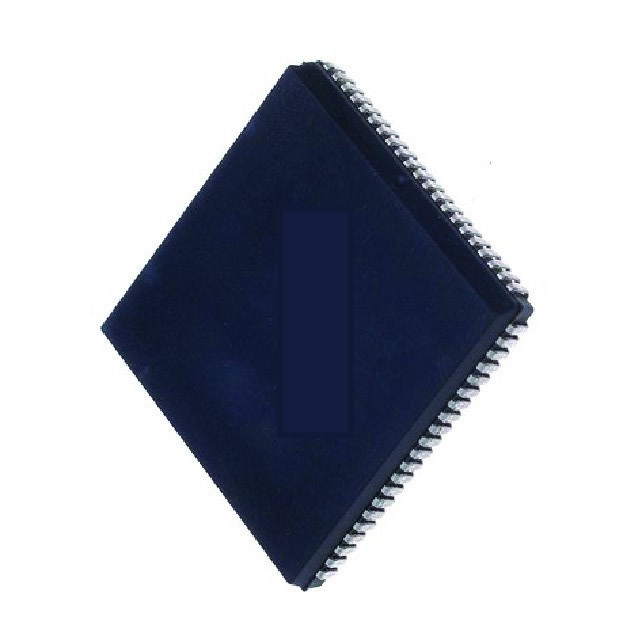

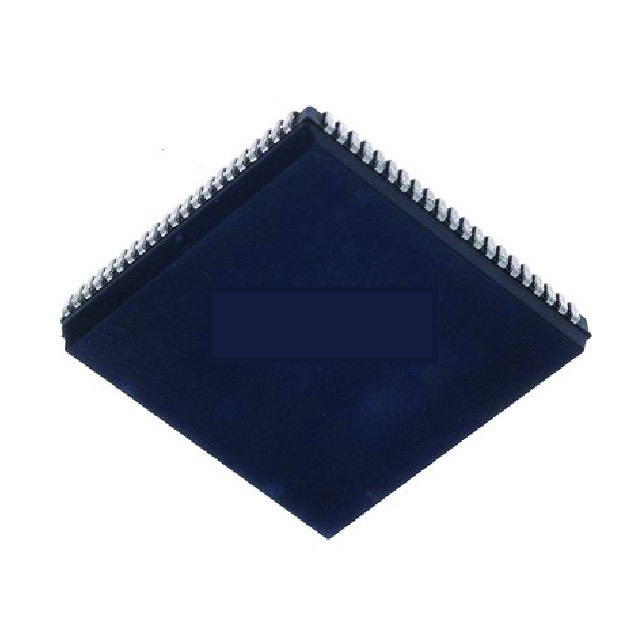

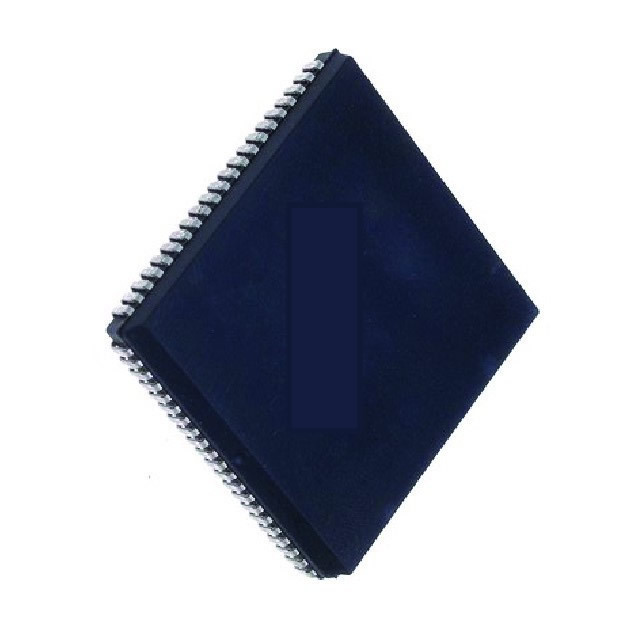

HD647180XOCP8L Integrated Circuit CASE: PLCC84 MAKE: Hitachi
Product specifications
Type Integrated Circuit
Case PLCC84
Manufacturer Hitachi
I/O Line Types Ser/Parall
Max. Inst. Len (bits) 32
Min Inst. Len (bits) 8
No. of Intrpt Lines 4
No. of Intrpt (NMI) 1
Intrpt Types Prty/Vecto
No. of Intrpt (mask) 14
fClk Max. (Hz) 8.0M
fClk Min (Hz) 4.0M
No. of I/O Ports 7
On-Chip ROM (bytes) 16k
Nom. Supp Volt 5.0
Tech. CMOS Integrated Circuit
On-Chip RAM (Bytes) 512
Oper. Temp (°C) Min -20
Oper. Temp (°C) Max. 75
Pinout Equivalence Number 84-182
No. of Pins 84
Surface Mounted Yes/No YES
SKU 192685
