Home / Integrated Circuit / HD6473308CP6
HD6473308CP6

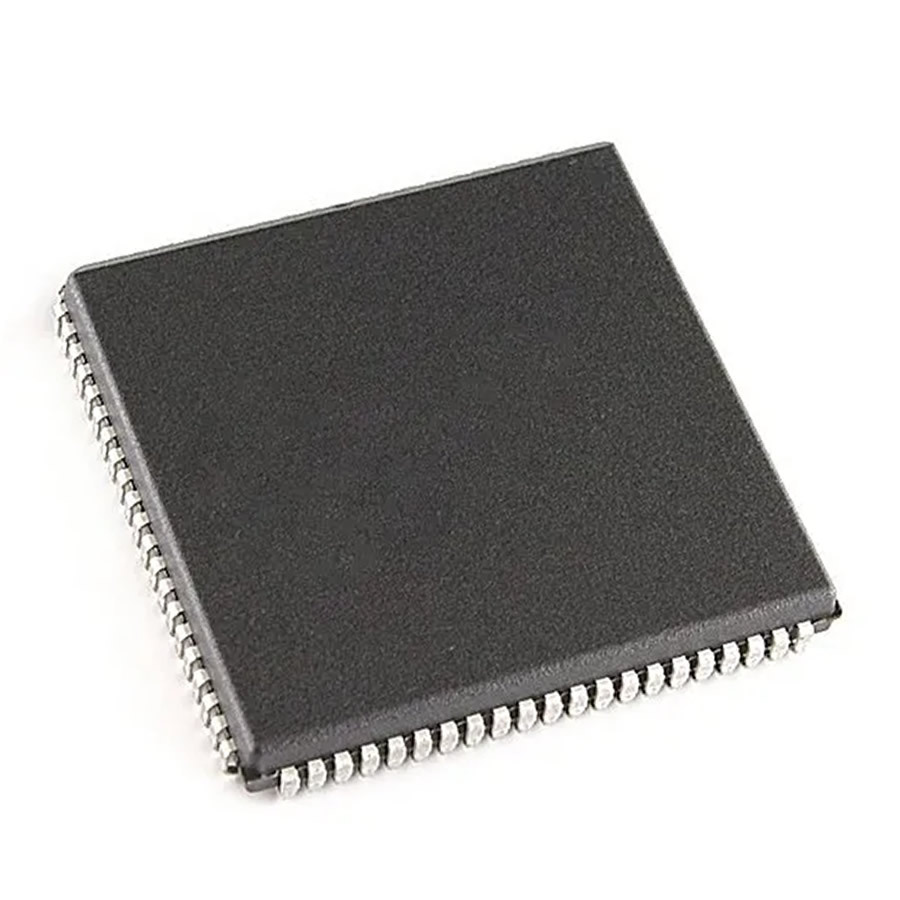

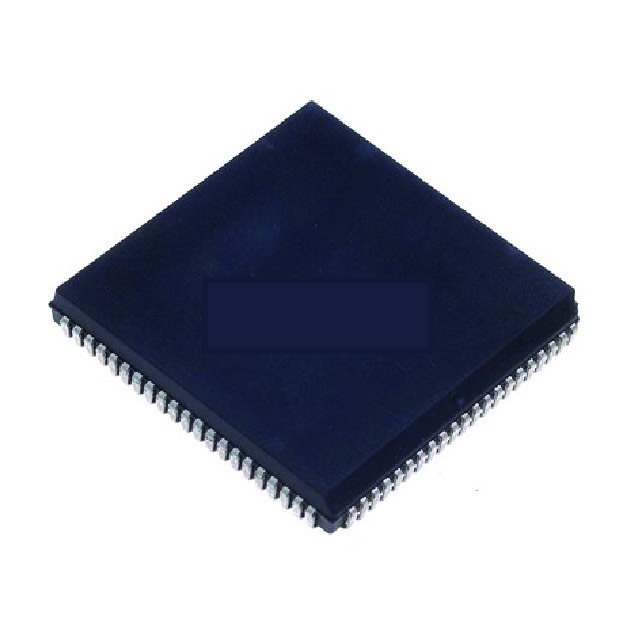

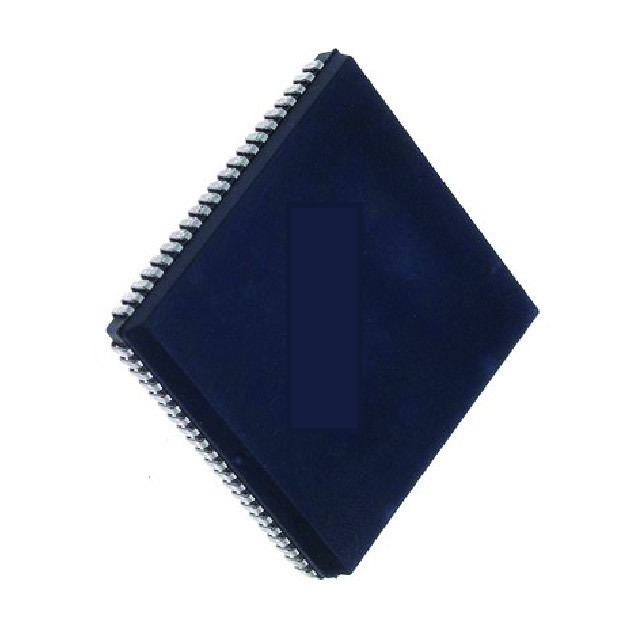

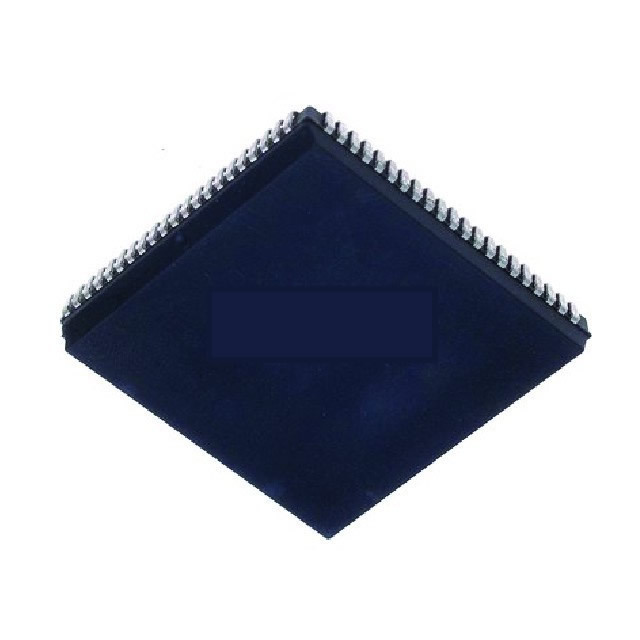

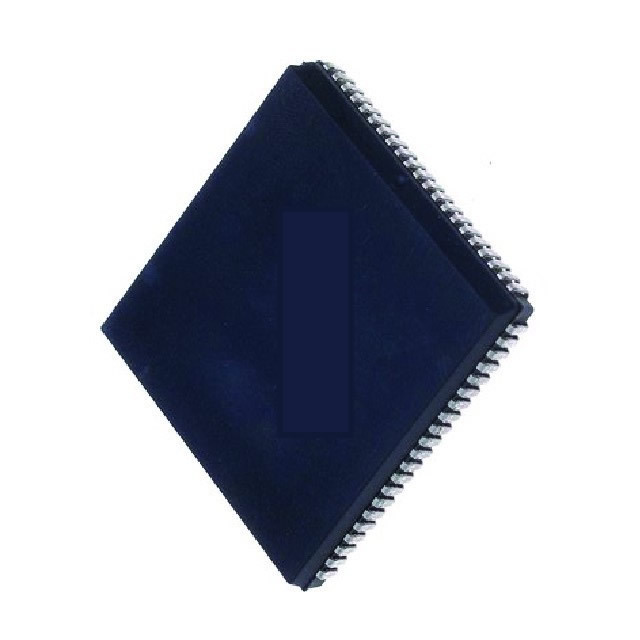

View detailed images (5)

HD6473308CP6

SKU: HD6473308CP6
HD6473308CP6 Integrated Circuit CASE: PLCC84 MAKE: Hitachi
Product specifications
Type Integrated Circuit
Case PLCC84
Manufacturer Hitachi
Mem. Addr Rnge 16k
No.of Addr. Modes 8
No. of I/O Lines 66
I/O Line Types Gen. Purp.
Max. Inst. Len (bits) 32
Min Inst. Len (bits) 16
No. of Intrpt Lines 9
No. of Intrpt (NMI) 1
Intrpt Types Int/Ex Vec
No. of Intrpt (mask) 27
fClk Max. (Hz) 6.0M
fClk Min (Hz) 5M
No. of I/O Ports 9
On-Chip ROM (bytes) 16k
On-Chip RAM (Bytes) 527
Oper. Temp (°C) Min -20
Oper. Temp (°C) Max. 75
Pinout Equivalence Number 84-111
No. of Pins 84
Surface Mounted Yes/No YES
SKU 192714
