HD68000PS8
View detailed images (4)

HD68000PS8

SKU: HD68000PS8

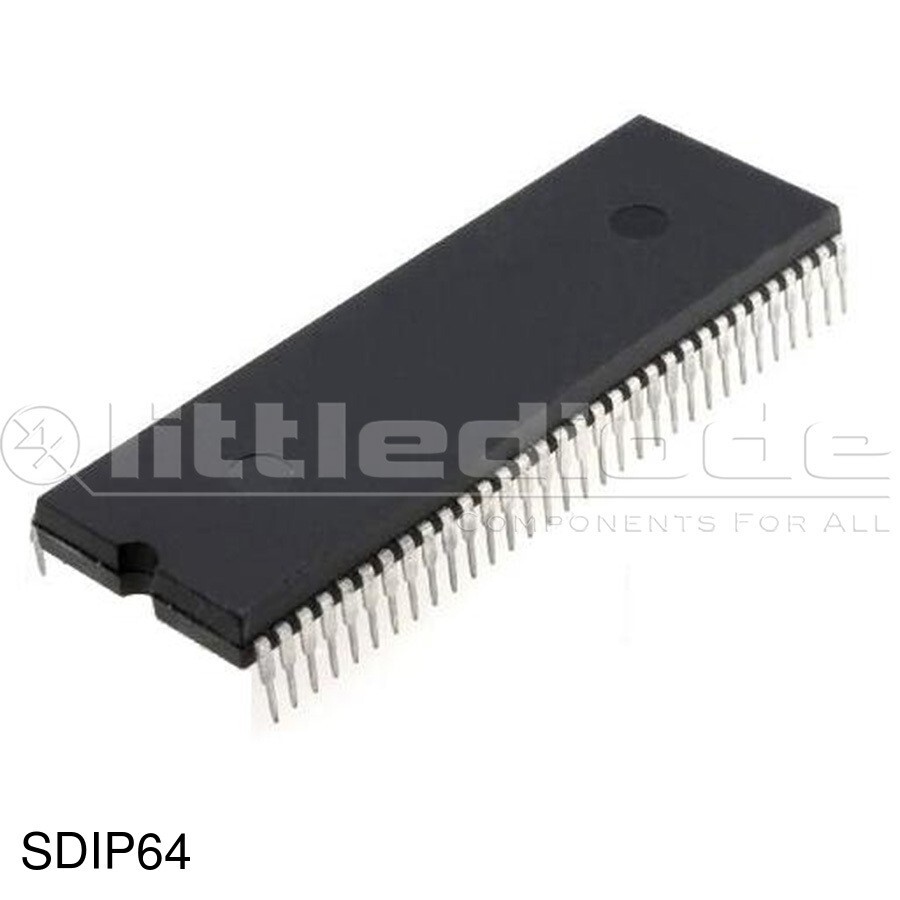

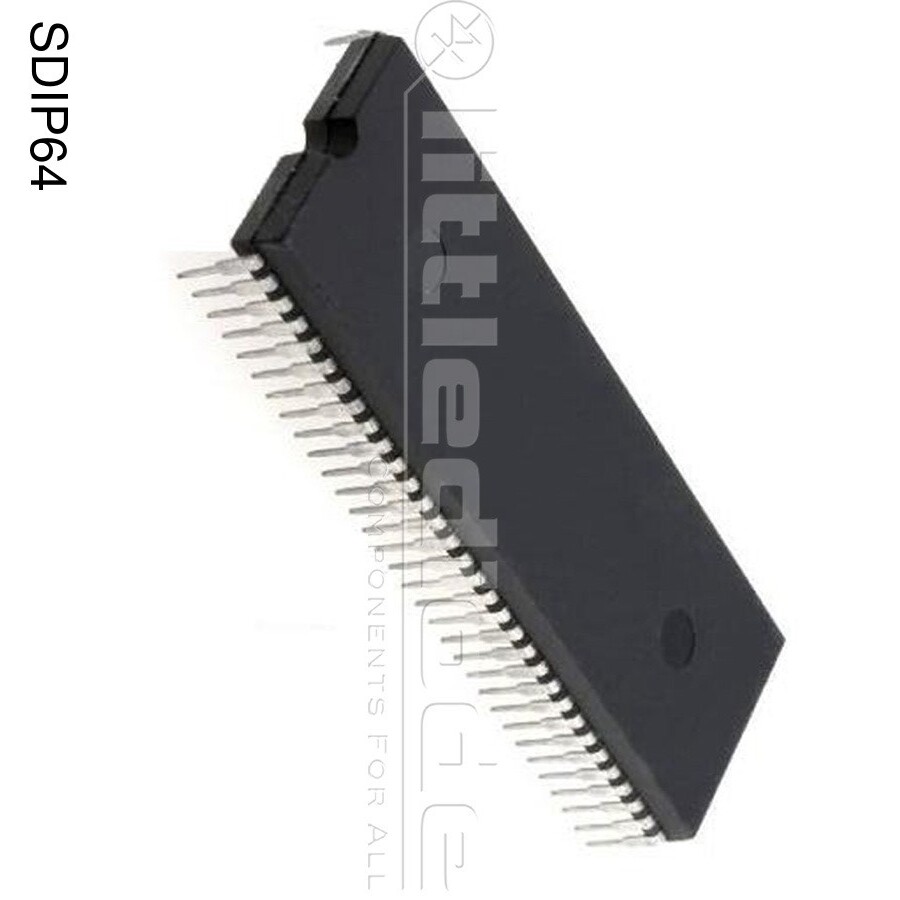

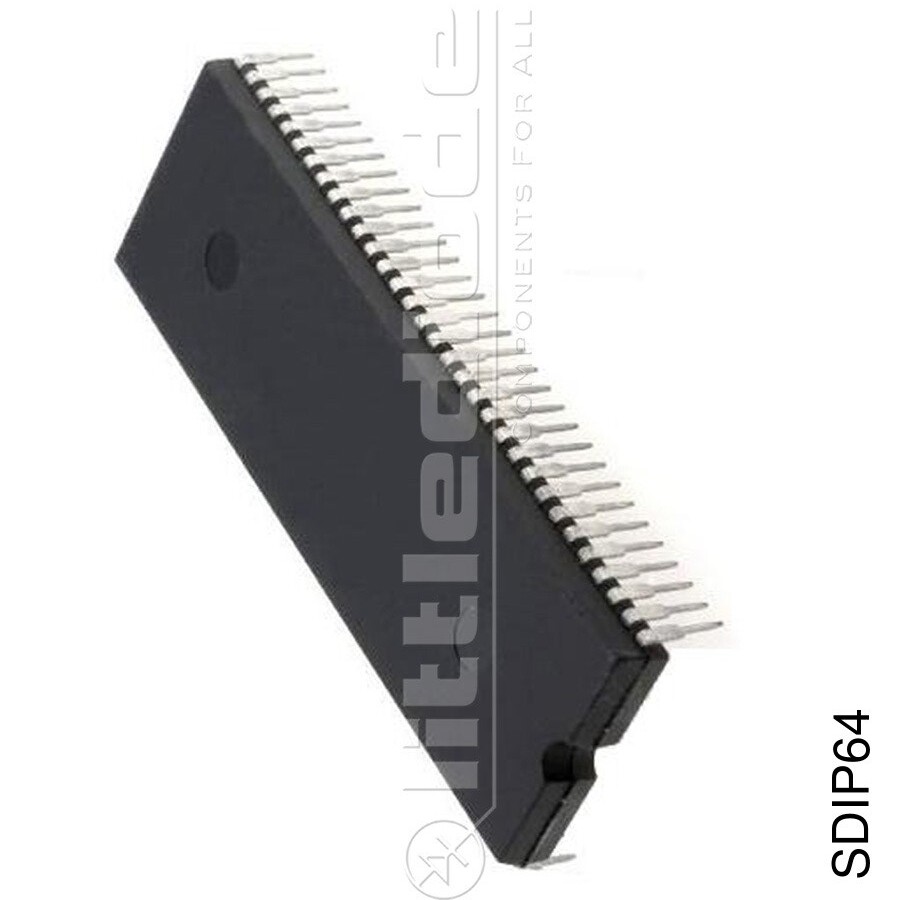

HD68000PS8 Integrated Circuit CASE: SDIP64 MAKE: Hitachi
Product specifications
Type Integrated Circuit
Case SDIP64
Manufacturer Hitachi
Mem. Addr Rnge 16M
No.of Addr. Modes 14
No. of I/O Lines 8
I/O Line Types Byte&Word
Max. Inst. Len (bits) 80
Min Inst. Len (bits) 16
No. of Intrpt Lines 3
Intrpt Types Maskable/P
No. of Intrpt (mask) 3
fClk Max. (Hz) 6.0M
fClk Min (Hz) 2.0M
Nom. Supp Volt 5.0
Tech. NMOS Integrated Circuit
Oper. Temp (°C) Min 0
Oper. Temp (°C) Max. 70
Pinout Equivalence Number 64-14
No. of Pins 64
Surface Mounted Yes/No NO
SKU 1121797
