HD6805S1P
View detailed images (12)

HD6805S1P

SKU: HD6805S1P

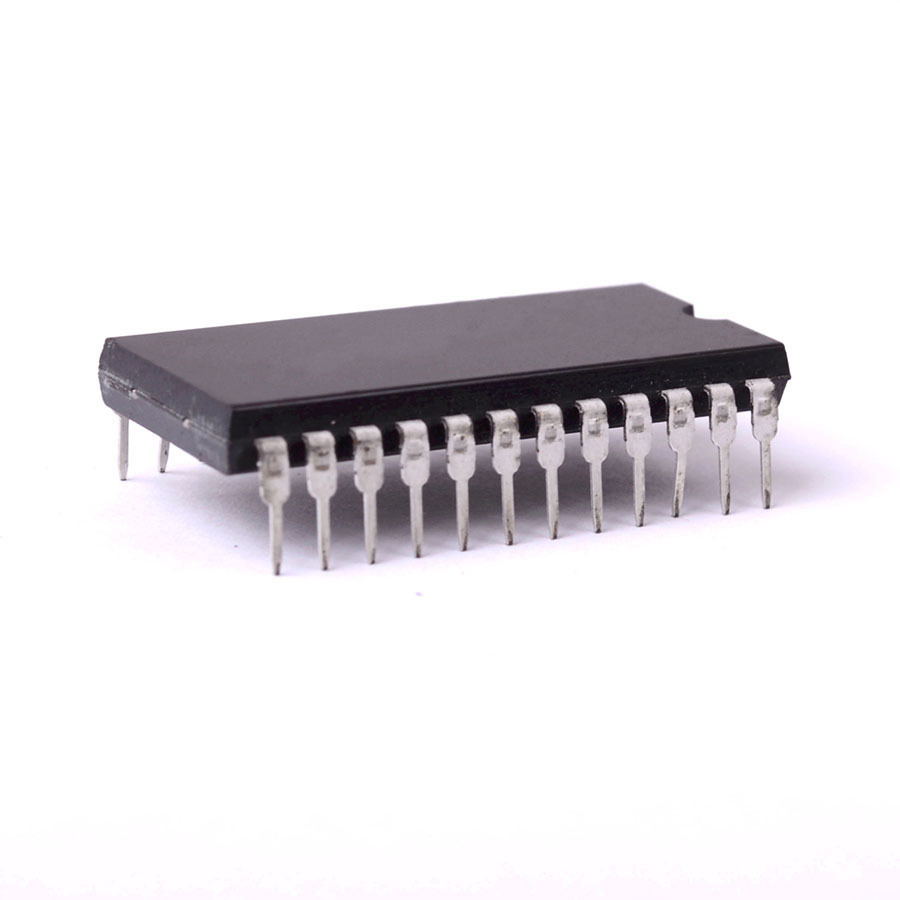

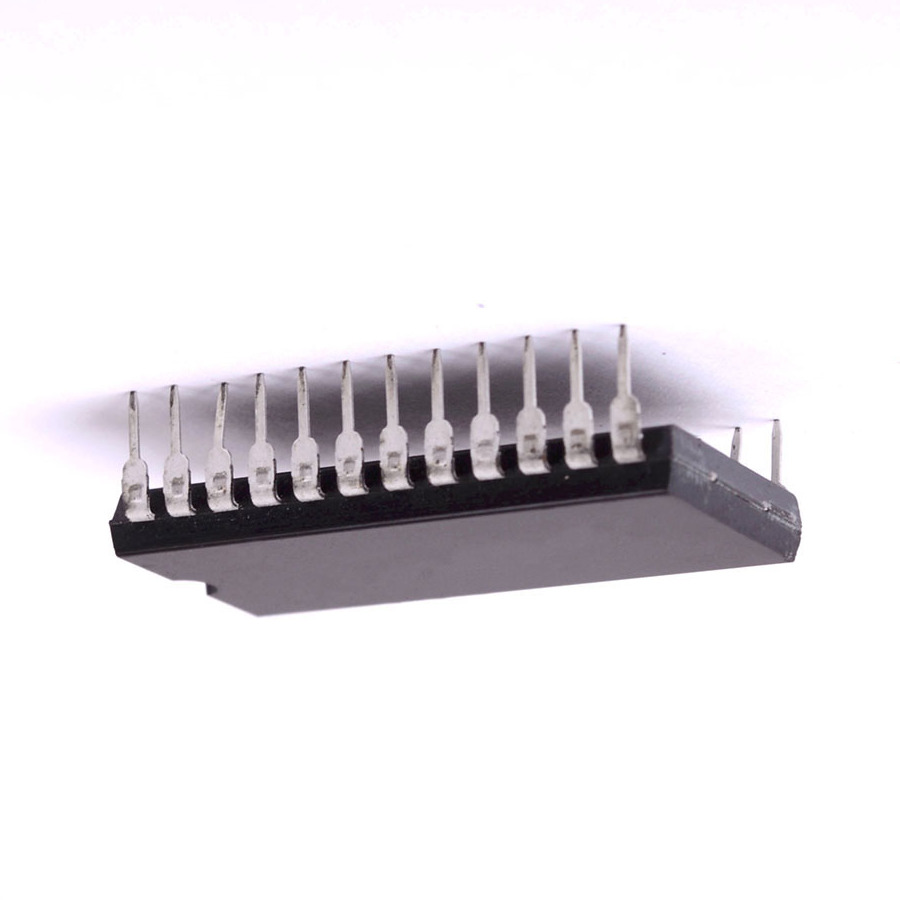

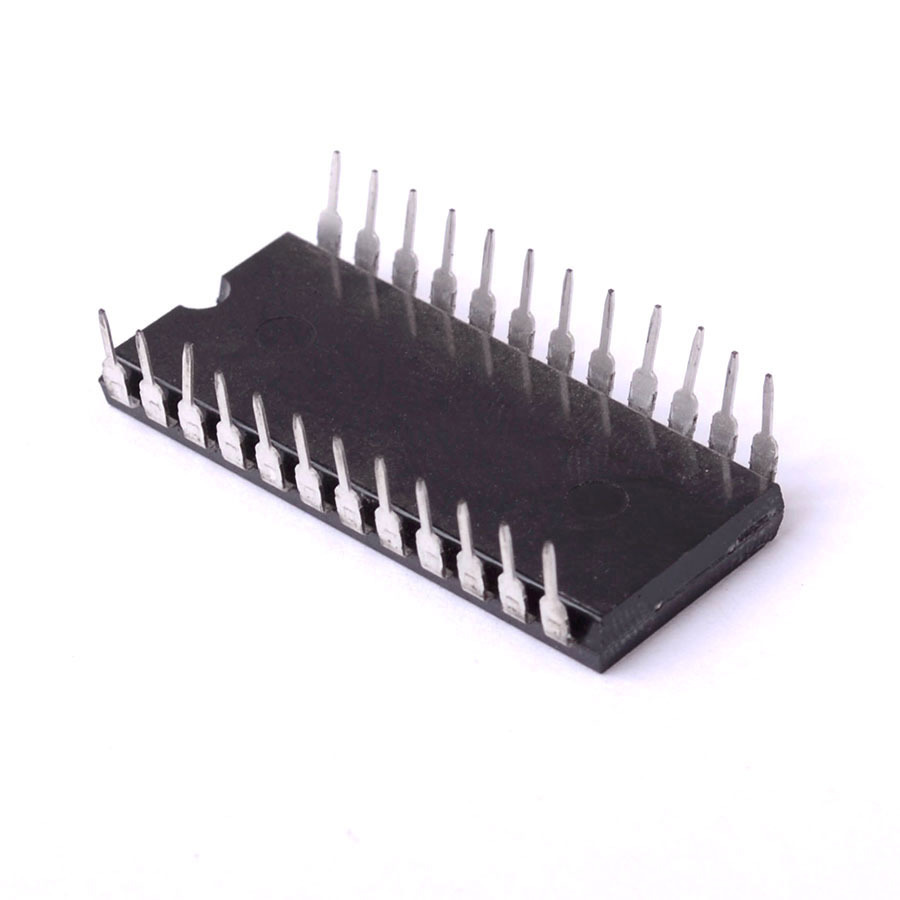

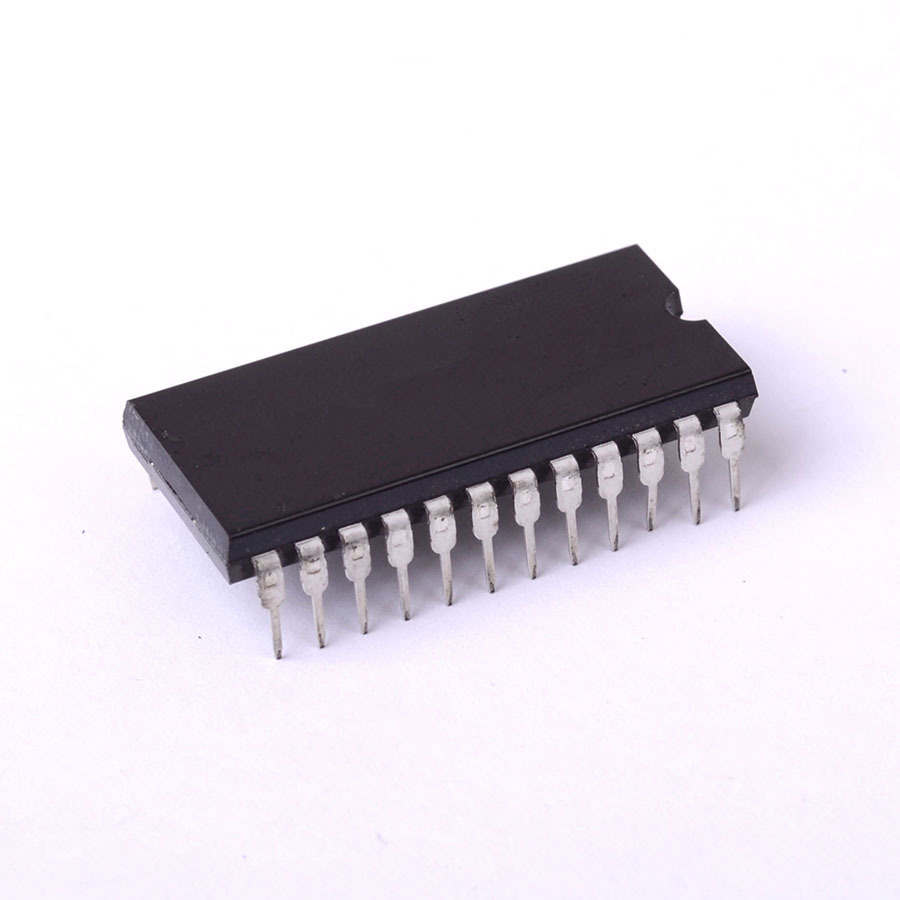

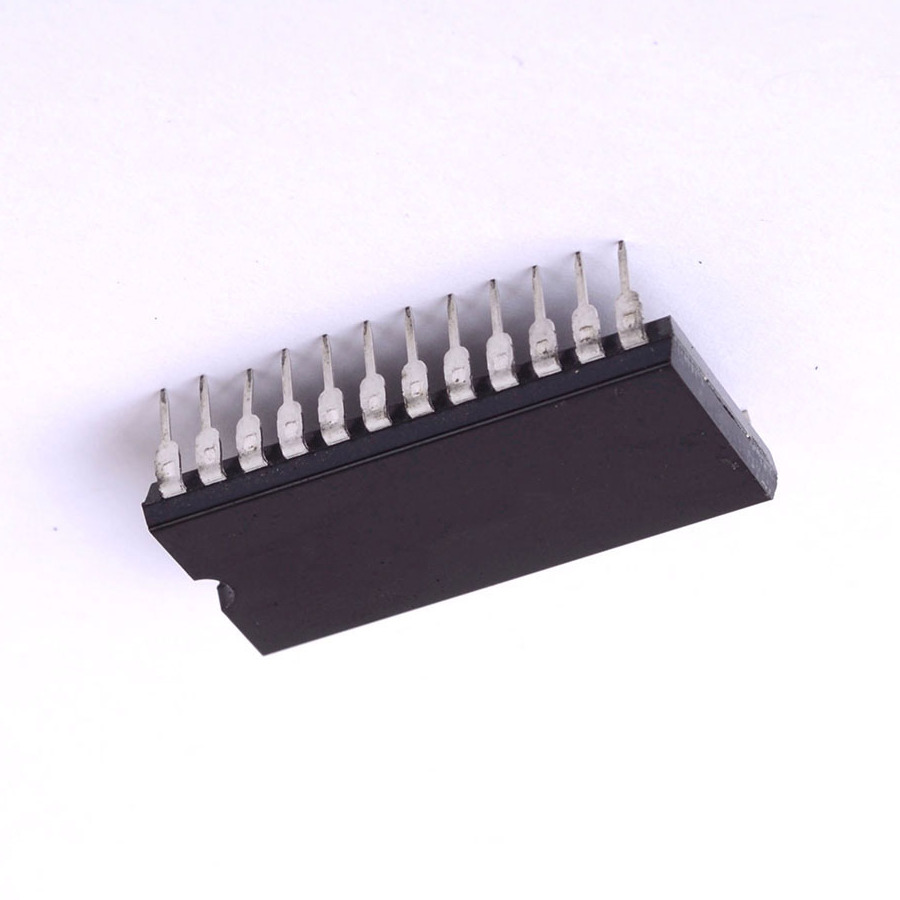

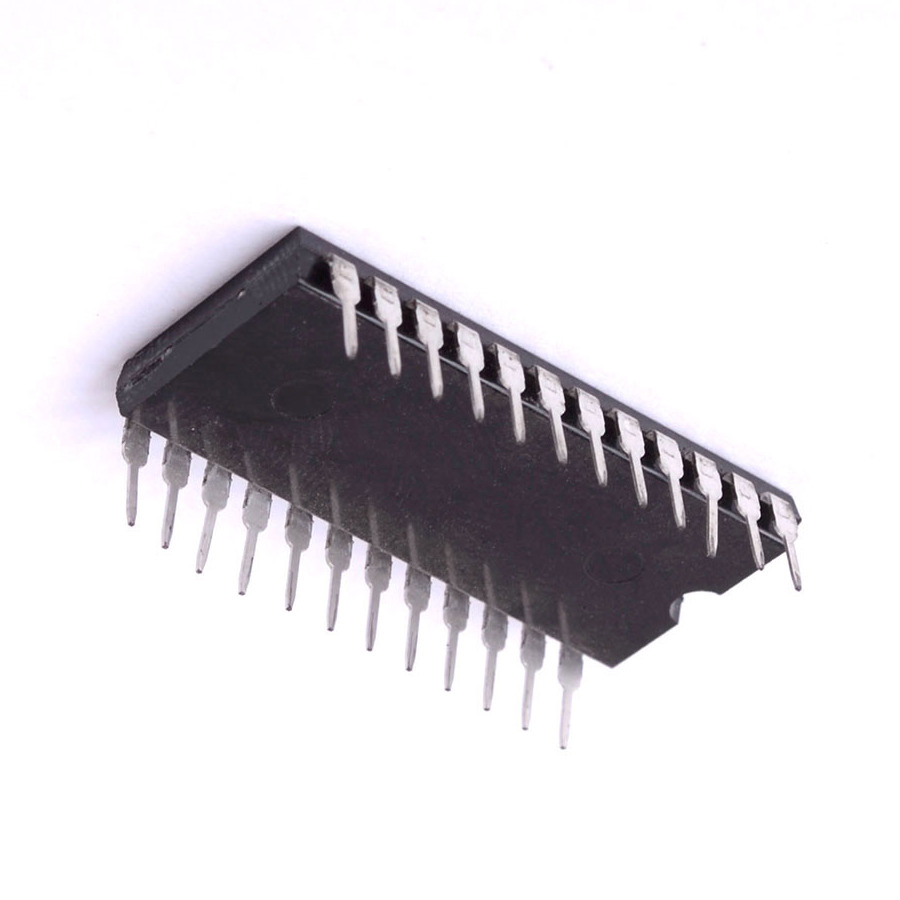

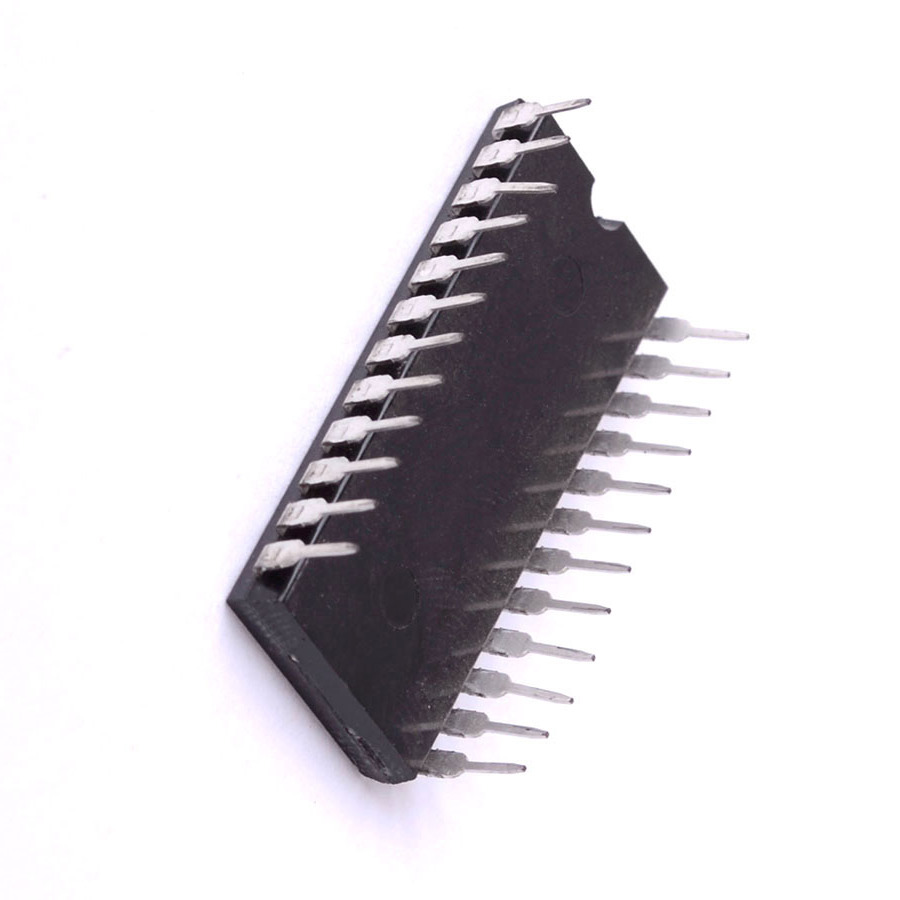

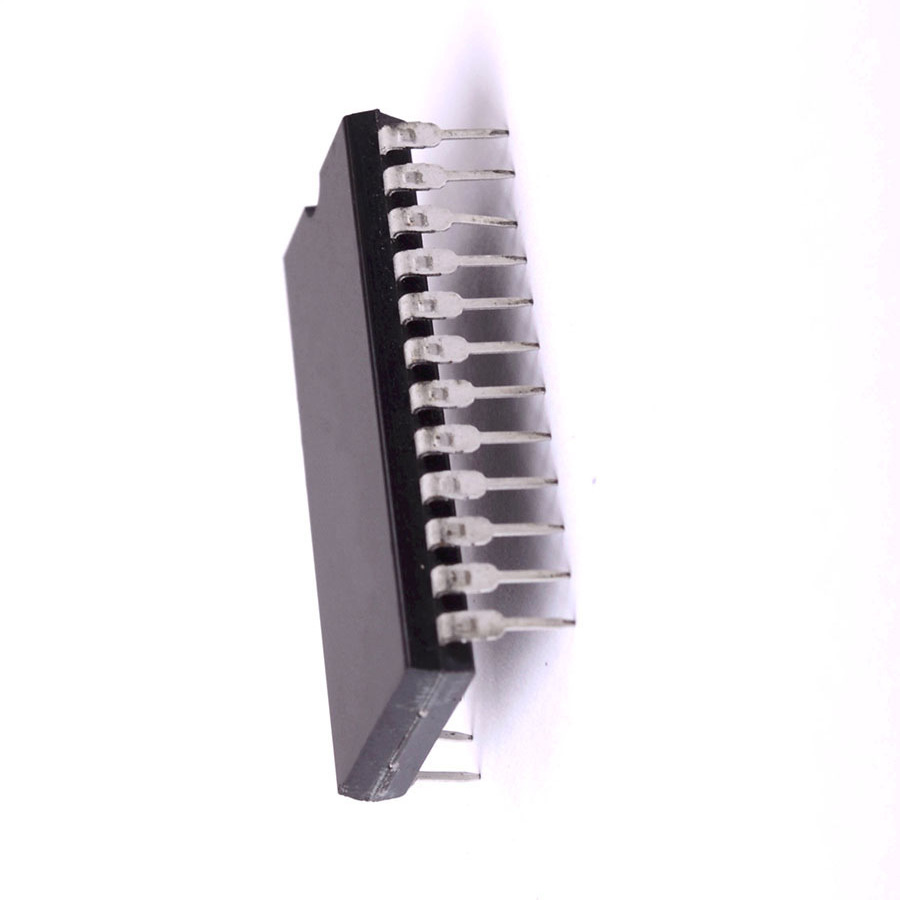

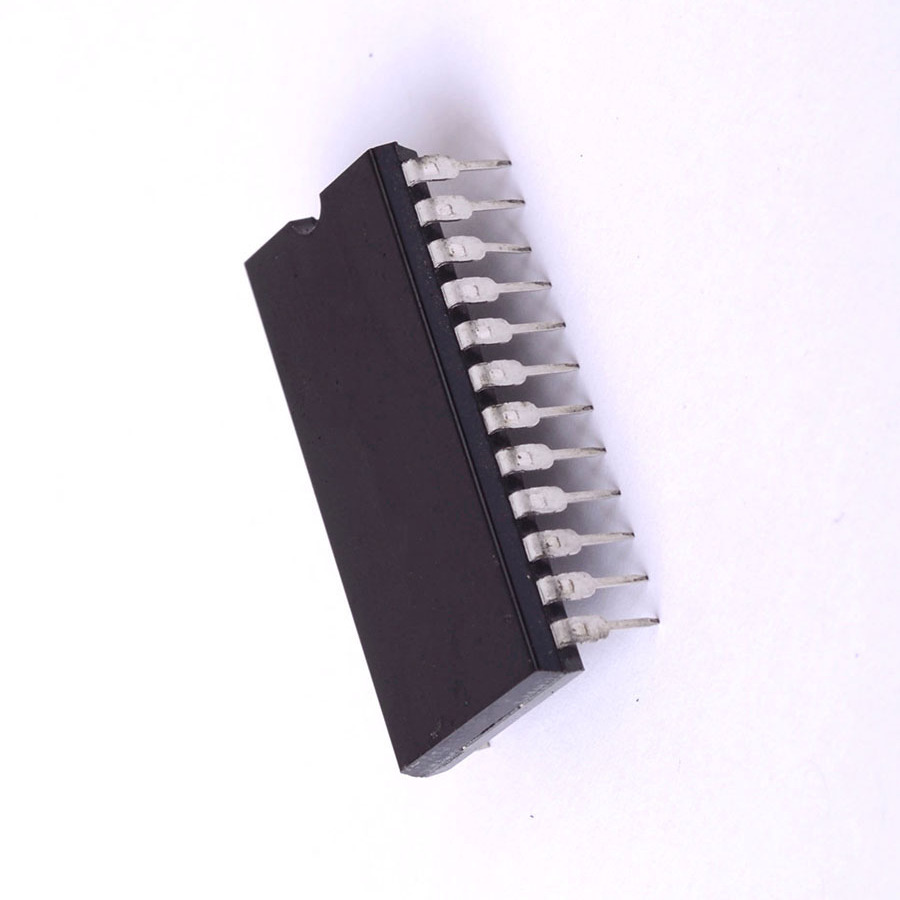

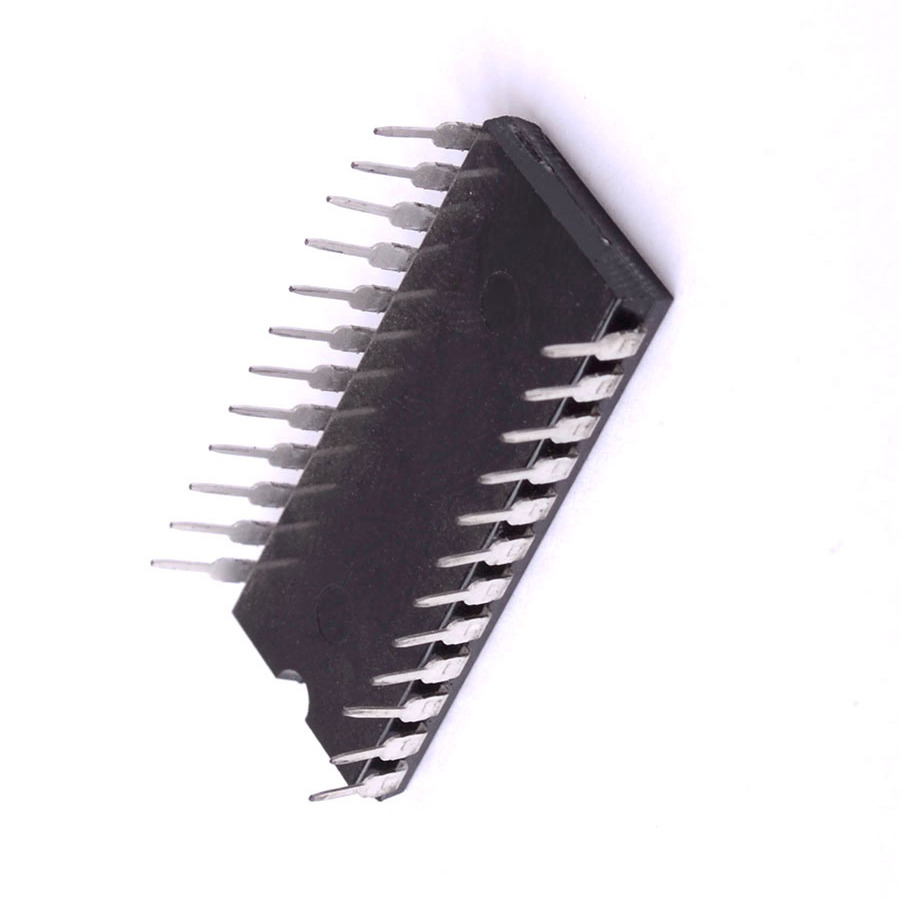

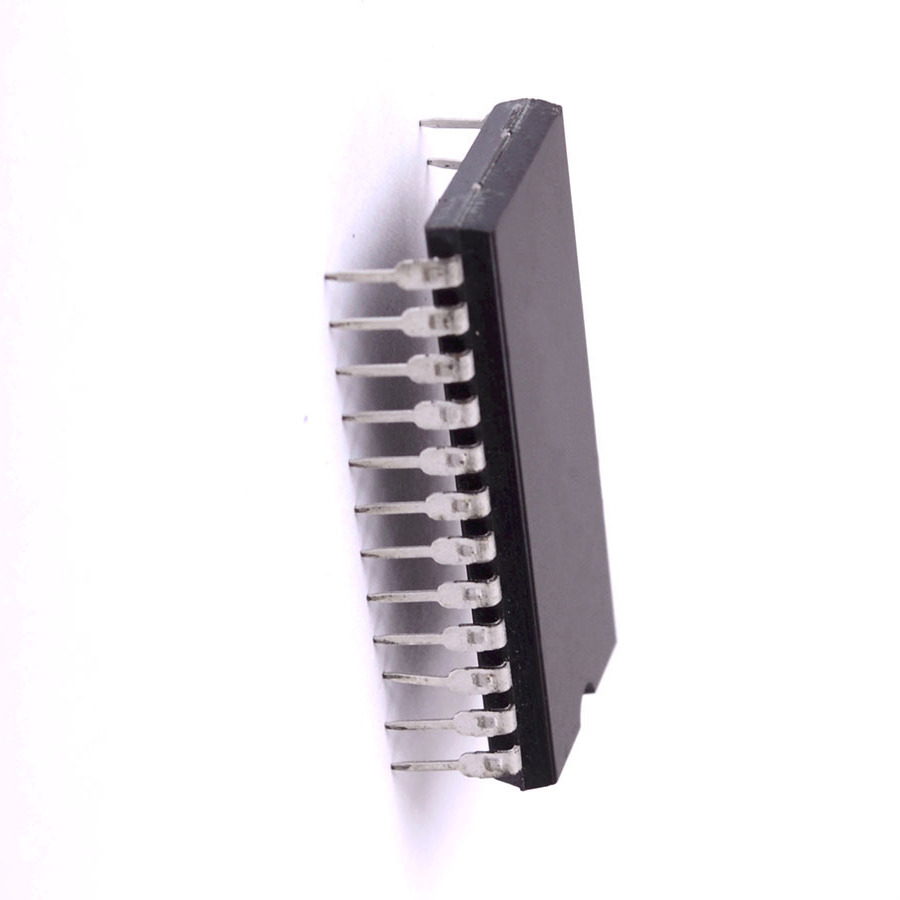

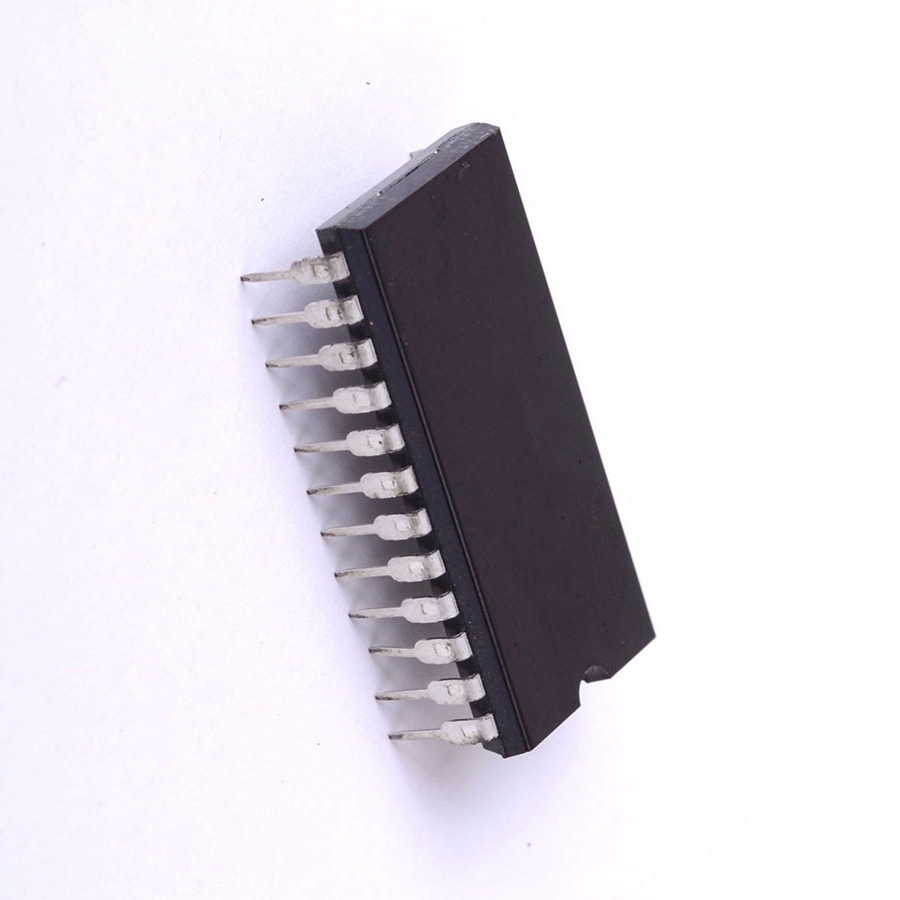

HD6805S1P Integrated Circuit CASE: DIP24 MAKE: Hitachi
Product specifications
Type Integrated Circuit
Case DIP24
Manufacturer Hitachi
Mem. Addr Rnge 64
No.of Addr. Modes 10
I/O Line Types Byte
Max. Inst. Len (bits) 24
Min Inst. Len (bits) 8
No. of Intrpt Lines 3
No. of Intrpt (NMI) 1
Intrpt Types Prty/Ext V
No. of Intrpt (mask) 2
fClk Max. (Hz) 4.0M
fClk Min (Hz) 0.4M
No. of I/O Ports 3
On-Chip ROM (bytes) 1.1k
Nom. Supp Volt 5.0
Tech. NMOS Integrated Circuit
On-Chip RAM (Bytes) 64
Oper. Temp (°C) Min 0
Oper. Temp (°C) Max. 70
Pinout Equivalence Number 28-266
No. of Pins 28
Surface Mounted Yes/No NO
SKU 419003
