HD74LS242P
View detailed images (12)

HD74LS242P

SKU: HD74LS242P

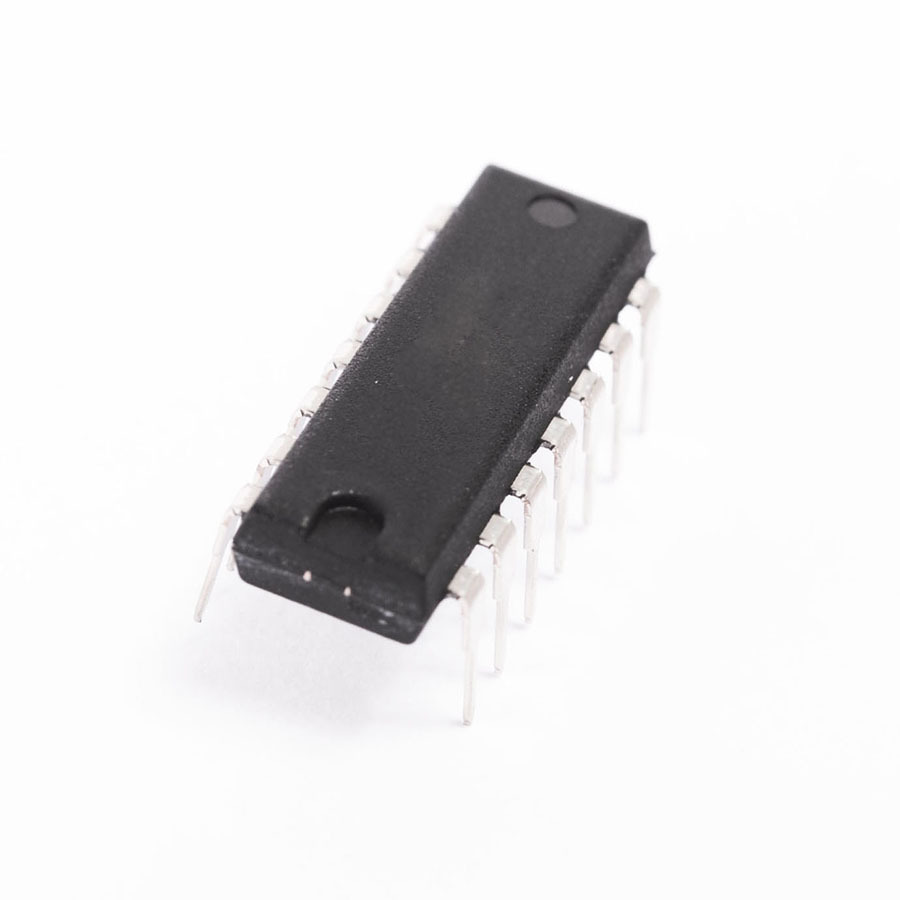

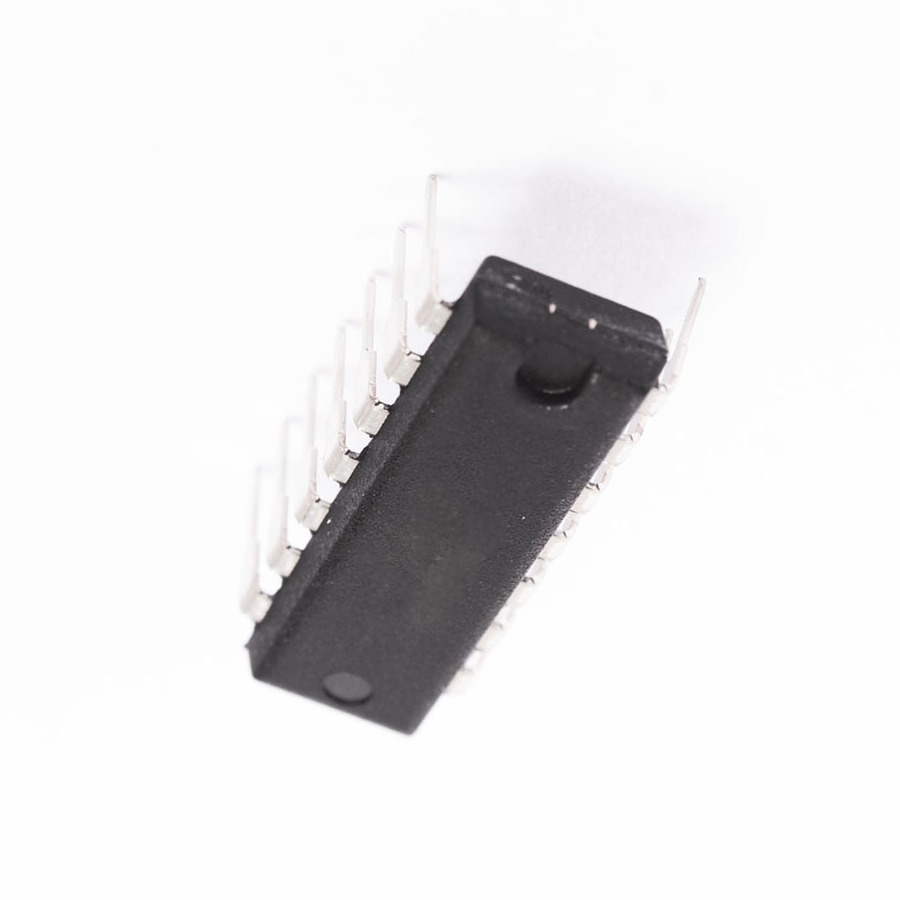

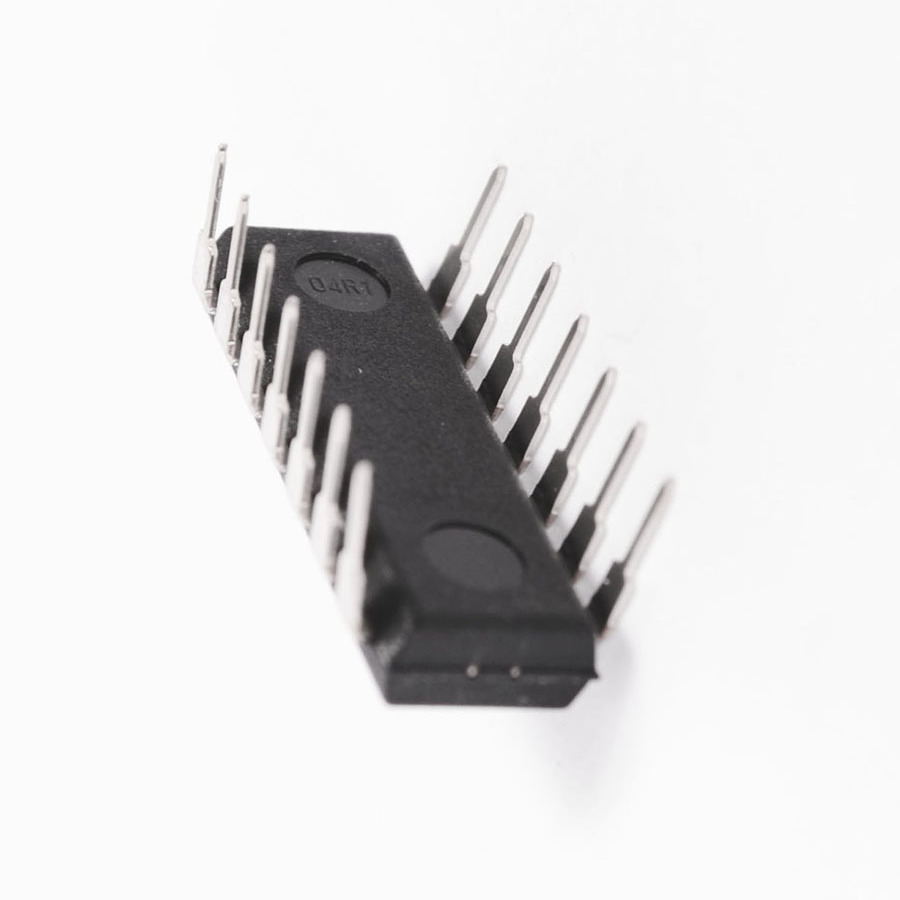

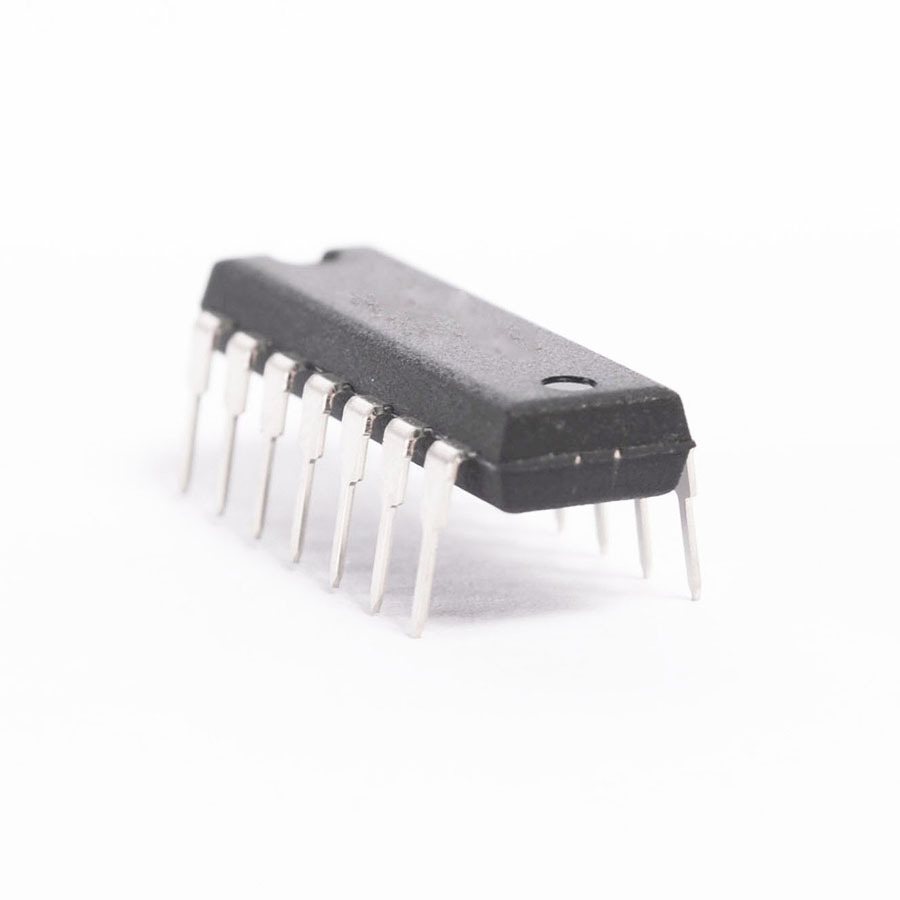

HD74LS242P Integrated Circuit - Case: DIP14 Make: Hitachi
+ VAT 20% for UK purchases
Product specifications
Type Logic IC
Case DIP14
Manufacturer Hitachi
Inp Thrshld Hi (V) 2.0
Inp Thrshld Lo (V) 0.8
Mode I/O D or S Single-End
tPD Max. (S) 18n
Nom. Neg Supp 0.0
Nom. Pos. Supp 5.0
Tech. TTL Integrated Circuit
Oper. Temp (°C) Min -20
Oper. Temp (°C) Max. 75
@IOL (A) 12m
VOL Max. (Drvr) 0.4
VOL Max. (Rcvr) 0.5
VOH Min (Rcvr) 2.0
Pinout Equivalence Number 14-150
Surface Mounted Yes/No NO
SKU 193417
