HD75453

HD75453

SKU: HD75453

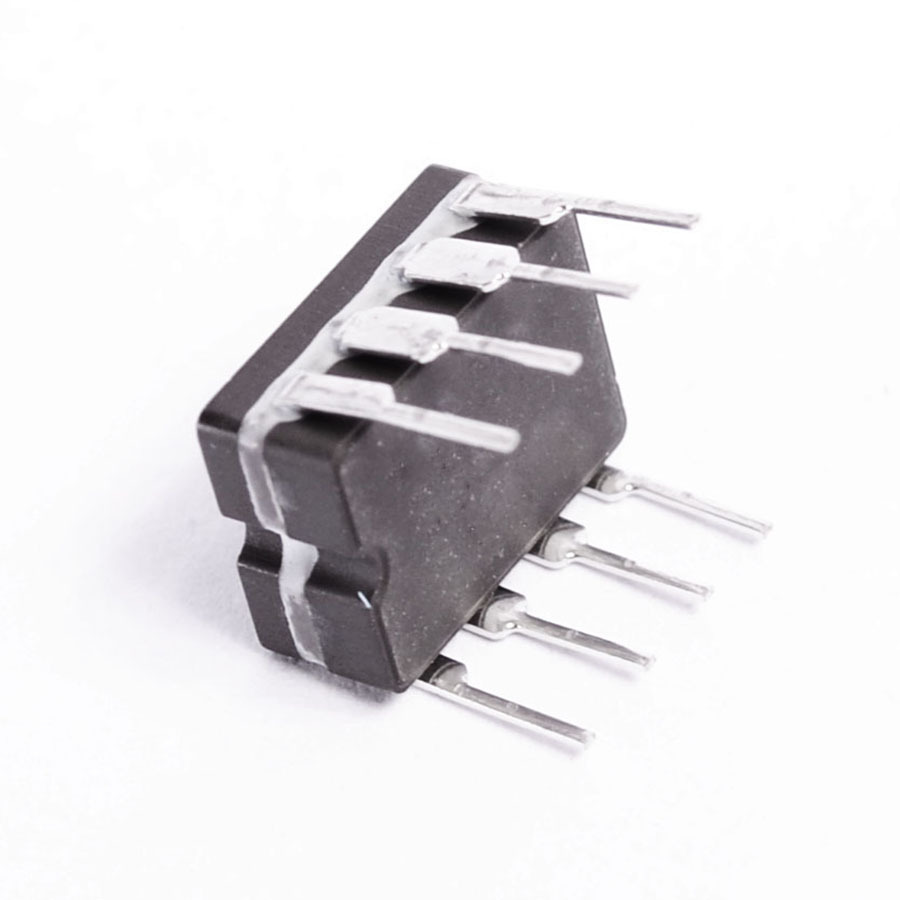

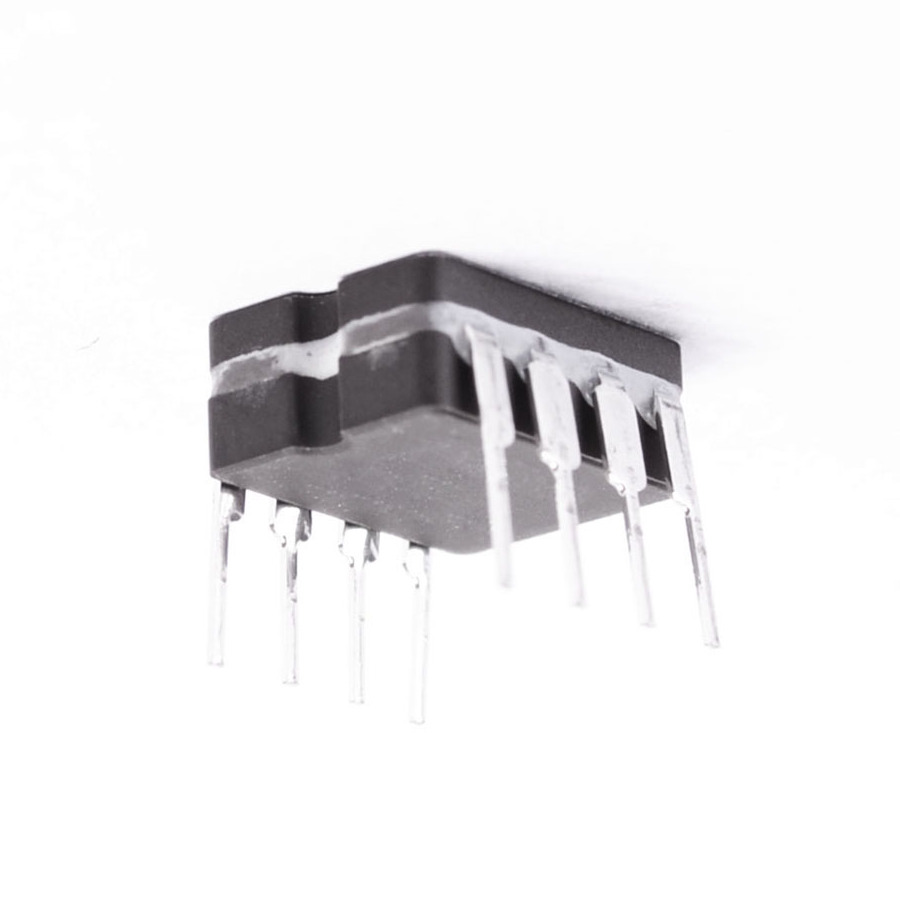

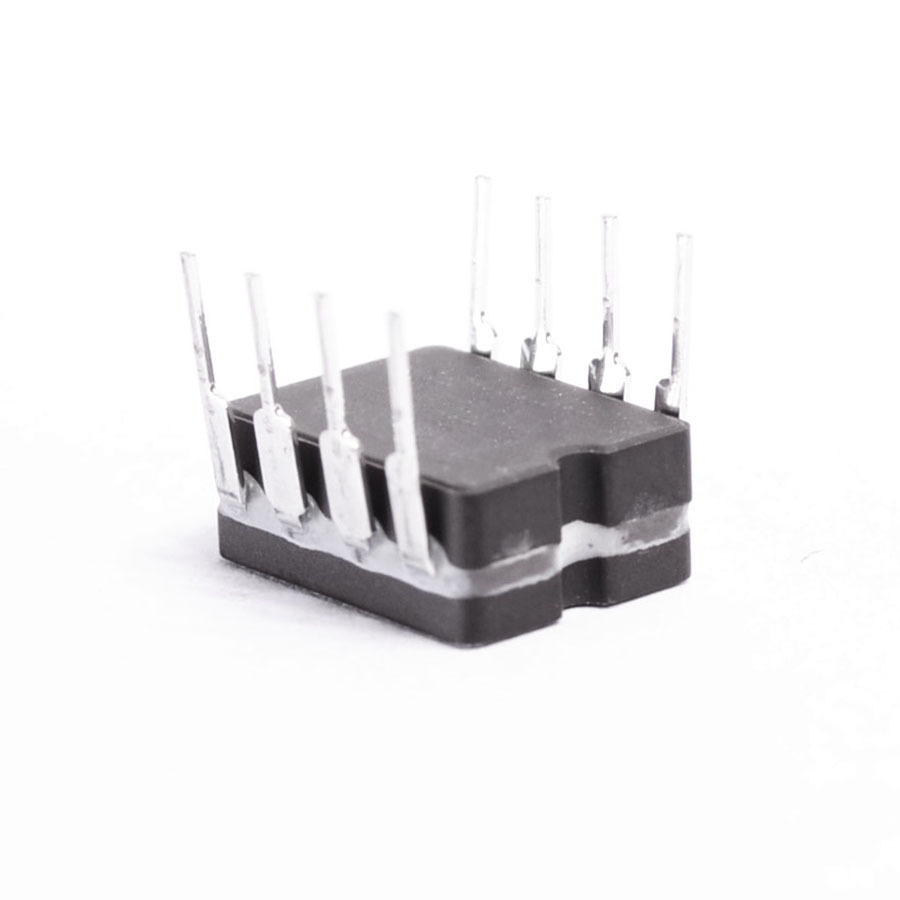

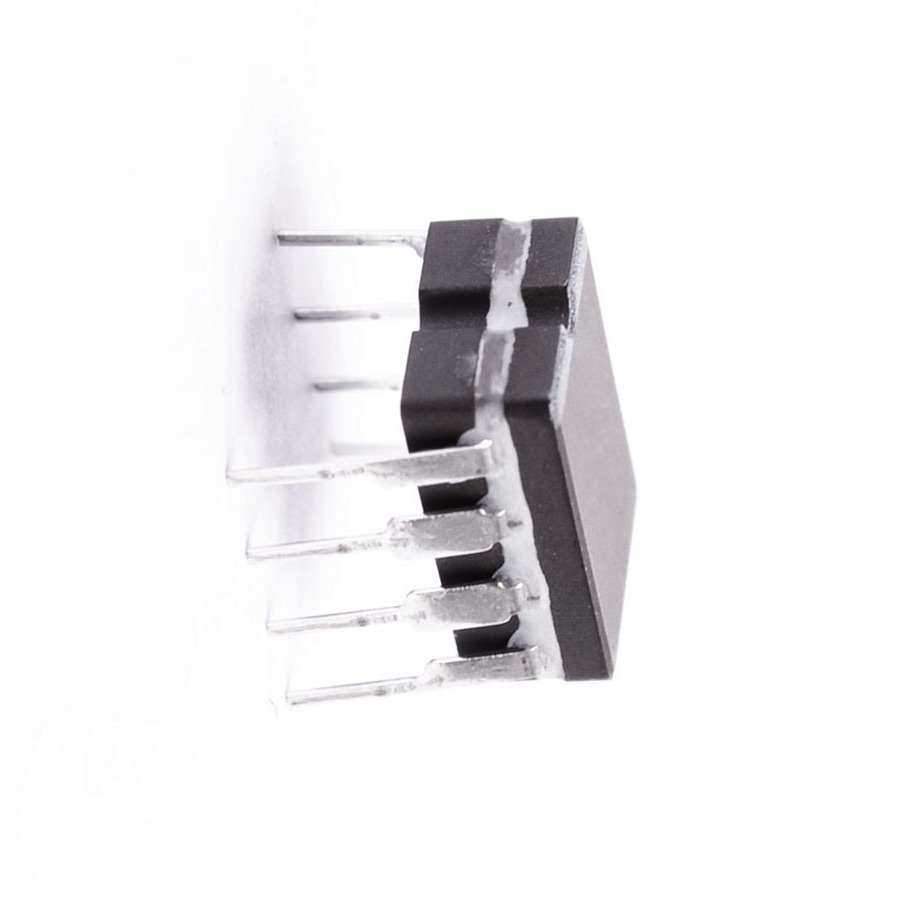

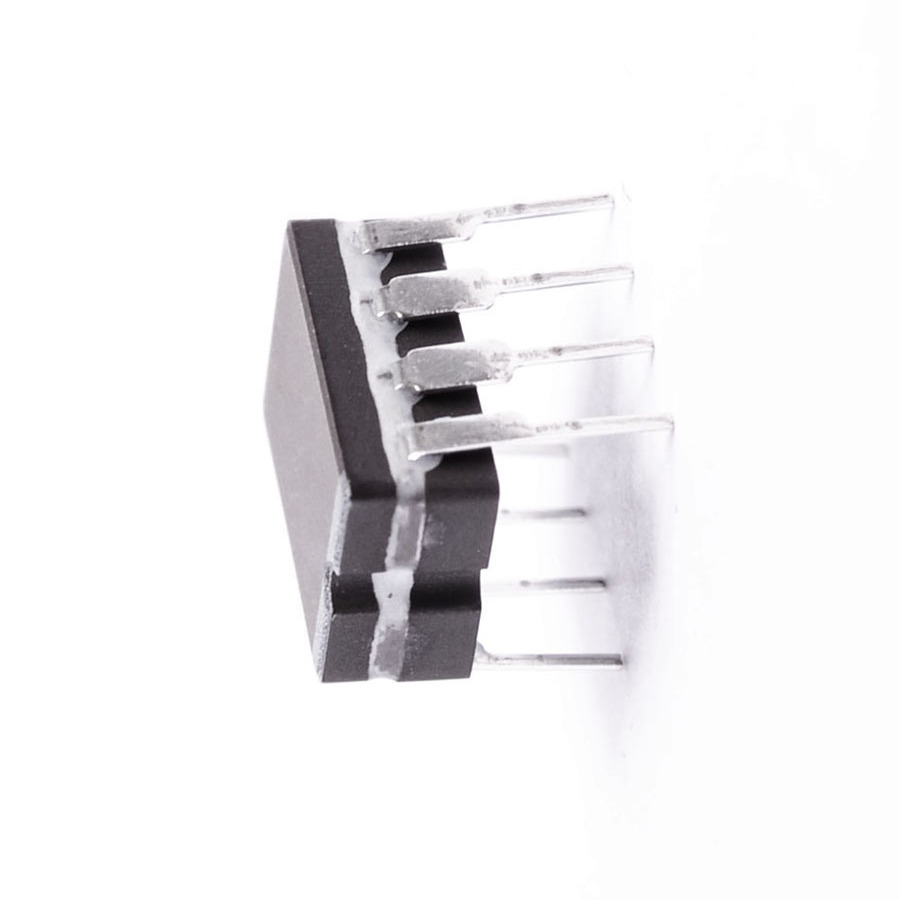

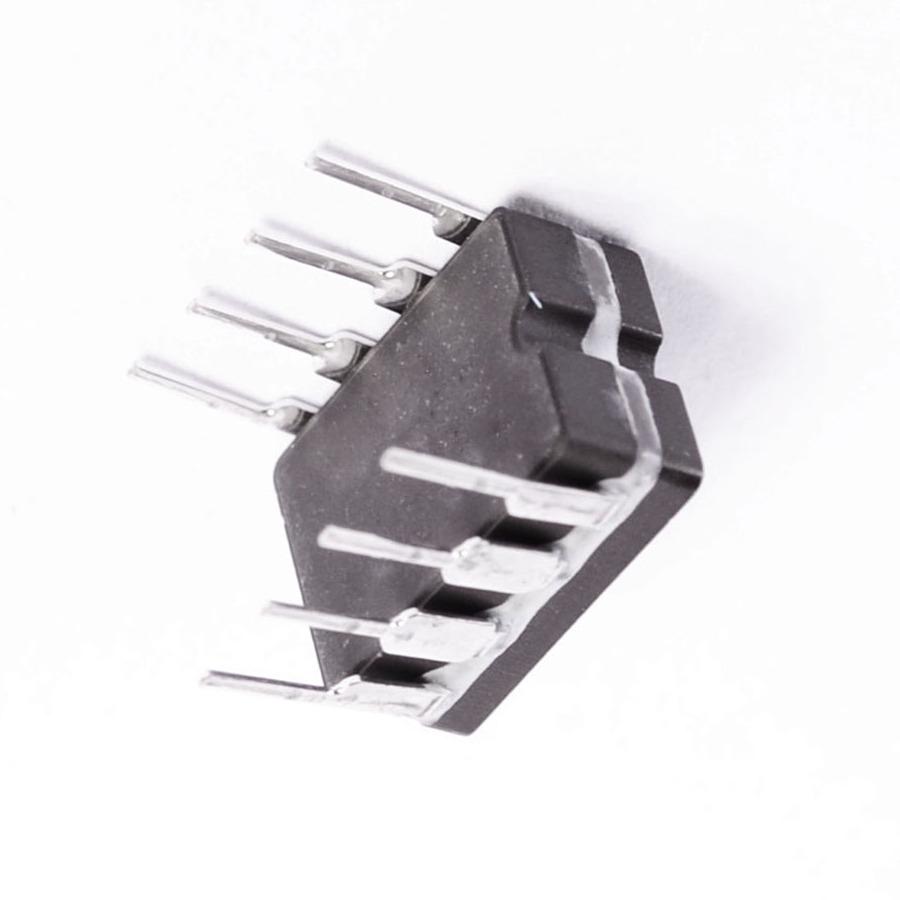

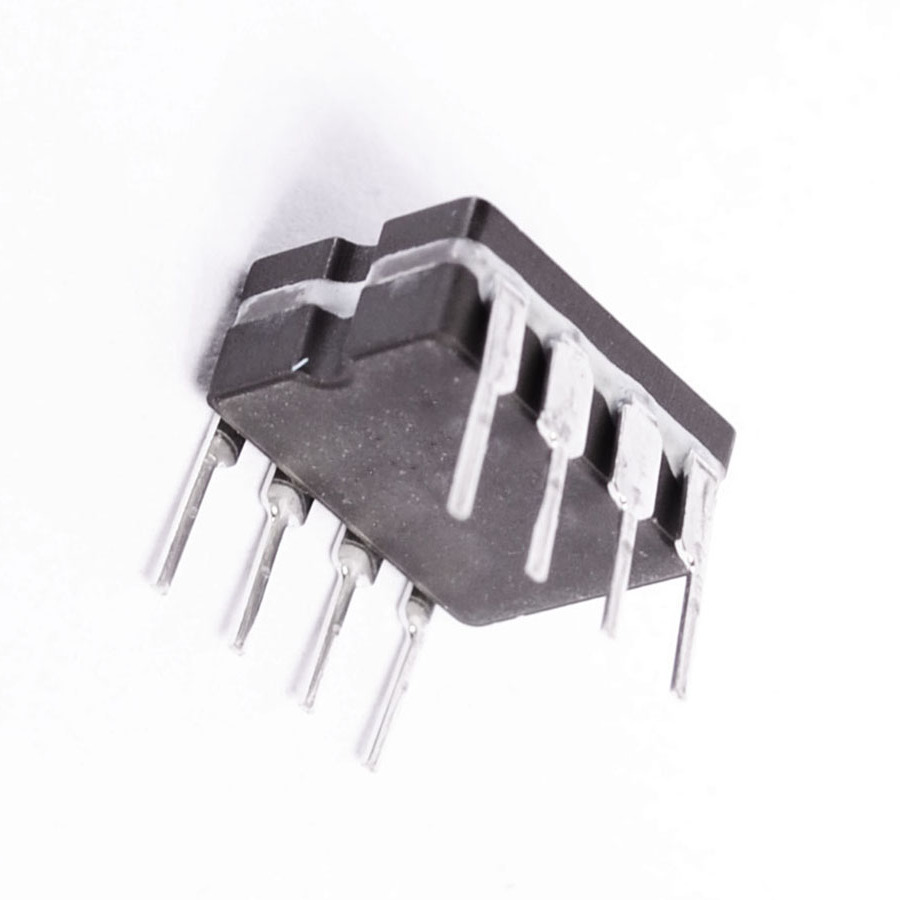

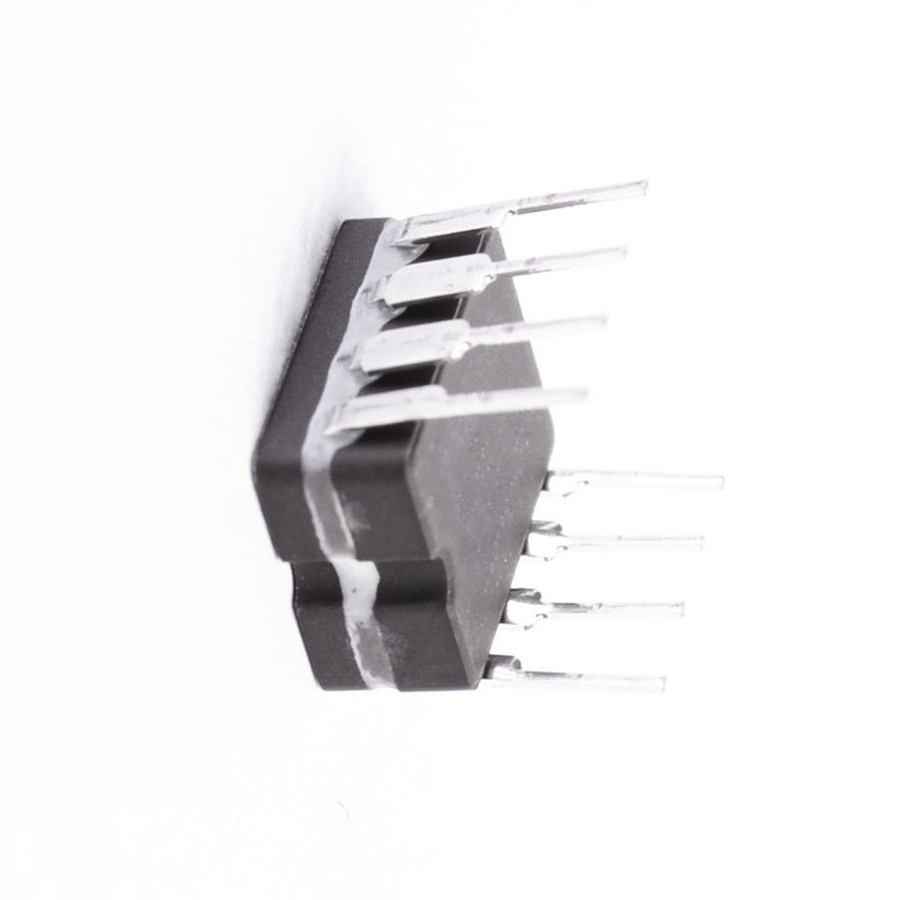

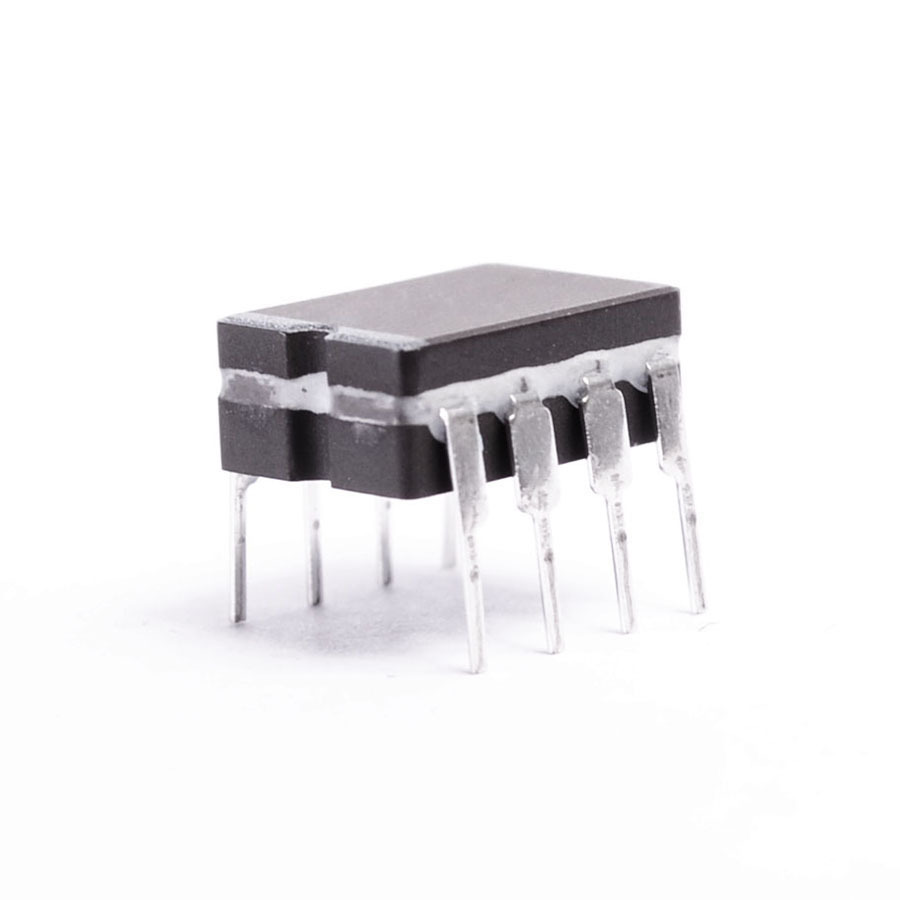

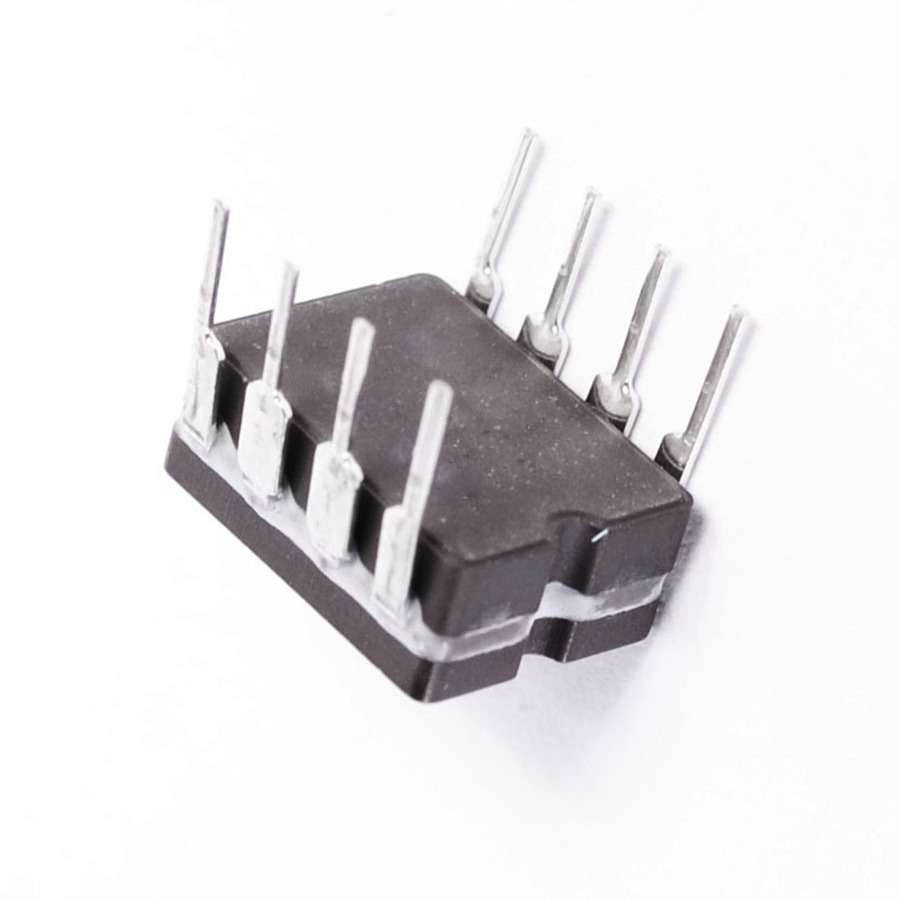

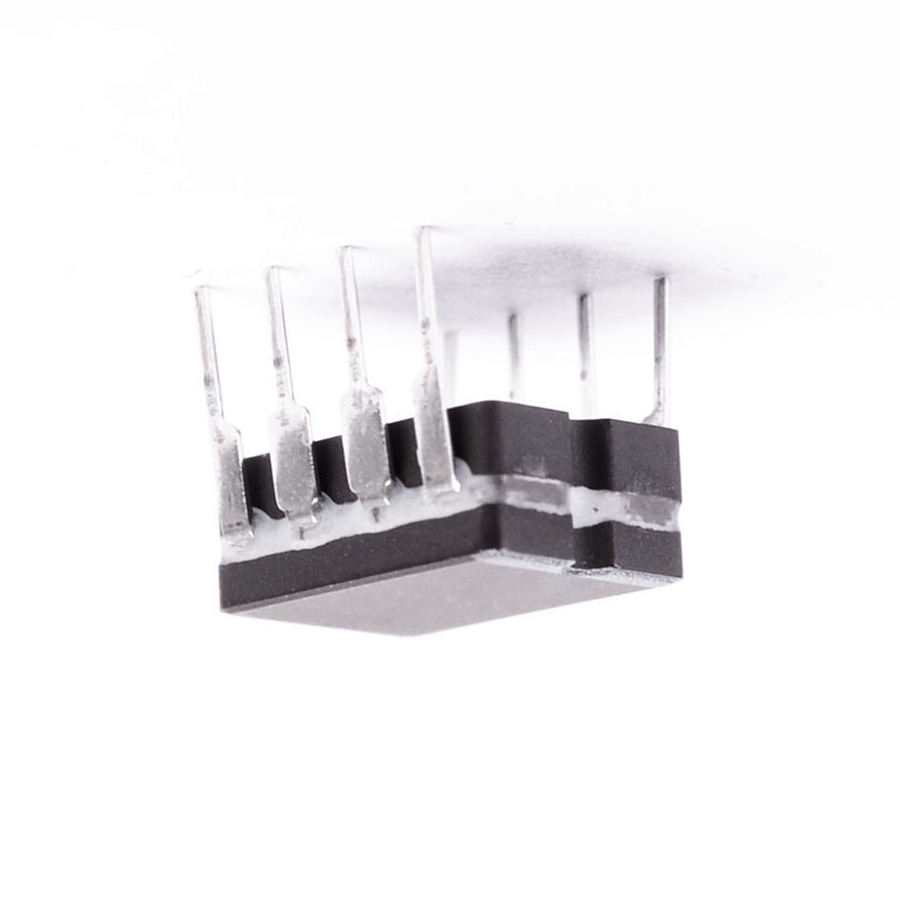

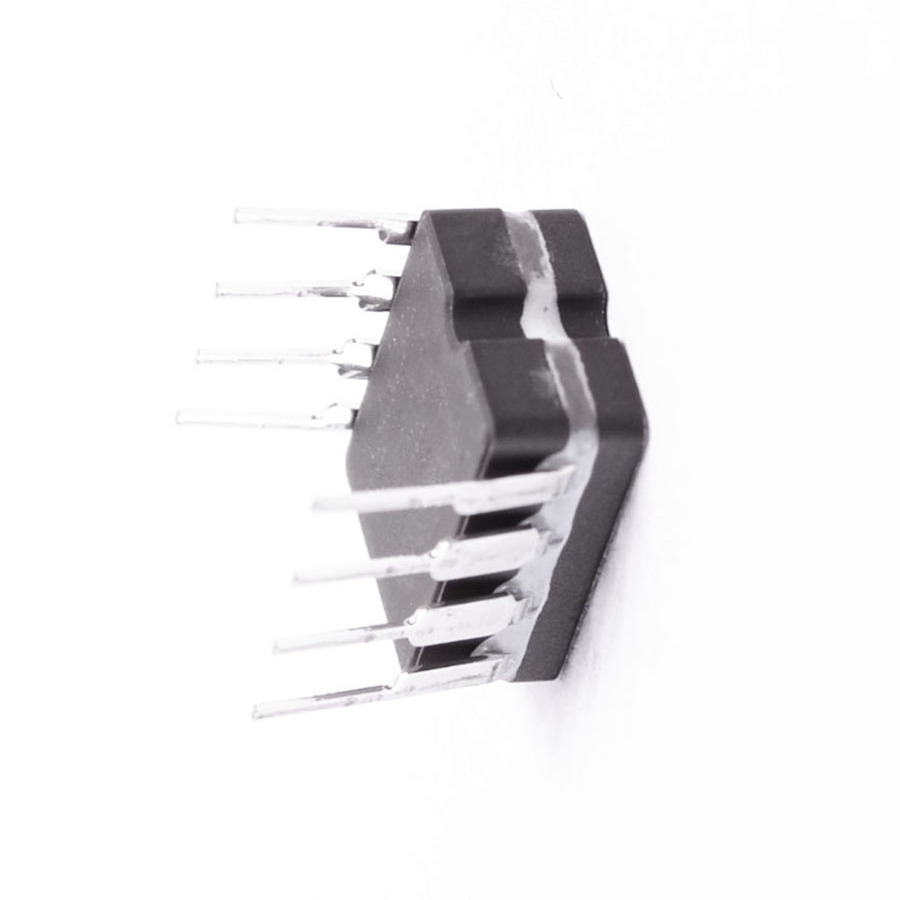

HD75453 Integrated Circuit CASE: DIC8 MAKE: Hitachi
Product specifications
Type Integrated Circuit
Case DIC8
Manufacturer Hitachi
Vih Min (V) 2.0
Vil Max. (V) 0.8
Inp Logic Family DTL,TTL
Output Config Open-Coll.
VOL Max. 0.7
Outp Transis. Ion Max. 300m
PD Max. (W) 800m
tPD Max. (S) 25n
Nom. Supp (V) 5.0
Tech. TTL Integrated Circuit
Logic Funct. OR
Oper. Temp (°C) Min -20
Oper. Temp (°C) Max. 75
VOH Max. 30
@Iol (A) 300m
Pinout Equivalence Number 8-51
No. of Pins 8
Surface Mounted Yes/No NO
SKU 708782
