HEF4755VT

HEF4755VT

SKU: HEF4755VT

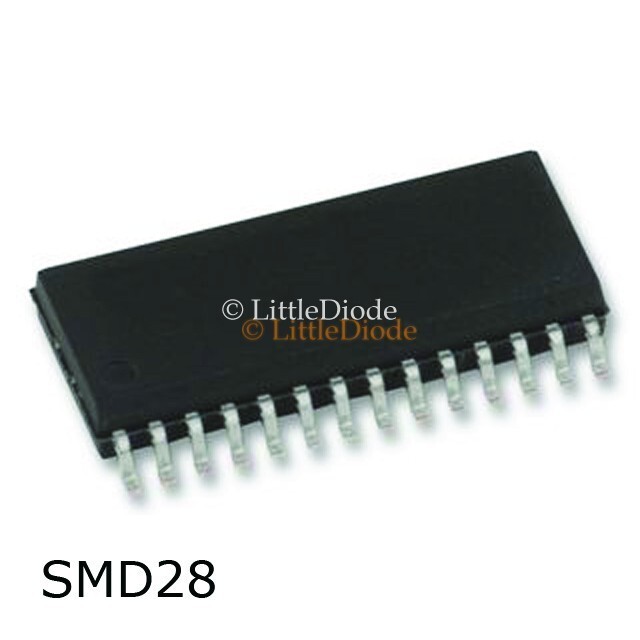

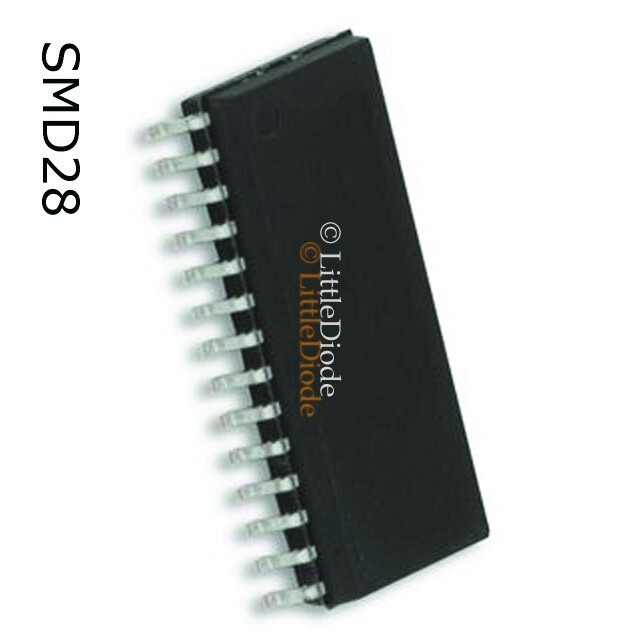

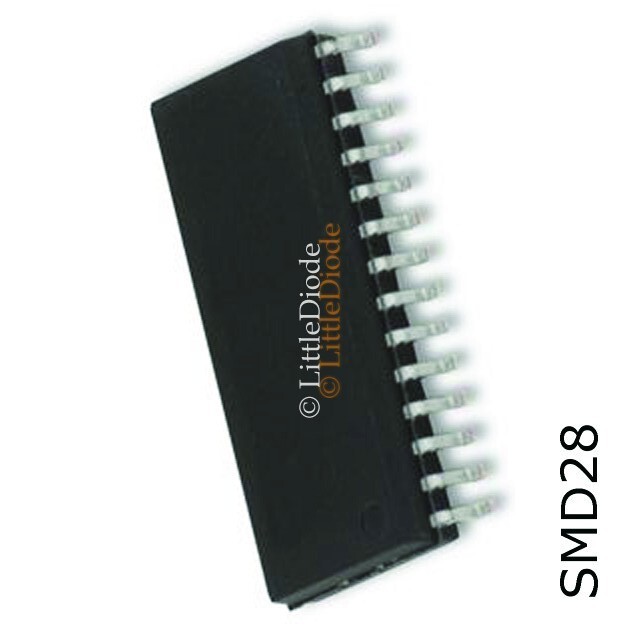

HEF4755VT Integrated Circuit CASE: SMD28 MAKE: Philips
Datasheet
HEF4755VT Datasheet
Product specifications
Type Integrated Circuit
Case SMD28
Manufacturer Philips
Inp Thrshld Hi (V) 7.0
Inp Thrshld Lo (V) 3.0
Mode I/O D or S Single-End
tPD Max. (S) 125n
Nom. Neg Supp 0.0
Nom. Pos. Supp 10
Tech. CMOS Integrated Circuit
Oper. Temp (°C) Min -40
Oper. Temp (°C) Max. 85
@IOL (A) 1.0u
VOL Max. (Drvr) 1.0
VOL Max. (Rcvr) 0.5
VOH Min (Rcvr) 9.0
Pinout Equivalence Number 28-121
No. of Pins 28
Surface Mounted Yes/No YES
SKU 979126
