HN4B102J

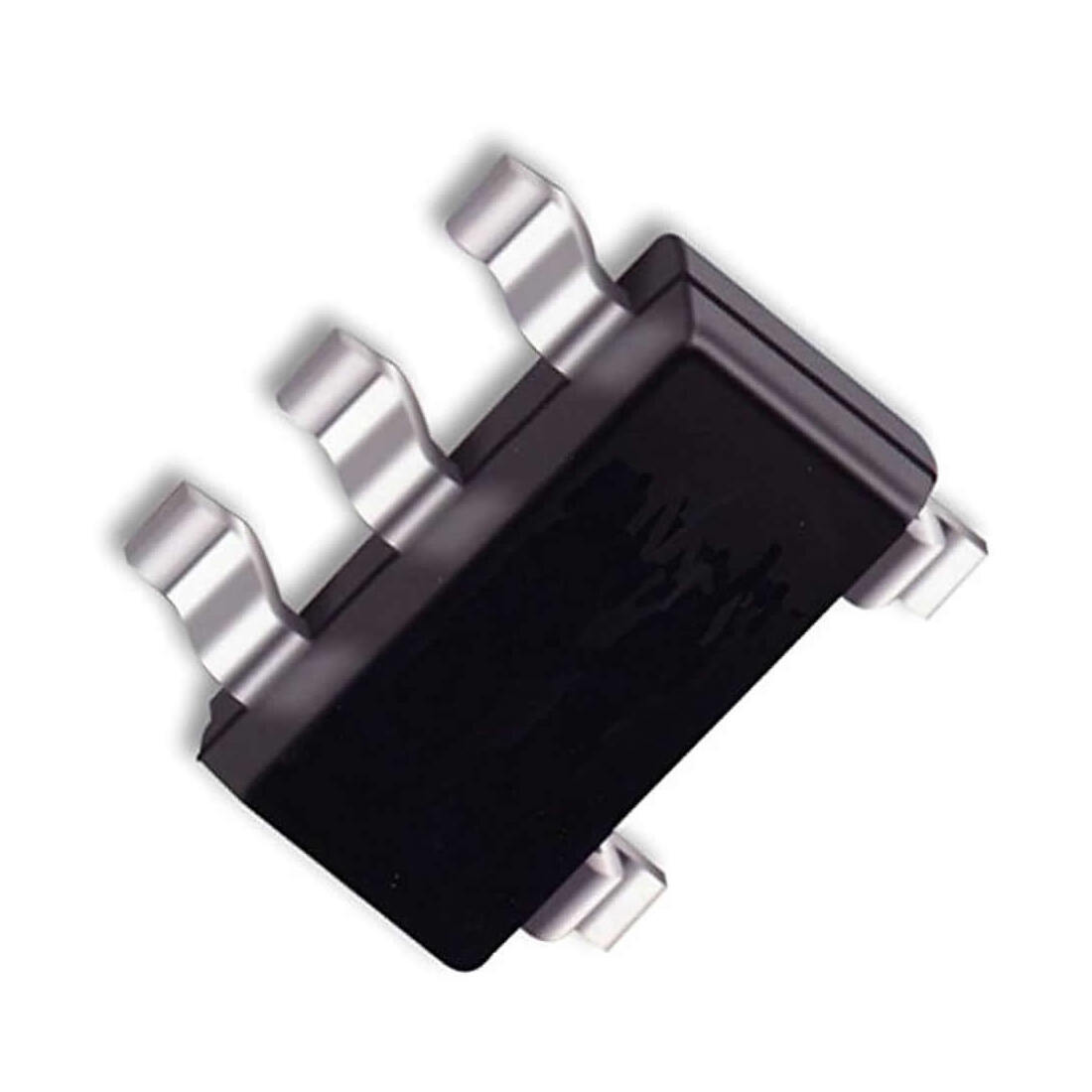

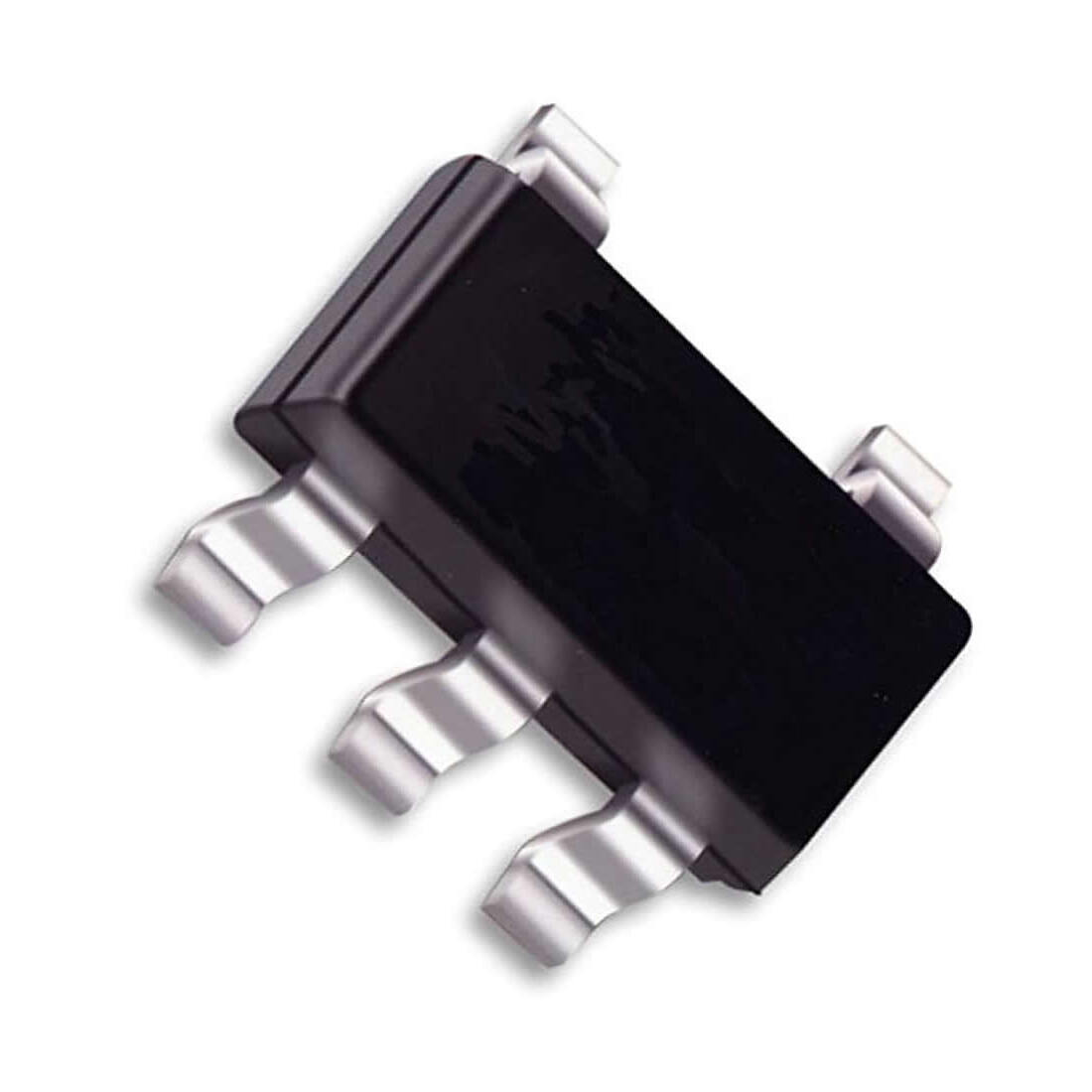

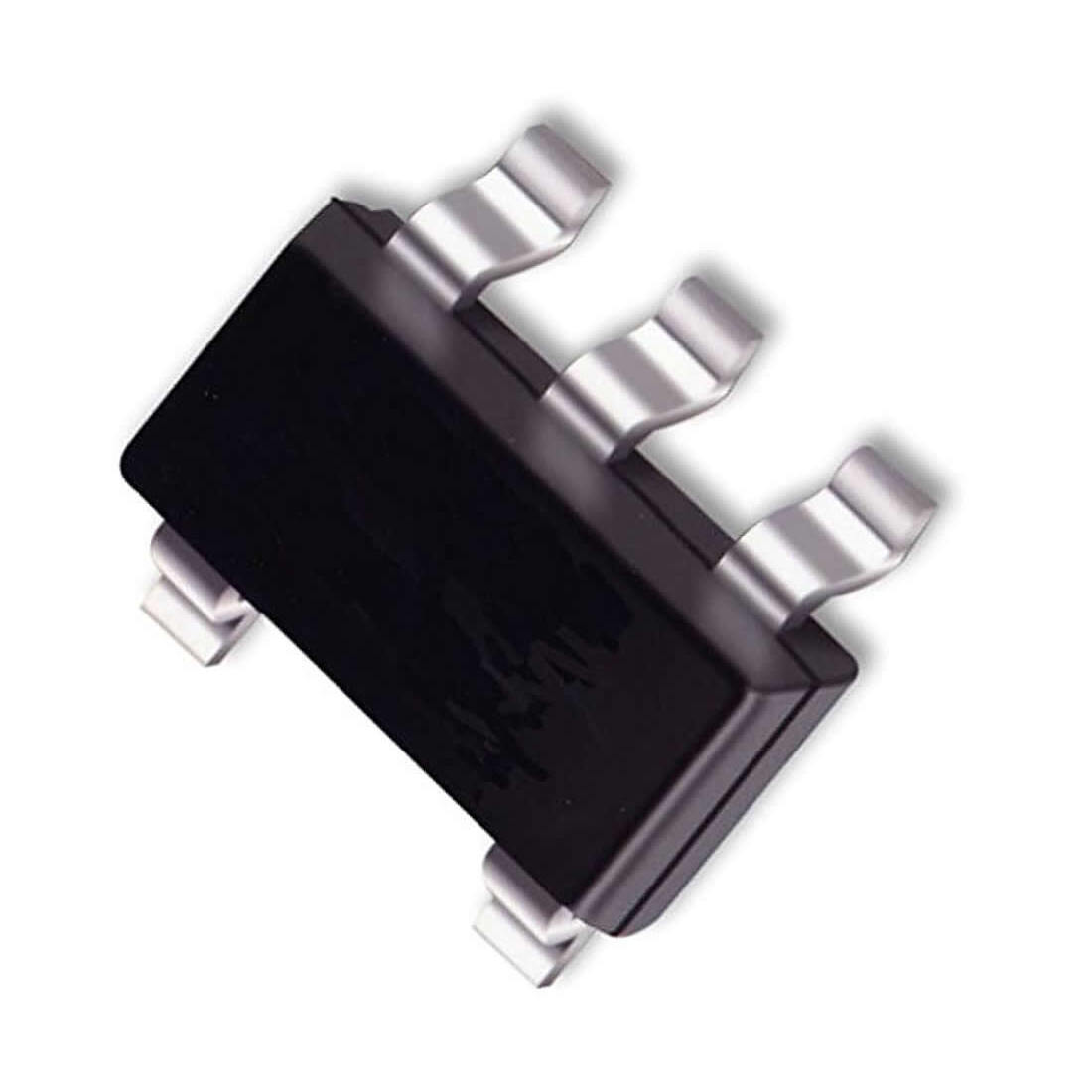

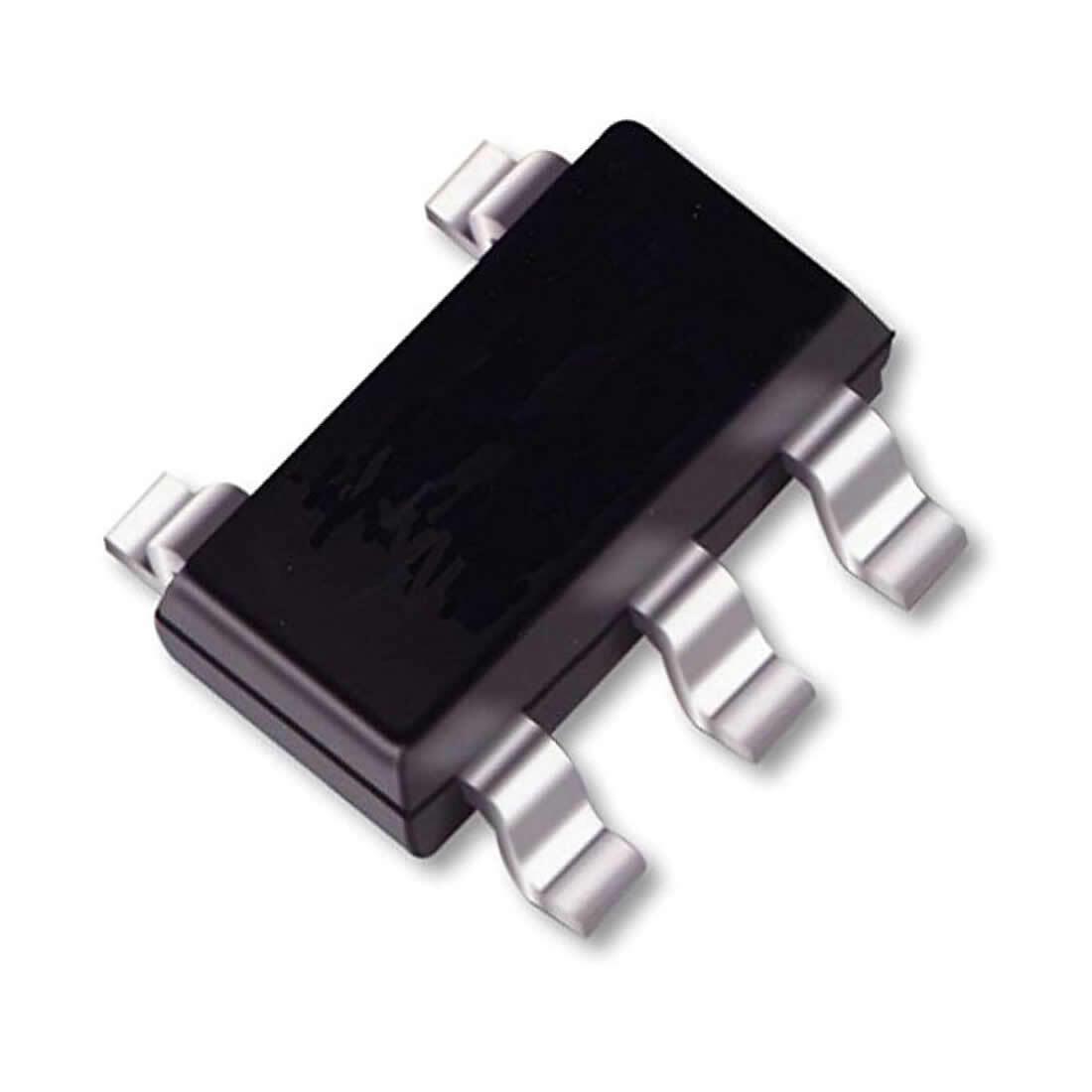

View detailed images (5)

HN4B102J

SKU: HN4B102J
HN4B102J Transistor Silicon NPN - PNP CASE: SOT25 MAKE: Generic
Datasheet
HN4B102J Datasheet
Product specifications
Type Transistor Silicon NPN - PNP

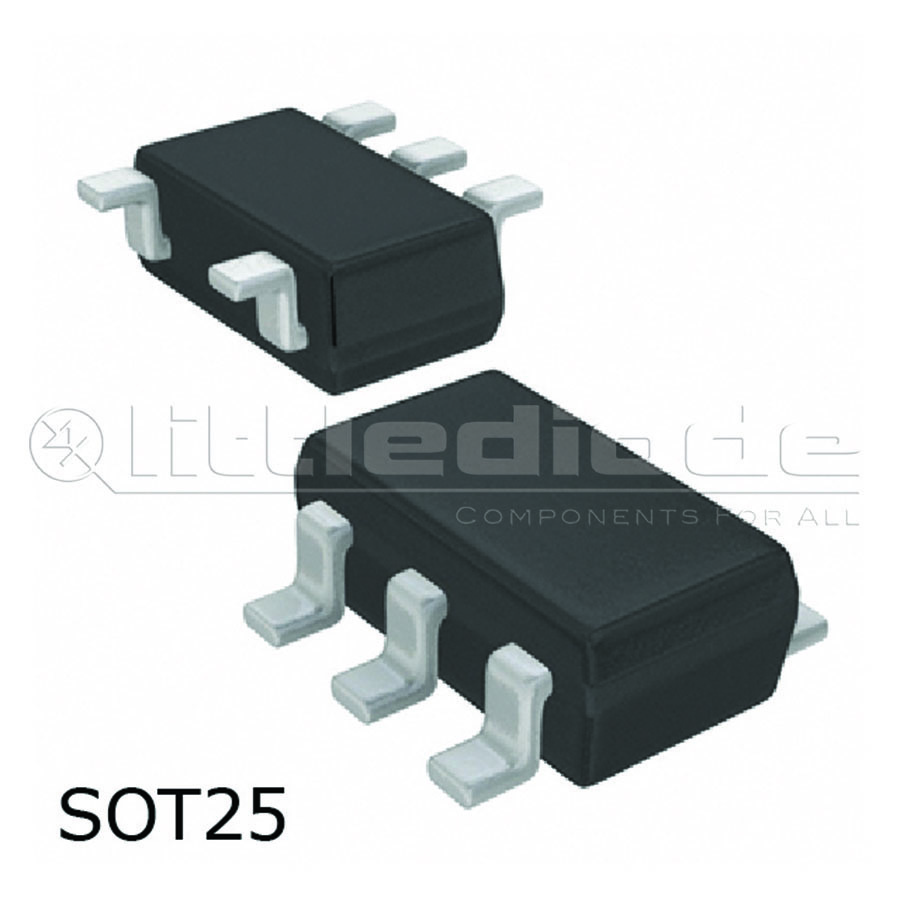

Case SOT25
Manufacturer TOSHIBA
Polarity NPN*PNP
Maximum Collector Power Dissipation (Pc) 0.75 W
Maximum Collector-Base Voltage |Vcb| 30 V
Maximum Collector-Emitter Voltage |Vce| 30 V
Maximum Emitter-Base Voltage |Veb| 7 V
Maximum Collector Current |Ic max| 2 A
Max. Operating Junction Temperature (Tj) 150 °C
Forward Current Transfer Ratio (hFE), MIN 200
SMD Transistor Code 5L
SKU 1432740
