IMX1
View detailed images (5)

IMX1

SKU: IMX1

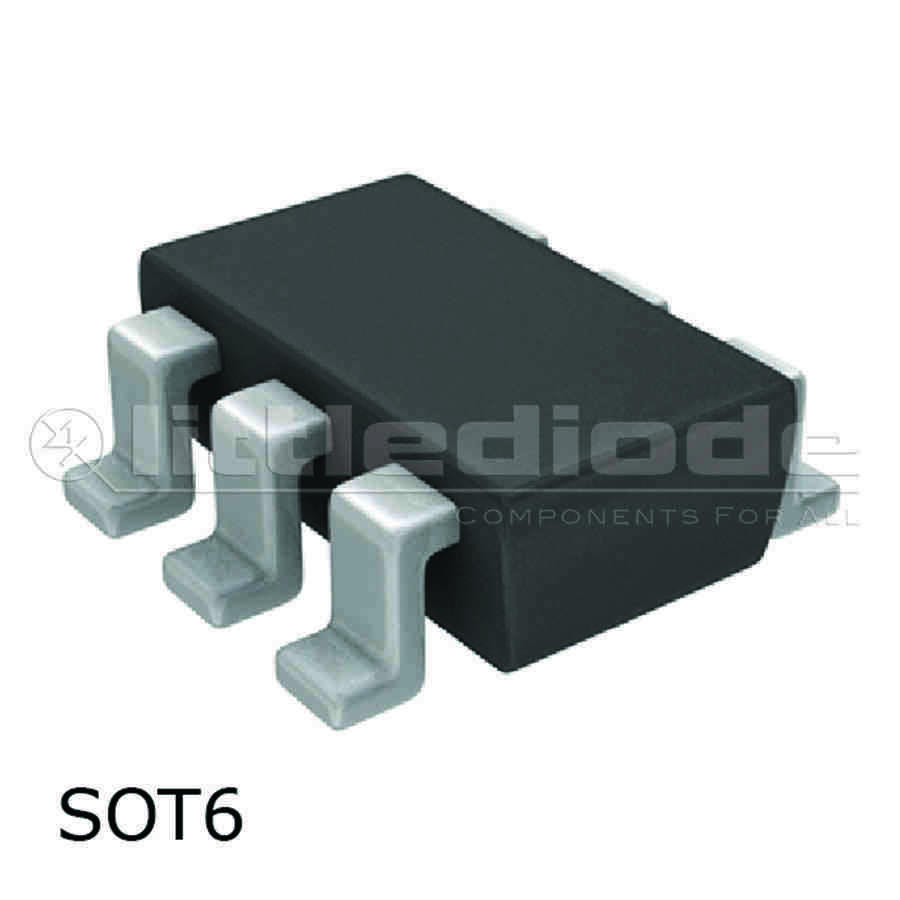

IMX1 Transistor Silicon NPN CASE: SOT6 MAKE: Rohm Semiconductor
Datasheet
IMX1 Datasheet
Product specifications
Type Transistor Silicon NPN
Case SOT6
Manufacturer Rohm Semiconductor
Min hFE 120
Mat. Silicon Logic
Polarity NPN
@VCE (test) (V) 6.0
@Ic (test) 1.0m
Ic Max. 100m
Vceo Max. 40
Pinout Equivalence Number 6-56
Surface Mounted Yes/No YES
Maximum Collector Power Dissipation (Pc) 0.1 W
Maximum Collector-Base Voltage |Vcb| 50 V
Maximum Collector Current |Ic max| 0.15 A
Max. Operating Junction Temperature (Tj) 150 °C
Transition Frequency (ft): 140 MHz
Forward Current Transfer Ratio (hFE), MIN 120
SMD Transistor Code X1
SKU 567191
