Home / Actives / Transistor / IRFR9022
IRFR9022

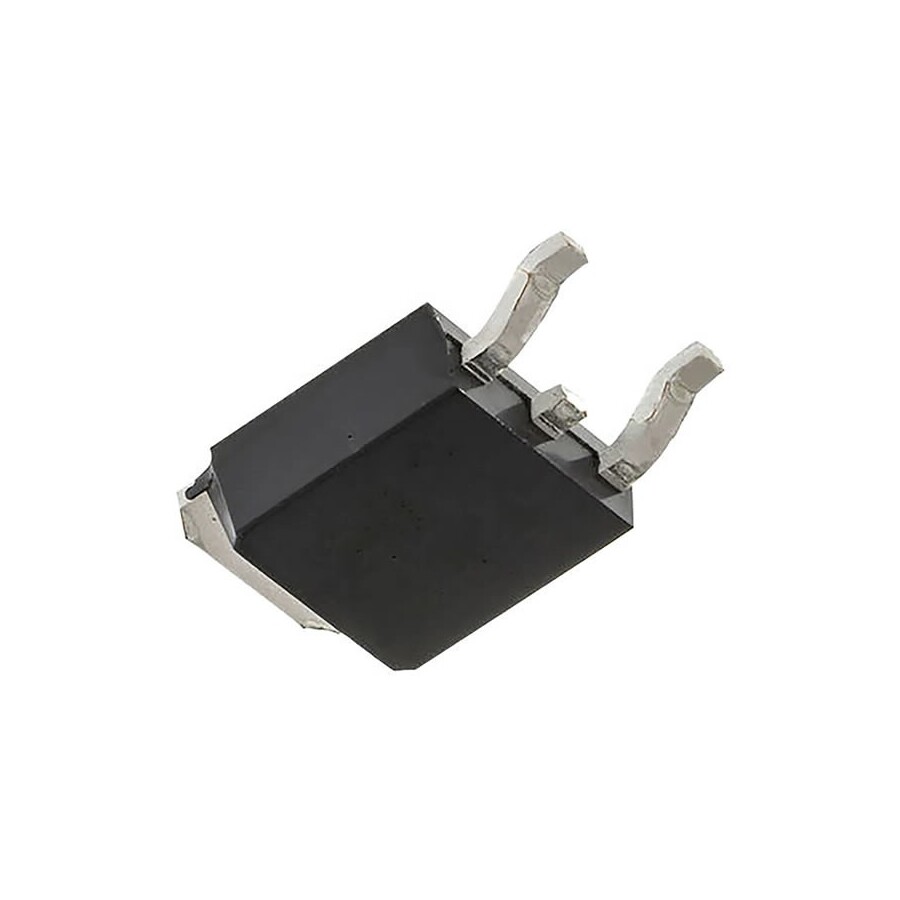

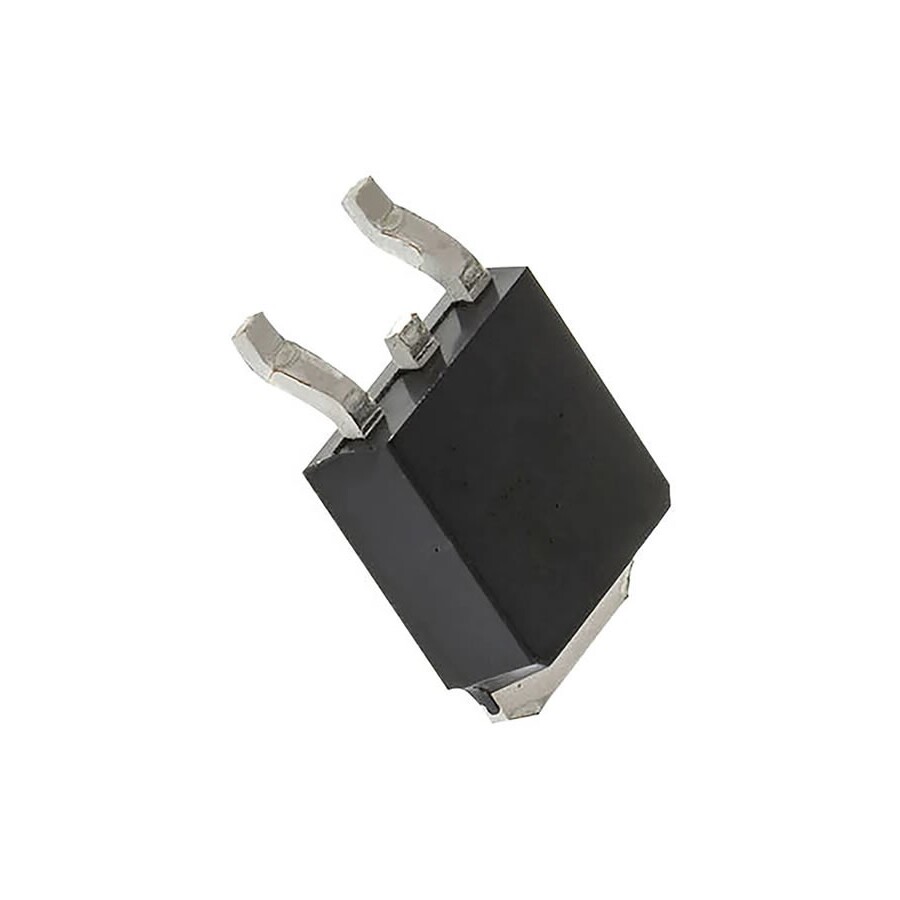

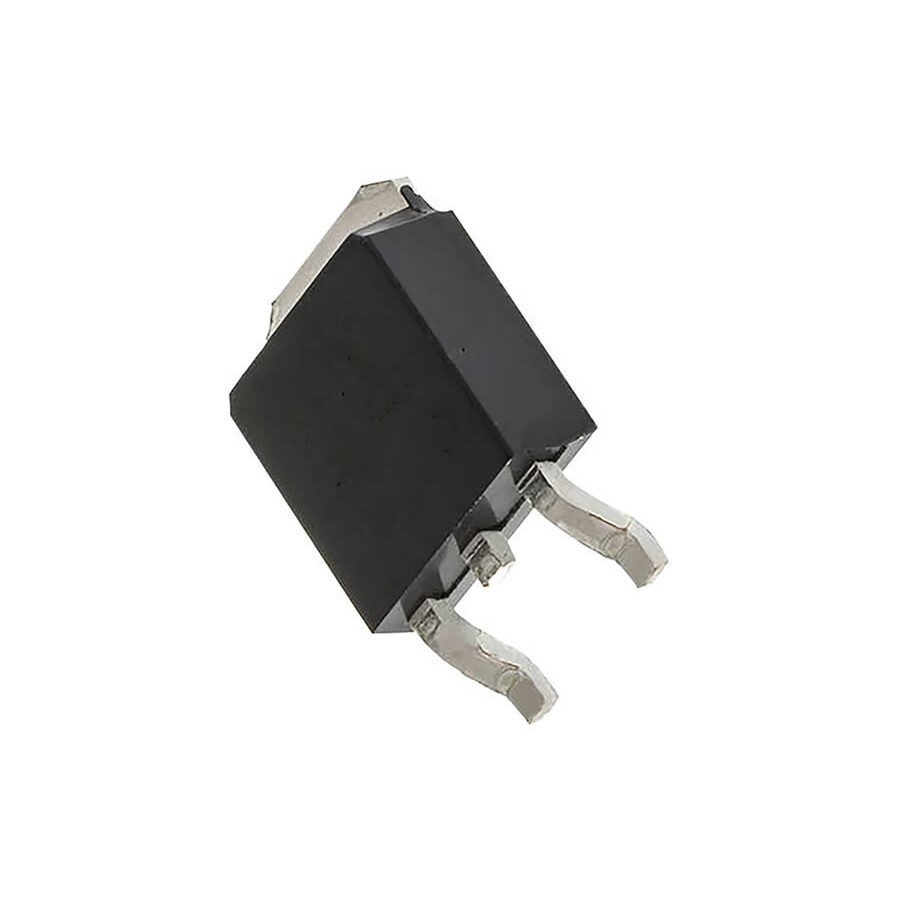

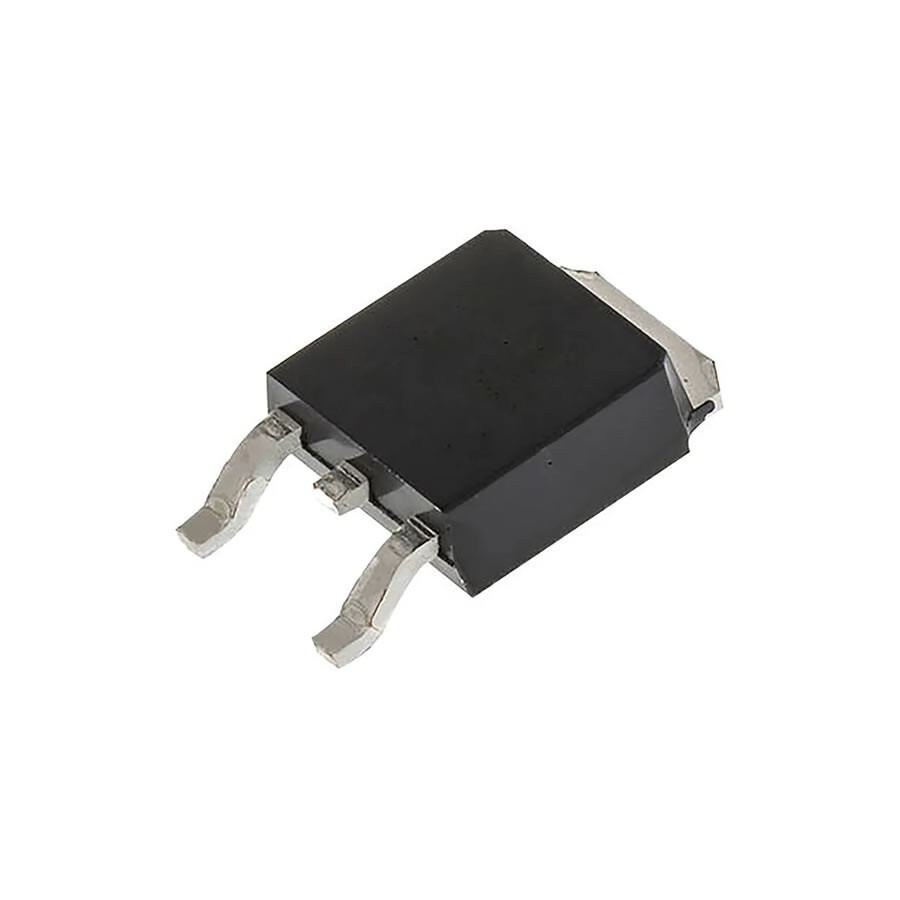

View detailed images (4)

IRFR9022

SKU: IRFR9022
IRFR9022 Transistor CASE: TO252AA MAKE: International Rectifier - IR
Datasheet
IRFR9022 Datasheet
Product specifications
Type Transistor
Case TO252AA
Manufacturer International Rectifier - IR
Vbr DSS 50
Vbr GSS 20
Max. PD (W) 42
Ciss Max. (F) 490p-
td(on) Max (S) 12n
Derate (Amb) (W/°C) 330m
t(f) Max. (S) 38n
gfs Max. 3.5-
gfs Min 2.3m
Id Max. (A) 9.0
Idss Max. (A) 250u
I(d) for G(fs) 5.7
Tr Max. (s) 86n
R(ds) On (Û) 330m
t(stor) Max. (S) 18n
Vp Max. 4.0
Oper. Temp (°C) Max. 150
Pinout Equivalence Number 3-54
Surface Mounted Yes/No YES
SKU 202467
