KBU806
View detailed images (4)

KBU806

SKU: KBU806

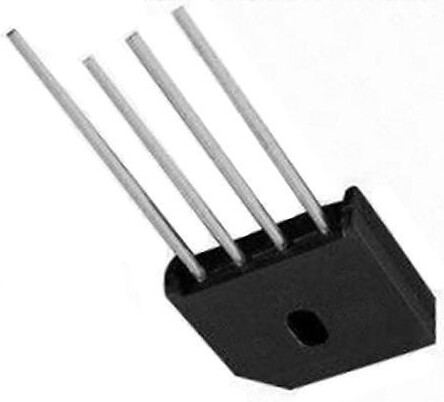

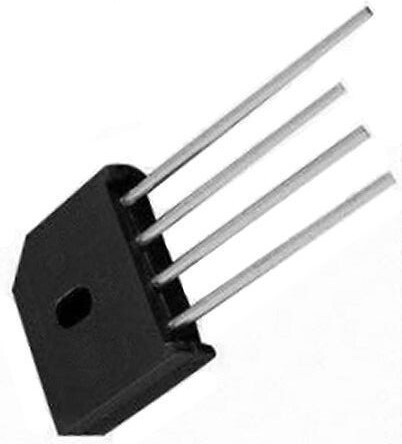

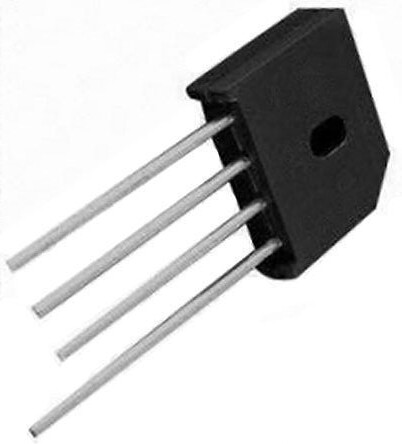

KBU806 is a single-phase full-wave bridge rectifier rated 600 V V(RRM) and 8.0 A. Supplied in a BR-7W package, it converts AC input into DC output for general rectification and power conversion tasks.
Price:
£11.99 Inc. VAT (£9.99 Ex. VAT)
£11.99 Inc. VAT (£9.99 Ex. VAT)
Qty
  • Last 3 pieces Ready to Ship
?
Product specifications
Type Bridge Rectifier Diode
Case BS4
Manufacturer Jinan Gude Electronic Device
@Temp. (test) (°C) 100#
VRRM 600
1-Cycle Surge Current (A) 300
@Temp. (test) for Vf) 25
Vf Max. 1.0
Ir @25°C 10u
I(out) (If AVG) Max. 8.0
@Volts (test) (V) 600
@If (test) 8.0
Oper. Temp (°C) Max. 125
Surface Mounted Yes/No NO
SKU 16949
