Home / Passives / Resistor / KRC661U
KRC661U
View detailed images (5)

KRC661U

SKU: KRC661U
KRC661U Transistor Silicon Pre-Biased-NPN CASE: SOT353 MAKE: Korea Electronics - KEC
Product specifications
Type Transistor Silicon Pre-Biased-NPN

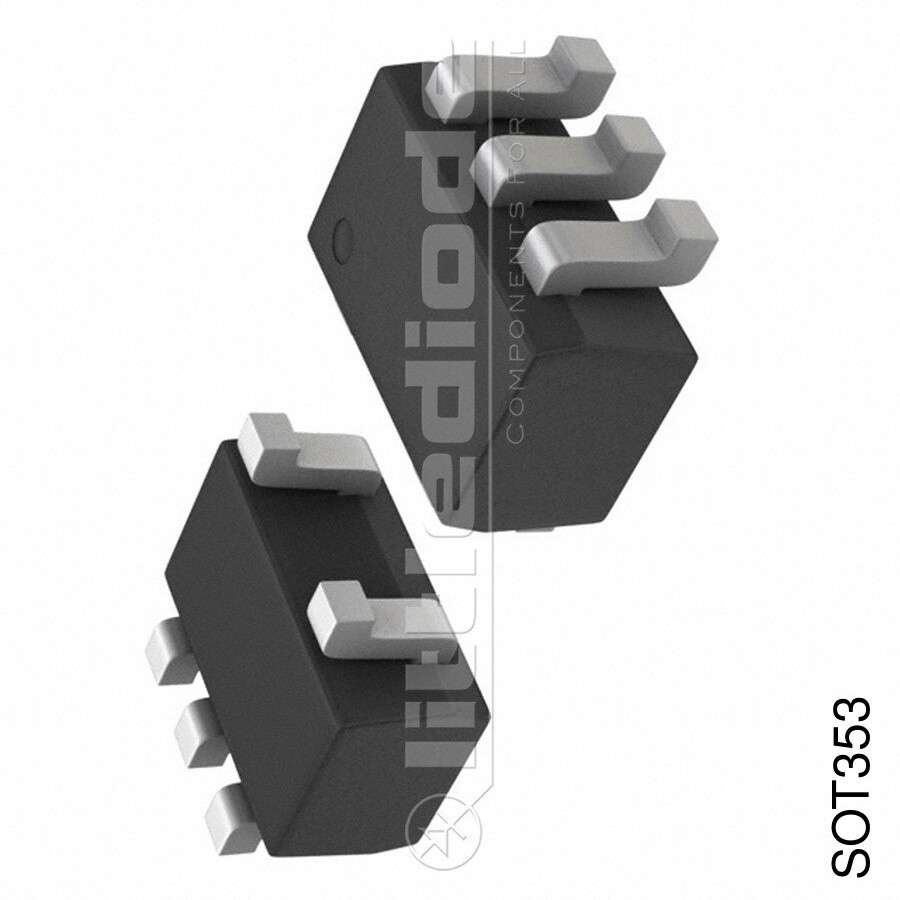

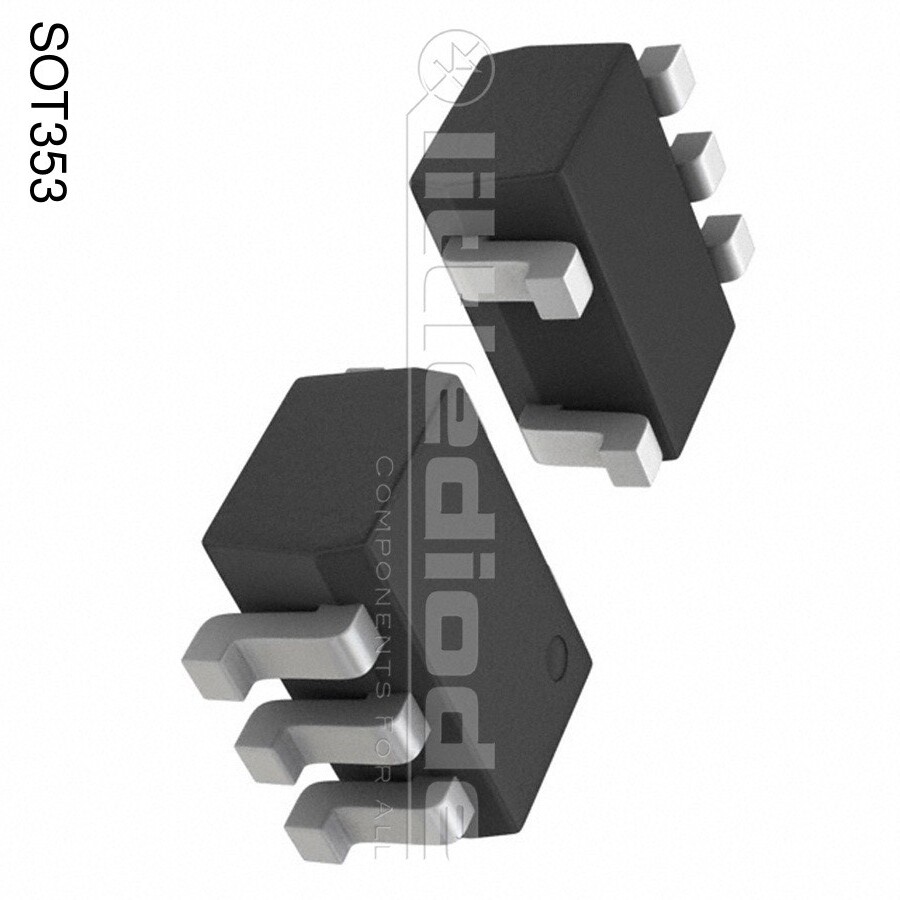

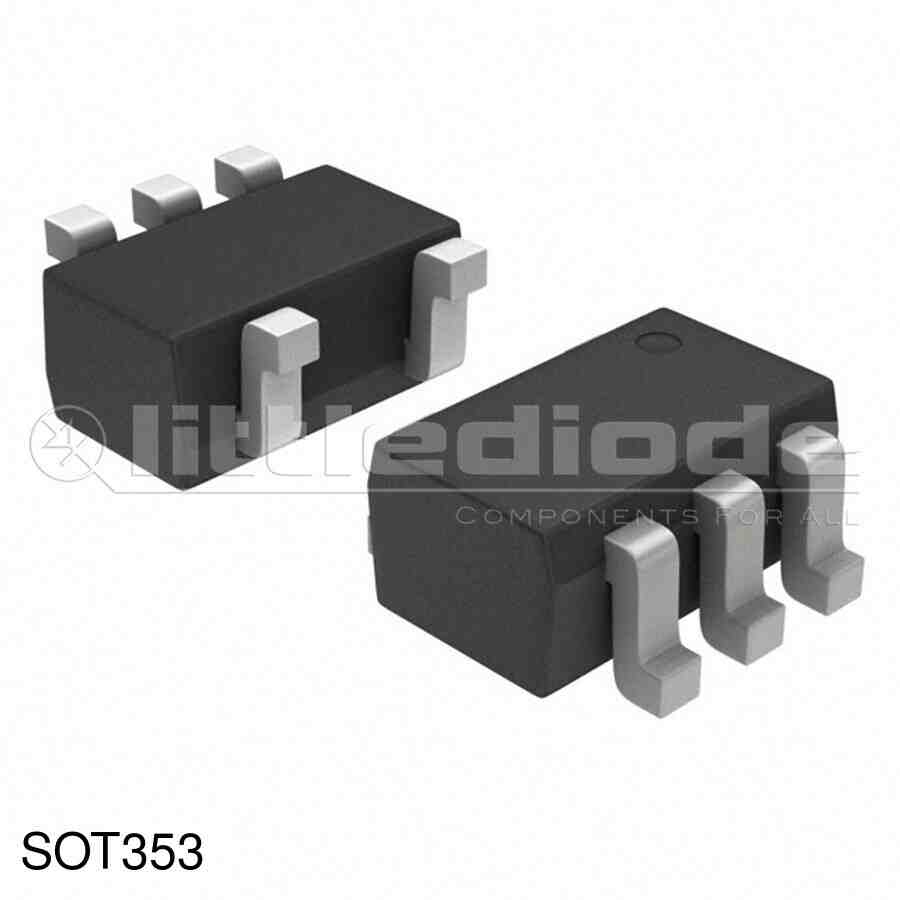

Case SOT353
Manufacturer Korea Electronics - KEC
Polarity Pre-Biased-NPN
Maximum Collector Power Dissipation (Pc) 0.2 W
Maximum Collector-Base Voltage |Vcb| 50 V
Maximum Collector-Emitter Voltage |Vce| 50 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 0.1 A
Max. Operating Junction Temperature (Tj) 150 °C
Transition Frequency (ft): 250 MHz
Forward Current Transfer Ratio (hFE), MIN 120
SMD Transistor Code NM
Built in Bias Resistor R1 10 kOhm
SKU 547834
