KSA634
View detailed images (5)

KSA634

SKU: KSA634

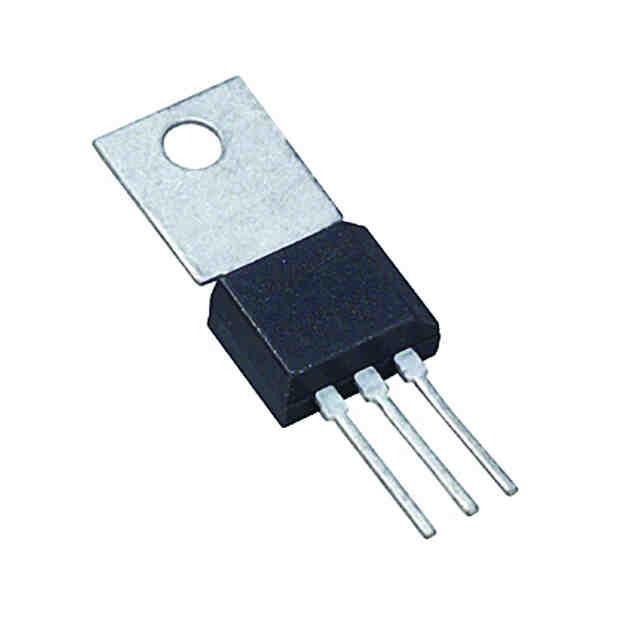

KSA634 Transistor Silicon PNP CASE: SOT128 MAKE: Samsung
Product specifications
Type Transistor Silicon PNP
Case SOT128
Manufacturer Samsung
Vbr CBO 40
Vbr CEO 30
Max. PD (W) 10
Max. hFE 240
Min hFE 40
Ic Max. (A) 2.0
@Ic (test) (A) 1.0
Icbo Max. @Vcb Max. (A) 1.0u
Polarity PNP
Oper. Temp (°C) Max. 140
@VCE (V) 5.0
Pinout Equivalence Number 3-15
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 10 W
Maximum Collector-Emitter Voltage |Vce| 30 V
Maximum Collector Current |Ic max| 2 A
Max. Operating Junction Temperature (Tj) 150 °C
Forward Current Transfer Ratio (hFE), MIN 40
SKU 569302
