KSC1096
View detailed images (5)

KSC1096

SKU: KSC1096

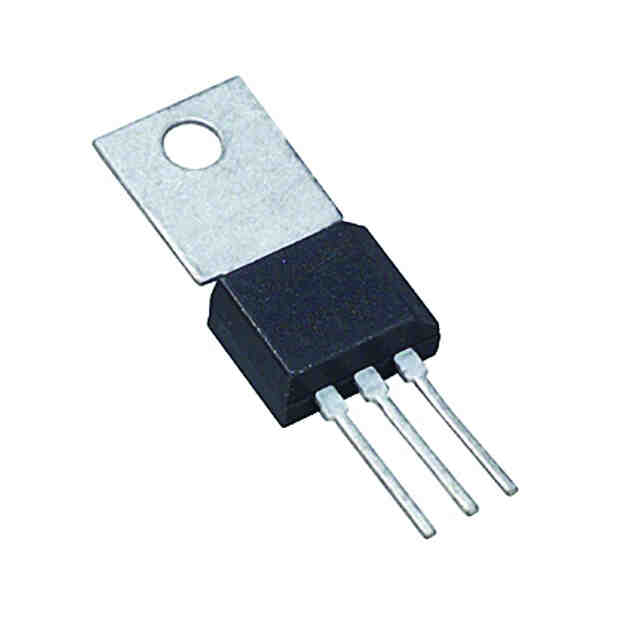

KSC1096 Transistor Silicon NPN CASE: SOT128 MAKE: Samsung
+ VAT 20% for UK purchases
Product specifications
Type Transistor Silicon NPN
Case SOT128
Manufacturer Samsung
Vbr CBO 40
Vbr CEO 30
Max. PD (W) 10
Max. hFE 240
Min hFE 40
Ic Max. (A) 2.0
@Ic (test) (A) 1.0
Icbo Max. @Vcb Max. (A) 1.0u
Polarity NPN
Oper. Temp (°C) Max. 140
@VCE (V) 5.0
Pinout Equivalence Number 3-15
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 10 W
Maximum Collector-Base Voltage |Vcb| 30 V
Maximum Collector-Emitter Voltage |Vce| 30 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 2 A
Max. Operating Junction Temperature (Tj) 150 °C
Forward Current Transfer Ratio (hFE), MIN 40
SKU 569466
