KSC3233
View detailed images (5)

KSC3233

SKU: KSC3233

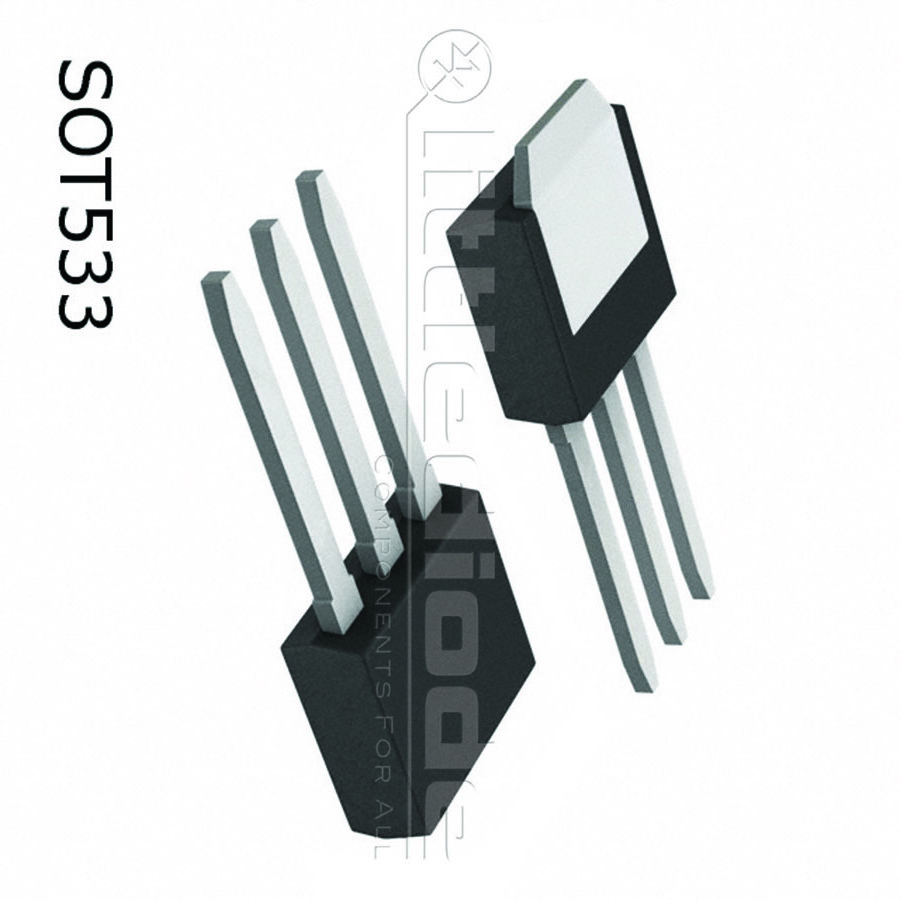

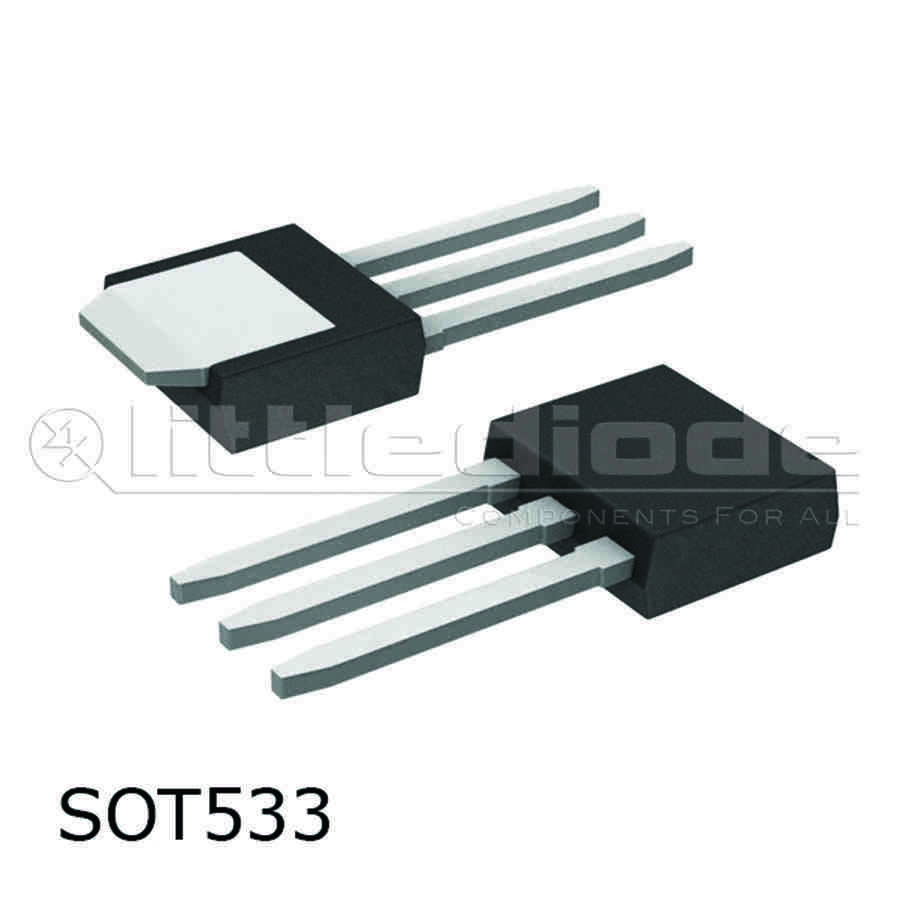

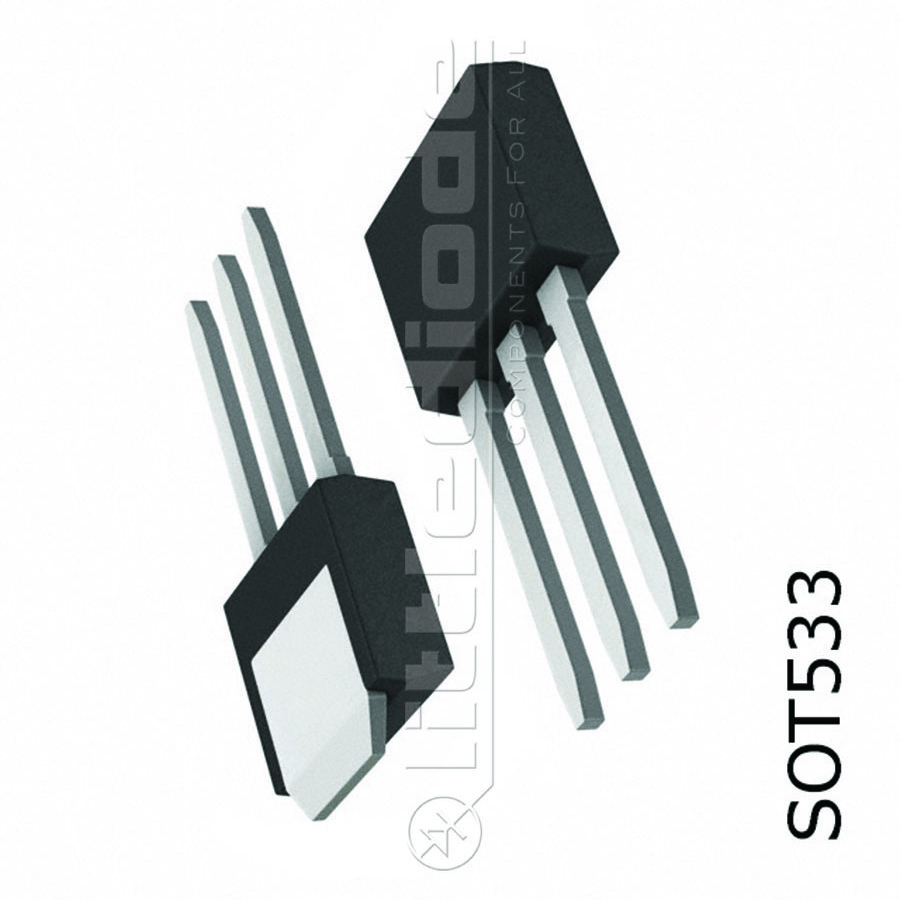

KSC3233 Transistor Silicon NPN CASE: SOT533 MAKE: Samsung
Product specifications
Type Transistor Silicon NPN
Case SOT533
Manufacturer Samsung
Vbr CBO 500
Vbr CEO 400
Max. PD (W) 20
t(f) Max. (S) 1.0u
Min hFE 20
Ic Max. (A) 2.0
@Ic (test) (A) 100m
Icbo Max. @Vcb Max. (A) 100u
Polarity NPN
Derate Above 25°C 160m
Oper. Temp (°C) Max. 150
@VCE (V) 5.0
Pinout Equivalence Number N/A
Surface Mounted Yes/No YES
Maximum Collector Power Dissipation (Pc) 20 W
Maximum Collector-Base Voltage |Vcb| 500 V
Maximum Collector-Emitter Voltage |Vce| 400 V
Maximum Emitter-Base Voltage |Veb| 7 V
Maximum Collector Current |Ic max| 2 A
Max. Operating Junction Temperature (Tj) 150 °C
Forward Current Transfer Ratio (hFE), MIN 20
SKU 569510
